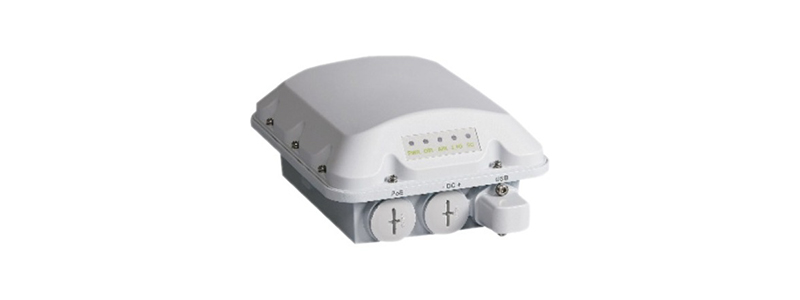

Figure 1 shows the appearance of 901-T310-WW51.
Table1 shows the Quick Specs.
SKU | 901-T310-WW51 |
Concurrent Users | 512 |
Ethernet Ports | 1 x 1GbE |
Fiber Interface | No |
USB | 1 USB 2.0 port, Type A |
PHY Rate at 2.4 GHz, maximum | 300 Mb/s |
PHY Rate at 5 GHz, maximum | 867 Mb/s |
Radio Chains and Streams | 2x2:2 |

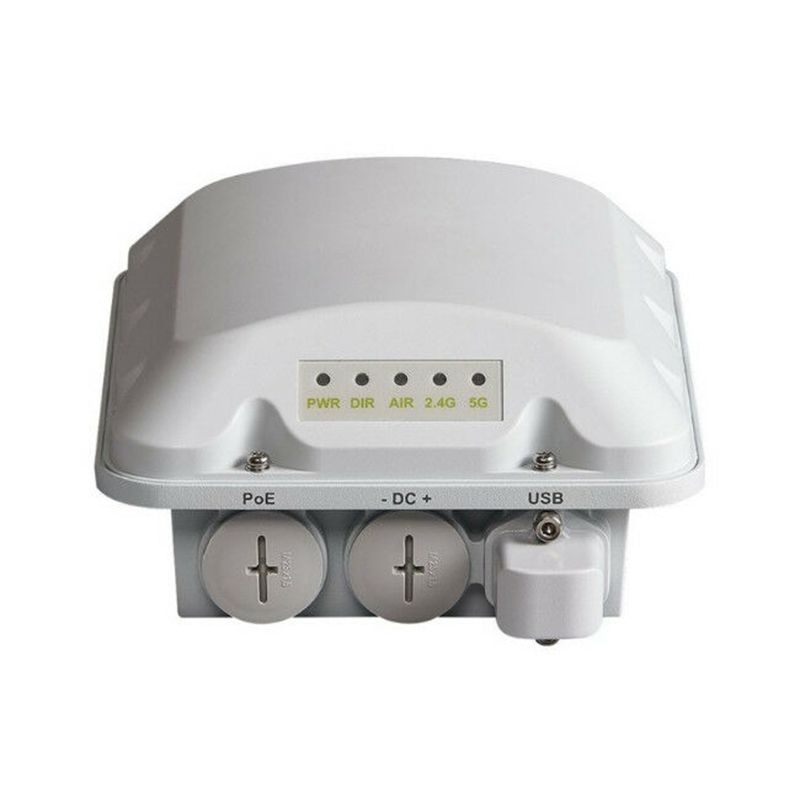

Figure 2 shows the front panel of 901-T310-WW51.

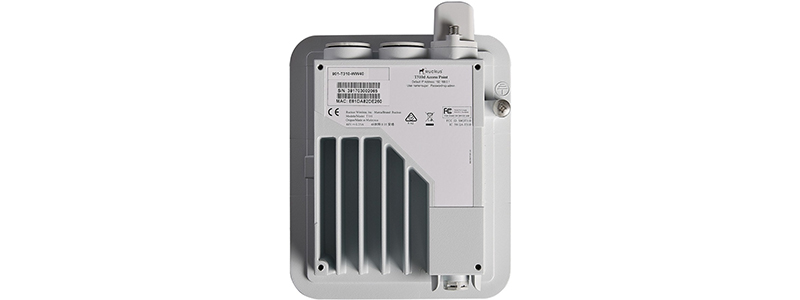

Figure 3 shows the back panel of 901-T310-WW51.
RUCKUS -901-T310-WW51 has these key features:
①Variety
One size does NOT fit all. The T310 series offers the broadest variety of APs in the market today with options of power, antenna design, and/or IoT support. All these enable customers to meet specific use case needs that may not be possible with standard APs.
②Simplicity
Ruckus’ Outdoor APs make Wi-Fi deployments extremely simple to deploy with one-touch technologies like SmartMesh™.
③Stunning Wi-Fi Performance
Extends coverage with patented BeamFlex+TM adaptive antenna technology while mitigating interference by utilizing up to 64 directional antenna patterns.
④Great Outdoor Wi-Fi
Experience high performance outdoor 802.11ac Wave 2 Wi-Fi with IP-67 weather proofing.
⑤Multiple Management Options
Manage the T310 Series with physical or virtual controller appliances.
⑥Serve More Devices
Connect more devices simultaneously with two MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while also enhancing non-Wave 2 device performance.
⑦Get Optimal Throughput
ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
⑧More Than Wi-Fi
Enhance your network with Cloudpath security and management software, SPoT real-time Wi-Fi location engine and analytics software, and SCI network analytics.
Table 2 shows the comparison.
Product Name | 901-T310-WW51 | |||
Ethernet | 1 x 1GbE port, RJ-45 | 1 x 1GbE port, RJ-45 | 1 x 1GbE port, RJ-45 | 1 x 1GbE port, RJ-45 |
USB | 1 USB 2.0 port, Type A | No | 1 USB 2.0 port, Type A | 1 USB 2.0 port, Type A |
DC Power | 12V DC Terminal Block (8V - 20V) | No | 12V DC Terminal Block (8V - 20V) | 12V DC Terminal Block (8V - 20V) |
Physical Size | 26(L) x 20.9(W) x 10.3(H) cm | 18.1(L) x 15.1(W) x 7.9 (H) cm | 18.1(L) x 15.1(W) x 7.9 (H) cm | 26(L) x 20.9(W) x 10.3(H) cm |
Ingress Protection | IP-67 | IP-67 | IP-67 | IP-67 |
901-T310-WW51 Specification | |
WI-FI | |
Wi-Fi Standards | IEEE 802.11a/b/g/n/ac Wave 2 |
Supported Rates | 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS=1to2 for VHT20/40/80 802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15) 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps 802.11b: 11, 5.5, 2 and 1 Mbps |
Supported Channels | 2.4GHz: 1-13 5GHz: 36-64, 100-144, 149-165 |
MIMO | 2x2 SU-MIMO 2x2 MU-MIMO |
Spatial Streams | 2 SU-MIMO 2 MU-MIMO |
Radio Chains and Streams | 2x2:2 |
Channelization | 20, 40, 80MHz |
Security | WPA-PSK, WPA-TKIP, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, AES, 802.11i, Dynamic PSK WIPS/WIDS |
Other Wi-Fi Features | WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v Hotspot, Hotspot 2.0 Captive Portal WISPr |
Antenna Type | BeamFlex+ adaptive antennas with polarization diversity |
BeamFlex+ SINR Transmit Power Gain | Up to 6 dB |
Ruckus Radio Management | |
Antenna Optimization | BeamFlex+ Polarization Diversity with Maximal Ratio Combining (PD-MRC) |
Wi-Fi Channel Management | ChannelFly Background Scan Based |
Client Density Management | Adaptive Band Balancing Client Load Balancing Airtime Fairness Airtime-based WLAN Prioritization |
SmartCast Quality of Service | QoS-based scheduling Directed Multicast L2/L3/L4 ACLs |
Mobility | SmartRoam |
Diagnostic Tools | Spectrum Analysis SpeedFlex |
Networking | |
Controller Platform Support | SmartZone ZoneDirector Unleashed Cloud Standalone |
Mesh | SmartMesh™ wireless meshing technology. Self-healing Mesh |
IP | IPv4, IPv6 |
VLAN | 802.1Q (1 per BSSID or dynamic per use based on RADIUS) VLAN Pooling Port-based |
802.1x | Authenticator & Supplicant |
Tunnel | L2TP, GRE, soft-GRE |
Policy Management Tools | Application Recognition and Control Access Control Lists Device Fingerprinting Rate Limiting |
IoT Capbale | Yes |
Physical Interfaces | |
Ethernet | 1 x 1GbE port, RJ-45 |
USB | 1 USB 2.0 port, Type A |
Ingress Protection | IP-67 |
Physical Characteristics | |
Physical Size | 18.1(L) x 15.1(W) x 7.9 (H) cm 7.1(L) x 5.9(W) x 3.1(H) in. |
Ingress Protection | IP-67 |
Mounting | Wall, Drop ceiling, Desk Pole Mount Diameter 1" to 2.5" |
Operating Temperature | -20ºC -(4ºF) to 65ºC (149ºF) |
Operating Humidity | Up to 95%, non-condensing |
Performance And Capacity | |
Peak PHY Rates | 2.4GHz: 300Mbps 5GHz: 867Mbps |
Client Capacity | Up to 512 clients per AP |
SSID | Up to 31 per AP |
