R310
Ruckus
100% Original brand
1 year
| Quantity: | |
|---|---|

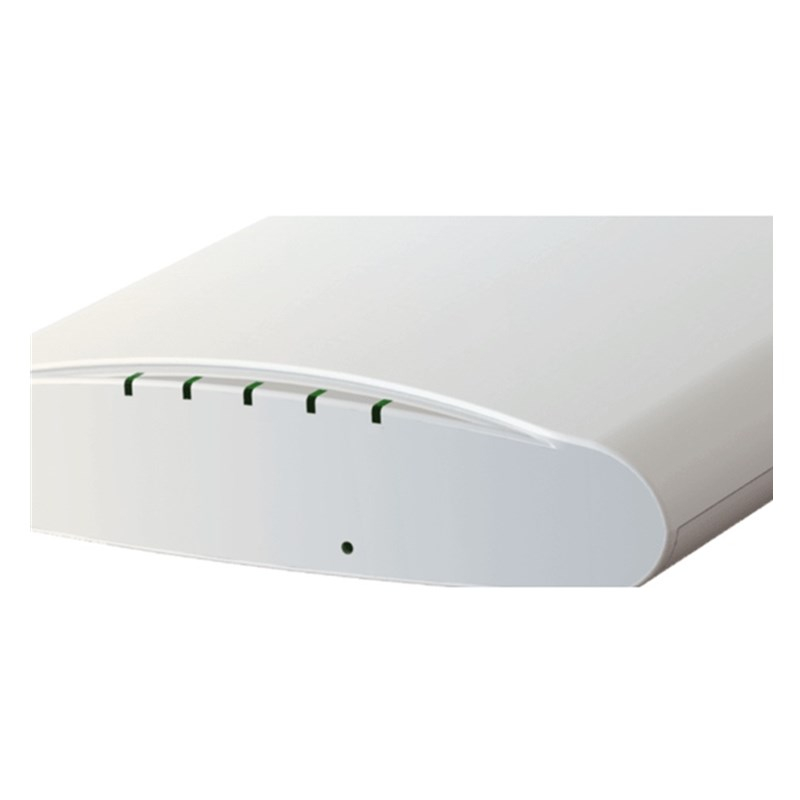

The Ruckus ZoneFlex R310 delivers high-performance and reliable 802.11ac wireless networking at the industry’s most affordable price point.
Ruckus ZoneFlex R310 Key Features
Blazing fast 802.11ac speeds at the lowest cost in its class
Dual-band concurrent (2.4GHz/5GHz) 802.11ac
Adaptive antenna technology and advanced RF management
Up to an additional 4dB BeamFlex gain / 10dB interference mitigation
Automatic interference mitigation, optimized for high-density environments
Integrated smart antenna technology
Standard 802.3af Power over Ethernet (PoE)
Router mode with NAT and DHCP services
Unlike any other 802.11ac wireless solution in its class, the ZoneFlex R310 combines patented adaptive antenna technology and automatic interference mitigation to deliver consistent, predictable performance at extended ranges with up to 4dB of statistical BeamFlex gain and up to 10dB of interference mitigation. Additional performance enhancements to signal gain can be attributed to the chip-based transmit beamforming capability adding 3 dB when associated to a compatible client.
Each ZoneFlex R310 integrates Ruckus-patented BeamFlex, a software-controlled, high gain antenna array that continually forms and directs each 802.11ac packet over the best performing signal path. The ZoneFlex R310 automatically selects channels for highest throughput potential using Ruckus ChannelFly dynamic channel management, adapting to environmental changes. Once deployed, enterprises never have to worry about constant site surveys as the environment changes.
2 to 4 times extended range and coverage
IP multicast video streaming support
Up to 8 BSSIDs per radio (16 BSSIDs per access point) with unique QoS and security policies
Advanced QoS packet classification and automatic priority for latency-sensitive traffic
Dynamic, per-user rate-limiting for hotspot WLANs
WPA-PSK (AES), 802.1X support for RADIUS and Active Directory**
Ethernet 802.1x port-based authentication (authenticator and supplicant)
Zero-IT and Dynamic PSK**
Admission control/load balancing**
Bandsteering and airtime fairness
Captive portal and guest accounts **
Guest access services**
Application Recognition and Control**
Wall, desktop or ceiling mountable
Limited lifetime warranty
** when used with Ruckus ZoneDirector or SmartZone controllers.
POWER
DC Input: 12 VDC 1.0A
Power over Ethernet 802.3 af
PHYSICAL SIZE
13.8cm (L), 13.5cm (W), 3.3cm (H)
5.4 in (L), 5.3 in (W), 1.3 in (H)
WEIGHT • 220 gms (0.485 lbs)
ETHERNET PORTS
1 auto MDX, auto-sensing10/100/1000 Mbps, RJ-45, POE port
LOCK OPTIONS • Hidden latching mechanism
Kensington Lock Hole
T-bar Torx
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0°C - 40°C
Operating Humidity: 10% - 95% non-condensing
POWER DRAW
DC Input
Idle: 6W
Typical: 7.1W
Peak: 9W
Power over Ethernet Input
Idle: 6W
Typical: 7.8W
MAX PHY RATE
300 Mbps (2.4GHz)
867 Mbps (5GHz)
CONCURRENT STATIONS
Up to 100 clients per AP
SIMULTANEOUS VoIP CLIENTS
Up to 30
Peak: 11W
ANTENNA
Adaptive antenna that provides up to 128 unique antenna patterns
64 patterns per band
RF POWER OUTPUT (Aggregated)
23 dBm for 2.4GHz†
24 dBm for 5GHz†
PHYSICAL ANTENNA GAIN • Up to 3 dBi per spatial stream
BEAMFLEX* SINR TX GAIN • Up to 4 dB
INTERFERENCE MITIGATION • Up to 10 dB
MINIMUM RX SENSITIVITY • Up to -99 dBm
* BeamFlex gains are statistical system level effects translated to enhanced SINR based on observations over time in real-world conditions with multiple APs and many clients
DEPLOYMENT OPTIONS
Standalone (individually managed)
Managed by ZoneDirector
Managed by FlexMaster
Managed by SmartZone
CONFIGURATION
Web User Interface (HTTP/S)
CLI (Telnet/SSH), SNMP v1, 2, 3
TR-069 vis FlexMaster
AUTO AP SOFTWARE UPDATES
FTP or TFTP, remote auto available
NOTE: SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
STANDARDS
IEEE 802.11a/b/g/n/ac
2.4GHz and 5GHz
SUPPORTED DATA RATES
802.11n/ac: 6.5Mbps – 173.4Mbps (20MHz) 13.5Mbps – 400Mbps (40MHz)
29.3Mbps - 867Mbps (80MHz)
802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
802.11b: 11, 5.5, 2 and 1 Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
RADIO CHAINS • 2 x 2
SPATIAL STREAMS • 2
CHANNELIZATION • 20MHz, 40MHz, 80MHz
FREQUENCY BAND • IEEE 802.11 b/g/n: 2.4 – 2.484 GHz
IEEE 802.11a/ac: 5.15 – 5.25 GHz; 5.25 – 5.35
GHz; 5.47 – 5.725 GHz; 5.725 – 5.85 GHz
OPERATING CHANNELS
US/Canada: 1-11, Europe ( ETSI X30): 1-13,
Japan X41: 1-13
5 GHz channels: Country dependent
BSSID • Up to 8 per radio (16 per AP)
POWER SAVE • Supported
WIRELESS SECURITY • WPA-PSK, WPA-TKIP, WPA2
AES, 802.11i
Authentication via 802.1X with the
ZoneDirector or SmartZone, local
authentication database, support for
RADIUS, LDAP, and ActiveDirectory
CERTIFICATIONS** • U.S., Europe, Argentina, Australia, Brazil,
Canada, Chile, China, Colombia, Costa Rica,
Ecuador, Egypt, Hong Kong, India, Indonesia,
Israel, Japan, Jordan, Kenya, Korea, Malaysia,
Mexico, New Zealand, Peru, Philippines,
Russia, Saudi Arabia, Singapore, South
Africa, Taiwan, Thailand, UAE, Vietnam
WEEE/RoHS2 compliance
EN 60601-1-2 (Medical)
Wi-Fi Alliance
WFA
Industry Canada
EU/EFTA
CB Scheme Certificate
† Maximum power varies by country
** For current certification status please see price list
