S1730S-S24T4S-A S1730S-S24T4S-A (24 Ethernet 10/100/1000BASE-T ports, 4 Gigabit SFP, AC power supply)

S1730S-S24T4S-A Overview

S1730S-S24T4S-A is a Huawei S1730S series switch, providing 24 10/100/1000BASE-T Ethernet ports, 4 Gigabit SFP, and AC power supply. Huawei CloudEngine S1730S series switches are designed for small to medium-sized businesses, including Internet cafes, hotels, schools, and others. With feature-rich services and a silent energy-saving design that’s easy to install and maintain, CloudEngine S1730S helps customers build secure, reliable, and high-performance networks.

Quick Spec

Table 1 shows the quick spec.

Model	CloudEngine S1730S-S24T4S-A
Forwarding Performance	41.66 mpps
Switching Capacity	168 Gbit/s
Fixed Ports	24 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports
Power Supply	Built-in 60W AC power module
Dimension (H × W × D)	43.6mm × 442mm × 220mm

Product Details

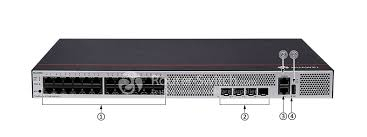

Figure 1 shows the front panel of S1730S-S24T4S-A.

S1730S-S24T4S-A front

Note:

①	Twenty-four 10/100/1000BASE-T ports	④	One RST button
②	Four 1000BASE-X ports	⑤	One console port
③	One ETH management port	⑥	One USB port

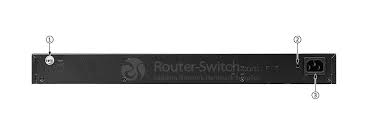

Figure 2 shows the back panel of S1730S-S24T4S-A.

S1730S-S24T4S-A back

Note:

①	Ground screw
②	Jack reserved for AC power cable locking strap
③	AC power socket

Applicable Modules

Table 2 shows the recommended modules.

Product	Description
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)
S-SFP-GE-LH80-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC)
eSFP-GE-ZX100-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC)
SFP-GE-LX-SM1310-BIDI	Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC)
SFP-GE-LX-SM1310-BIDI	BiDi Transceiver, eSFP, Tx1310nm/Rx1490nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km
SFP-GE-LX-SM1490-BIDI	Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC)
SFP-GE-LX-SM1490-BIDI	BiDi Transceiver, eSFP, Tx1490nm/Rx1310nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km
CWDM-SFPGE-1471	CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1471nm, 80km, LC)
CWDM-SFPGE-1491	CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1491nm, 80km, LC)
CWDM-SFPGE-1511	CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1511nm, 80km, LC)
DWDM-SFPGE-1560-61	DWDM Optical Transceiver.eSFP.2.5G.Single-mode Module (1560.61nm.120km.LC)
SFP-1000BaseT	1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m

Compare to Similar Items

Table 3 shows the comparison.

Parameters	CloudEngine S1730S-S24T4S-A	CloudEngine S1730S-S24P4S-A	CloudEngine S1730S-S48T4S-A	CloudEngine S1730S-S48P4S-A	CloudEngine S1730S-S24T4X-A
Forwarding Performance	41.66 mpps	41.66 mpps	77.38 mpps	77.38 mpps	95.23 mpps
Switching Capacity	168 Gbit/s	168 Gbit/s	216 Gbit/s	216 Gbit/s	168Gbit/s
Fixed Ports	24 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports	24 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports	48 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports	48 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports	24 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports

S1730S-S24T4S-A Specification

S1730S-S24T4S-A Specification
Forwarding Performance	41.66 mpps
Switching Capacity	168 Gbit/s
Fixed Ports	24 x 10/100/1000Base-T ports, 4 x GE SFP ports
Power Supply	Built-in 60W AC power module
Dimension (H × W × D)	43.6mm × 442mm × 220mm
Chassis Height	1U
Rated Voltage Range	- 100V AC to 240V AC, 50/60 Hz - High-voltage DC input: 240V DC
Maximum Voltage Range	- 90V AC to 264V AC, 47 Hz to 63 Hz - High-voltage DC input: 190V DC to 290V DC
Maximum Power Consumption	34W
Operating Temperature	5°C to +50°C (23°F to 122°F) at an altitude of 0-1800m (0-5906 ft.)
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
