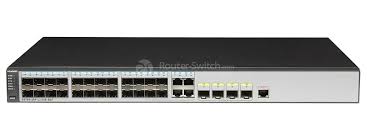

S5700-28P-LI-24S-4AH
HUAWEI
factory new
1 year
| Quantity: | |
|---|---|
S5700-28P-LI-24S Bundle(28 Gig SFP,4 of which are dual-purpose 10/100/1000 or SFP,with 1 battery of 4AH,AC 110/220V).
Table 1 shows the Quick Specs.
Product Code | S5700-28P-LI-24S-4AH |
Fixed Interfaces | 28xGE SFP ports, 4xCombo 10/100/1000Base-T Ethernet ports |
Power Supply |
|
Forwarding Performance | 42 Mpps |
Switching Capacity | 256 Gbit/s |
power consumption | <34.1W |
Dimensions (W x D x H) | 442 mm x 310 mm x 43.6 mm |
S5700-28P-LI-24S-4AH Specification | |
Fixed port | 24 × 10/100/1000Base-T, 4 × 1000Base-X SFP |
MAC address table | IEEE 802.1d compliance |
MAC address learning and aging | |
Static, dynamic, and blackhole MAC address entries | |
Packet filtering based on source MAC addresses | |
MAC address entries: 16K | |
VLAN | 4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN Mapping |
Ring protection | RRPP ring topology and RRPP multi-instance |
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | |
SEP | |
ERPS(G.8032) | |
STP, RSTP, and MSTP | |
BPDU protection, root protection, and loop protection | |
BPDU Tunnel | |
Reliability | Ethernet OAM (IEEE 802.3ah and 802.1ag) |
ITU-Y.1731 | |
DLDP | |
LACP | |
MPLS features | MPLS L3VPN |
MPLS L2VPN(VPWS/VPLS) | |
MPLS-TE | |
MPLS QoS | |
IP routing | Static routing |
IPv6 features | Neighbor Discovery (ND) |
Path MTU (PMTU) | |
IPv6 ping, IPv6 tracert, and IPv6 Telnet | |
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type | |
MLD v1/v2 snooping | |
Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
Multicast forwarding in a VLAN and multicast replication between VLANs | |
Multicast load balancing among member ports of a trunk | |
Controllable multicast | |
Port-based multicast traffic statistics | |
QoS/ACL | Rate limiting on packets sent and received by an interface |
Packet redirection | |
Port-based traffic policing and two-rate three-color CAR | |
Eight queues on each port | |
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms | |
Re-marking of the 802.1p priority and DSCP priority | |
Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID | |
Rate limiting in each queue and traffic shaping on ports | |
Security | User privilege management and password protection |
DoS attack defense, ARP attack defense, and ICMP attack defense | |
Binding of the IP address, MAC address, interface, and VLAN | |
Port isolation, port security, and sticky MAC | |
MFF | |
Blackhole MAC address entries | |
Limit on the number of learned MAC addresses | |
802.1x authentication and limit on the number of users on an interface | |
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC | |
SSH v2.0 | |
Hypertext Transfer Protocol Secure (HTTPS) | |
CPU defense | |
Blacklist and whitelist | |
Access Security | DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security |
Management and maintenance | Virtual cable test |
Port mirroring and RSPAN (remote port mirroring) | |
Remote configuration and maintenance using Telnet | |
SNMP v1/v2c/v3 | |
RMON | |
Web NMS | |
HGMP | |
System logs and alarms of different levels | |
802.3az EEE | |
Dying gasp | |
sFlow | |
Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) |
Supports LNP (Similar to DTP) | |
Supports VCMP (Similar to VTP) | |
Operating environment | Operating temperature: 0℃–50℃ |
Relative humidity: 10%–90% (non-condensing) | |
Input voltage | AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 47/63 Hz |
DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V DC Note: PoE-support switches do not use DC power supplies. | |
Dimensions (W x D x H) | 442 x 310 x 43.6 mm |
Powerconsumption | <34.1W |
Table 2 shows the recommended elements for the S5700-28P-LI-24S-4AH.
Model | Description |
GE-SFP Optical Transceiver | |
eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
GE Copper Transceiver | |
SFP-10G-USR | Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
Lithium Battery Module | |
BAT-8AHA | Huawei BAT-8AHA Rechargeable Battery for S5700 |
BAT-4AHA
| Huawei BAT-4AHA BAT-4AHA Lithium ion battery unit for S5700 |
Table 3 shows the comparison of S5700-28P-LI-24S-4AH and S5700-28P-LI-4AH.
Product Code | S5700-28P-LI-24S-4AH | S5700-28P-LI-4AH |
Fixed Interfaces | 28xGE SFP ports, 4xCombo 10/100/1000Base-T Ethernet ports | 24x10/100/1000Base-T Ethernet ports, 4xGE SFP ports |
Power Supply | AC power supply: One 4AH lithium battery is fixed in the battery slot which can be used for 8AH lithium battery or external lead-acid battery used in the event of a mains power failure, or a 150 W AC or DC power module used as the redundant power source | AC power supply One 4AH lithium battery is fixed in the battery slot which can be used for 8AH lithium battery or external lead-acid battery used in the event of a mains power failure, or a 150 W AC or DC power module used as the redundant power source |
Forwarding Performance | 42 Mpps | 42 Mpps |
Switching Capacity | 256 Gbit/s | 256 Gbps |
power consumption | <34.1W | <23W |
Dimensions (W x D x H) | 442 mm x 310 mm x 43.6 mm | 442 mm x 310 mm x 43.6 mm |
