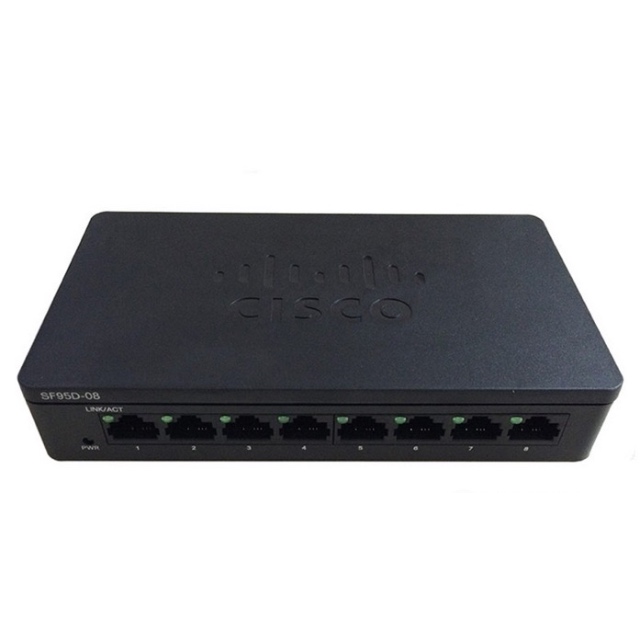

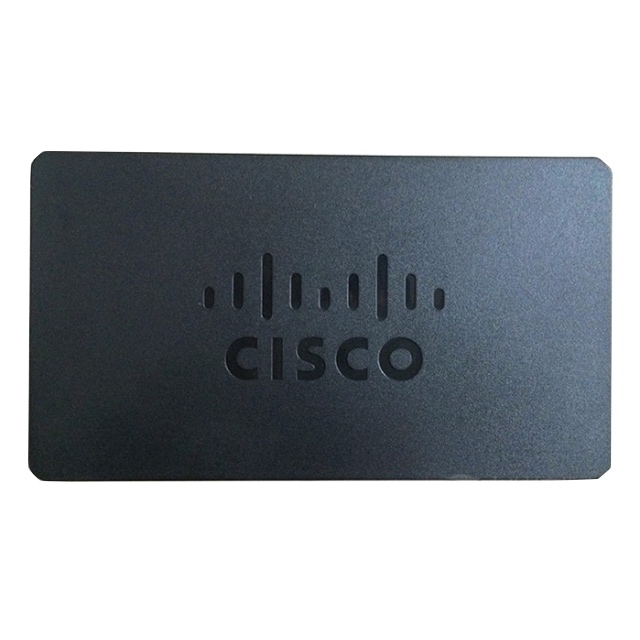

SF95D-08
Cisco
2-3 days
cisco original new in box
1 year
| Quantity: | |
|---|---|
Affordable 10/100/1000-Mbps speeds for even the most bandwidth-hungry applications
5- to 24-port models that are desktop or rack mountable
Integrated support for traffic prioritization, loop detection, cable diagnostics, and more
Works right out of the box: plug and play and no setup.
Specifications for 95 Series Switches | |
Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet |
Cabling type | Category 5e or better |
LED indicators | System/PWR, link/activity, 100M*, cable diagnostics, loop detection, gigabit,* mini-GBIC* if present |
Physical Interfaces | |
Ports | 10/100/1000 Ethernet, power port for AC adapter or power cord |
Power supply | SF95D-05, SF95D-08: DC 12V, 500mA SF95D-16, SG95D-08, SG95D-05: DC 12V, 1.0A SF95-24, SG95-16, SG95-24: 110-240VAC, 50-60 Hz, internal, universal |
Lock slot | Slot for Kensington lock |
Physical Specifications | |
Physical dimensions (W x D x H) | SF95D-05: 110 x 75 x 30 mm SF95D-08: 160 x 90 x 30 mm SF95D-16: 160 x 90 x 44 mm SF95-24: 279 x 170 x 44 mm SG95D-05: 110 x 75 x 30 mm SG95D-08: 160 x 104 x 30 mm SG95-16: 279 x 110 x 26 mm SG95-24: 279 x 170 x 44 mm |
Weight | SF95D-05: 0.11 kg SF95D-08: 0.45 kg SF95D-16: 0.53 kg SF95-24: 1.18 kg SG95D-05: 0.12 kg SG95D-08: 0.19 kg SG95-16: 0.75 kg SG95-24: 1.55 kg |
Ports | SF95D-05: 5 RJ-45 connectors for 10BASE-T/100BASE-TX SF95D-08: 8 RJ-45 connectors for 10BASE-T/100BASE-TX SF95D-16: 16 RJ-45 connectors for 10BASE-T/100BASE-TX SF95-24: 24 RJ-45 connectors for 10BASE-T/100BASE-TX SG95D-08: 8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports SG95-16: 16 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports SG95-24: 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots All units: automatic Medium Dependent Interface (MDI) and MDI crossover (MDI-X); auto-negotiated port for connecting 10-, 100-, 1000-Mbps devices |
Fan/fanless models | All models have no fans and are fanless |
Switching capacity | SF95D-05: 1 Gbps SF95D-08: 1.6 Gbps SF95D-16: 3.2 Gbps SF95-24: 4.8 Gbps SG95D-05: 10 Gbps SG95D-08: 16 Gbps SG95-16: 32 Gbps SG95-24: 48 Gbps |
Forwarding capacity | Forwarding rate in million packets per second (mpps) (based on 64-byte packets): SF95D-05: 0.74 mpps SF95D-08: 1.4. mpps SF95D-16: 1.4 mpps SF95-24: 3.6 mpps SG95D-05: 7.4 mpps SG95D-08: 11.9 mpps SG95-16: 23.8 mpps SG95-24: 35.7 mpps |
Capabilities | |
Head-Of-Line (HOL) blocking | HOL blocking prevention |
Jumbo frame | 9216 bytes |
Quality of Service (QoS) | 802.1p priority based, hardware queues, priority queuing and Weighted Round-Robin (WRR) |
Loop detection | Helps discover loops in the network to avoid broadcast storms |
Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
Mounting and Physical Security | |
Mounting options | Desktop or rack mount |
Physical security lock | Kensington lock slot |
Environmental | |
Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), FCC Part 15 (CFR 47) Class A, FCC Class B* *select models 95 series switches are only available in Asia region excluding Japan. 110 series switches are available in other regions. |
Operating temperature | 32° to 104°F (0° to 40°C) |
Storage temperature | -4° to 158°F (-20° to 70°C) |
Operating humidity | 10% to 90%, relative, noncondensing |
Storage humidity | 5% to 90%, relative, noncondensing |
Package Contents | |
95 Series switch Power cord/power adapter Mounting hardware | |
Minimum Requirements | |
Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet Cat5 or better Ethernet cable Network interface card for each computer | |
Warranty | |
95 Series switch | Limited lifetime |
Ordering information for 95 Series unmanaged switches | |
Part Number | |
SF95D-05-xx | SF95D-05 - 5-Port 10/100 Desktop Switch |
SF95D-08-xx | SF95D-08 8-port 10/100 Desktop Switch |
SF95D-16-xx | SF95D-16 16-port 10/100 Desktop Switch |
SF95-24-xx | SF95-24 24-Port 10/100 Switch |
SG95D-05-xx | SG95D-05 5-port Gigabit Desktop Switch |
SG95D-08-xx | SG95D-08 8-Port Gigabit Switch |
SG95-16-xx | SG95-16 16-Port Gigabit Switch |
SG95-24-xx | SG95-24 Compact 24-port Gigabit Switch + 2 Mini GBIC Ports 1U |
