Streamlined HDTV 1080p Fixed Dome For Any Light Conditions AXIS P3228-LVE Network Camera

Are you looking for a cost-efficient network camera that delivers high quality video surveillance under any light conditions? Perhaps you want an overhead overview of the entire area, or maybe a close-up of a cash desk? Whether its midnight or midday, AXIS P3228-LVE network camera gives you clear and detailed images so you can always keep an eye on what’s happening on your premises. From public offices and universities, to banks and hotels, the AXIS P3228-LVE is ideal for any location where detailed video surveillance is required.
  • P3228-LVE
  • AXIS
  • 4-6 Weeks
  • New Original
  • 3 Years
Quantity:
Product Description

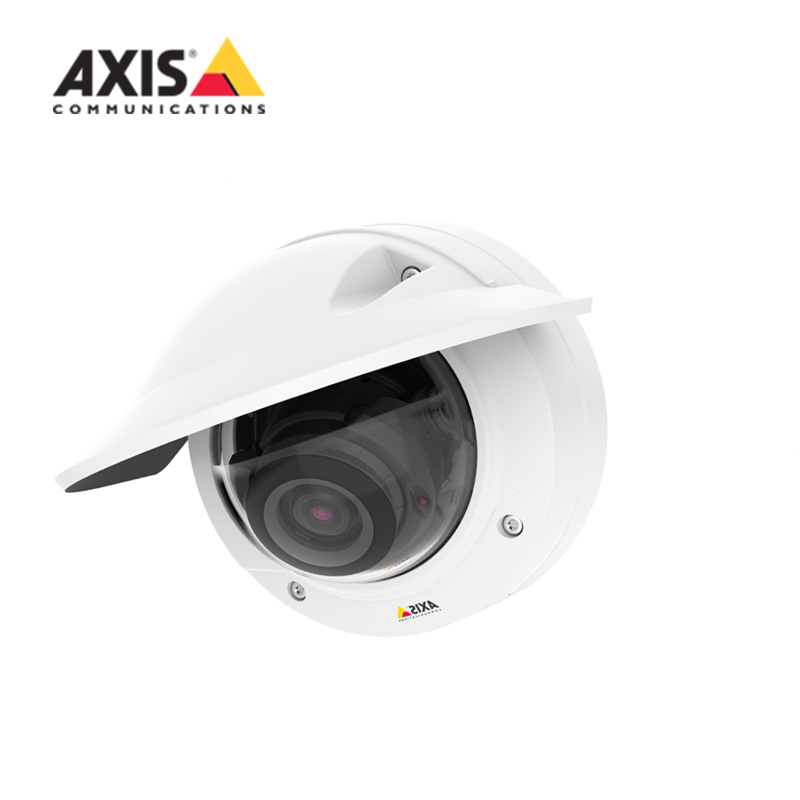

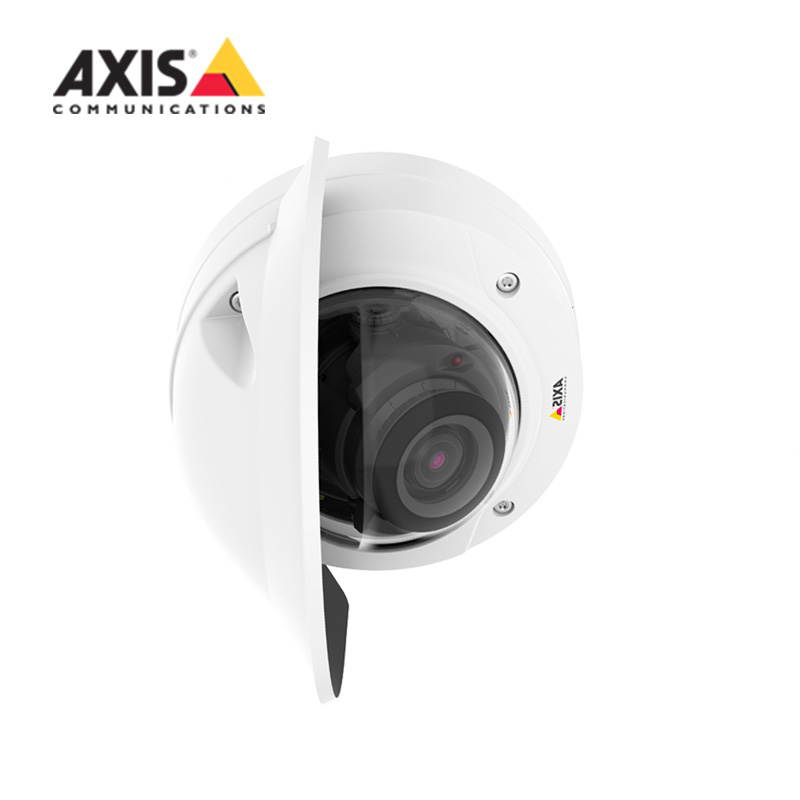

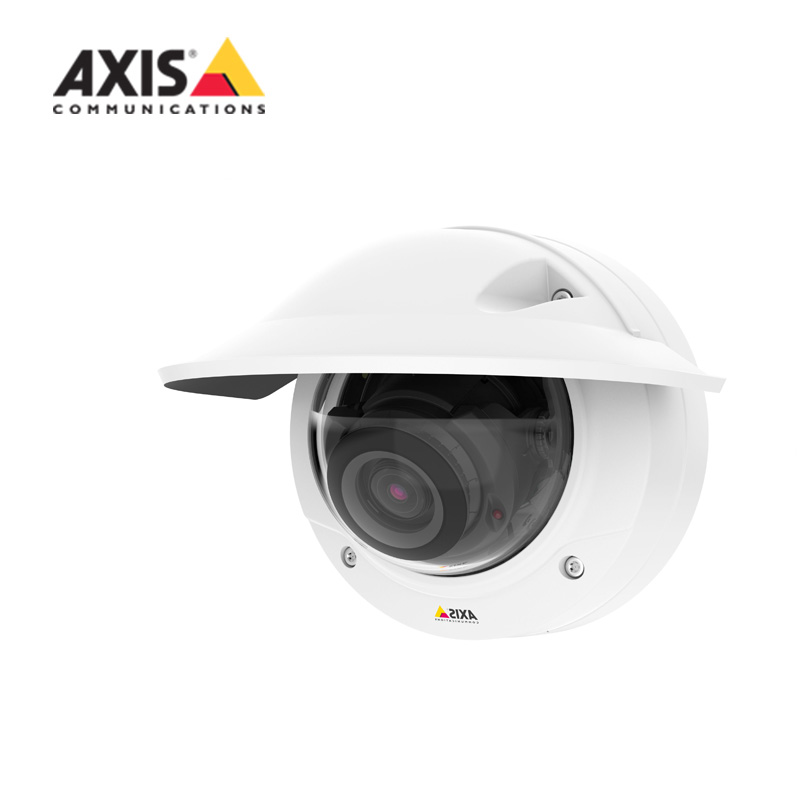

AXIS P3228-LVE Network Camera

Streamlined outdoor-ready 4K fixed dome for any light conditions
AXIS P3228-LVE is a streamlined, outdoor-ready 4K fixed dome that features a varifocal lens with remote zoom and focus, which
facilitates installation and eliminates the need for hands-on fine tuning. Equipped with Forensic WDR to handle scenes with strong
variations in light, Lightfinder technology, as well as built-in IR illumination with OptimizedIR, this versatile camera provides
exceptional video quality in any light conditions. It supports Axis Zipstream technology that significantly reduces bandwidth and
storage requirements. AXIS P3228-LVE is vandal-resistant with IK10 rating.
> HDTV 1080p video quality > Remote zoom and focus > Lightfinder and WDR – Forensic Capture > OptimizedIR illumination > Axis Zipstream
Product Specification
Image sensor: Progressive scan RGB CMOS 1/3”

Lens :Varifocal, 3.0–10.5 mm, F1.4 Horizontal field of view: 92°–34° Vertical field of view: 50°–20° Remote focus and zoom, P-Iris control, IR corrected

Day and night: Automatically removable infrared-cut filter

Minimum illumination: HDTV 1080p 25/30 fps with WDR - forensic capture and Lightfinder: Color: 0.16 lux at 50 IRE, F1.4 B/W: 0.03 lux at 50 IRE, F1.4, 0 lux with IR illumination on HDTV 1080p 50/60 fps: Color: 0.32 lux at 50 IRE, F1.4 B/W: 0.06 lux at 50 IRE, F1.4, 0 lux with IR illumination on

Video compression: H.264 Baseline, Main and High Profile (MPEG-4 Part 10/AVC) Motion JPEG

Resolution :1920x1080 to 160x90

Frame rate :With WDR: 25/30 fps with power line frequency 50/60 Hz Without WDR: 50/60 fps with power line frequency 50/60 Hz

Video streaming: Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264

Image settings :Compression, Color, Brightness, Sharpness, Contrast, Local contrast, White balance, Exposure control (including automatic gain control), Exposure zones, Fine tuning of behavior at different light levels, WDR - forensic capture: Up to 120 dB depending on scene, Text and image overlay, Mirroring of images, Privacy masks Rotation: 0°, 90°, 180°, 270°, including Corridor Format
Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management, brute force delay protection, signed firmware

Supported protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP

Analytics: Included  AXIS Video Motion Detection, active tampering alarm
Supported AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, AXIS Perimeter Defender AXIS Digital Autotracking, AXIS People Counter, AXIS Tailgating Detector, AXIS Direction Detector, AXIS Occupancy Estimator, AXIS Random Inspection, AXIS Queue Monitor Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap

Event actions:Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload

Mounting :Mounting bracket with holes for junction boxes (double-gang, single-gang, and 4” octagon) and for wall or ceiling mount ¼”-20 UNC tripod screw thread

Approvals :EMC EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 55024, EN 50121-4, IEC 62236-4, FCC Part 15 Subpart B Class A and B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24 Safety IEC/EN/UL 60950-1, IEC/EN 62471, IS 13252 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14 IEC 60068-2-6 (vibration), IEC 60068-2-27 (shock), IEC 60068-2-78, IEC/EN 60529 IP52, IEC/EN 62262 IK08 Network NIST SP500-267

Languages :English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese

Warranty:Axis 3-year warranty and AXIS Extended Warranty option, see axis.com/warranty
