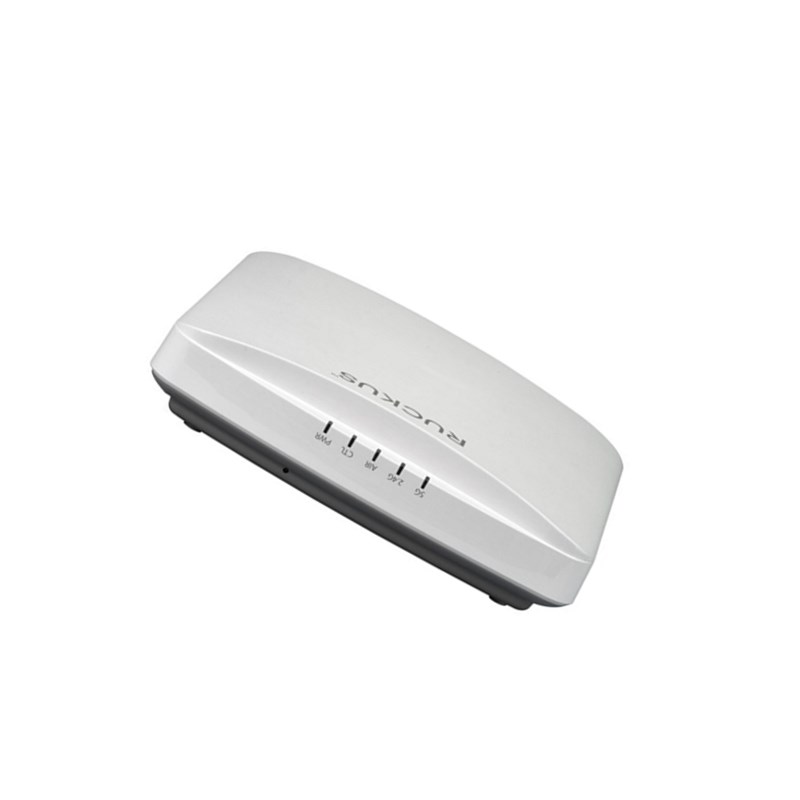

R550
Ruckus
Original New
1 year
| Quantity: | |
|---|---|
| RUCKUS R550 | |
| WI-FI | |
| Wi-Fi Standards | · IEEE 802.11a/b/g/n/ac/ax |
| Supported Rates | · 802.11ax: 4 to 1774 Mbps · 802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) · 802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15) · 802.11a/g: 6 to 54 Mbps · 802.11b: 1 to 11 Mbps |
| Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
| MIMO | · 2x2 SU-MIMO · 2x2 MU-MIMO |
| Spatial Streams | · 2 streams SU/MU MIMO 5GHz · 2 streams SU/MU MIMO 2.4GHz |
| Radio Chains and Streams | · 2x2:2 (5GHz) · 2x2:2 (2.4GHz) |
| Channelization | · 20, 40, 80MHz |
| Security | · WPA-PSK, WPA-TKIP, WPA2 AES, WPA3-Personal, WPA3-Enterprise, 802.11i, Dynamic PSK, OWE · WIPS/WIDS |
| Other Wi-Fi Features | · WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v · Hotspot · Hotspot 2.0 · Captive Portal · WISPr |
| PERFORMANCE AND CAPACITY | |
| Peak PHY Rates | · 2.4GHz: 574 Mbps · 5GHz: 1200 Mbps |
| Client Capacity | · Up to 512 clients per AP |
| SSID | · Up to 31 per AP |
| RUCKUS RADIO MANAGEMENT | |
| Antenna Optimization | · BeamFlex |
| Wi-Fi Channel Management | · ChannelFly · Background Scan Based |
| Client Density Management | · Adaptive Band Balancing · Client Load Balancing · Airtime Fairness · Airtime-based WLAN Prioritization |
| SmartCast Quality of Service | · QoS-based scheduling · Directed Multicast · L2/L3/L4 ACLs |
| Mobility | · SmartRoam |
| Diagnostic Tools | · SpeedFlex |
| NETWORKING | |
| Controller Platform Support | · SmartZone · ZoneDirector · Unleashed1 · Standalone · Cloud |
| Mesh | · SmartMesh™ wireless meshing technology. Self-healing Mesh |
| IP | · IPv4, IPv6, dual-stack |
| VLAN | · 802.1Q (1 per BSSID or dynamic per user based on RADIUS) · VLAN Pooling · Port-based |
| 802.1x | · Authenticator & Supplicant |
| Tunnel | · L2TP, GRE, Soft-GRE |
| Policy Management Tools | · Application Recognition and Control · Access Control Lists · Device Fingerprinting · Rate Limiting |
| IoT Capable | · Integrated BLE and ZigBee (1 radio, switchable) |
| PHYSICAL INTERFACES | |
| Ethernet | · 2 x 1GbE Ethernet ports · Power over Ethernet (802.3af/at) with Category 5/5e/6 cable · LLDP |
| USB | · 1 USB 2.0 port, Type A |
| PHYSICAL CHARACTERISTICS | |
| Physical Size | · 17.60cm (L), 19.02cm (W), 4.78cm (H) · 6.93in (L) x 7.49in (W) x 1.88in (H) |
| Weight | · 0.562 kg · 1.24 lbs |
| Mounting | · Wall, acoustic ceiling, desk · Secure bracket (sold separately) |
| Physical Security | · Hidden latching mechanism · Kensington lock · Bracket (902-0120-0000) |
| Operating Temperature | · 0ºC (32ºF) - 50ºC (122ºF) |
| Operating Humidity | · Up to 95%, non-condensing |
| RUCKUS R550 | |
| WI-FI | |
| Wi-Fi Standards | · IEEE 802.11a/b/g/n/ac/ax |
| Supported Rates | · 802.11ax: 4 to 1774 Mbps · 802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) · 802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15) · 802.11a/g: 6 to 54 Mbps · 802.11b: 1 to 11 Mbps |
| Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
| MIMO | · 2x2 SU-MIMO · 2x2 MU-MIMO |
| Spatial Streams | · 2 streams SU/MU MIMO 5GHz · 2 streams SU/MU MIMO 2.4GHz |
| Radio Chains and Streams | · 2x2:2 (5GHz) · 2x2:2 (2.4GHz) |
| Channelization | · 20, 40, 80MHz |
| Security | · WPA-PSK, WPA-TKIP, WPA2 AES, WPA3-Personal, WPA3-Enterprise, 802.11i, Dynamic PSK, OWE · WIPS/WIDS |
| Other Wi-Fi Features | · WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v · Hotspot · Hotspot 2.0 · Captive Portal · WISPr |
| PERFORMANCE AND CAPACITY | |
| Peak PHY Rates | · 2.4GHz: 574 Mbps · 5GHz: 1200 Mbps |
| Client Capacity | · Up to 512 clients per AP |
| SSID | · Up to 31 per AP |
| RUCKUS RADIO MANAGEMENT | |
| Antenna Optimization | · BeamFlex |
| Wi-Fi Channel Management | · ChannelFly · Background Scan Based |
| Client Density Management | · Adaptive Band Balancing · Client Load Balancing · Airtime Fairness · Airtime-based WLAN Prioritization |
| SmartCast Quality of Service | · QoS-based scheduling · Directed Multicast · L2/L3/L4 ACLs |
| Mobility | · SmartRoam |
| Diagnostic Tools | · SpeedFlex |
| NETWORKING | |
| Controller Platform Support | · SmartZone · ZoneDirector · Unleashed1 · Standalone · Cloud |
| Mesh | · SmartMesh™ wireless meshing technology. Self-healing Mesh |
| IP | · IPv4, IPv6, dual-stack |
| VLAN | · 802.1Q (1 per BSSID or dynamic per user based on RADIUS) · VLAN Pooling · Port-based |
| 802.1x | · Authenticator & Supplicant |
| Tunnel | · L2TP, GRE, Soft-GRE |
| Policy Management Tools | · Application Recognition and Control · Access Control Lists · Device Fingerprinting · Rate Limiting |
| IoT Capable | · Integrated BLE and ZigBee (1 radio, switchable) |
| PHYSICAL INTERFACES | |
| Ethernet | · 2 x 1GbE Ethernet ports · Power over Ethernet (802.3af/at) with Category 5/5e/6 cable · LLDP |
| USB | · 1 USB 2.0 port, Type A |
| PHYSICAL CHARACTERISTICS | |
| Physical Size | · 17.60cm (L), 19.02cm (W), 4.78cm (H) · 6.93in (L) x 7.49in (W) x 1.88in (H) |
| Weight | · 0.562 kg · 1.24 lbs |
| Mounting | · Wall, acoustic ceiling, desk · Secure bracket (sold separately) |
| Physical Security | · Hidden latching mechanism · Kensington lock · Bracket (902-0120-0000) |
| Operating Temperature | · 0ºC (32ºF) - 50ºC (122ºF) |
| Operating Humidity | · Up to 95%, non-condensing |
