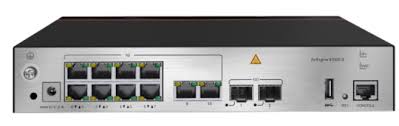

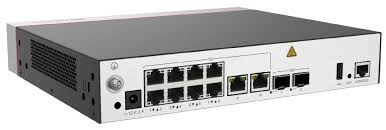

AC650-32AP
HUAWEI
factory new
1 year
| Quantity: | |
|---|---|
AC650-32AP Specification | |
Forwarding Capability | 4 Gbit/s |
Maximum Number of Managed APs | 32 |
Maximum Number of Access Users | 1024 |
AP-AC Networking | Layer 2 or Layer 3 networking |
Forwarding Modes | Direct forwarding or tunnel forwarding |
Radio Protocols | 802.11 a/b/g/n/ac/ac wave2/ax |
Dimensions (H x W x D) | 43.6mm×210mm×250mm |
Interface type | 2 x 10GE(SFP+)+10 x GE 1 x Console Port(RJ45), 1 x USB |
Maximum power consumption | 21W |
Operating temperature and altitude | -60 m to +1800 m: 0°C to 45°C 1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 220 m. |
Relative humidity | 5% RH to 95% RH, non-condensing |
Power module | AC and DC power modules |
Number of managed APs | Central APs：8 Common APs and RUs：32 |
Number of access users | 1K |
Number of MAC address entries | 8K |
Number of VLANs | 4K |
Number of routing entries | IPv4: 4K IPv6: 2K |
Number of ARP entries | 4K |
Number of multicast forwarding entries | 2K |
Number of DHCP IP address pools | Max 16 IP address pools, each of which contains a maximum of 8K IP addresses |
Number of local accounts | 1K |
Number of ACLs | 4K |
