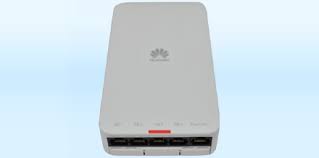

AP2051DN-E
HUAWEI
factory new
1 year
| Quantity: | |
|---|---|
AP2051DN-E Specification | |
Dimensions (H x W x D) | 32.5 mm x 150 mm x 86 mm |
Weight | 0.25 kg |
Interface type
| Uplink: 1 x GE Downlink: 4 x GE 2 x Pass-through RJ45 port 1 x USB port |
Built-in Bluetooth | BLE4.1 |
LED indicator | Indicates the power-on, startup, running, alarm, and fault status of the system. |
Power input | Power adapter: 45.6 V to 57 V PoE power supply: in compliance with IEEE 802.3af/at |
PoE OUT
| MAX 13.6W (802.3at-compliant, 48 V DC, supported only by GE4) l NOTE • A 40-meter Cat5e Ethernet cable can be used to supply power to an 802.3af-compliant device. • The PoE out and USB functions cannot be used simultaneously. |
Maximum power consumption
| 11.5 W (excluding the output power of the USB port and PoE_OUT port) NOTE The actual maximum power consumption depends on local laws and regulations. |
Operating temperature | 0°C to 40°C |
Storage temperature | –40°C to +70°C |
Operating humidity | 5% to 95% (non-condensing) |
Altitude | –60 m to +5000 m |
Atmospheric pressure | 53 kPa to 106 kPa |
Antenna type | Built-in dual-band smart antennas |
Gain
| 2.4G: 3 dB 5G: 4 dB NOTE Gain involves the physical gain and SINR enhancement of smart antennas. |
Maximum number of SSIDs for each radio | ≤ 16 |
Maximum number of users
| ≤ 256 NOTE The actual number of users varies according to the environment. |
Maximum transmit power
| 2.4G: 23 dBm (combined power) 5G: 23 dBm (combined power) NOTE The actual transmit power depends on local laws and regulations. |
Power increment | 1 dBm |
Receiver sensitivity
| 2.4 GHz 802.11b: -99 dBm @ 1 Mbit/s -91 dBm @ 11 Mbit/s 2.4 GHz 802.11g: -93 dBm @ 6 Mbit/s -78 dBm @ 54 Mbit/s 2.4 GHz 802.11n (HT20): -93 dBm @ MCS0 -72 dBm @ MCS15 5 GHz 802.11a: -93 dBm @ 6 Mbit/s -77 dBm @ 54 Mbit/s 5 GHz 802.11n (HT20): -92 dBm @ MCS0 -72 dBm @ MCS15 5 GHz 802.11n (HT40): -89 dBm @ MCS0 -70 dBm @ MCS15 5 GHz 802.11ac (VHT20): -92 dBm @ MCS0NSS1 -71 dBm @ MCS8NSS2 5 GHz 802.11ac (VHT40): -90 dBm @ MCS0NSS1 -63 dBm @ MCS9NSS2 5 GHz 802.11ac (VHT80): -86 dBm @ MCS0NSS1 -60 dBm @ MCS9NSS2 |
Safety standards | UL 60950-1 IEC 60950-1 EN 60950-1 GB 4943 IEC 62368-1 EN 62368-1 |
Radio standards | ETSI EN 300 328 ETSI EN 301 893 RSS-210 AS/NZS 4268 |
EMC standards
| EN 301 489-1 EN 301 489-17 ETSI EN 60601-1-2 ICES-003 YD/T 1312.2-2004 GB 9254 GB 17625.1 EN 55022 EN 55024 IEC6ITU k.21 CISPR 22 CISPR 24 IEC61000-4-6 IEC61000-4-2 |
IEEE standards
| IEEE 802.11a/b/g IEEE 802.11n IEEE 802.11ac IEEE 802.11h IEEE 802.11d IEEE 802.11e IEEE 802.11k IEEE 802.11u IEEE 802.11v IEEE 802.11w IEEE 802.11r |
Security standards
| 802.11i, Wi-Fi Protected Access 2(WPA2), WPA 802.1X Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP) EAP Type(s) |
EMF | CENELEC EN 62311 CENELEC EN 50385 RSS-102 |
RoHS | Directive 2002/95/EC & 2011/65/EU |
REACH | Regulation 1907/2006/EC |
WEEE | Directive 2002/96/EC & 2012/19/EU |
