Logitech CC3500e Group Video Conferencing Bundle with Expansion Mics HD 1080p Camera Speakerphone
DIMENSIONS
* Camera: 5.12 in (130 mm) x 7.0 in (170 mm) x 5.40 in (138 mm), 1.31lb (585 g)
* Speakerphone: 9.5 in (240 mm ) x 2.5 in (65 mm ) x 9.5 in (240 mm ), 2.68 lb (1223 g)
* Hub: 3.75 in (94 mm) x 1.3 in (34 mm) x 2.9 in (74 mm), 3.0 oz (83 g)
* Remote: 2.0 in (50 mm) x 5.0 in(120 mm) x 0.5 in (12 mm), 2.0 oz (51 g)
* Wall/Table Mount: 8.27 in (210 mm) x 4.72 in (120 mm) x 3.9 in (99 mm), 8.99 oz (255 g)

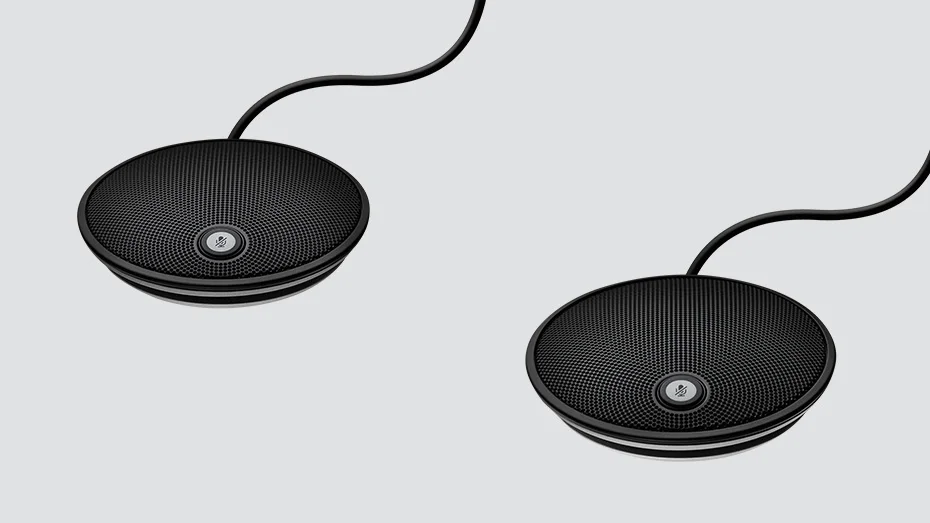

* Expansion Mics (Optional): 3.30 in (83 mm) x 3.30 in (83 mm) x 0.83 in (21 mm), 8.0 oz (230 g)
SYSTEM REQUIREMENTS
* Windows® 7, 8.1 or 10
macOS® 10.10 or higher
TECHNICAL SPECIFICATIONS

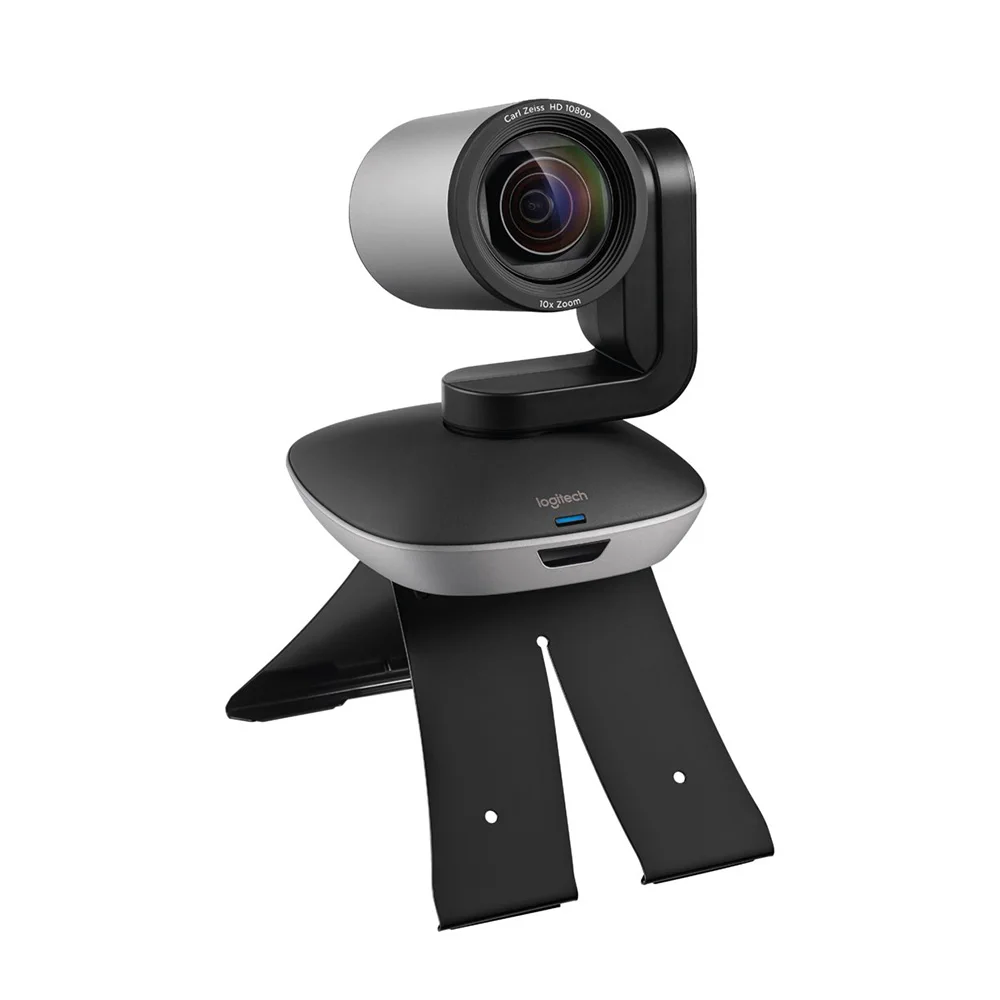

CAMERA
* Smooth motorized pan, tilt and zoom controlled from remote or console
Pan +/- 90°
Tilt +35° / -45
10x lossless HD zoom
Field of View:
* Diagonal: 90°
* Horizontal: 82.1°
* Vertical: 52.2°
Full HD 1080p 30fps
H.264 UVC 1.5 with Scalable Video Coding (SVC)
Autofocus
5 camera presets
Far-end control (PTZ) of ConferenceCam product (with supported services)
Kensington security slot
Video mute/unmute LED indicator
Standard tripod thread
REMOTE CONTROL
* Camera, speakerphone, and call control
5 camera presets
Docks on speakerphone
IR 8.5 m/28-foot range
CR2032 battery (included)

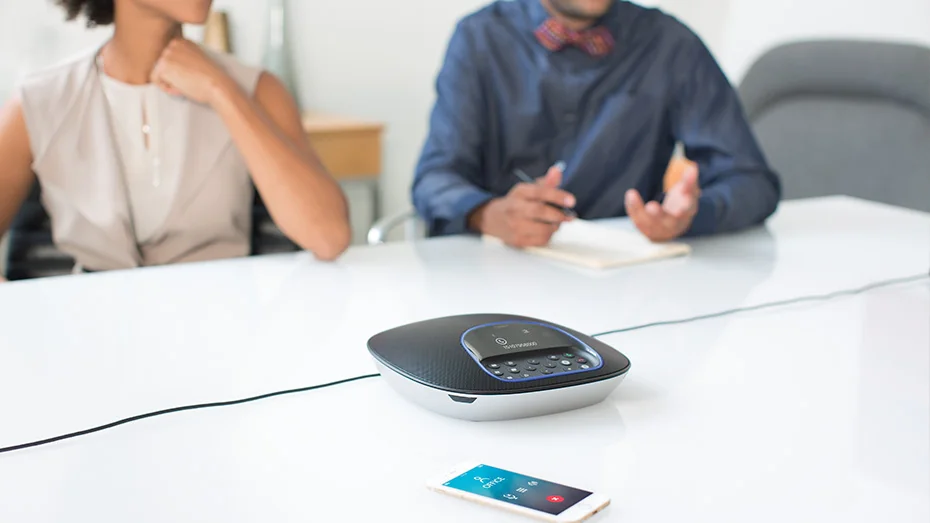

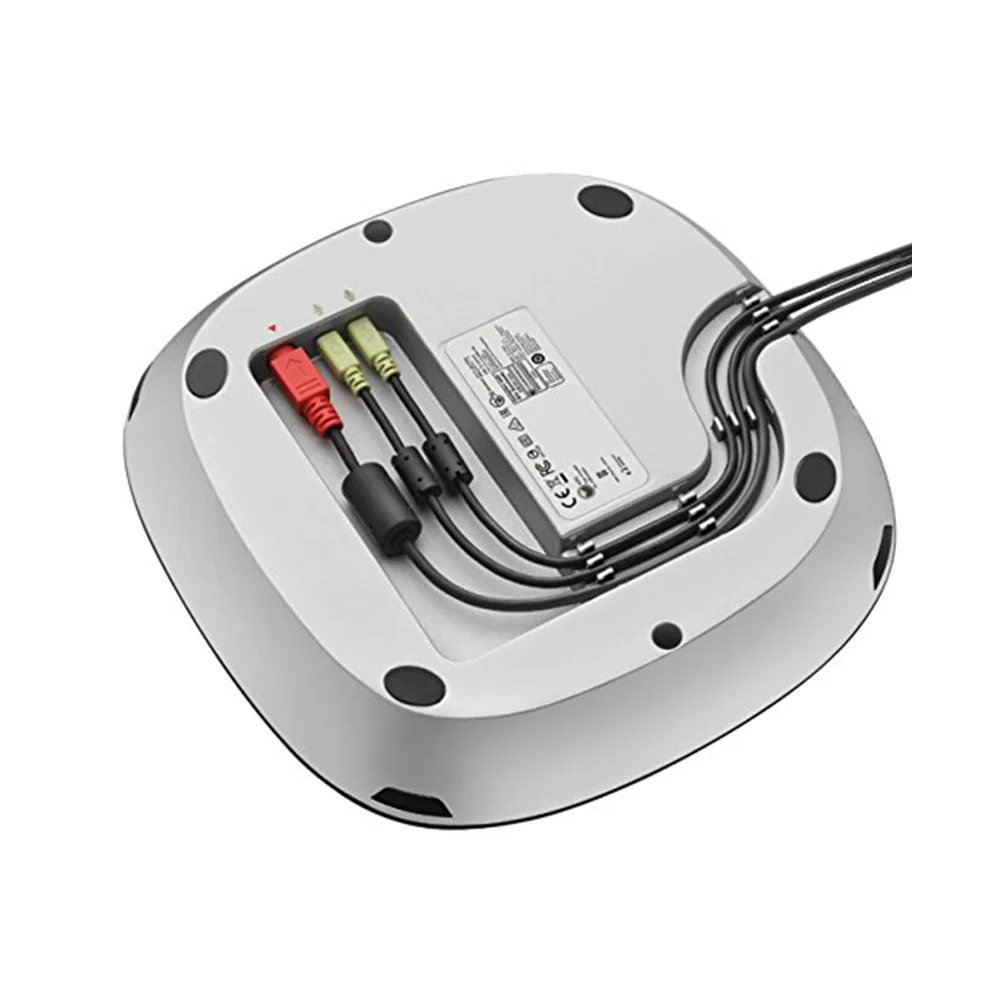

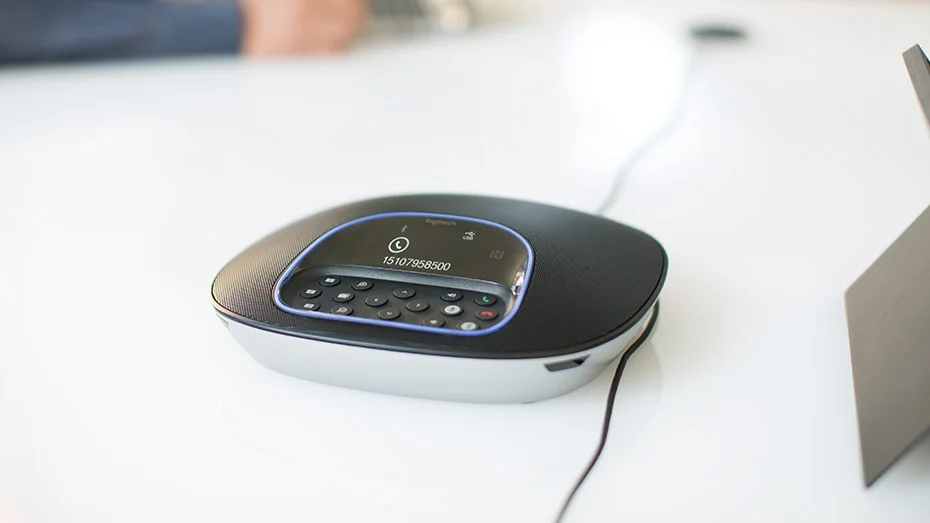

SPEAKERPHONE
* Full-duplex performance
Acoustic echo cancellation
Noise reduction technology
Ultra-wideband audio
Pairs with mobile devices via Bluetooth and NFC
LCD for caller ID, call duration and other functional response
LEDs for speakerphone streaming, mute, hold, and Bluetooth
Tactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls
5 camera presets for pan, tilt, and zoom settings
Kensington security slot
MICROPHONES
* Pickup range: 6m / 20 ft
Pickup range with expansion mics: 8.5 m / 28 ft
Four omnidirectional, beamforming microphones
Frequency response: 100Hz – 11KHz
Sensitivity: -28dB +/-3dB
Distortion: <5% from 200Hz

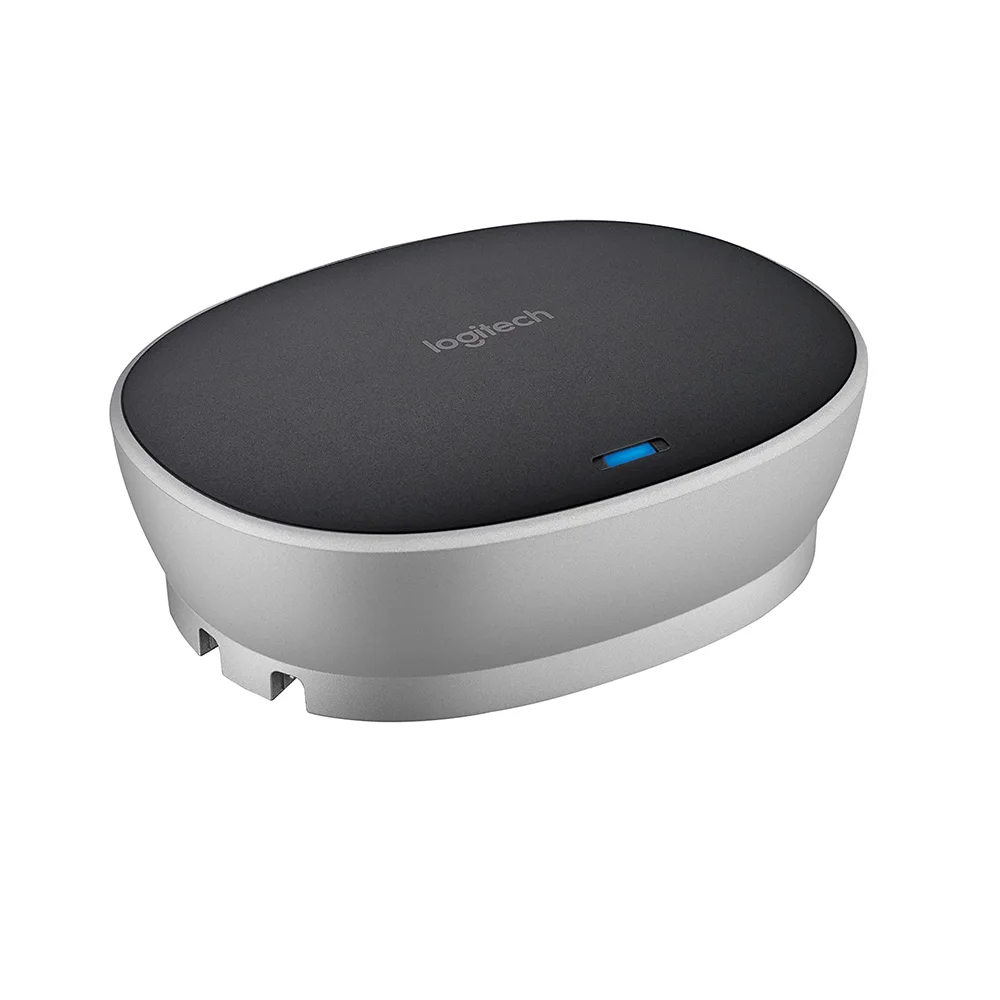

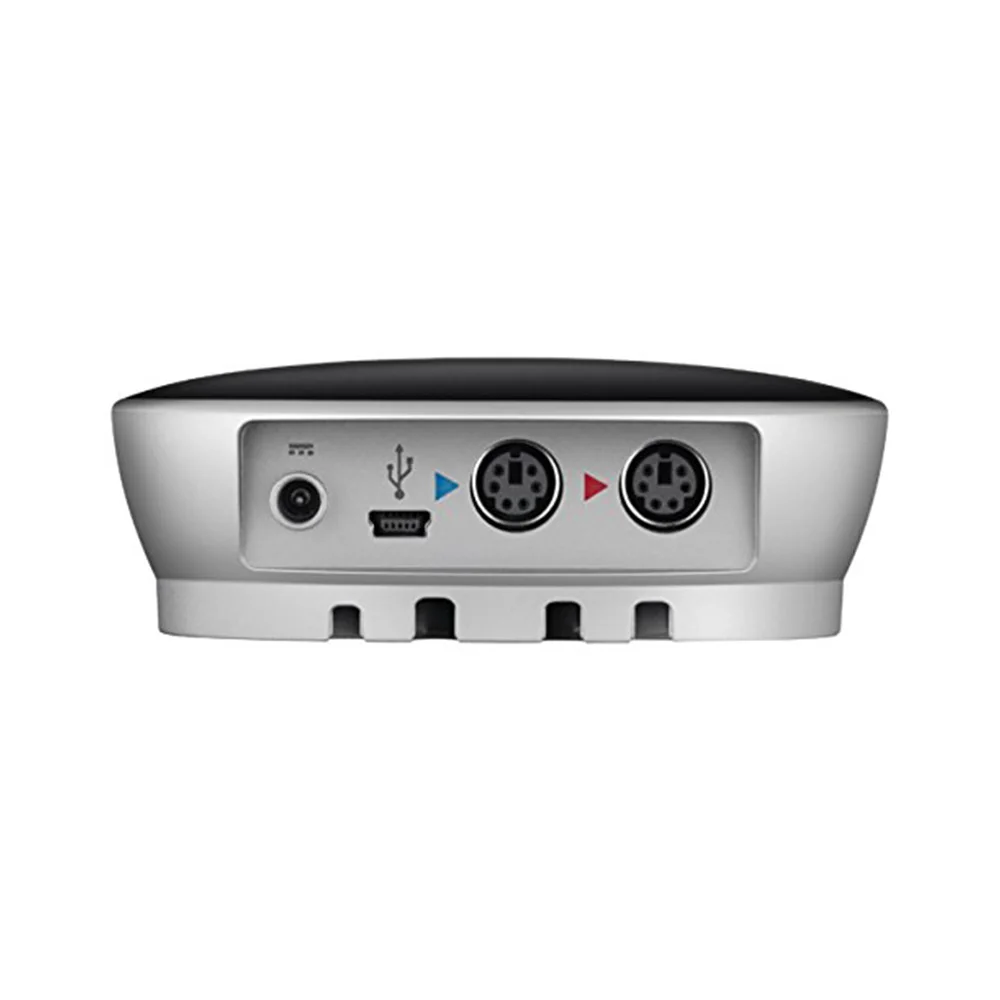

HUB / CABLES / POWER
* Central Hub connects and powers all components
Under-table mounting adhesive included
One cable to camera: 5 m / 16 ft
One cable to speakerphone: 5 m /16 ft

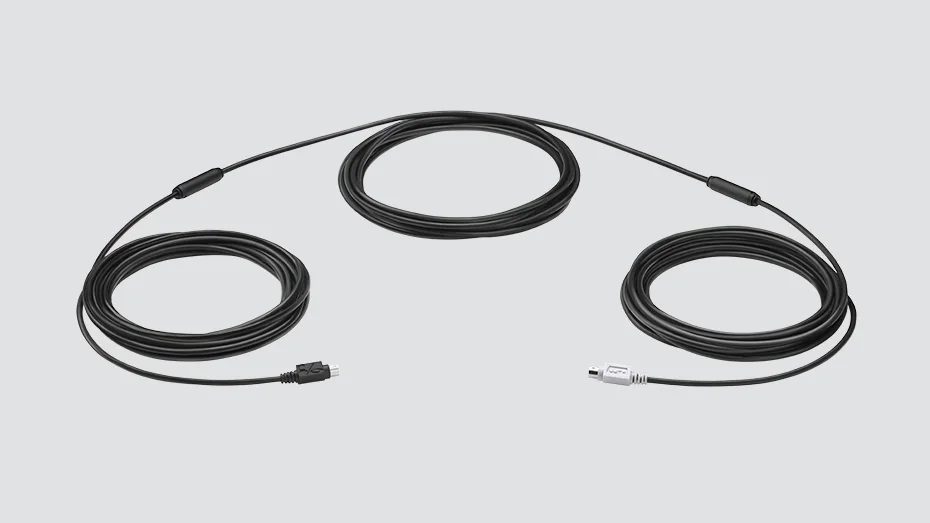

Extended cables available (10 m and 15 m)
One USB cable for connection to PC/Mac (2 m / 6.6 ft)
AC Power adapter with regional plugs
Power cable (3 m / 9.8 ft)
MOUNT
* Dual-purpose bracket works for both wall mounting and tabletop elevation
COMPATIBILITY AND CERTIFICATIONS
* Plug-and-play USB connectivity
Certified for Skype for Business and ready for Teams
Zoom Certified
Fuze Certified
Compatible with Google Meet
Microsoft Cortana®
Cisco Jabber®
Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting
applications that support USB cameras

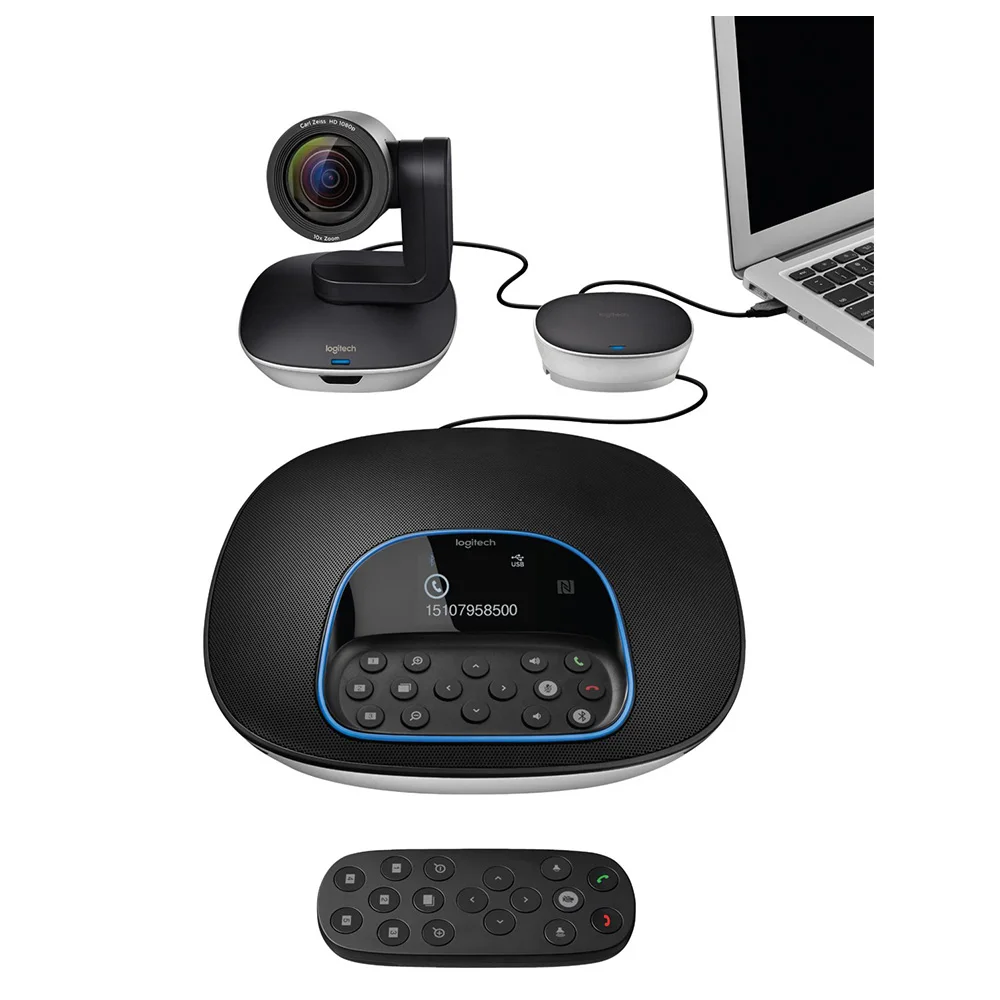

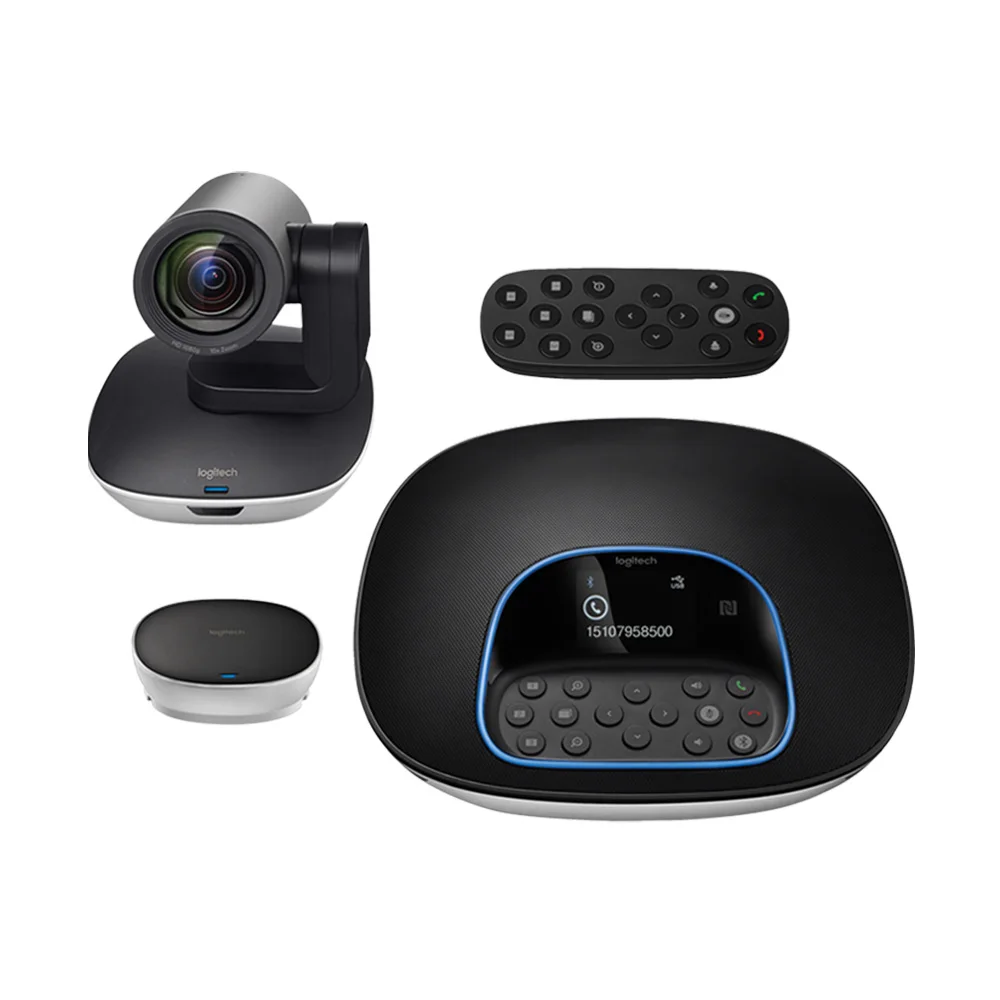

PACKAGE CONTENTS
* Camera
* Speakerphone
* Remote control
* Two 5m / 16.4 ft cables for connection between speakerphone and hub and camera and hub
* One 2m / 6.6 ft meter cable between hub and PC
* Velcro for cable management
* Velcro for hub to table securing
* Powered hub
* Power adapter with regional plugs and 3m / 9.8 ft cable
* Mount
* Documentation
* Warranty card
