OS6465-P28D
Alcatel-Lucent
100% Original Brand
1 Year
| Color: | |
|---|---|
| Size: | |
| Quantity: | |

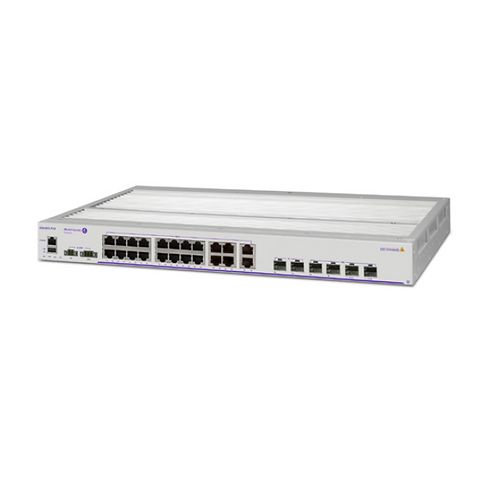

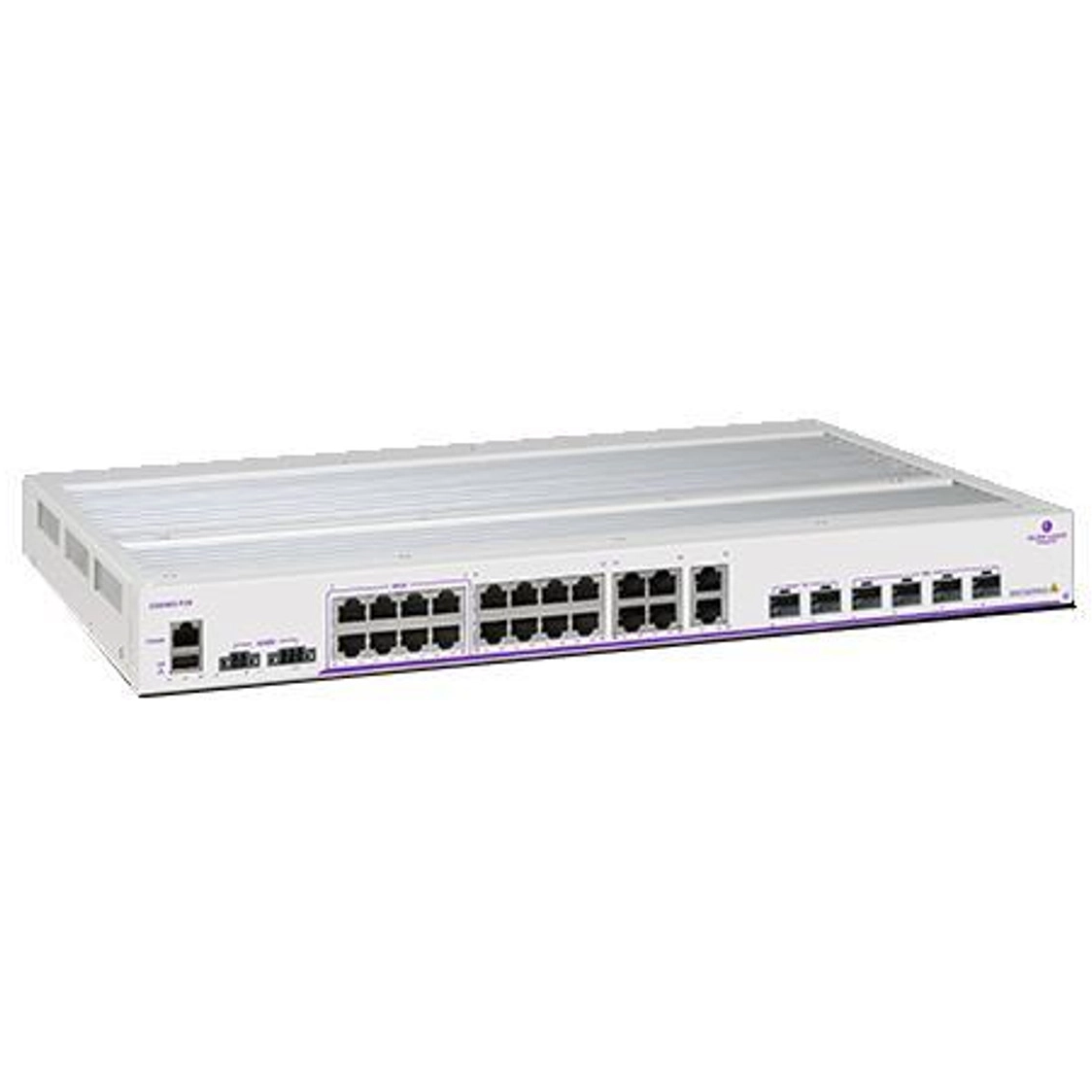

OS6465-P28D: Hardened Gigabit Ethernet L3 fixed configuration fan-less chassis in a 1U form factor with 22 10/100/1000 Base-T PoE+ ports out of which 8 ports are 60W PoE capable, two 100/1000 Base-X SFP ports, four (1G/10G) SFP+ ports, RS-232 Console (RJ45), 1 Alarm relay Input, 1 alarm relay output and one USB port. The bundle includes one DC power supply, power supply tray, user manuals, access card and hardware for mounting in a 19” rack.
| Model | OS6465-P28D |
| Operating temperature | -40°C to 75°C |
| Fans | 0 |
| File system flash | 1 GB |
| RAM | 1 GB |
| Max switching capacity | 128 Gb/s |
| Forwarding capacity | 95.3 Mpps |
| Weight (no PS attached) | 5.71 Kg (12.6 lbs) |
| Height | 4.4 cm (1.73 in) |
| Width | 44 cm (17.4 in) |
| Depth (no PS attached) | 27 cm (10.62 in) |
| 1588v2 capable ports | 26 |
| MACsec capable ports | 26 |
| USB port | 1 |
| Console port | 1 |
| Alarm relay contacts | 1 in, 1 out |
| PSU connectors | 2 |
| Max PoE budget | 285 W |
| Altitude | 13,000 ft |
| Storage temperature | -40°C to 85°C |
| Humidity (operating & storage) | 5% to 95% non-condensing |
| Power consumption (idle) | 29 W |
| Power consumption (full load) | 32.19 W |
| Heat dissipation (BTU/hr) | 98.95 |
| Maximum surge protection | 6 KV |
| MTBF (hours) (Switch only) | 2,103,668 |
| MTBF (hours) (switch+2 AC PSU) | 1,136,119 |
| Mounting options | 19” rack |
Power Supplies
| OS6465-BPRD | OS6465 modular rack-mount DC backup power supply. Provides system and PoE power to one OS6465-P28 switch. |
Transceivers
| iSFP-100-MM | 100Base-FX industrial transceiver with an LC type interface. This transceiver is designed for use over multimode fiber. |
| iSFP-100-SM15 | 100Base-FX industrial transceiver with an LC type interface. This transceiver is designed for use over single-mode fiber up to 15 km. |
| iSFP-100-SM40 | 100Base-FX Industrial SFP transceiver with an LC type interface. This transceiver is designed for use over single mode fiber optic cable up to 40 km. |
| iSFP-GIG-T | 1000Base-T industrial Gigabit Ethernet Transceiver (SFP MSA). SFP works at 1000 Mb/s speed and full-duplex mode |
| iSFP-GIG-SX | 1000Base-SX industrial Gigabit Ethernet industrial optical transceiver (SFP MSA) |
| iSFP-GIG-LX | 1000Base-LX industrial Gigabit Ethernet optical transceiver (SFP MSA) |
| iSFP-GIG-LH40 | 1000Base-LH industrial Gigabit Ethernet optical transceiver (SFP MSA). Typical reach of 40 km on 9/125 µm SMF |
| iSFP-GIG-LH70 | 1000Base-LH industrial Gigabit Ethernet optical transceiver (SFP MSA). Typical reach of 70 km on 9/125 µm SMF |
| iSFP-GIG-BX-U | 1000Base-BX SFP transceiver with an LC type of interface. This bi-directional transceiver is designed for use over single mode fiber optic on a single strand link up to 10 km. Transmits 1310 nm and receives 1490 nm optical signal |
| iSFP-GIG-BX-D | 1000Base-BX SFP transceiver with an LC type of interface. This bi-directional transceiver is designed for use over single mode fiber optic on a single strand link up to 10 km. Transmits 1490 nm and receives 1310 nm optical signal |
| iSFP-10G-LR | 10 Gigabit industrial optical transceiver (SFP+). Supports monomode fiber over 1310 nm wavelength (nominal) with an LC connector. Typical reach of 10 km |
| iSFP-10G-ER | 10 Gigabit industrial optical transceiver (SFP+). Supports monomode fiber over 1550 nm wavelength (nominal) with an LC connector. Typical reach of 40 km |
| iSFP-10G-ZR | 10 Gigabit industrial optical transceiver HPoE (SFP+). Supports data transmission at 1550nm over up to 80km single mode fiber. LC connector type |
| iSFP-10G-C1M | 10 Gigabit industrial direct attached copper cable (1 m, SFP+) |
| iSFP-10G-C3M | 10 Gigabit industrial direct attached copper cable (3 m, SFP+) |
| iSFP-10G-C7M | 10 Gigabit industrial direct attached copper cable (7 m, SFP+) |
