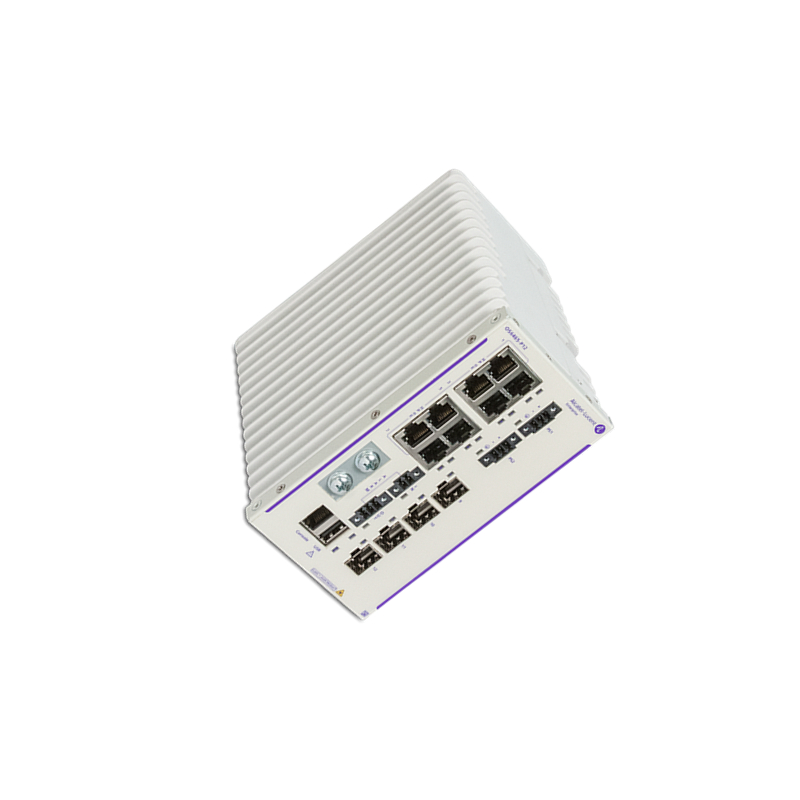

Alcatel-Lucent Enterprise OmniSwitch 6465 Compact hardened ethernet switch OS6465-P12

  • OS6465-P12
  • Alcatel-Lucent
  • New
  • 1year
Quantity:

Alcatel-Lucent OmniSwitch 6465 Compact hardened ethernet switches

OS6465-P12-4

Product overview

OmniSwitch OS6465-P6

The Alcatel-Lucent OmniSwitch 6465 is a family of ruggedized, fully manageable and fan-less Gigabit Ethernet switches. Designed for Industrial Ethernet applications, these hardened ethernet family offers a range of DIN rail and 19” rack mountable switches that are ideal for a wide variety of Industrial applications such as Intelligent Transportation, Railway, smart cities and Utilities.

Features
• Designed for Industrial applications
• Convection cooled fan-less models
•Advanced Industrial PoE capabilities with support for HPoE (60 W) on all models
• Virtual Chassis to connect multiple switches for creating a single chassis-like entity
• Hot-swappable, fully redundant power supplies
• Delivers redundant ring topologies using industry standard protocols
• Switch Backup & Restore
•IEEE 1588v2 PTP support
• Simplified installation and service provisioning

• MACSec Support


Gigabit ports (RJ45)
SFP ports
1G/10G SFP+ ports
60W HPOE, POE+ ports

OS6465-P6
4
2
0
2,2
OS6465-P12
8
4
0
4,4
OS6465-P28
22
2
4
8,14



Product Details

OS6465-P12 Technical specifications
Operating temperature
-40°C to 75°C (-40°F to 167°F)
Fans
0
File system flash
1 GB
RAM
1 GB
Max switching capacity
24 Gb/s
Forwarding capacity
17.9 Mpps
Weight (no PS attached)
2.08 Kg (4.6 lbs)
Height*Width*Depth (no PS attached)
15 cm (5.9 in)*8.0 cm (3.15 in)*15 cm (5.9 in)
1588v2 capable ports
12
MACsec capable ports
12
USB port
1
Console port
1
Alarm relay contacts
1 in, 1 out
PSU connectors
2
Max PoE budget
150 W
Altitude
13,000 ft
Storage temperature
-40°C to 85°C (-40°F to 185°F)
Humidity (operating & storage)
5% to 95% non-condensing
Power consumption (idle)
11.79 W
Power consumption (full load)
18.71 W
Heat dissipation (BTU/hr)
40.22
Maximum surge protection
6 KV
MTBF (hours) (Switch only)
1,421,933
MTBF (hours) (switch+2 AC PSU)
399,336
Mounting options
DIN/Wall/Panel
