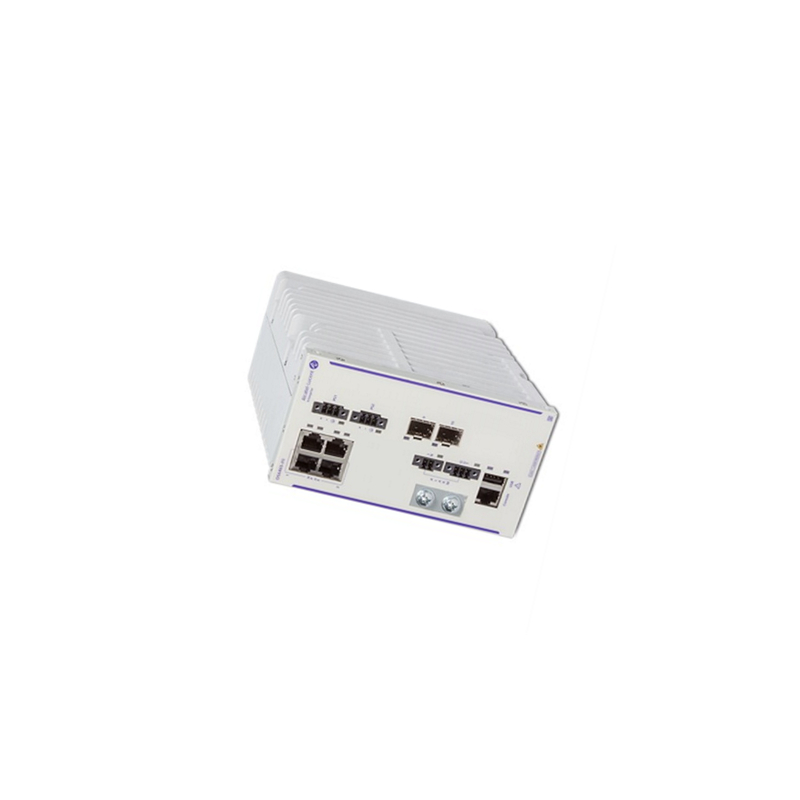

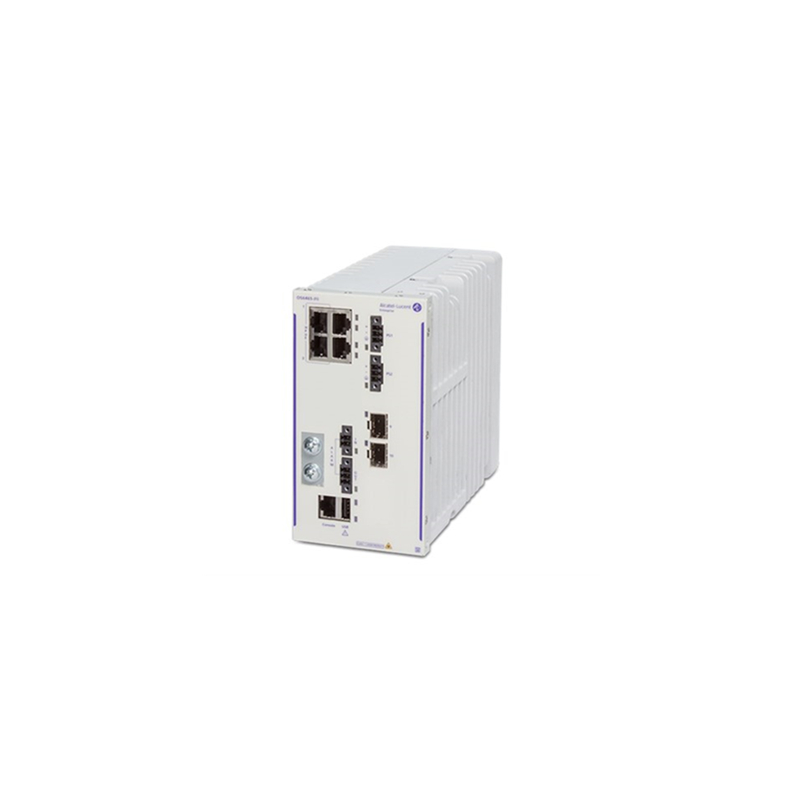

| OS6465-P6 Technical specifications |
| Operating temperature | -40°C to 75°C (-40°F to 167°F) |
| Fans | 0 |
| File system flash | 1 GB |
| RAM | 1 GB |
| Max switching capacity | 12 Gb/s |
| Forwarding capacity | 9.9 Mpps |
| Weight (no PS attached) | 2.08 Kg (4.6 lbs) |
| Height*Width*Depth (no PS attached) | 15 cm (5.9 in)*8.0 cm (3.15 in)*15 cm (5.9 in) |
| 1588v2 capable ports | 6 |
| MACsec capable ports | 6 |
| USB port | 1 |
| Console port | 1 |
| Alarm relay contacts | 1 in, 1 out |
| PSU connectors | 2 |
| Max PoE budget | 150 W |
| Altitude | 13,000 ft |
| Storage temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity (operating & storage) | 5% to 95% non-condensing |
| Power consumption (idle) | 9.72 W |
| Power consumption (full load) | 15.99 W |
| Heat dissipation (BTU/hr) | 33.16 |
| Maximum surge protection | 6 KV |
| MTBF (hours) (Switch only) | 1,452,904 |
| MTBF (hours) (switch+2 AC PSU) | 401,280 |
| Mounting options | DIN/Wall/Panel |
