Alcatel-Lucent OmniSwitch 6560 Stackable Gigabit and Multi-Gigabit Ethernet LAN Switch Family
Product overview
The Alcatel-Lucent OmniSwitch™ 6560 Stackable Gigabit and Multi-Gigabit Ethernet LAN value switch family is an industry leading campus access solution for enterprise networks. With multi-gigabit ports for high-speed IEEE 802.11ac devices, 10 GigE uplinks and 20 GigE stacking, the OmniSwitch 6560 is the right solution for your next generation network.
Deployments benefiting from the OmniSwitch 6560 family are:
• Edge of small-to-mid-sized networks
• Branch office enterprise and campus workgroups
• Residential and commercially managed services applications
Features
• 24-port and 48-port, PoE and non-PoE with fixed small form factor pluggable (SFP+) 10G interfaces • Support for 10 GigE stacking or 20 GigE stacking
• Support for IEEE 802.1AE MACSec encryption
• Internal modular AC redundant power supplies
Product Details

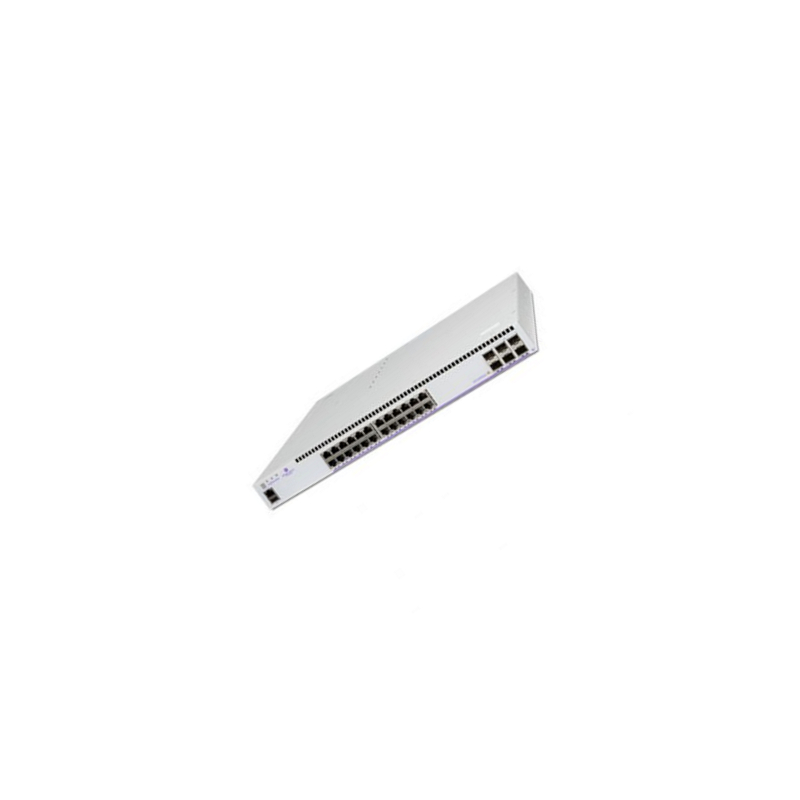

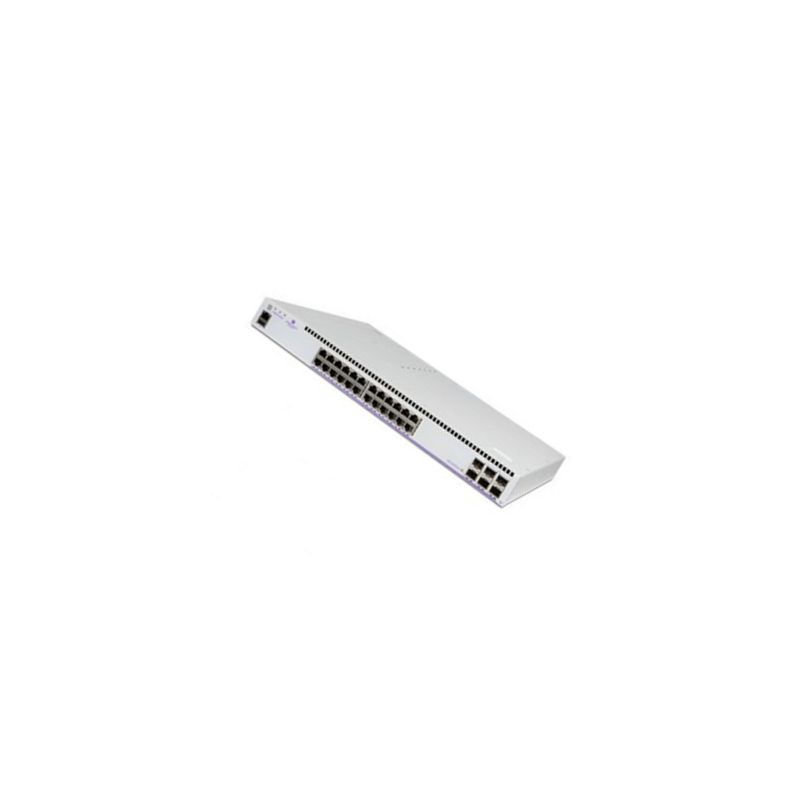

| OS6560-24X4 Technical specifications |
| Gigabit RJ-45 port count | 24 |
| 1G SFP+ port count | 2* |
| 1G/10G SFP+ | 4 |
| 20G QSFP+ stacking ports | 0 |
| MACSec capable ports | All 1G RJ45 |
| USB port | 1 |
| Console port | 1 |
| Primary slide-in PSU slot | Fixed |
| Backup slide-in PSU slot | 1 |
| Fans | 1 |
| File system flash | 1GB |
| RAM | 1 GB |
| Max switching ASIC capacity | 168 Gb/s |
| Switch capacity with all 1G/10G ports (all ports, full duplex) | 168 Gb/s |
| Switch frame rate with 6 x 10GE ports @ 64-byte packet | 125 Mpps |
| 2x10GE stacking capacity (aggregated) | 40 Gb/s |
| System power consumption | 36 W |
| System heat dissipation | 123 (BTU/h) |
| Power consumption w/PoE | N/A |
| Heat Dissipation w/PoE | N/A |
| Acoustics (dB) @27C* | 43-54 (dBA) |
| MTBF (hours) | 372 k |
| Weight | 4.7 kg (10.4 lb) |
| Height*Width*Depth | 4.4 cm (1.73 in)*44 cm (17.33 in)*35 cm (13.78 in) |
