Product Description

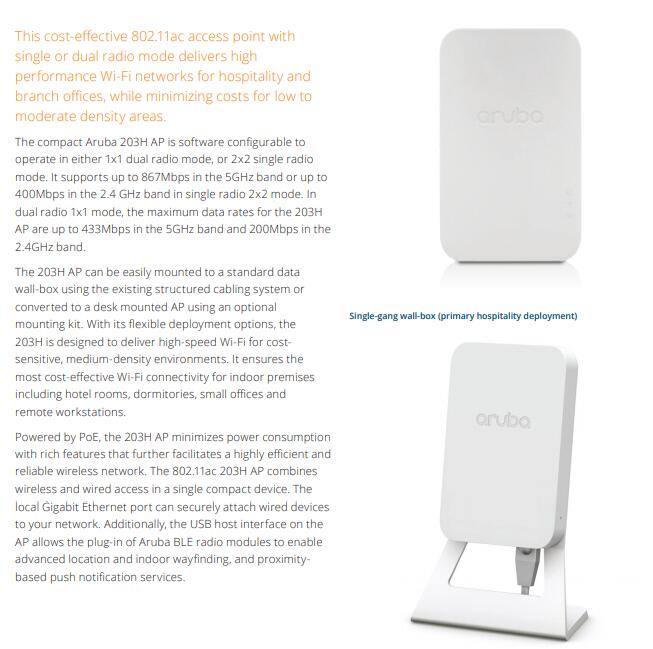

ARUBA 203H HOSPITALITY ACCESS POINT
Cost-effective 802.11ac access point for branch offices and hospitality environments
Product Details
OTHER INTERFACES
•Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- PoE-PD (input): 48 Vdc (nominal) 802.3af/at PoE
•Local: 10/100/1000BASE-T Ethernet (RJ-45, bottom)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
•Passive pass-through interface (two RJ-45, back and bottom)
- USB host interface (Type A connector)
- For Aruba LS-BT1USB BLE radio modules only
•Visual indicators (LEDs):
- Power/system status
- Radio status
- Local network port status
•Reset/LED control button ("paperclip access")
- Factory reset (when activated during device power up)
- LED control: toggle off/normal
•Serial console interface (custom, uUSB physical jack)
ENCRYPTED THROUGHPUT
•Maximum IPsec encrypted wired throughput: 20Mbps
POWER SOURCES AND CONSUMPTION
•The AP is powered through Power over Ethernet (PoE)
•An optional PoE power injector is sold separately
•Power over Ethernet (PoE): 48 Vdc (nominal)
802.3af/802.3at compliant source
•Maximum (worst-case) power consumption: 7.4W
•Includes up to 100mW for an attached USB BLE module
•Maximum (worst-case) power consumption in idle
mode: 3.9W
MOUNTING
•The AP ships with a mounting plate to attach the AP to a single-gang wall-box (most international variations covered). The AP securely attaches to the plate; a custom security tool to remove the AP from the plate ships with the product.
•Several optional mount kits are available to attach the AP to a dual-gang wall-box, directly to the wall, or to support desk mounting.
MECHANICAL
•Dimensions/weight (unit, including single-gang wall box
mount plate):
- 86mm (W) x 26.5mm (D) x 140mm (H)
- 225g
•Dimensions/weight (shipping):
- 115mm (W) x 47mm (D) x 165mm (H)
- 290g
ENVIRONMENTAL
•Operating:
- Temperature: 0° C to +40° C (+32° F to +104° F)
- Humidity: 5% to 93% non-condensing
•Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)
REGULATORY
•FCC/ISED
•CE Marked
•RED Directive 2014/53/EU
•EMC Directive 2014/30/EU
•Low Voltage Directive 2014/35/EU
•UL/IEC/EN 60950
•EN 60601-1-1 and EN 60601-1-2
For more country-specific regulatory information and approvals, please see your Aruba representative.
RELIABILITY
•MTBF: 780,000 hours (89 years) at +25C
operating temperature
REGULATORY MODEL NUMBER
•AP-203H-xx (all variants): APINH203
CERTIFICATIONS
•CB Scheme Safety, cTUVus
•UL2043 plenum rating
•Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac
WARRANTY
•Aruba limited lifetime warranty
MINIMUM SOFTWARE VERSIONS
•ArubaOS™: 6.5.2.0/8.2.0.0
•InstantOS™: 6.5.3.0/8.2.0.0
RF PERFORMANCE TABLE | ||
Maximum transmit power (dBm) per transmit chain | Receiver sensitivity (dBm) per receive chain | |
2.4 GHz | ||
802.11b | ||
1 Mbps | 18.0 | -92.0 |
11 Mbps | 18.0 | -88.0 |
802.11g | ||
6 Mbps | 18.0 | -88.0 |
54 Mbps | 18.0 | -73.0 |
802.11n HT20 | ||
MCS0/8 | 17.0 | -88.0 |
MCS7/15 | 17.0 | -71.0 |
802.11n HT40 | ||
MCS0/8 | 17.0 | -85.0 |
MCS7/15 | 17.0 | -68.0 |
5 GHz | ||
802.11a | ||
6 Mbps | 16.0 | -88.0 |
54 Mbps | 16.0 | -72.0 |
802.11n HT20 | ||
MCS0/8 | 16.0 | -88.0 |
MCS7/15 | 15.0 | -70.0 |
802.11n HT40 | ||
MCS0/8 | 16.0 | -85.0 |
MCS7/15 | 16.0 | -67.0 |
802.11ac VHT20 | ||
MCS0 | 16.0 | -88.0 |
MCS8 | 15.0 | -65.0 |
802.11ac VHT40 | ||
MCS0 | 16.0 | -85.0 |
MCS9 | 13.0 | -62.0 |
802.11ac VHT80 | ||
MCS0 | 16.0 | -82.0 |
MCS9 | 13.0 | -59.0 |
