Aruba 203R SERIES REMOTE ACCESS POINTS

Product Description

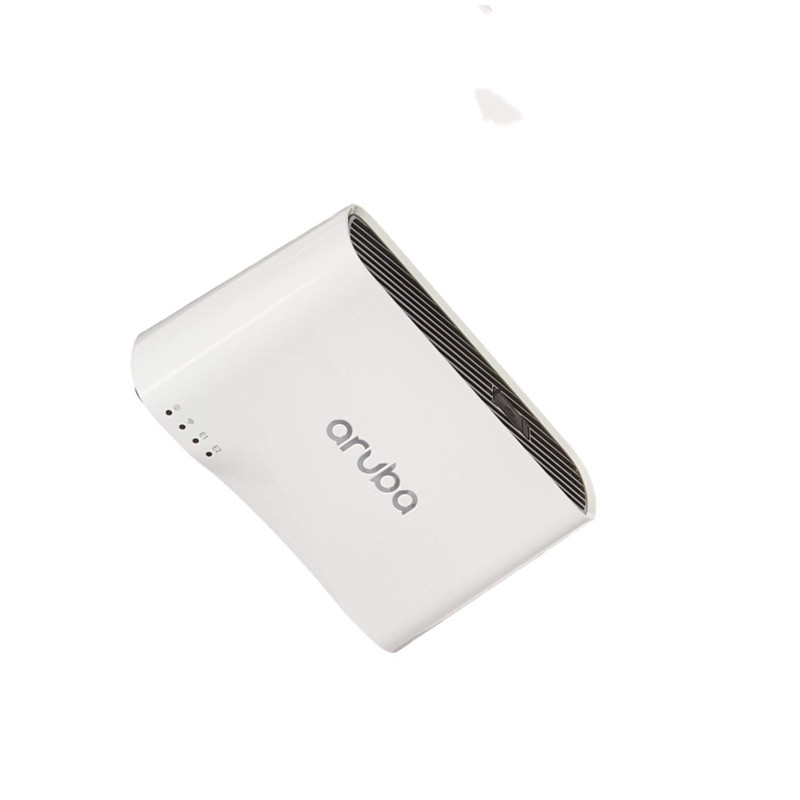

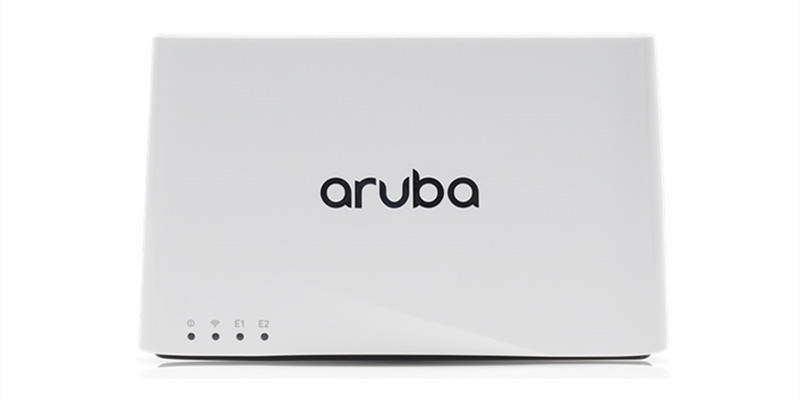

ARUBA 203R SERIES REMOTE ACCESS POINT
802.11ac access point for home and small branch offices

Aruba 203R Series Desk stand/Wall plate Access Points APINR203

Product Details
Unified flexible radio 802.11ac remote AP with internal antennas.
Supports wall-box and desk mount deployments

WI-FI ANTENNAS

Two integrated dual-band omni-directional antennas for 2x2 MIMO with maximum individual antenna gain of 0.7dBi in 2.4GHz and
1.0dBi in 5GHz. Built-in antennas are optimized for vertical orientation of the AP.
Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per-antenna pattern is -0.4dBi
in 2.4GHz and 0.5dBi in 5GHz.

OTHER INTERFACES

Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back)
Auto-sensing link speed and MDI/MDX
802.3az Energy Efficient Ethernet (EEE)
Local: Two 10/100/1000BASE-T Ethernet (RJ-45, back)
Auto-sensing link speed and MDI/MDX
802.3az Energy Efficient Ethernet (EEE)
One port (E2): PoE-PSE (output): 48 Vdc (nominal) 802.3af PoE (AP-203RP models)
Bluetooth Low Energy (BLE) radio
Up to 4dBm transmit power (class 2) and -93dBm receive sensitivity
Integrated antenna with moderately directional pattern and peak gain of 1dBi
USB 2.0 host interface (Type A connector, top)
3G/4G cellular modems
Device battery charging port
Capable of supplying up to 1A/5 watts of power to anattached device
AC power interface, 2 prong IEC 60320-1 C8 receptacle(back)
Visual indicators (LEDs, front):
Power/system status
Radio status
Local network port status (2x)
Includes PoE-PSE status (AP-203RP models)
Reset/LED control button ("paperclip access", bottom)
Factory reset (when activated during device power up)
LED control: toggle off/normal
Serial console interface (custom, uUSB physical jack, bottom)

POWER SOURCES AND CONSUMPTION
The AP supports direct AC power: 90V - 265V, 47Hz - 63Hz.
Note that the unit does not include an AC power cord (IEC C7 plug). A compatible region-specific cord should be selected and added
when ordering the AP.

Maximum (worst-case) power consumption: 7.5W.
Excludes power consumed by external USB and/or PoE-PD device (and internal losses); this could add up to 6W for a 5W/1A USB device
and up to 18W for a max load (15.4W) 802.3af PoE-PD device
Maximum (worst-case) power consumption in idle mode: 4.6W.

MOUNTING

The AP supports desk mount without additional accessories. A cover ships with the AP to hide connectors, cables and product
labels.
The cover can be used to support wall mounted deployments as well.

MECHANICAL

Dimensions/weight (unit, with cable cover):
155mm (W) x 50mm (D) x 95mm (H)
320g (AP-203R), 340g (AP-203RP)

Dimensions/weight (shipping):
224mm (W) x 159mm (D) x 78mm (H)
510g (AP-203R), 590g (AP-203RP)

ENVIRONMENTAL

Operating:
Temperature: 0° C to +40° C (+32° F to +104° F)
Humidity: 5% to 93% non-condensing
Storage and transportation:
Temperature: -40° C to +70° C (-40° F to +158° F)

RELIABILITY

MTBF at +25C° operating temperature:
AP-203R: 324,000 hours (37 years)

REGULATORY MODEL NUMBERS

AP-203R-xx (all variants): APINR203

MINIMUM SOFTWARE VERSIONS

ArubaOS™ 6.5.2.0/8.2.0.0
Aruba InstantOS™ 6.5.2.0/8.2.0.0
