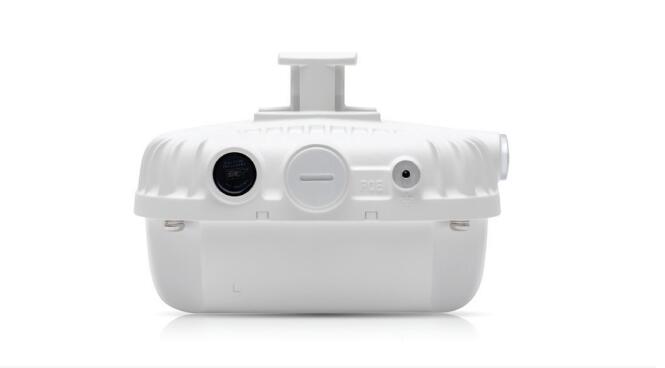

Aruba 360
Aruba
New
1year
Availability: | |
---|---|
Quantity: | |
Product Description
Product Details
AP-360 SERIES SPECIFICATIONS | •AP-365 - 2.4-GHz (300 Mbps max) and 5-GHz (867 Mbps max) radios, each with 2x2 MIMO and integrated omnidirectional antennas. •AP-367 - 2.4-GHz (300 Mbps max) and 5-GHz (867 Mbps max) radios, each with 2x2 MIMO and integrated directional antennas. |
MOUNTING | •Ordered separately •Optional mounting kits: - AP-270-MNT-V1: Outdoor AP long mount kit for pole/wall mounting. Reduces impact of obstruction by pole or extends away from corner - AP-270-MNT-V2: Outdoor AP short mount kit for pole/wall mounting - AP-270-MNT-H1: Outdoor AP mount kit for hanging from inclined/horizontal structures - AP-270-MNT-H2: Outdoor AP flush mount kit for hanging from inclined/horizontal structures |
MECHANICAL | •Dimensions/weight (unit, excluding mount accessories): - 165mm (W) x 165mm (D) x 110mm (H), 6.5" (W) x 6.5" (D) 4.3" (H) - 807g/1.78lbs (AP-365) - 815g/1.80lbs (AP-367) •Dimensions/weight (shipping): - 198mm (W) x 200mm (D) x 128mm (H), 7.8" (W) x 7.9" (D) x5.0" (H) - 1,115g/2.46lbs (AP-365) - 1,123g/2.48lbs (AP-367) |
ENVIRONMENTAL | •Operating: - Temperature: -40° C to +55° C (-40° F to +131°F) ambient in full sun - Humidity: 5% to 95% non-condensing •Max Elevation 3000m •Storage and transportation: - Temperature: -40° C to +70° C (-40° F to +158°F) - EN 300 019 Storage and Transportation •Shock, vibration, and earthquake - IEC 60068-2-64/-27/-6 |
REGULATORY | •FCC/Industry of Canada •CE Marked •RED Directive 2014/53/EU •EMC Directive 2014/30/EU •Low Voltage Directive 2014/35/EU •EN 300 328 •EN 301 489 •EN 301 893 •UL/IEC/EN 60950 •EN 60601-1-1, EN60601-1-2 •AP-365: - EN 50121-1 - EN 50121-3-2 - EN 50121-4 - EN-50155 |
Regulatory Model Number | •AP-365: APEX0365 •AP-367: APEX0367 |
CERTIFICATIONS | •CB Scheme Safety, cTUVus •Wi-Fi CERTIFIED™ a,b,g,n •Wi-Fi CERTIFIED™ ac (with wave 2 features) •WPA, WPA2 and WPA3 - Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) |
Minimum Operating System Software | •Unified ArubaOS and InstantOS 6.5.2.0 and 8.2.0 |
