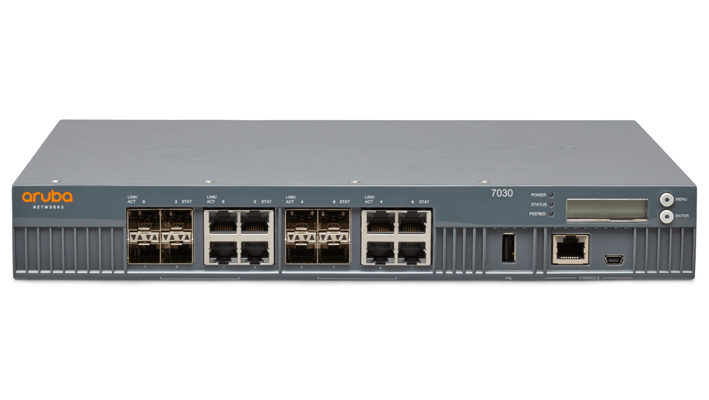

Aruba 7030 (RW) 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clients Controller

JW686A Overview

Aruba 7030 (RW) 64 AP Branch Controller

Aruba 7000 Series Mobility Controllers enhance WLAN performance by centralizing all control functionality for individual Aruba access points (APs) to improve AP utilization, security, and client roaming. Ideally suited for midsize
campuses and branches, the 7000 Series can be deployed using Zero Touch Provisioning (ZTP) to simplify deployment.

Product Details

Table 1 shows the performance and capacity of Aruba 7000 controllers.

Model	7005	7008	7010	7024	7030
Maximum campus AP licenses	16	16	32	32	64
Maximum remote AP licenses	16	16	32	32	64
Maximum concurrent users/devices	1,024	1,024	2,048	2,048	4,096
Maximum VLANs	4,094	4,094	4,094	4,094	4,096
Active firewall sessions	64k	64k	64k	32768	64k
Concurrent GRE tunnels	256	256	512	512	1,024
Concurrent IPsec sessions	512	512	1,024	1,024	2,048
Mobility Access Switch tunneled-node ports	512	512	1,024	1,024	2,048
Firewall throughput	2 Gbps	2 Gbps	4 Gbps	4 Gbps	8 Gbps
Encrypted throughput (3DES, AES-CBC)	1.2 Gbps	1.2 Gbps	2.4 Gbps	2.4 Gbps	2.4 Gbps
Encrypted throughput (AES-CCM)	1.6 Gbps	1.6 Gbps	3.4 Gbps	3.4 Gbps	4 Gbps

Note: To order Aruba Access Points, please visit HPE Aruba 100 Series Access Points, HPE Aruba 200 Series Access Points, HPE Aruba 300 Series Access Points.

Quick Spec

Table 2 shows the quick spec.

Product Model	Aruba 7030 (RW) 8p Dual Pers 10/100/1000BASE-T/1GBASE-X SFP 64 AP and 4K Clients Controller
Maximum campus AP licenses	64
Maximum remote AP licenses	64
Maximum concurrent users/devices	4096
Maximum VLANs	4,096
Active firewall sessions	64k
Concurrent GRE tunnels	1024
Concurrent IPsec sessions	4096
Mobility Access Switch tunneled-node ports	2048
Firewall throughput	8 Gbps
Encrypted throughput (3DES, AES-CBC)	2.4 Gbps
Encrypted throughput (AES-CCM)	4 Gbps
Form factor/footprint	1 rack unit
10/100/1000BASE-T	8 (combo)
USB 2.0	1
Management/status LEDs	Yes (2)
LINK/ACT and status LEDs	Yes
LCD panel and navigation buttons	Yes
Console port	Yes (mini USB, RJ-45)
Out-of-band management port	No
Dimension (H × W × D)	4.4 cm x 30.5 cm x 21.1 cm (1.7” x 12” x 8.3”)
MTBF (hours, @ 25C)	390,679
Operating temperature	0° C to 40° C
Storage temperature	-40° C to 70° C
Humidity/storage humidity	5% to 95%, NC
Acoustic noise	29.1 – 57.4 dBA
Maximum power consumption	55W
