JW735A is the network management device. The Aruba 7200 Series Mobility Controllers is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi.

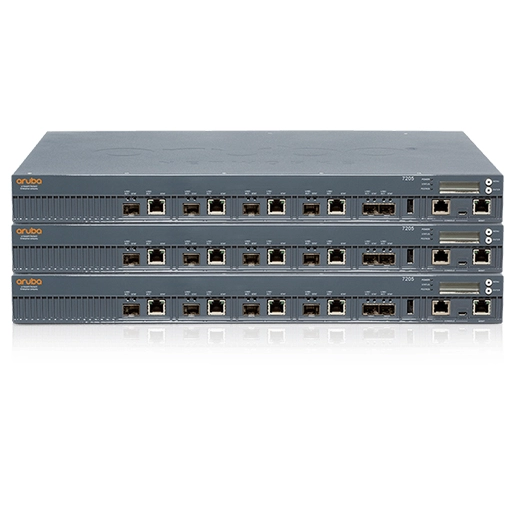

Figure 1 shows the appearance of JW735A.
Table 1 shows the Quick Specs.
Product Code | JW735A |
Form factor/footprint | 1xRU |
10/100/1000BASE-T | 4xCombo |
1000BASE-X | 4xCombo |
10G Ports (10G or 1G supported) | 2xSFP+ |
USB 2.0 | 2 |
Dimensions (H x W x D) | 4.4 cm x 44.2 cm x 33.4 cm (1.75" x 17.38" x 13.13") |
MTBF (Hours) | 129,597 (@40C) |

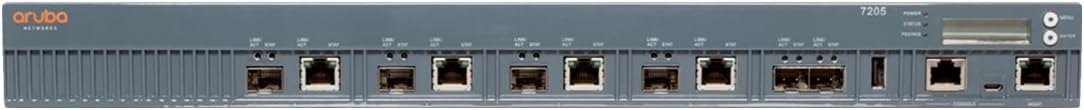

Figure 2 shows the front panel of JW735A.

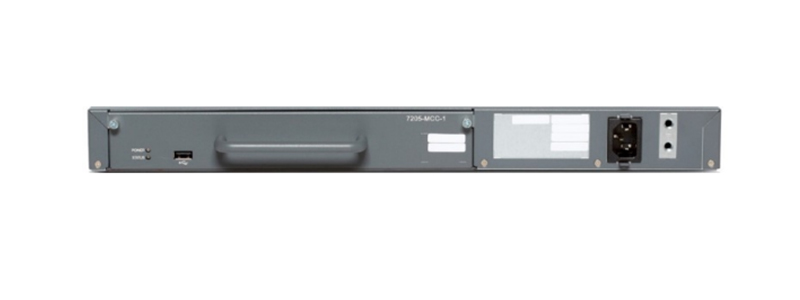

Figure 3 shows the back panel of JW735A.
JW735A provides these features:
Optimized for 802.11ac, the 7200 series features a central processor with eight CPU cores to support over 32,000 devices and stateful firewall policy enforcement at 40 Gbps.
New levels of visibility offered by AppRFTM technology allow IT to see applications by user, prioritize them, and control access based on policies.
It also manages authentication, encryption, VPNs, IPv4/IPv6 services, the Policy Enforcement FirewallTM, Adaptive Radio ManagementTM, and RFProtectTM spectrum analysis and wireless intrusion protection.
Table 2 shows the comparison of 7205 Series.
Series | 7205 | 7210 |
Maximum campus or remote AP licenses | 256 | 512 |
Maximum concurrent users/devices | 8,192 | 16,384 |
Maximum VLANs | 4,096 | 4,096 |
Active firewall sessions | 1 million (M) | 2M |
Concurrent GRE tunnels | 4,096 | 8,192 |
Concurrent IPsec sessions | 8,192 | 16,384 |
Concurrent SSL sessions | 4,096 | 8,192 |
Firewall throughput (Gbps) | 12 | 20 |
Wired Bridged Throughput (Gbps) | 12 | 20 |
Encrypted throughput 3DES (Gbps) | 5 | 7 |
Encrypted throughput AES-CBC-256 (Gbps) | 5 | 7 |
Encrypted throughput AES-CCM (Gbps) | 5 | 7 |
Encrypted throughput AES-GCM-256 (Gbps) | 5 | 7 |
