B129
Avaya
Original New
1 year
| Quantity: | |
|---|---|

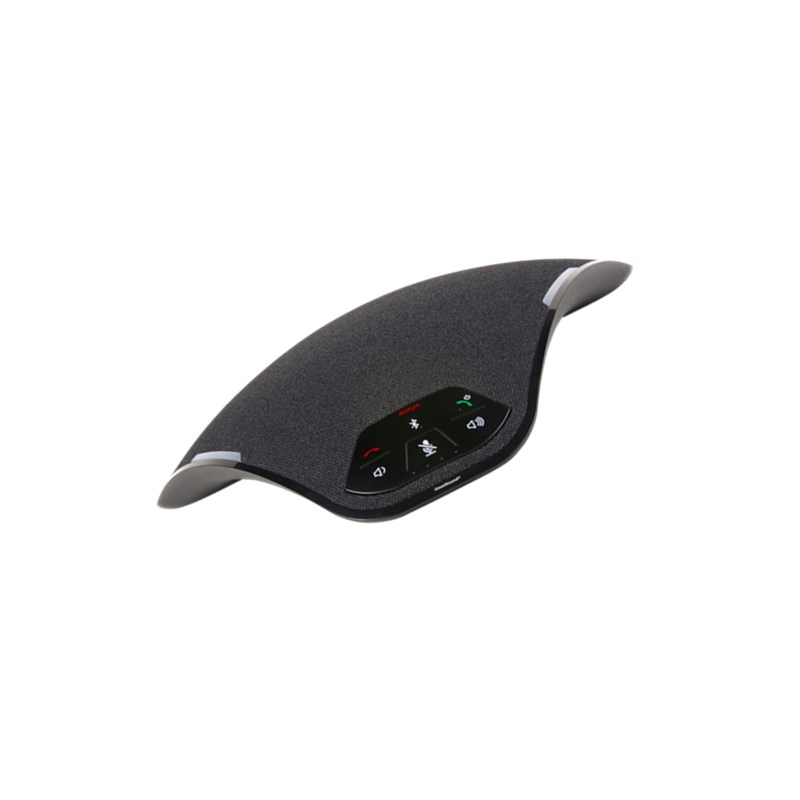

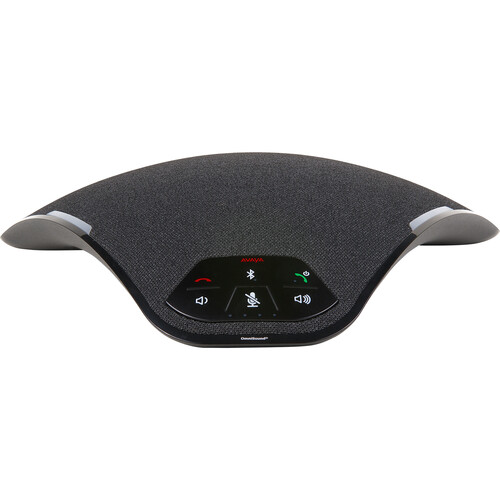

Avaya Conference Phone B129
The competitively priced Avaya Conference Phone B129 meets the needs of customers looking for USB and Bluetooth connected conferencing devices that need something bigger and higher capacity than other speaker/conference phones. USB and Bluetooth connectivity make the B129 a completely Open device able to connect to any system, regardless of the type of call control.
With the B129 it is possible to support 12 room participants. This allows the B129 to scale from the Huddle Rooms through to medium conference rooms. The built-in battery makes it easy to move the B129 to where you need it. For units that need to stay fixed in one location a lock-slot is integrated into the unit that uses a standard Kensington type lock.
FS-CONFERENCE-PHONE-B129-DV15574EN.pdf
Specifications
Meeting size
▪ Up to 12 people, single unit
Connectivity
▪ USB: 2.0 (micro-B to Type A)
▪ Bluetooth 5.0, Class 1 (HFP/HSP/A2DP)
▪ NFC for easy pairing
Audio Specifications
▪ OmniSound ® HD voice
▪ Speaker:
╶ Frequency response: 100Hz to 20,000Hz
╶ Volume: 90dB (SPL 0.5m)
▪ Microphones:
╶ 4 MEMS microphones: 100Hz to 7,000Hz
╶ Pickup range: 20ft/6m
▪ Audio expansion: daisy chain connection (future release).
▪ Full Duplex
▪ Acoustic Echo Cancellation and Noise Suppression
User Interface
▪ Touch buttons:
╶ Answer call / Power
╶ End Call
╶ Bluetooth
╶ Volume Up / Down
╶ Mute
▪ LED Status Indicators
╶ Power status
╶ Call status
╶ Bluetooth status
╶ Battery status
▪ Upgradable Software
▪ Upgradable Software
Power Options
▪ Integrated Lithium Polymer Battery
╶ Call time up to 14 hours
╶ Stand by time up to 18 hours
╶ Charging time to full charge:
╶ 3 hours using power adapter
╶ 15.5 hours using 0.5A USB connection
▪ External power supply:
╶ 5VDC/3A @ 100-240VAC, 50/60Hz
▪ Powered by USB
Dimensions
▪ Device : Width 278 mm, Depth 250 mm, Height 59 mm
▪ Device with Carton: Width 355 mm, Depth 294 mm, Height 72 mm
Weight
▪ 700 g
Color
▪ Black
Environmental
▪ Temperature range: 5°- 40°C
▪ Relative humidity: 20 – 80% condensation-free
Languages
▪ English, French, German, Spanish, Italian, Brazilian Portuguese, Russian, Simplified Chinese, Japanese, Korean, Swedish
Box Contents
▪ Avaya B129 Conference Phone
▪ Power Supply (includes global attachment clips)
▪ USB cable (USB 2.0 Type A-micro B, 1.5m)
▪ Quick Reference Guide
▪ Important Notice Document
