Avaya Hospitality Phones H239
Smart Desktop & Wall-Mount Devices For the Hospitality Industry
Avaya Hospitality Phones portfolio consists of five new models. At the top of the line, the device includes a full 3.5 inch color display screen, HD audio, programmable soft keys, and speaker with acoustic echo cancellation. Mid-range has all the capabilities with the exception of the color display. A standard device is designed specifically for bathrooms, business halls or other housekeeping and service areas. Analog options are available for the mid-range and service area requirements. All of these devices are supported by Avaya Aura® , Avaya IP Office™ as well as Avaya OneCloudTM service available from Avaya channel partners, and Avaya Approved Third Party Platforms.
Key Features and Benefits
These are devices are elegant in appearance with a friendly software suite for the hotel market. They are stylish, have contemporary appearance, excellent voice quality and powerful functionality. The Avaya Hospitality Phones H209, H219, H229, H239, H249 will replace traditional phones and pave way for a new generation of intelligent terminal equipment. These devices are set to look great in most hotel rooms and will support most application requirements.
A Familiar, Functional Interface
These hospitality phones combine traditional telephone features such as fixed feature buttons (Call Hold, Redial, Call Transfer, Hotline, Voicemail etc.) with contemporary innovations such as soft keys, and a contextsensitive user interface (in select models). They combine the best of past and present. Fixed keys—familiar to any phone user—provide easy access to the most common features. Meanwhile, flexible soft keys provide contextual guidance and prompts for ease of use and efficiency.
Clear Sound, Clean Looks
Enjoy clear, clean audio that will satisfy the most discerning users. The phone’s streamlined industrial design reflects its function as a high-class communications device for verticals such as hospitality etc.
Top Value for Your Communications Dollar
Expect top quality and reliability from Avaya and these phones deliver that by giving you solidly built devices that can outlast competitors at low-cost. They are not only easy to install and manage, but are featurerich and can provide an exceptional user experience.

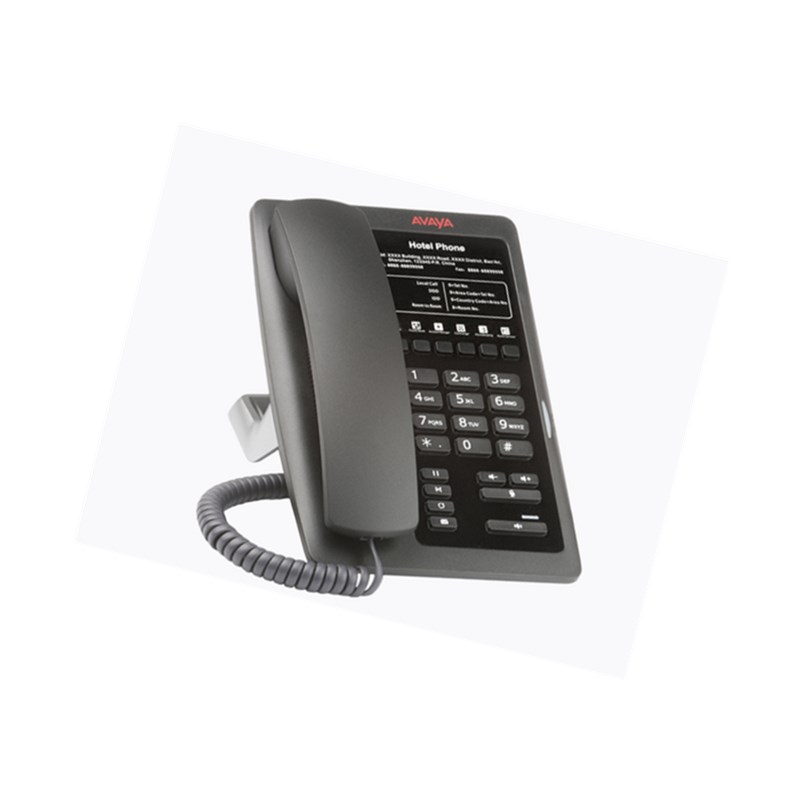

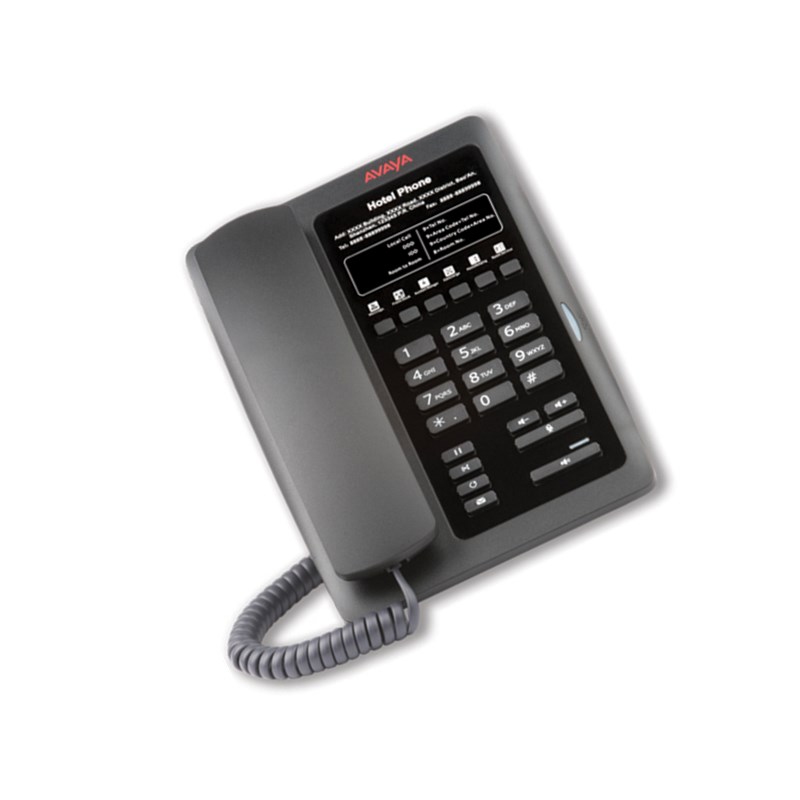

Avaya Hospitality Phones H239
This is an IP device with HD voice and 6 soft programmable soft keys and USB charging port. The H239 has a full duplex, hands free speaker phone with acoustic echo cancellation, along with standard phone features such as call transfer, call holding and call waiting. It comes with a printed front plate and can be customized based on the customer requirement.
|Phone Features||Vxworks OS | Support SIP2.0 (RFC3261) and correlative RFCs | SIP supports 1 SIP servers, and backup SIP proxy servers | Supports SIP UDP / TCP / TLS|
|Key Features||6 soft keys programmable | Multi language displayed (web)|
|Audio||HD voice: HD handset | Codec: G.711A / U, G.723.1 high/low, G.729AB, G.722, G.726-32 | DTMF: in-band, RFC2833 and SIP INFO | Full-duplex acoustic echo canceller—hands-free mode| Voice activity detection / comfort noise generation / background noise estimation / noise reduction | Packet loss concealment | Dynamic adaptive jitter buffer up to 300ms | DTMF: in-band, out-of-band-DTMF-relay (RFC2833) / SIP INFO|
|Advanced Features||Call transfer | Call holding | Call waiting | Redial | Call completion | Predial | MWI | Flexible dial plan | Barring function for outgoing calls | Do not disturb | Auto answer | CLIR (rejects anonymous calls) | CLIP (to make an anonymous call) | Dial without registration | Call logs with missed calls / incoming calls / outgoing calls (Each support 300 records) | Speed dial | Hotline / warm-line | Password dial | DTMF hidden | Action URL / active URI | Multicast | Web dial | Emergency call|
|Network / Security Features||WAN / LAN: 10 / 100M Ethernet ports (bridge mode) | IP configuration: Static / DHCP / PPPoE | Network access control: 802.1x | VPN:L2TP (basic unencrypted) / OpenVPN | VLAN | QoS|
|Deployment & Maintenance||Web management portal | Web-based packet dump | Configuration export/import | Firmware upgrade | Syslog|
|Physical Features||Adapter input: AC100-240V | Adapter output: DC 5V/1A | WAN Port-10 / 100 BASE-T RJ-45 for LAN | LAN Port-10 / 100 BASE-T RJ-45 for PC | Handset: RJ9 | Power consumption: IDLE: 2.5 W active: 2.8W | Operation temperature: 0~40 °C | Relative humidity: 10~65% | Main chipset: Broadcom | SDRAM: 16 MB | FLASH: 8 MB|
|Call Control||Avaya Aura© 7.1.1, 7.1.2, Avaya IP Office™ 11 as well as Avaya OneCloud™ 11.0.4 service available from Avaya channel partners, and Avaya Approved Third Party Platforms such as RingCentral, 3CX 14, Netsapiens 40, FreeSwitch 1.8.5, Asterisk 16, Broadsoft 19|
