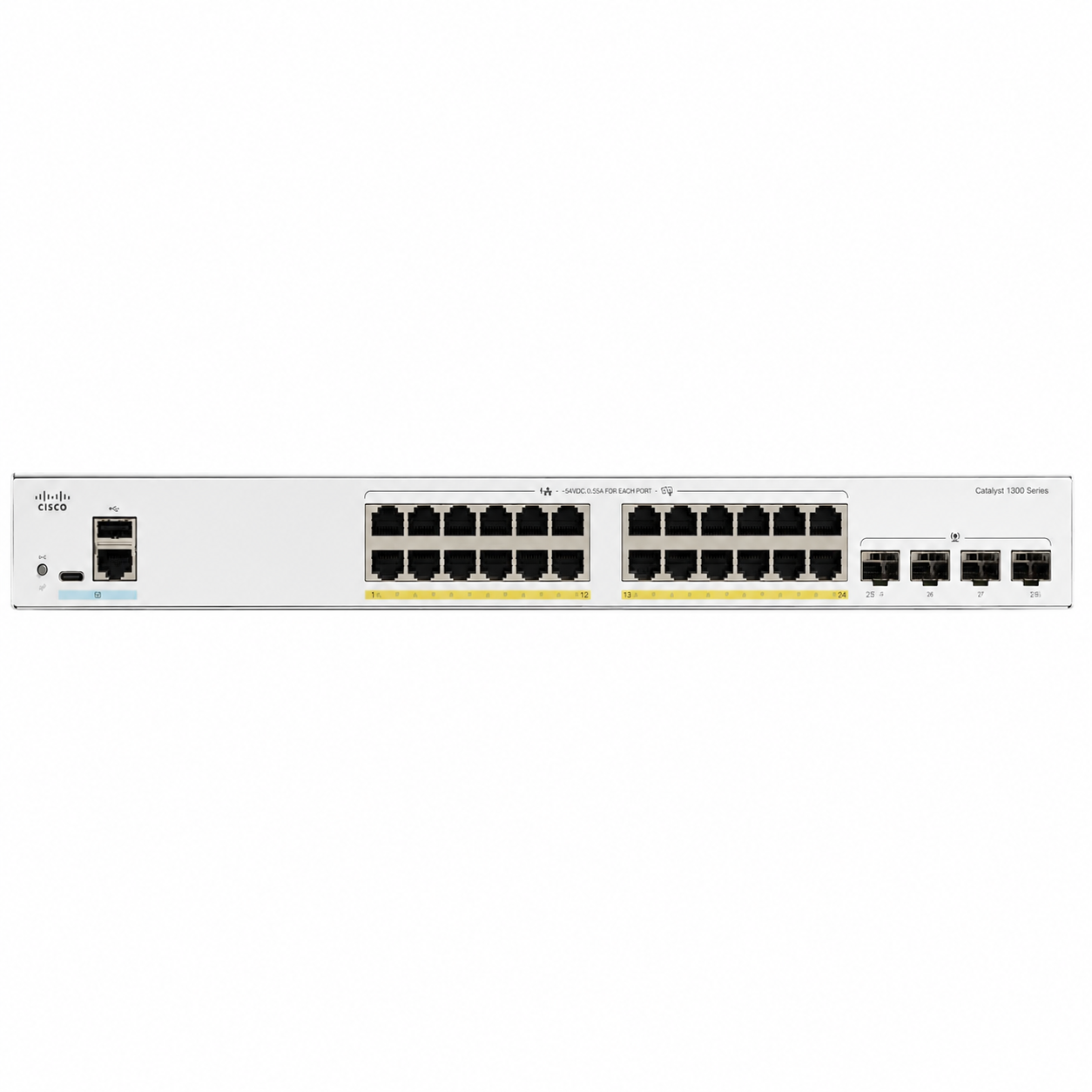

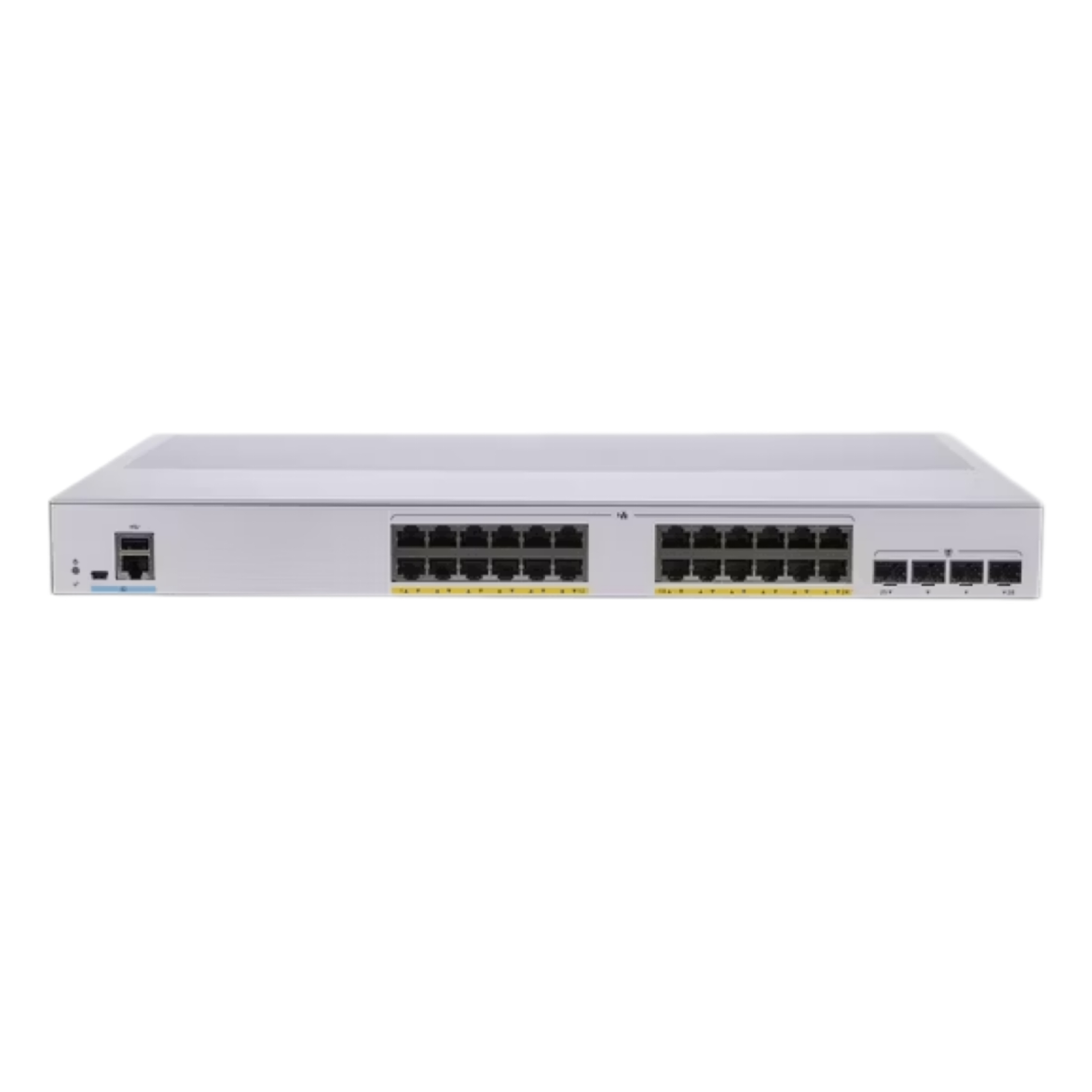

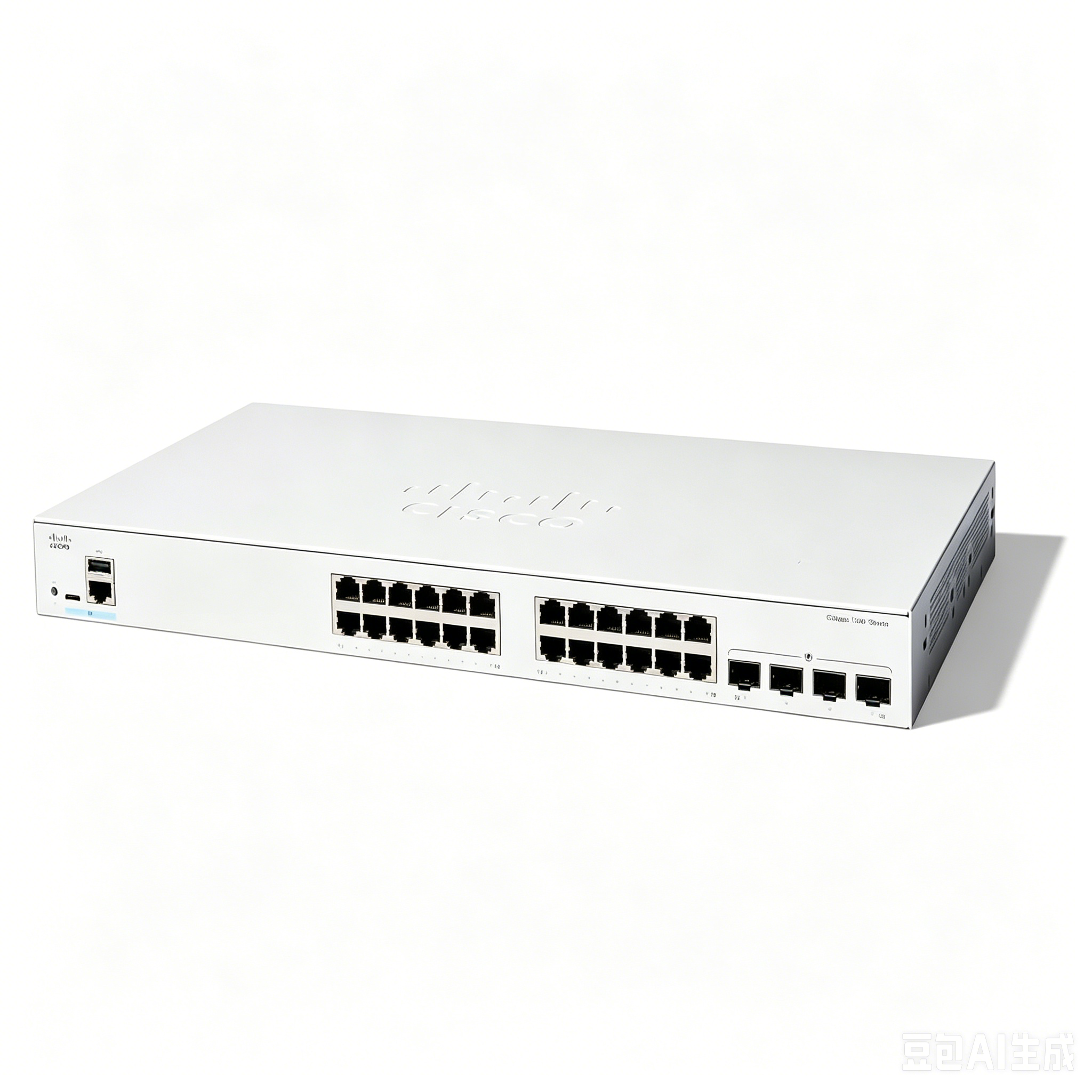

Cisco C1300-24P-4G is a high-performance managed Gigabit PoE switch designed for small to medium enterprise networks that require reliable connectivity, efficient power delivery, and simplified network management. As part of the Cisco Catalyst 1300 Series, this model delivers a strong balance of performance, security, and scalability, making it suitable for modern business environments such as offices, retail stores, surveillance systems, and branch deployments.
Equipped with 24 Gigabit Ethernet ports supporting Power over Ethernet (PoE), the C1300-24P-4G enables seamless deployment of powered devices such as IP phones, wireless access points, and IP cameras without the need for separate power supplies. This significantly reduces installation complexity and cost while improving deployment flexibility. In addition, the switch includes 4 Gigabit uplink ports, providing high-speed aggregation to core networks or upstream devices, ensuring smooth data transmission even in traffic-intensive environments.
As a fully managed Layer 2 switch, the C1300-24P-4G offers advanced network features including VLAN segmentation, QoS (Quality of Service), link aggregation, loop prevention, and enhanced security controls. These capabilities allow network administrators to optimize traffic flow, prioritize critical applications, and maintain stable and secure operations across the entire network. With intuitive web-based management and simplified configuration tools, it reduces operational complexity while still providing enterprise-grade control.
Built with reliability in mind, this Cisco switch is designed for continuous operation in demanding business environments. Its fan-assisted cooling system ensures stable thermal performance under full PoE load, while its robust hardware architecture supports long-term deployment with minimal maintenance. The device also integrates advanced security mechanisms such as port security, DHCP snooping, and access control features to help protect against unauthorized access and network threats.
The Cisco C1300-24P-4G is an ideal choice for businesses looking to build a scalable and future-ready network infrastructure. Whether deployed in a new installation or as an upgrade to existing systems, it provides excellent performance, energy efficiency, and operational stability. For global distributors, system integrators, and IT resellers, this model represents a highly competitive solution in the managed PoE switch market, combining Cisco’s trusted engineering with practical enterprise networking capabilities.
C1300-24P-4G
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Model Name | C1300-24P-4G |
Product Series | Cisco Catalyst 1300 Series Managed Switch | |
Device Type | Layer 2 / Lite Layer 3 Gigabit Ethernet PoE+ Managed Switch | |
Form Factor | 1U Rack-mountable Chassis | |
Port Configuration | 10/100/1000BASE-T RJ45 PoE+ Ports | 24 ports, IEEE 802.3af / 802.3at PoE+ compliant, max 30W per port |
1G SFP Uplink Slots | 4 x Gigabit SFP slots (support 1G fiber/copper SFP transceivers) | |
Management Console Interfaces | 1 x RJ45 Console Port + 1 x USB-C Console Port | |
Performance Specifications | Switching Capacity | 52 Gbps |
Forwarding Rate (64-byte packets) | 38.69 Mpps | |
Switching Architecture | Non-blocking, Wire-speed forwarding | |
MAC Address Table Size | 16,000 entries | |
VLAN Quantity Support | Up to 4,094 VLANs (802.1Q tagged) | |
Jumbo Frame Support | Up to 10,000 bytes | |
PoE Power Specifications | Total PoE Power Budget | 195W |
PoE Standard | IEEE 802.3af (15.4W) / IEEE 802.3at (30W) | |
Per-port Max Output | 30W | |
PoE Management | PoE scheduling, priority power allocation, per-port power monitoring | |
Core Network Features | Layer 2 Functions | 802.1Q VLAN, Voice VLAN, Guest VLAN; STP/RSTP/MSTP loop prevention; Link Aggregation (LACP 802.3ad); IGMP Snooping v1/v2/v3; Port Security, 802.1X Port Authentication; Storm Control; Port Mirroring (SPAN) |
Lite Layer 3 Functions | Static IPv4 / IPv6 Routing; Inter-VLAN Routing; DHCP Server / DHCP Snooping / DHCP Option 82; IPv4/IPv6 ACL Access Control List; Static default route support | |
QoS & Security | QoS Features | 8 hardware priority queues per port; 802.1p CoS, DSCP mapping, traffic shaping & policing; Voice/Video/Data traffic priority scheduling |
Security Features | Web UI / CLI / SSH secure management; HTTPS, SNMPv3, RADIUS/TACACS+ authentication; Port isolation, DoS attack protection; Password encryption, configuration file encryption; Firmware integrity verification | |

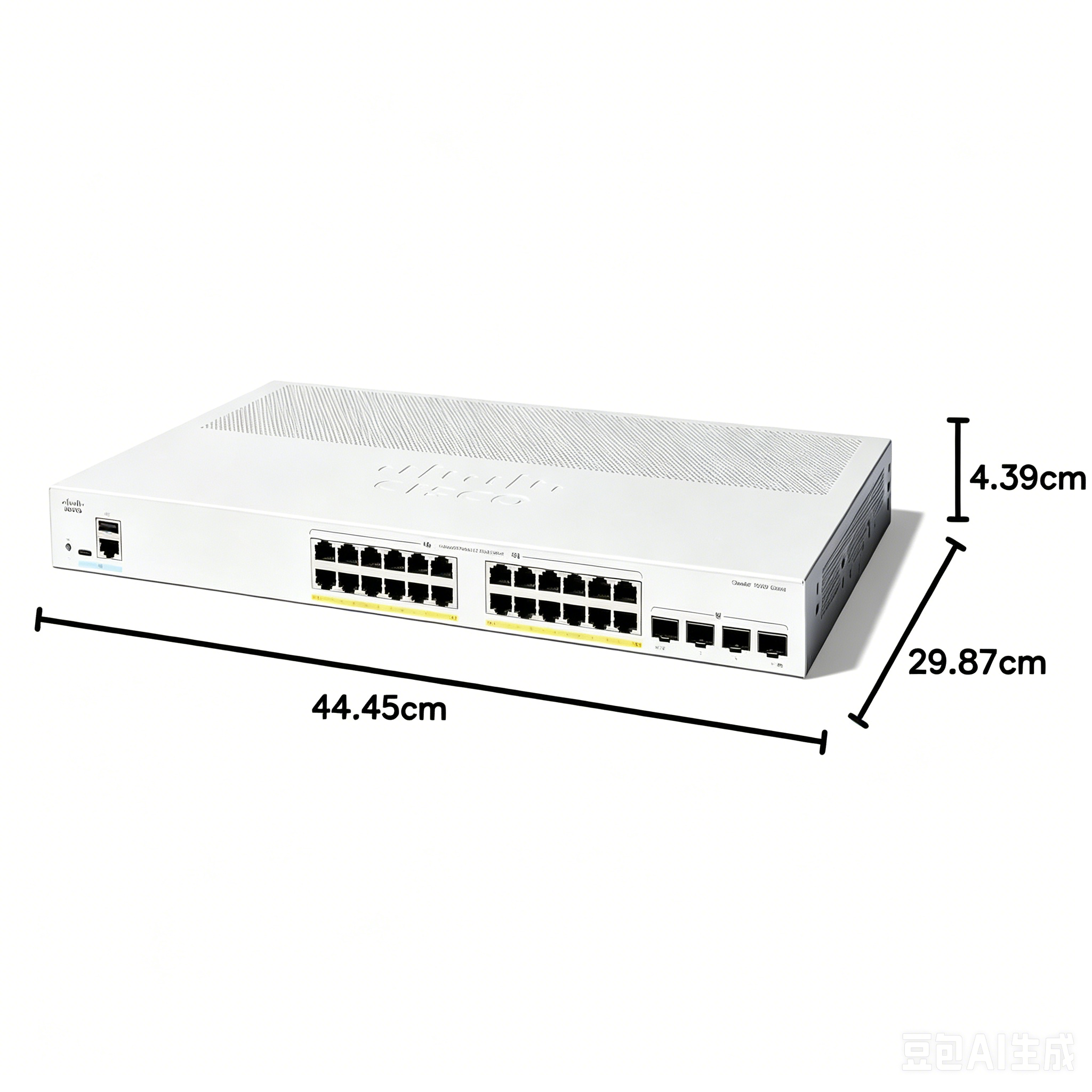

Physical & Mechanical Specifications | Dimension (W × D × H) | 44.45 cm × 29.87 cm × 4.39 cm (1U rack height) |
Weight | 3.6 kg | |
Cooling Design | Fanless silent design | |
Mounting | Standard 19-inch rack mount brackets included | |
Power Supply | Input Power | AC 100–240V, 50/60Hz internal power supply |
Max Total Power Consumption | 220W (system + full PoE load) | |
Environmental Requirements | Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
Operating Humidity | 10%–90% non-condensing | |
Altitude Limit | Up to 3,000 meters above sea level | |
Compliance & Standards | Industry Standards | IEEE 802.3, 802.3u, 802.3ab (Gigabit Ethernet); IEEE 802.3af / 802.3at PoE+; IEEE 802.1Q VLAN, 802.1p QoS; IEEE 802.1X Authentication, 802.3ad LACP |
Certifications | CE, FCC Class A, RoHS, UL safety certification | |
Management Methods | Supported Management | Web-based Graphical User Interface (HTTP/HTTPS); Command Line Interface (CLI via USB-C / RJ45 Console); SNMP v1/v2c/v3; Cisco Business Dashboard auto-discovery & management; TFTP firmware upgrade & config backup/restore |
