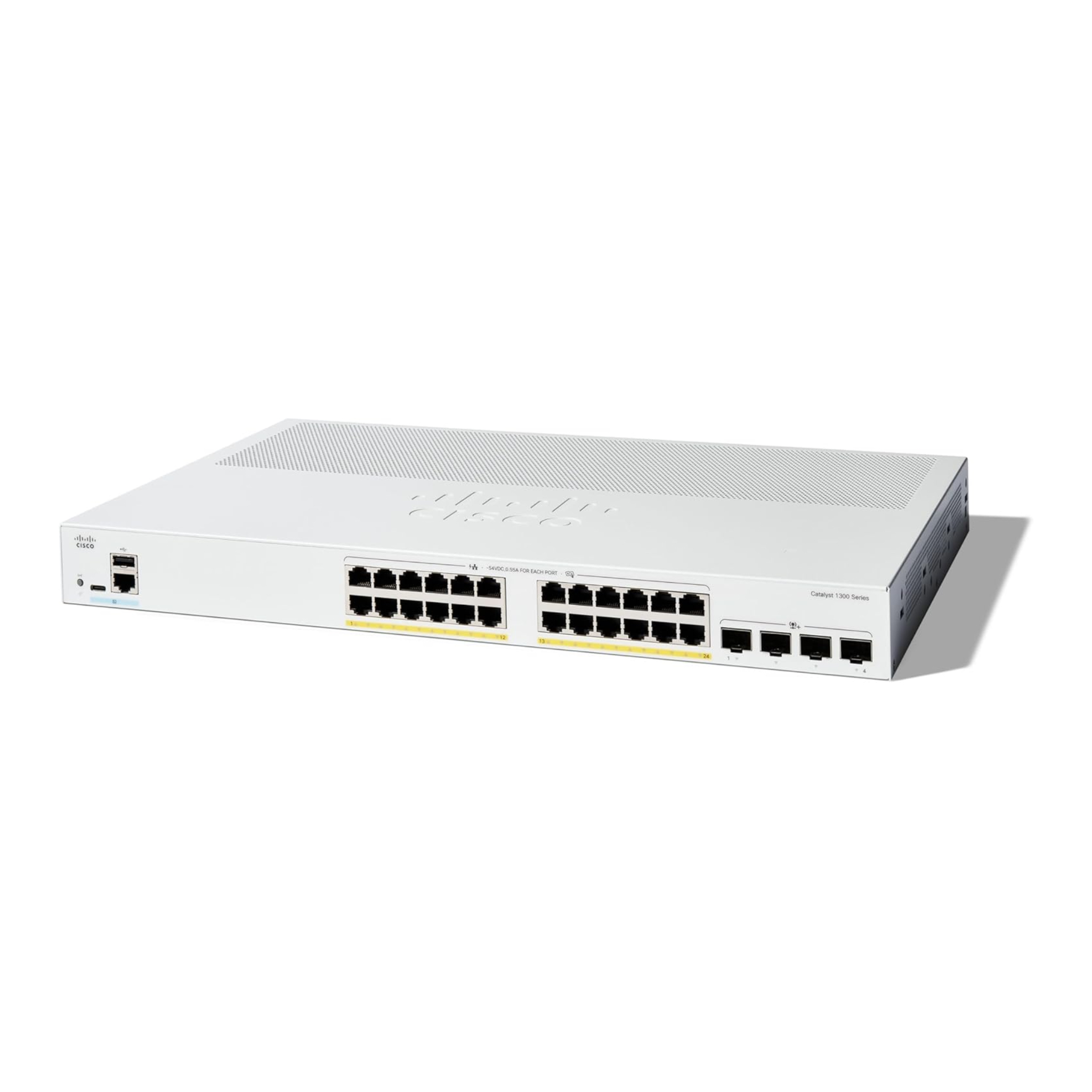

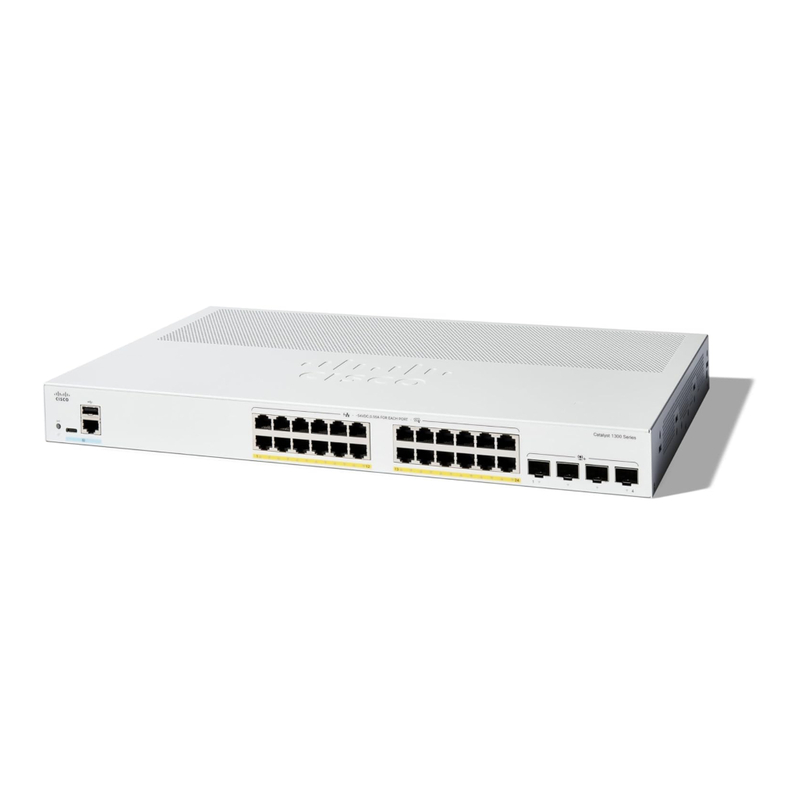

Cisco C1300-24P-4X is a next-generation managed switch designed for small to medium-sized business networks that require high performance, reliable power delivery, and simplified management. As part of the Cisco Catalyst 1300 Series, it delivers enterprise-grade switching capabilities in a cost-effective and easy-to-deploy form factor.
This model features 24 Gigabit Ethernet ports with full PoE+ support, enabling it to power devices such as IP phones, wireless access points, and IP cameras directly through the network cable. This significantly reduces the need for additional power supplies and simplifies network installation, making it ideal for office environments, surveillance systems, and smart building deployments.
In addition, the C1300-24P-4X is equipped with 4 x 10G SFP+ uplink ports, providing high-speed fiber connectivity for backbone or aggregation layers. These uplinks ensure smooth data transmission, low latency, and strong scalability for growing network demands, especially in bandwidth-intensive applications.
The switch supports advanced Layer 2 and Layer 3 Lite features, including VLAN segmentation, static routing, link aggregation, QoS, and enhanced security controls. These functions help businesses build stable, secure, and efficient network infrastructures while maintaining easy configuration and monitoring through a web-based interface or Cisco business management tools.
With its fan-efficient design, robust hardware reliability, and intelligent traffic management, the C1300-24P-4X is well-suited for modern enterprise edge networks. It combines power, speed, and flexibility, making it a strong choice for organizations looking to upgrade to a scalable and future-ready switching solution.
C1300-24P-4X
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Specification |
|---|---|
Model Number | C1300-24P-4X |

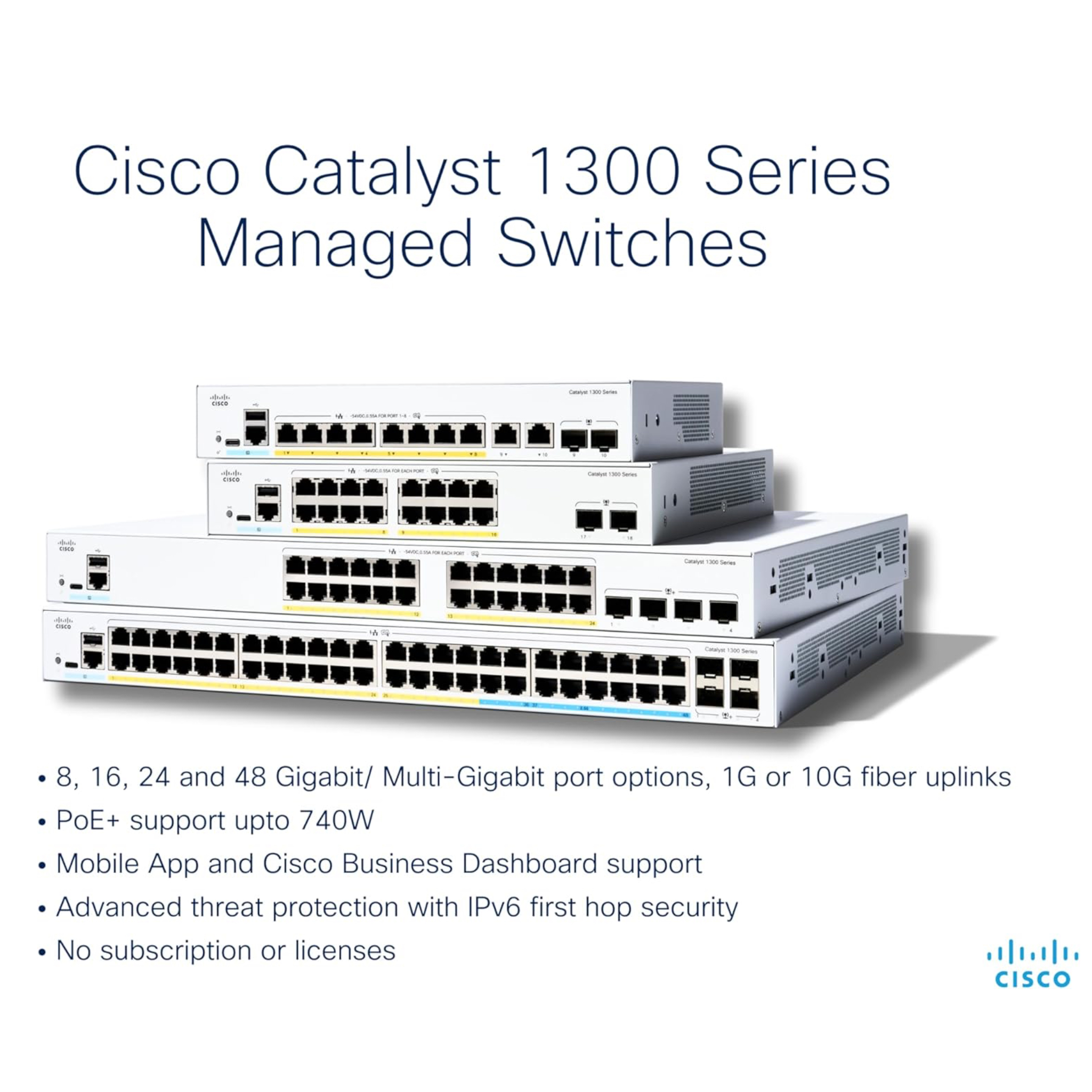

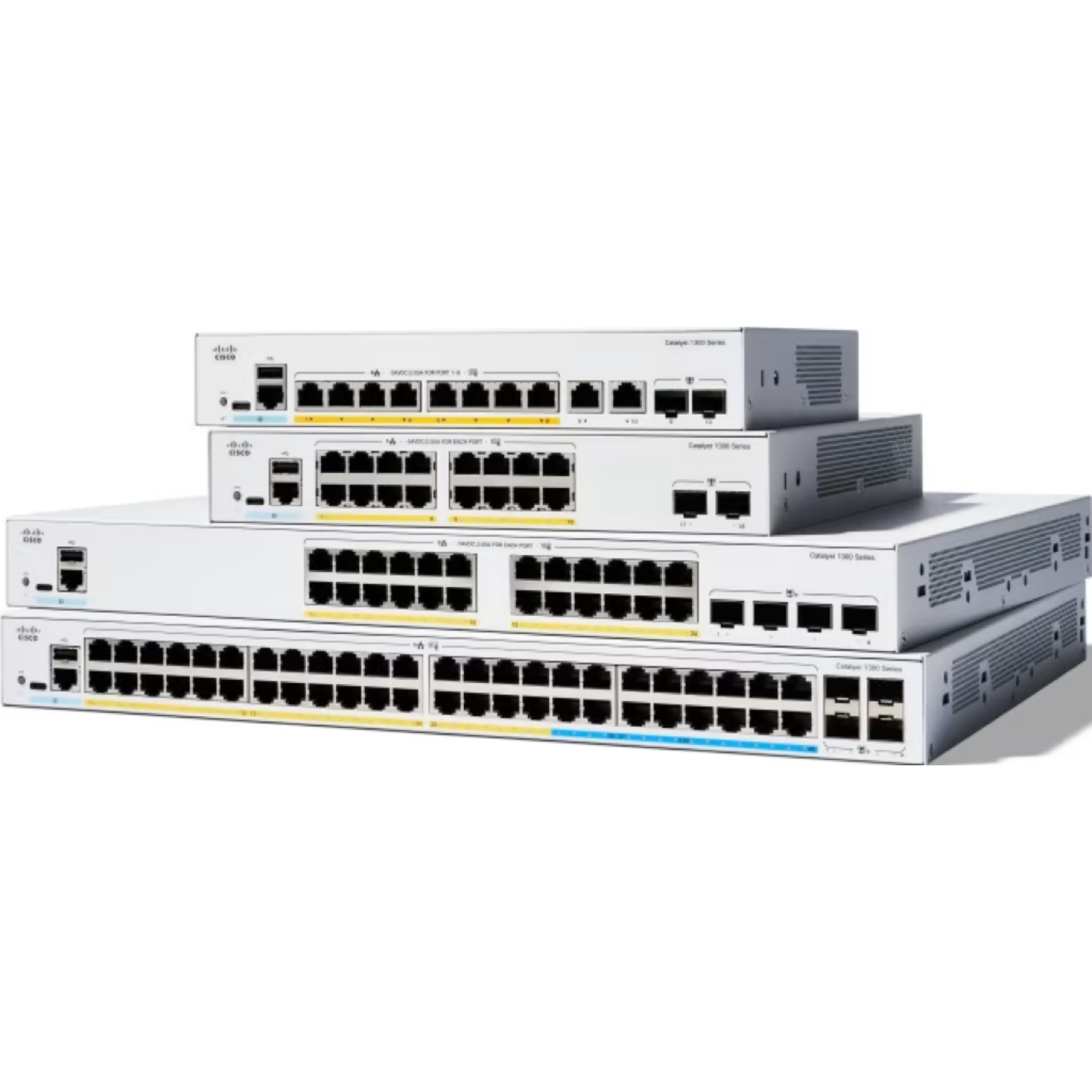

Product Series | Cisco Catalyst 1300 Series Managed Switch |
Target Application | SMB office, branch office, IP camera, Wi-Fi AP, IP phone deployment |
Warranty | Cisco Limited Lifetime Warranty |
Management Interfaces | Web UI, CLI, Cisco Business Dashboard, Cisco Business Mobile App, RJ45 Console, USB-C Console, USB-A port for log & firmware upgrade |
Stacking Support | Up to 8 units stacked as single logical device |

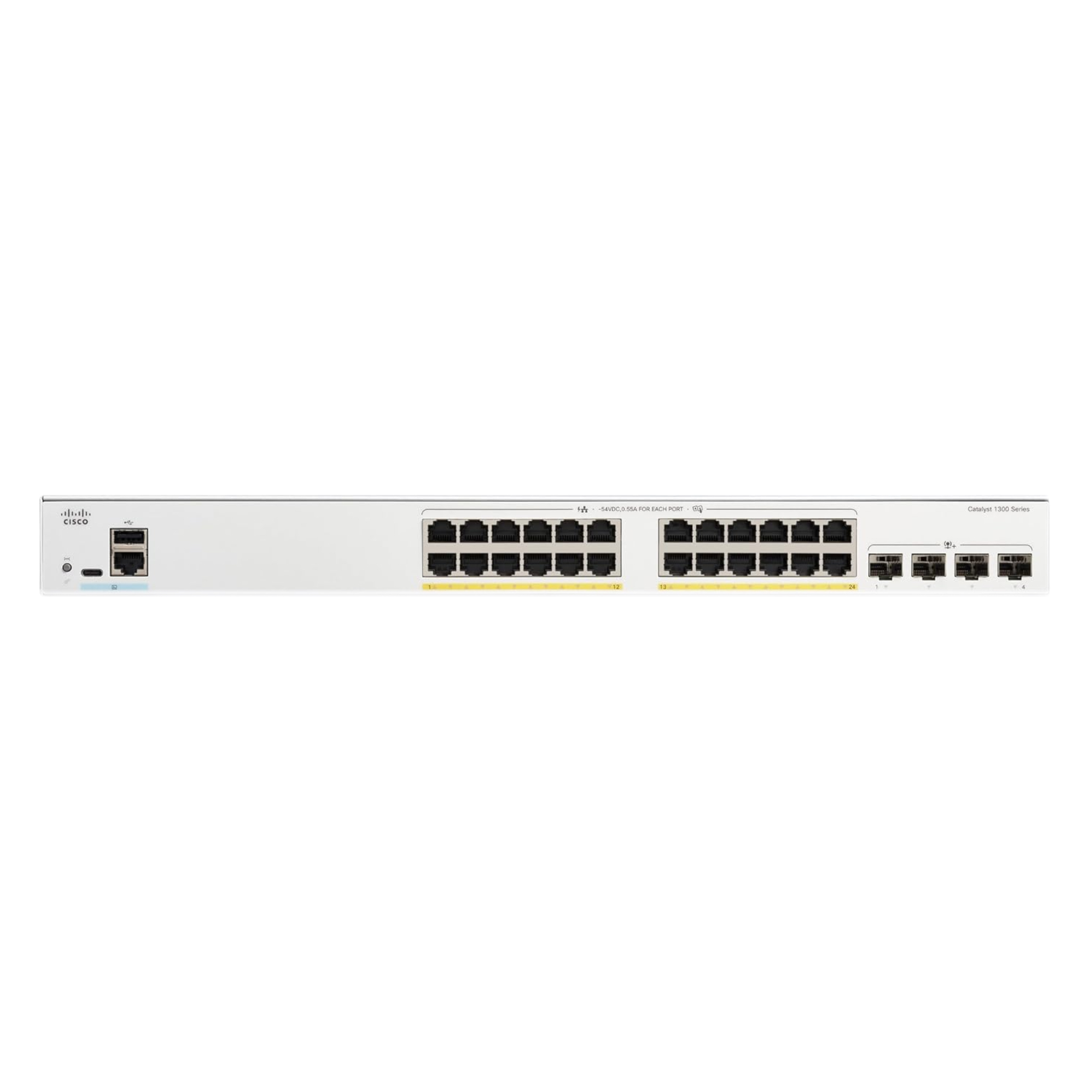

Downlink Ports | 24 x 10/100/1000BASE-T RJ45 ports with full PoE+ support |
Uplink Slots | 4 x SFP+ 10Gbps slots (compatible with 10G/1G SFP transceivers) |
PoE Standards | IEEE 802.3af (15.4W per port), IEEE 802.3at PoE+ (max 30W per port) |
Total PoE Power Budget | 195W |
Supported Cable | Cat5e and above |
Switching Bandwidth | 128 Gbps |
Forwarding Rate (64-byte packets) | 95.23 Mpps |
MAC Address Table | 16,000 entries |
Packet Buffer | 1.5MB shared buffer |
Jumbo Frame | Up to 9000 bytes |
QoS Queues | 8 hardware queues per port, WRR + strict priority scheduling |
CPU | 1.4GHz Dual-core ARM processor |
RAM | 1GB DDR4 |
Flash Storage | 512MB |
VLAN Capacity | Up to 4093 VLANs, 802.1Q tagging, Voice VLAN, Guest VLAN |
Spanning Tree Protocols | STP (802.1D), RSTP (802.1w), MSTP (802.1s), PVST+ |
Link Aggregation | IEEE 802.3ad LACP, maximum 8 LAG groups |
Multicast Features | IGMP Snooping v1/v2/v3, multicast replication, port multicast filtering |
Port Functions | Port mirroring, port isolation, port rate limiting, broadcast/multicast/unicast storm control |
Layer 3 Routing | IPv4 & IPv6 static routing, DHCP Snooping, DHCP Relay, static ACL, policy-based traffic forwarding |
Security Features | 802.1X port authentication, web authentication, RADIUS/TACACS+, DoS protection, port security, IP/MAC binding, SSH/HTTPS encrypted management, ARP protection, rogue DHCP server blocking |
Cooling Design | Fanless silent design |

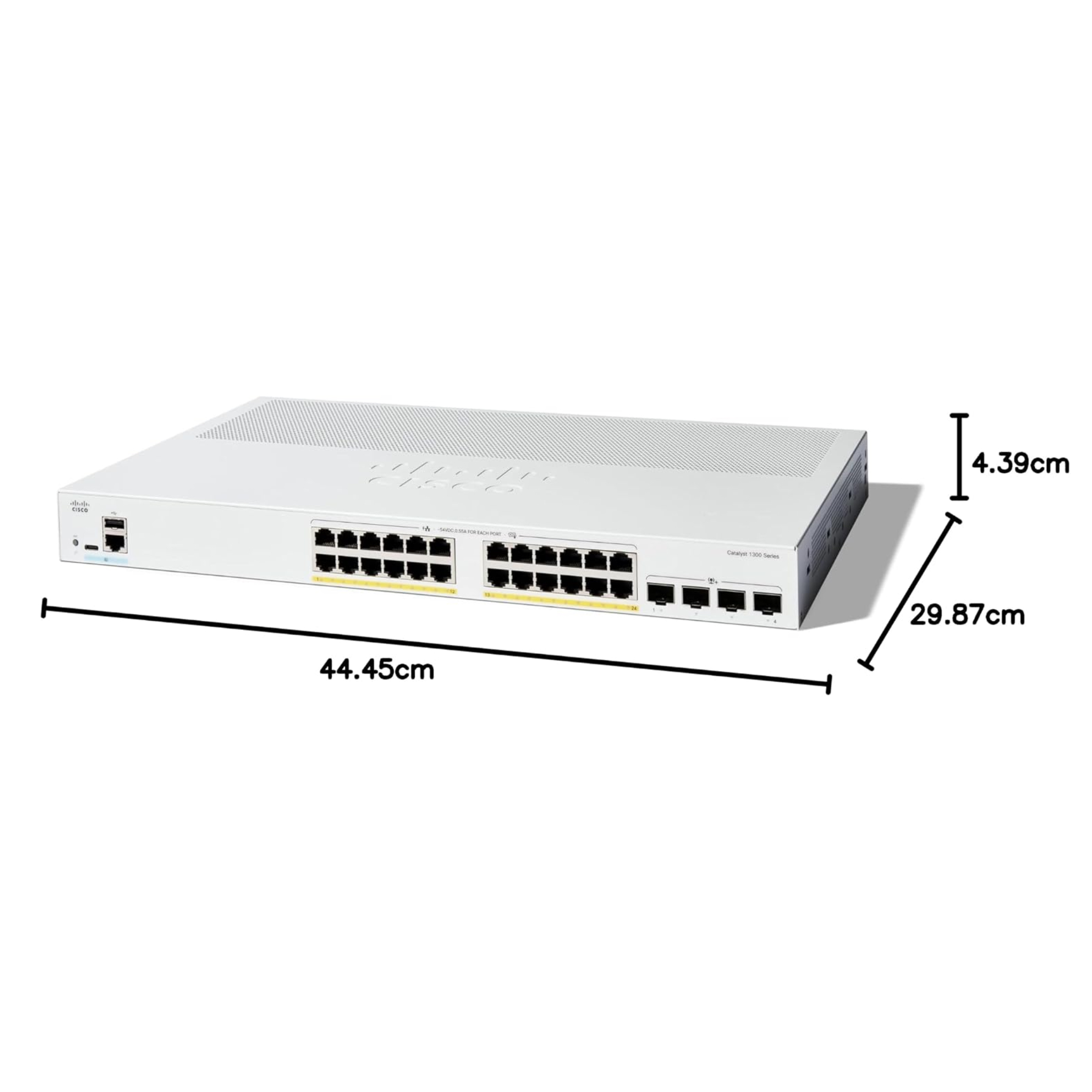

Dimension (W × D × H) | 445 mm × 299 mm × 44 mm (1U rackmount) |
Weight | 3.95 kg |
Power Input | AC 100–240V, 50/60Hz built-in power supply |
Idle Power Consumption | 13.9W (110V) / 14.8W (220V) |
Max Full Load Power (with full PoE) | 235.8W (110V) / 232.9W (220V) |
Operating Temperature | 0°C ~ 45°C |
MTBF (25°C ambient) | 337,232 hours |
Installation | Standard 19-inch rack mount, desktop placement |
