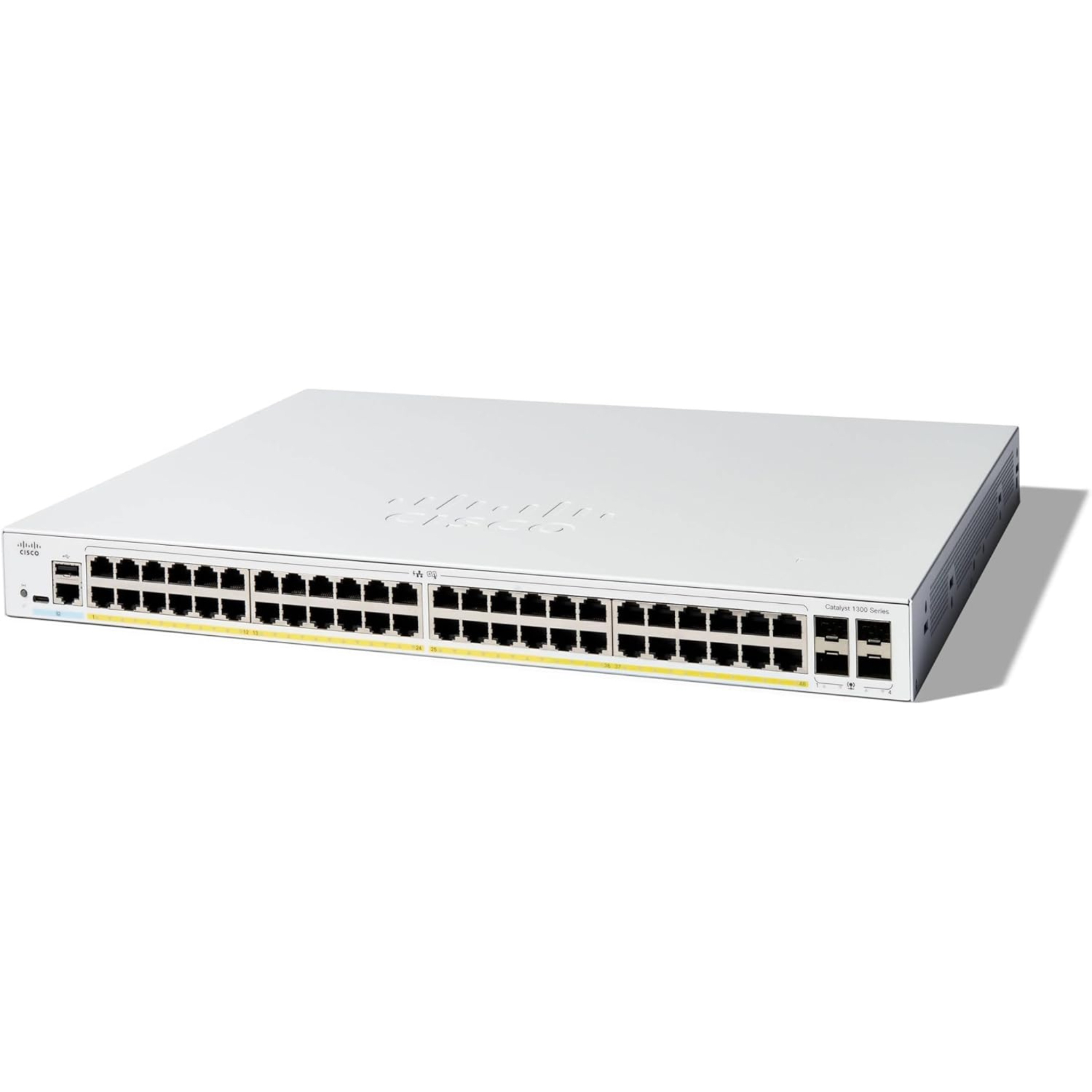

The Cisco Catalyst C1300-48FP-4G is a high-performance managed Gigabit Ethernet switch designed for small and medium-sized businesses, branch offices, educational institutions, hospitality environments, and enterprise edge networks. Featuring 48 Gigabit PoE+ ports, 4 Gigabit SFP uplink ports, and a substantial 740W PoE power budget, this switch provides reliable connectivity and power delivery for IP phones, wireless access points, surveillance cameras, and other network-powered devices. It also supports advanced Layer 2 and Layer 3 features, enabling secure, scalable, and efficient network operations.
Built on Cisco's trusted Catalyst platform, the C1300-48FP-4G offers a switching capacity of up to 104 Gbps and a forwarding rate of 77.38 Mpps, ensuring smooth performance for bandwidth-intensive applications and growing network demands. The switch supports VLANs, static and dynamic routing, QoS, IPv6, access control lists (ACLs), link aggregation, and advanced security features such as 802.1X authentication, DHCP snooping, Dynamic ARP Inspection, and IP Source Guard.
Designed for simplified deployment and management, the C1300-48FP-4G can be configured through an intuitive web interface, command-line interface (CLI), or Cisco Business Dashboard. Front-panel stacking capability allows multiple compatible switches to be managed as a single logical unit, improving operational efficiency and scalability. Dual firmware images enhance network resilience by minimizing downtime during software upgrades.
With enterprise-class reliability, comprehensive security, and flexible PoE capabilities, the Cisco Catalyst C1300-48FP-4G is an ideal networking solution for organizations seeking a cost-effective, feature-rich switch to support modern business applications and future network expansion.
C1300-48FP-4G
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | C1300-48FP-4G |
Product Series | Cisco Catalyst 1300 Layer 3 Managed Switch |
Target Application | SMB Branches, Enterprise Office Networks, High-Density IP Camera Surveillance, Wi-Fi 6/6E AP Deployment, IP PBX Phone Systems, Hospitality Networks |
Warranty | Cisco Limited Lifetime Hardware Warranty |
Management Interfaces | Web UI, CLI, RJ45 Console, USB-C Console, USB-A Port, Cisco Business Dashboard, Cisco Business Mobile App |
Stacking Support | Front-panel stacking, up to 8 units managed as a single logical device |

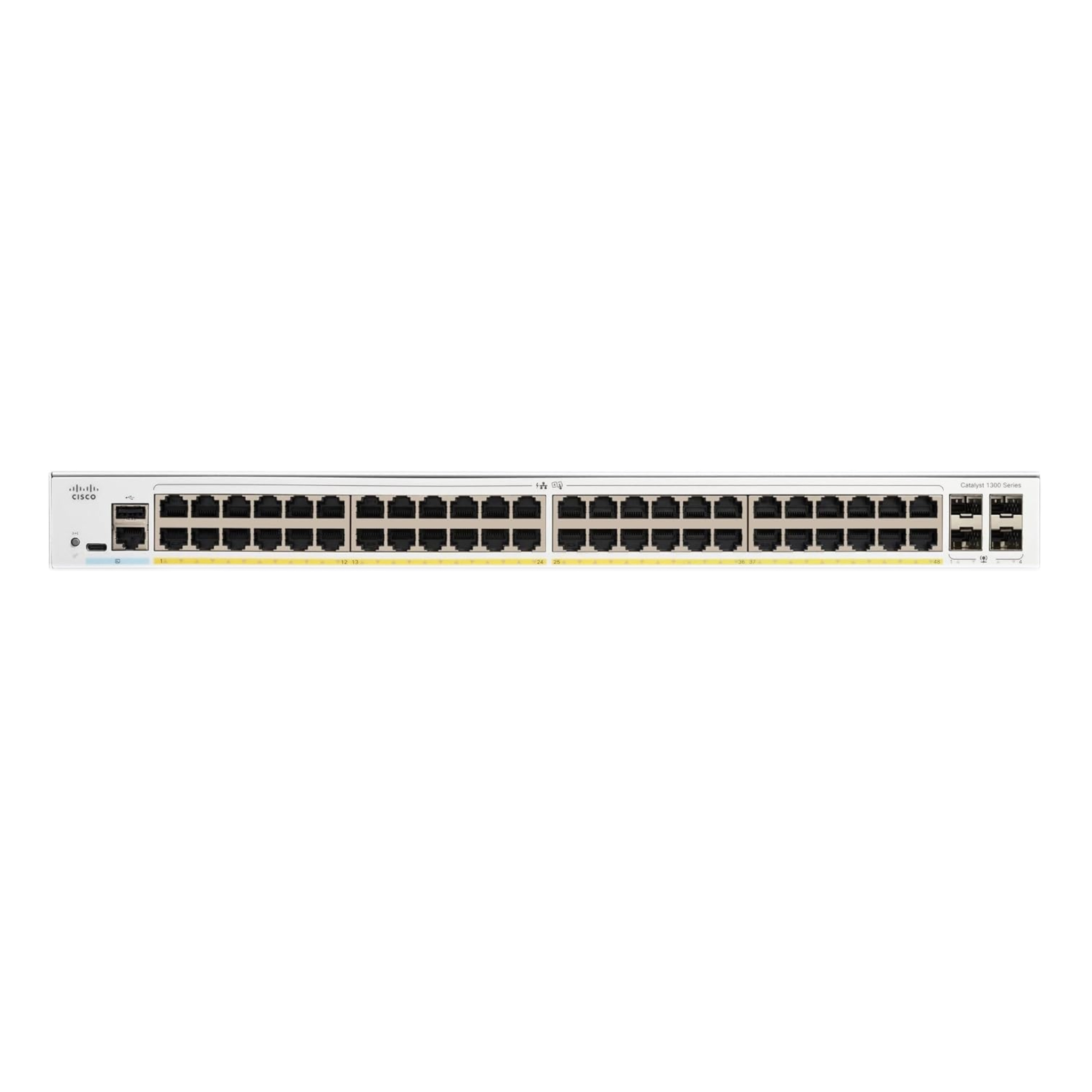

Downlink Ports | 48 × 10/100/1000BASE-T RJ45, all PoE+ capable |
Uplink Slots | 4 × 1G SFP fiber uplink slots |
PoE Compliance Standards | IEEE 802.3af (15.4W per port), IEEE 802.3at PoE+ (max 30W per port) |
Total PoE Power Budget | 740W (Full PoE, 802.3at compliant) |
Supported Cabling | Cat5e and above |
Switching Bandwidth | 104 Gbps |
64-byte Packet Forwarding Rate | 77.38 Mpps |
MAC Address Table Capacity | 16,000 entries |
Shared Packet Buffer | 3 MB |
Jumbo Frame Support | Up to 9000 bytes |
QoS Hardware Queues | 8 queues per port, WRR + strict priority scheduling |
VLAN Capacity | Max 4093 VLANs, 802.1Q tagging, Voice VLAN, Guest VLAN |
Spanning Tree Protocols | STP (802.1D), RSTP (802.1w), MSTP (802.1s), PVST+, RPVST+ |
Link Aggregation | IEEE 802.3ad LACP, up to 8 LAG groups |
Multicast Features | IGMP Snooping v1/v2/v3, multicast replication, port multicast filtering |
Port Functions | Port mirroring, port isolation, port rate limiting, broadcast/multicast/unicast storm suppression |
Layer 3 Routing | IPv4 & IPv6 static routing, up to 990 IPv4 static routes, DHCP Snooping, DHCP Relay |
Security Features | 802.1X port authentication, web authentication, RADIUS/TACACS+, DoS attack protection, port security, IP/MAC binding, SSH/HTTPS encrypted management, ARP guard, rogue DHCP server blocking |
Cooling Design | Dual variable-speed fans, 40.5 dBA noise level at 25°C ambient temperature |

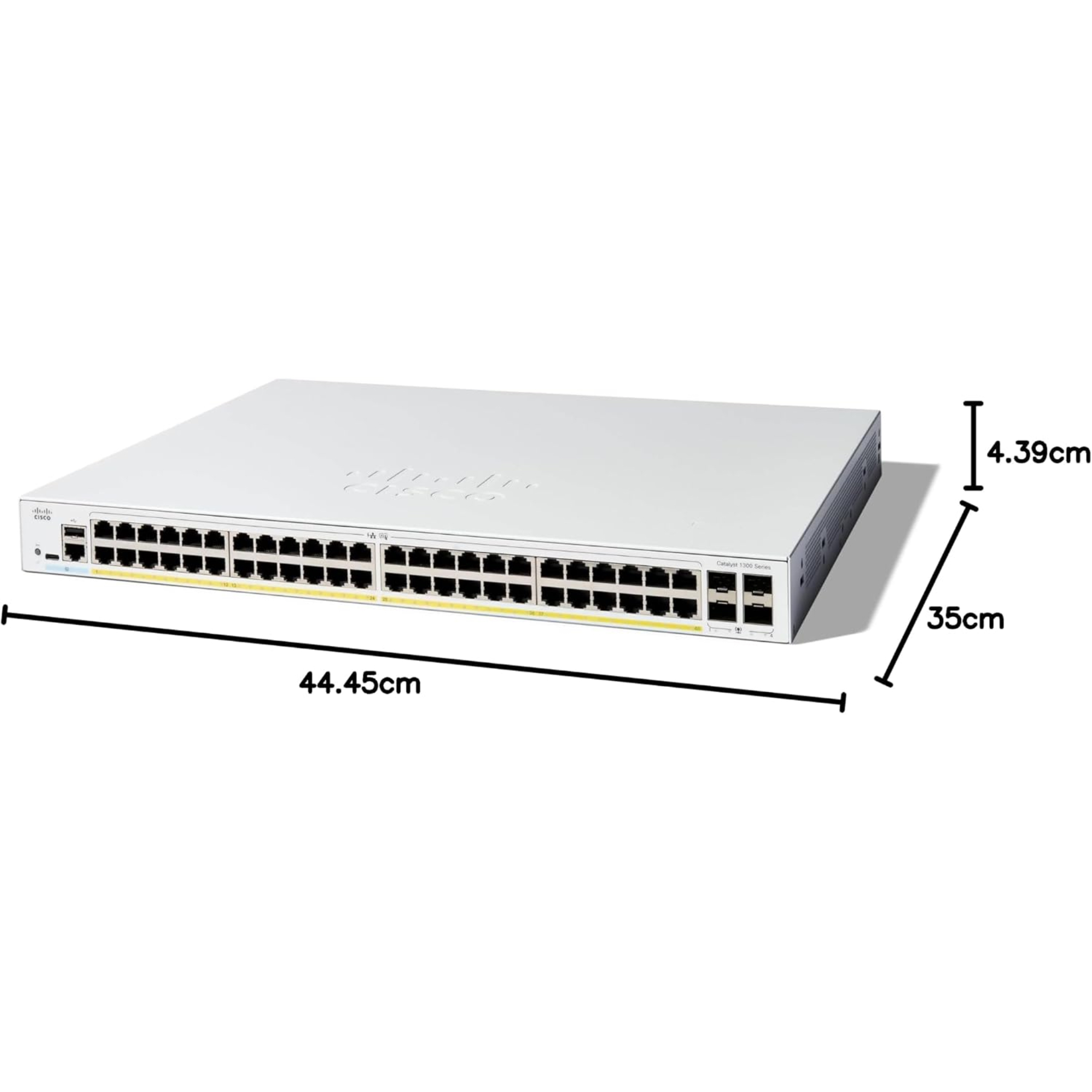

Physical Dimensions (W × D × H) | 445 mm × 350 mm × 44 mm (17.5 × 13.78 × 1.73 in), 1U standard rackmount |
Net Unit Weight | 6.80 kg (14.99 lbs) |

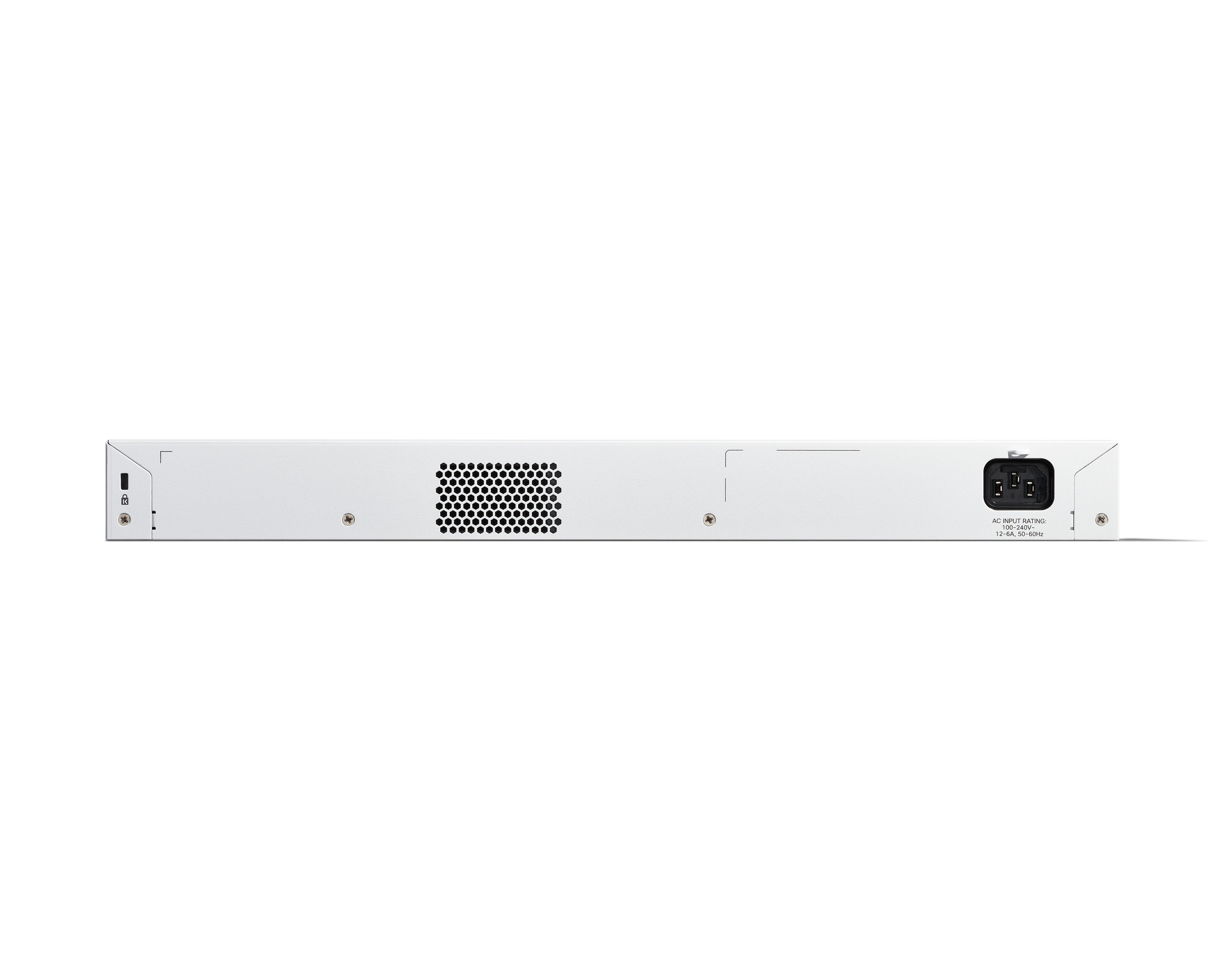

Power Input | Built-in universal AC power supply, 100–240V, 50/60Hz |
Idle Power Consumption | 24.5W (110V) / 23.8W (220V) |
Max Full Load Power (Full PoE Output) | 815.2W (110V) / 798.6W (220V) |
Operating Temperature | 0°C ~ 40°C, 10%–90% non-condensing humidity |
Storage Temperature | -25°C ~ 70°C, 10%–90% non-condensing humidity |
MTBF (25°C Ambient) | 1,100,000 hours |
Installation Method | Standard 19-inch rack mount, desktop placement |
Regulatory Certifications | CE, FCC, UL, CSA, RoHS Compliant |
