The Cisco Catalyst C1300-48T-4X is a high-performance Layer 3 managed Gigabit Ethernet switch designed for small and medium-sized businesses, branch offices, and enterprise edge networks. Featuring 48 Gigabit Ethernet ports and 4 dedicated 10G SFP+ uplink ports, it delivers reliable connectivity, advanced security, and scalable network performance for growing business environments. The switch combines enterprise-class functionality with simplified management, making it an ideal solution for organizations seeking secure, high-speed network infrastructure at an affordable cost.
Built on the Cisco Catalyst 1300 Series platform, the C1300-48T-4X supports advanced Layer 2 and Layer 3 switching capabilities, including static routing, VLAN segmentation, QoS, Access Control Lists (ACLs), IPv6 support, link aggregation, and comprehensive network security features. Its intuitive web-based interface and flexible management options simplify deployment and ongoing administration while reducing operational complexity.
With a 176 Gbps switching capacity and 130.94 Mpps forwarding rate, the switch efficiently handles bandwidth-intensive applications such as VoIP communications, video conferencing, cloud services, and high-density wireless access deployments. Four integrated 10G SFP+ uplink ports provide high-speed connectivity to aggregation switches, servers, storage systems, and core network infrastructure, ensuring smooth data transmission across the network.
The Cisco C1300-48T-4X supports advanced security mechanisms including 802.1X authentication, DHCP snooping, RADIUS authentication, storm control, and denial-of-service protection, helping organizations safeguard critical business data and maintain network integrity. In addition, features such as Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP), and advanced traffic management ensure high network availability and reliable operation.
Designed for rack-mount deployment, the switch offers a durable metal chassis, energy-efficient operation, and enterprise-grade reliability, making it suitable for campus networks, branch offices, educational institutions, healthcare facilities, retail environments, and other demanding business applications.
C1300-48T-4X
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | C1300-48T-4X |
Product Series | Cisco Catalyst 1300 Layer 3 Managed Switch |
Target Application | SMB Branches, Office Networks, Data Center Top-of-Rack, IP Camera Surveillance, Wi-Fi AP Deployment |
Warranty | Cisco Limited Lifetime Hardware Warranty |
Management Interfaces | Web UI, CLI, RJ45 Console, USB-C Console, USB-A Port, Cisco Business Dashboard, Cisco Business Mobile App, SNMP |
Stacking Support | Front-panel stacking, up to 8 units managed as a single logical device |
Downlink Ports | 48 × 10/100/1000BASE-T RJ45 (Non-PoE) |
Uplink Slots | 4 × 10G SFP+ fiber uplink slots |
PoE Support | Not supported |
Supported Cabling | Cat5e and above |
Switching Bandwidth | 176 Gbps |
64-byte Packet Forwarding Rate | 130.94 Mpps |
MAC Address Table Capacity | 16,000 entries |
Shared Packet Buffer | 1.5 MB |
Flash Memory / DRAM | 512 MB Flash / 1 GB DDR4 DRAM |
CPU | ARM Dual-Core 1.4 GHz |
Jumbo Frame Support | Up to 9000 bytes |
QoS Hardware Queues | 8 queues per port, WRR + strict priority scheduling |
VLAN Capacity | Max 4093 VLANs, 802.1Q tagging, Voice VLAN, Guest VLAN |
Spanning Tree Protocols | STP (802.1D), RSTP (802.1w), MSTP (802.1s), PVST+, RPVST+ |
Link Aggregation | IEEE 802.3ad LACP, up to 8 LAG groups |
Multicast Features | IGMP Snooping v1/v2/v3, multicast replication, port multicast filtering |
Port Functions | Port mirroring, port isolation, port rate limiting, broadcast/multicast/unicast storm suppression |
Layer 3 Routing | IPv4 & IPv6 static routing, up to 990 IPv4 static routes, DHCP Snooping, DHCP Relay |
Security Features | 802.1X port authentication, web authentication, RADIUS/TACACS+, DoS attack protection, port security, IP/MAC binding, SSH/HTTPS encrypted management, ARP guard, rogue DHCP server blocking |
Cooling Design | Single fan, 29.7 dBA noise level at 25°C ambient temperature |

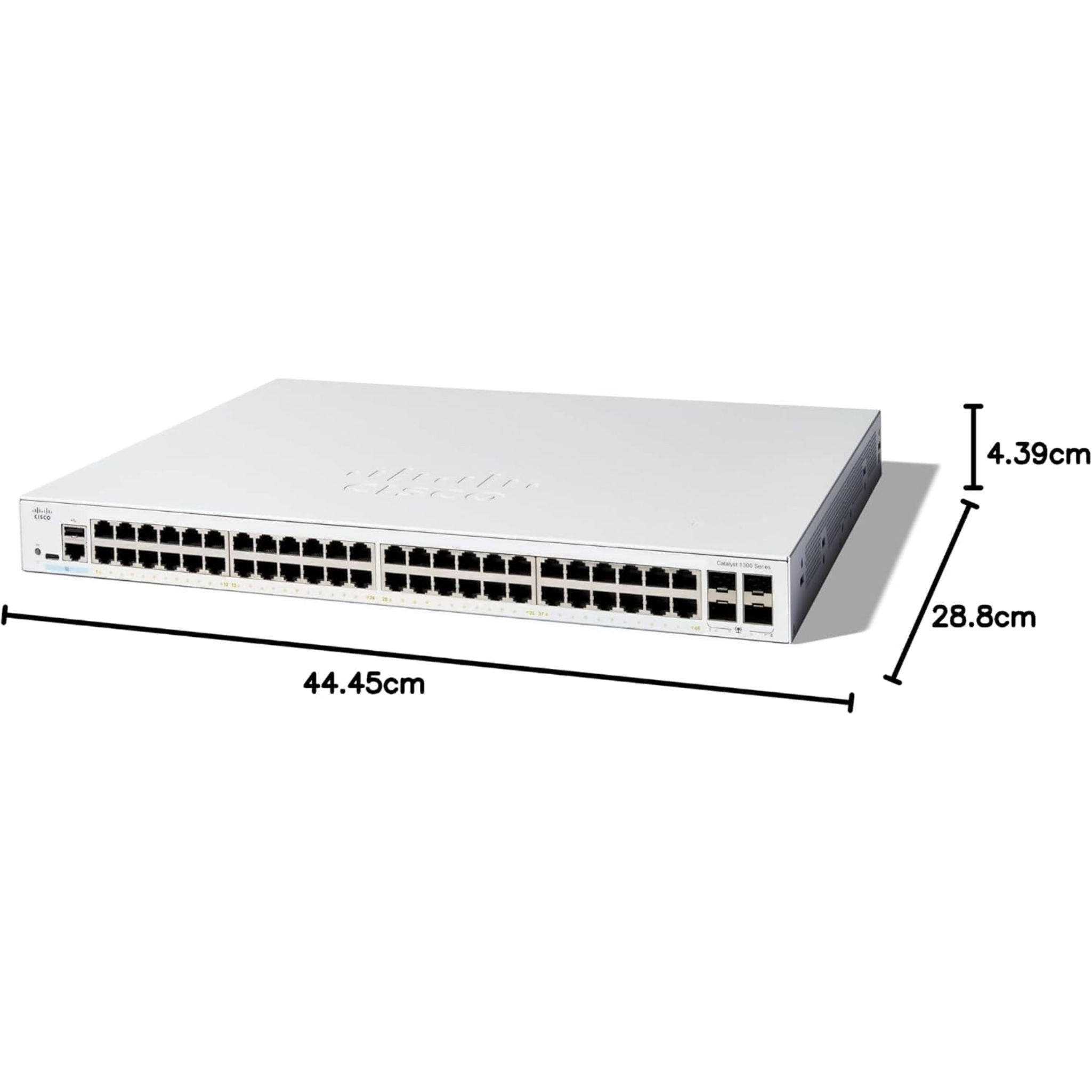

Physical Dimensions (W × D × H) | 445 mm × 288 mm × 44 mm (17.5 × 11.33 × 1.73 in), 1U standard rackmount |
Net Unit Weight | 4.35 kg (9.59 lbs) |
Power Input | Built-in universal AC power supply, 100–240V, 50/60Hz |
Idle Power Consumption | 12.93W (110V) / 12.7W (220V) |
Max Full Load Power Consumption | 40.01W (110V) / 39.77W (220V) |
Operating Temperature | -5°C ~ 50°C, 10%–90% non-condensing humidity |
Storage Temperature | -25°C ~ 70°C, 10%–90% non-condensing humidity |
MTBF (25°C Ambient) | 1,473,382 hours |
Installation Method | Standard 19-inch rack mount, desktop placement |
Regulatory Certifications | CE, FCC, UL, CSA |
