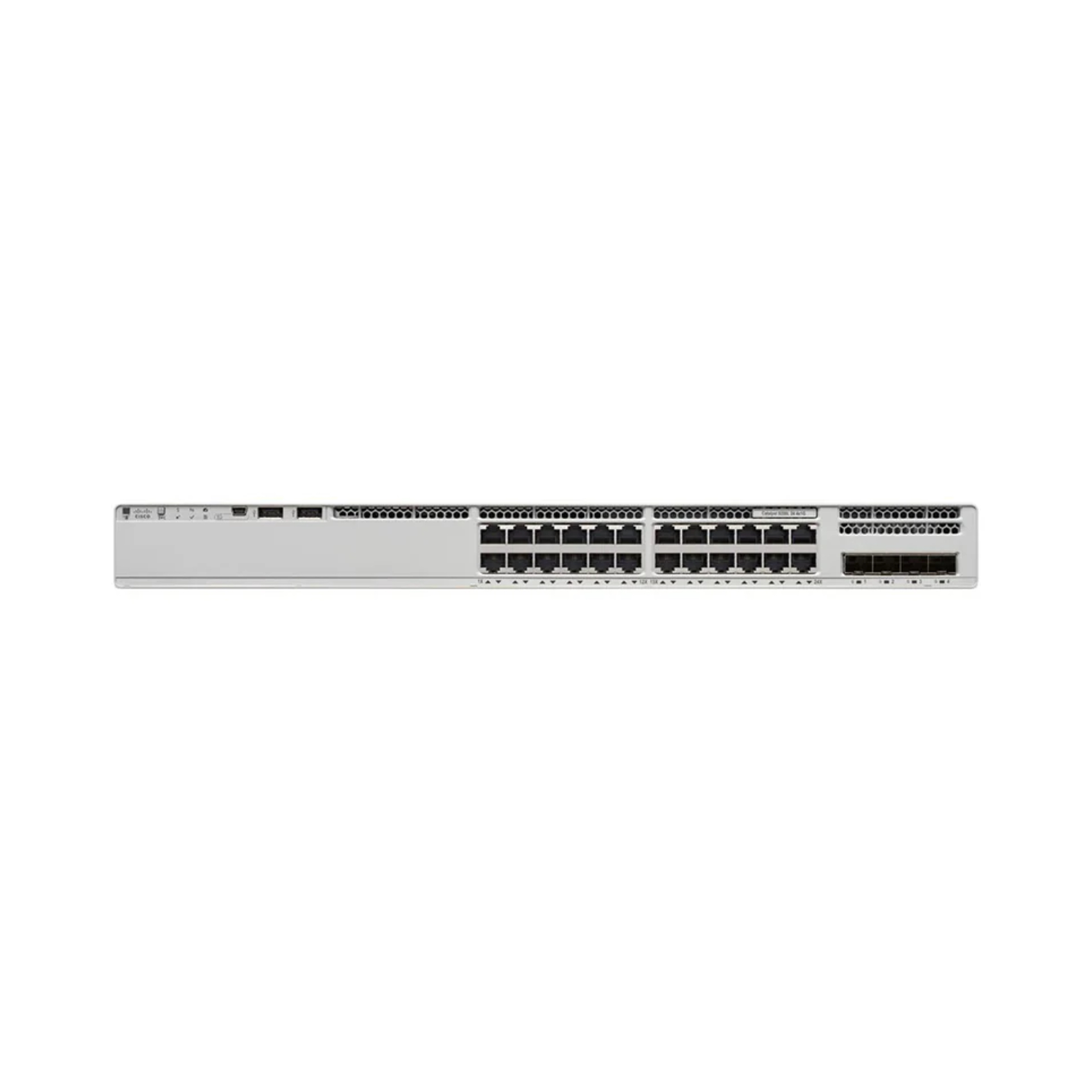

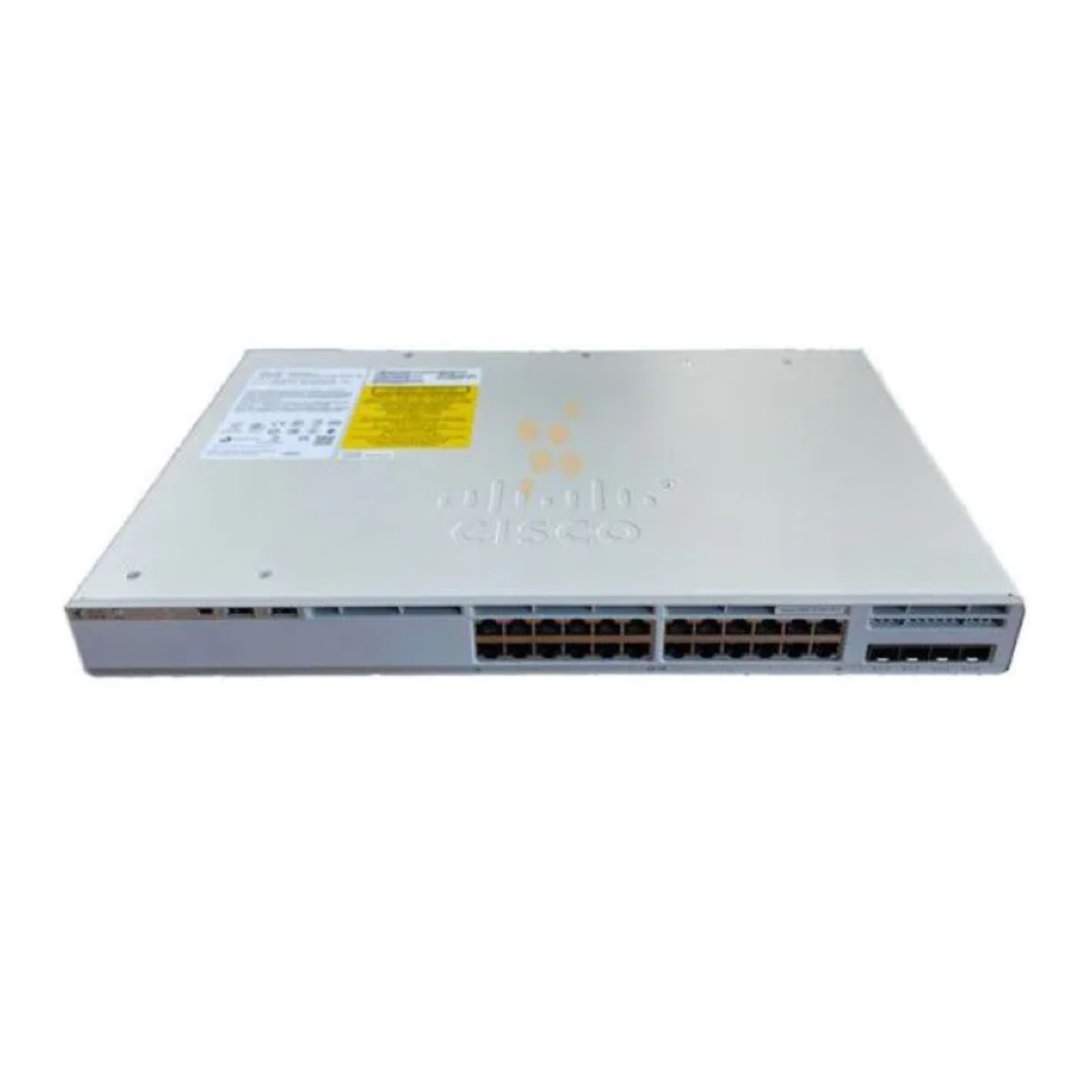

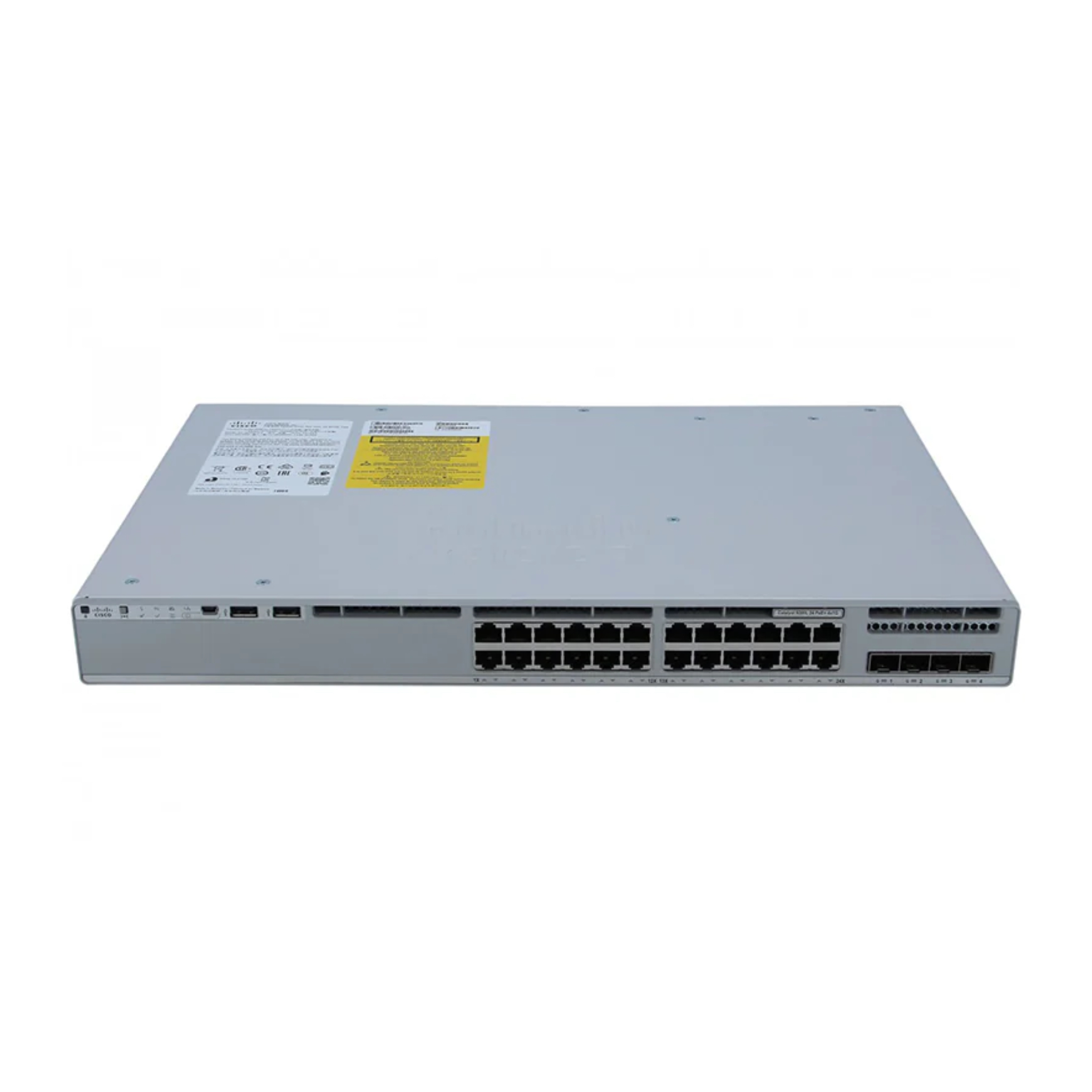

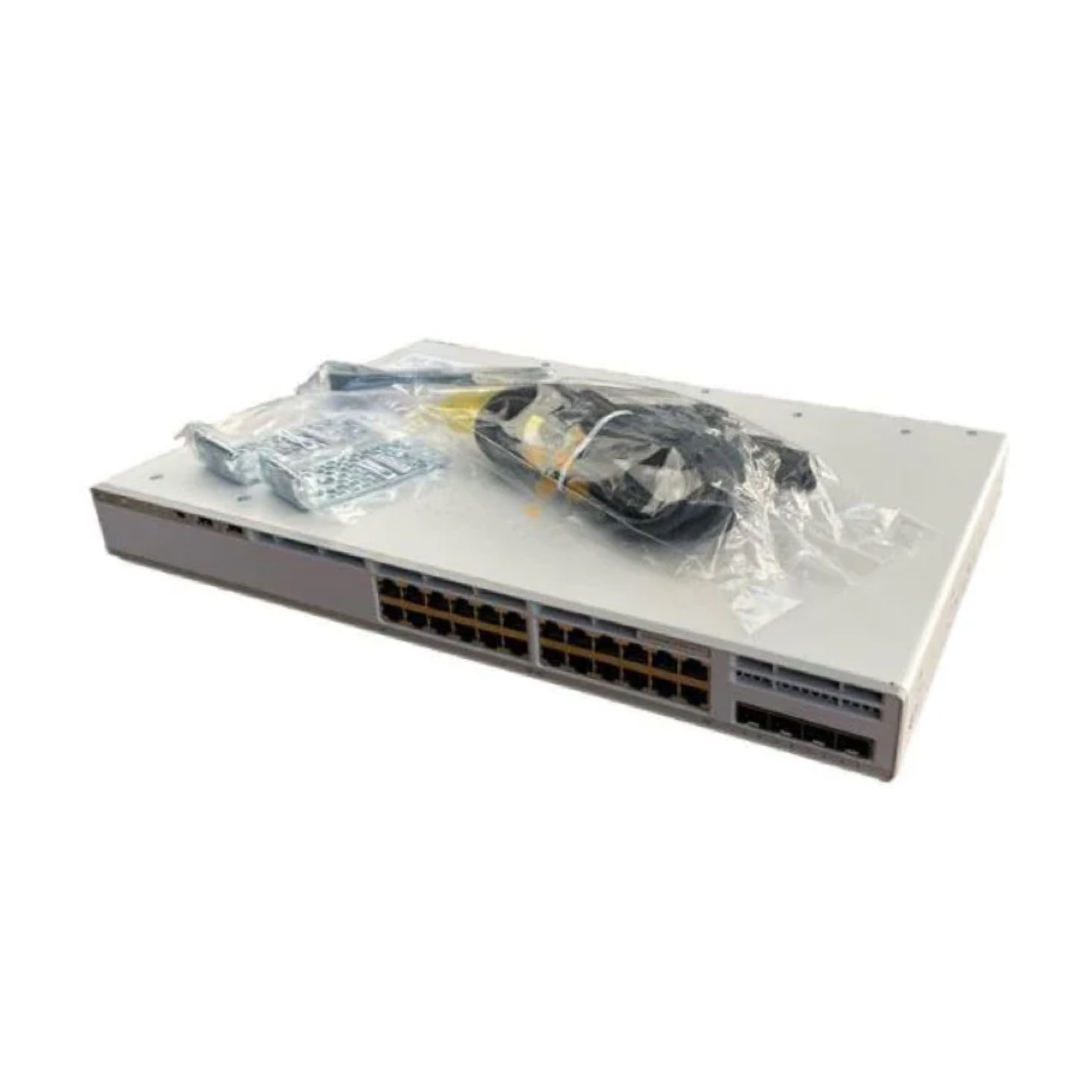

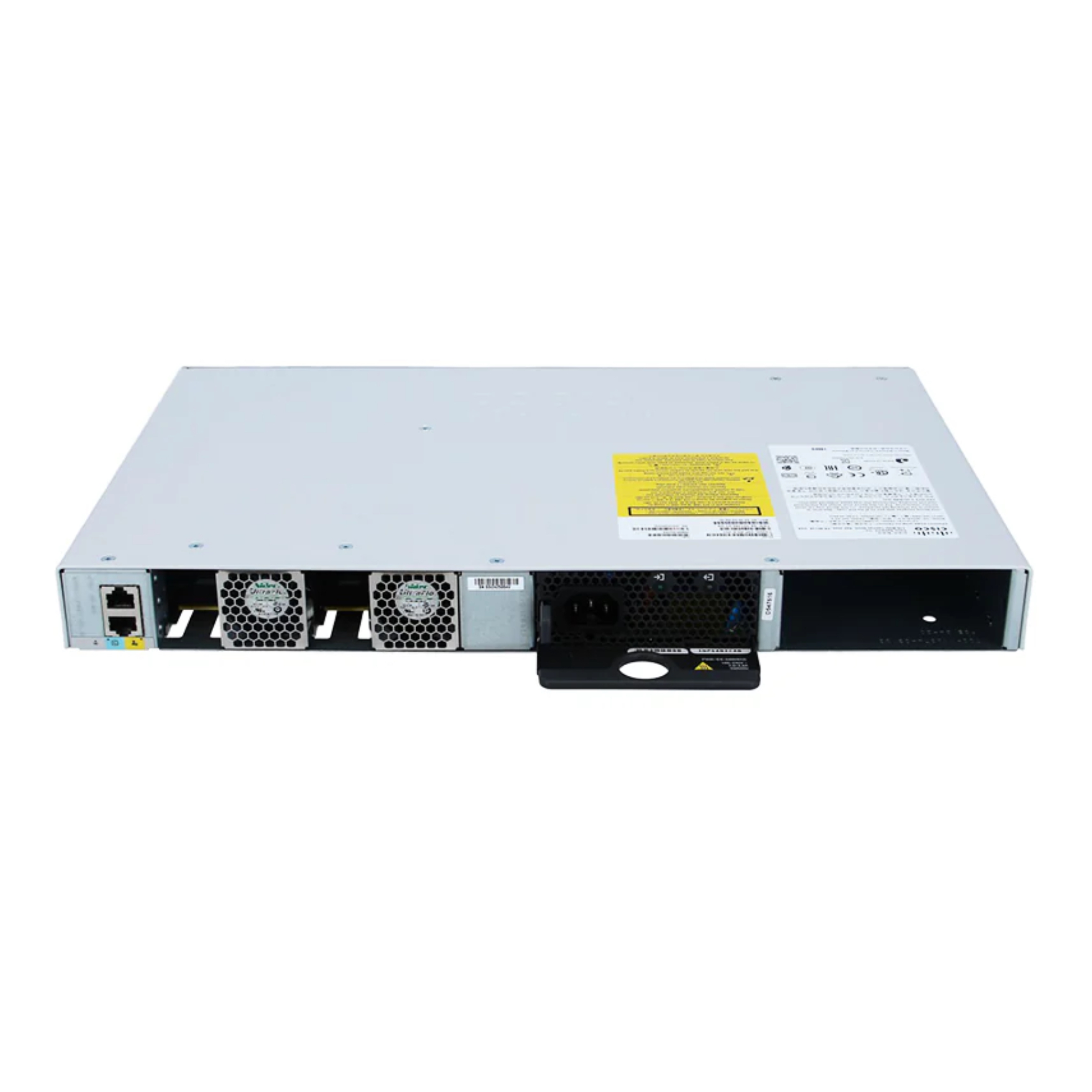

The Cisco Catalyst C9200L-24P-4X-A is a high-performance enterprise-class Layer 3 managed switch designed to deliver secure, reliable, and scalable network connectivity for small to medium-sized businesses, branch offices, educational institutions, healthcare organizations, and enterprise campus environments. As part of the Cisco Catalyst 9200 Series, this switch combines advanced security, intelligent automation, and exceptional network performance to support modern digital transformation initiatives. It features 24 Gigabit Ethernet PoE+ ports with a generous power budget to efficiently connect and power IP phones, wireless access points, IP surveillance cameras, and other PoE-enabled devices without requiring separate power supplies, simplifying network deployment and reducing infrastructure costs. Equipped with four fixed 10 Gigabit SFP+ uplink ports, the C9200L-24P-4X-A provides high-speed backbone connectivity, increased bandwidth, and low-latency data transmission, making it ideal for bandwidth-intensive applications such as cloud computing, video conferencing, virtualization, and large-scale file transfers. Powered by Cisco IOS XE, the switch offers a comprehensive set of enterprise networking features including advanced Layer 2 and Layer 3 routing, static routing, RIP, OSPF, VLAN segmentation, QoS, multicast support, IPv4/IPv6 dual-stack capabilities, and intelligent traffic management to ensure stable and efficient network operations. Built-in security technologies such as Secure Boot, Secure Unique Device Identifier (SUDI), MACsec encryption, Trustworthy Solutions, Access Control Lists (ACLs), IEEE 802.1X authentication, and Cisco TrustSec help protect critical business data and defend against unauthorized access and cyber threats. The switch also supports software-defined access, automation, network programmability, and API integration, allowing IT administrators to simplify configuration, monitoring, and lifecycle management while reducing operational complexity. With support for Cisco DNA Center and Cisco DNA Essentials licensing, organizations can leverage centralized management, policy-based automation, analytics, and enhanced visibility across their entire network infrastructure. The fan-efficient and energy-saving hardware design ensures reliable long-term operation while reducing power consumption and operating costs. Designed for flexible deployment in standard 19-inch racks, the C9200L-24P-4X-A offers enterprise-grade reliability, high availability, and investment protection backed by Cisco's industry-leading engineering and software innovation. Whether deployed as an access-layer switch in enterprise campus networks or as a reliable connectivity solution for branch offices and distributed business locations, the Cisco Catalyst C9200L-24P-4X-A delivers outstanding performance, comprehensive security, simplified management, and future-ready scalability, making it an excellent choice for organizations seeking a dependable, high-speed, and intelligent networking solution capable of supporting today's business-critical applications and tomorrow's evolving digital infrastructure requirements.
C9200L-24P-4X-A
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | C9200L-24P-4X-A |
Product Series | Cisco Catalyst 9200L Layer 3 Enterprise Switch |
License Level | Network Advantage (A suffix) |
Typical Application | Enterprise office access, Wi-Fi AP deployment, IP phone & IP camera PoE supply, campus network, retail & hospitality |
Hardware Warranty | Cisco 5-year limited hardware warranty |
Downlink Ports | 24 × 10/100/1000BASE-T RJ45, all PoE+ capable |
Fixed Uplink Ports | 4 × 10G SFP+ slots (support 1G/10G transceivers) |
PoE Standards | IEEE 802.3af (15.4W/port), IEEE 802.3at PoE+ (30W/port max) |
Total PoE Power Budget | 370W |
Built-in Power Supply | 600W AC universal power supply, 100–240V AC 50/60Hz |
Switching Capacity | 128 Gbps |
64-byte L3 Forwarding Rate | 95.23 Mpps |
MAC Address Table | 16,000 MAC entries |
Packet Buffer Memory | 8 MB shared buffer |
Jumbo Frame Support | Up to 9000 bytes |
VLAN Support | Up to 4096 VLANs, 802.1Q tagging, Voice VLAN, Guest VLAN |
Spanning Tree Protocols | STP, RSTP, MSTP, PVST+, RPVST+ (max 128 PVST instances) |
Link Aggregation | IEEE 802.3ad LACP, up to 8 LAG groups |
Layer 3 Routing Protocols | Static IPv4/IPv6, OSPF, EIGRP, HSRP, IS-IS |
Routing Table Scale | 3,000 IPv4 routes, 1,500 IPv6 routes |
Multicast Features | IGMP Snooping v1/v2/v3, MSDP, PIM |
QoS Capacity | 8 hardware queues per port, WRR + strict priority, 1000 QoS entries |
Security Features | 802.1X authentication, MACsec 128-bit, port security, DoS protection, CoPP, ARP guard, rogue DHCP blocking, SSH/HTTPS encrypted management |
Automation & Management | IOS XE, Web UI, CLI, RJ45 console, USB console, NETCONF, RESTCONF, YANG, PnP, Model-driven telemetry, NetFlow, SPAN/RSPAN |
Stacking Support | StackWise-80 stacking, up to 8 switches in stack, 208Gbps stacking bandwidth |
Cooling & Noise | Dual variable-speed fans; 42dB typical noise at 25°C full PoE load |
Physical Dimensions (H × W × D) | 44 mm × 445 mm × 288 mm (1.73 in × 17.5 in × 11.36 in), 19-inch 1U rackmount |
Net Unit Weight | 4.71 kg (10.38 lbs) |
Operating Temperature | -5°C ~ +45°C (0°C cold start minimum), 10%–90% non-condensing humidity |
Storage Temperature | -25°C ~ +70°C, 10%–90% non-condensing humidity |
MTBF (25°C ambient) | 392,210 hours |
Installation | Standard 1U rack mount, desktop placement |
Regulatory Certifications | CE, FCC, UL, CSA, RoHS compliant |
