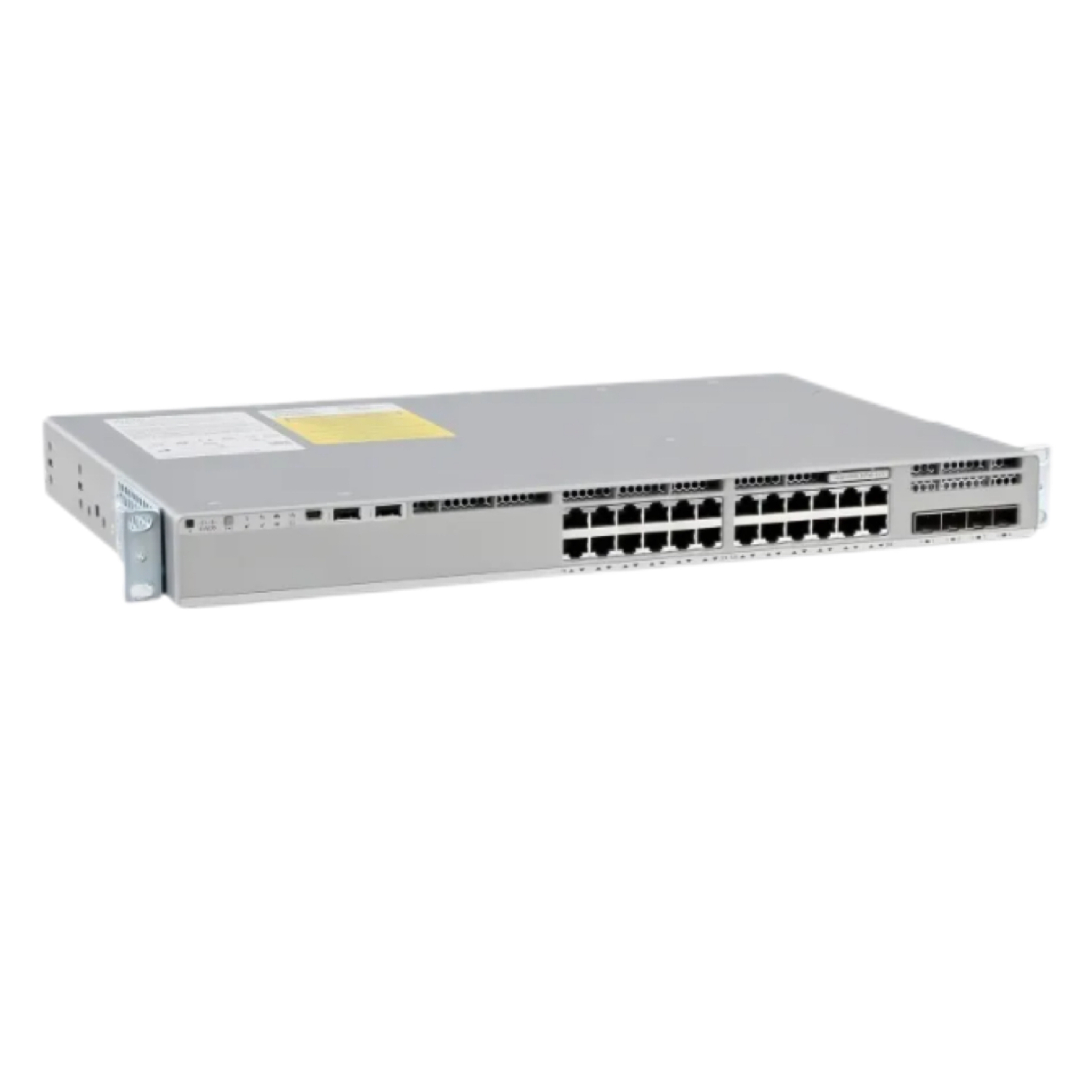

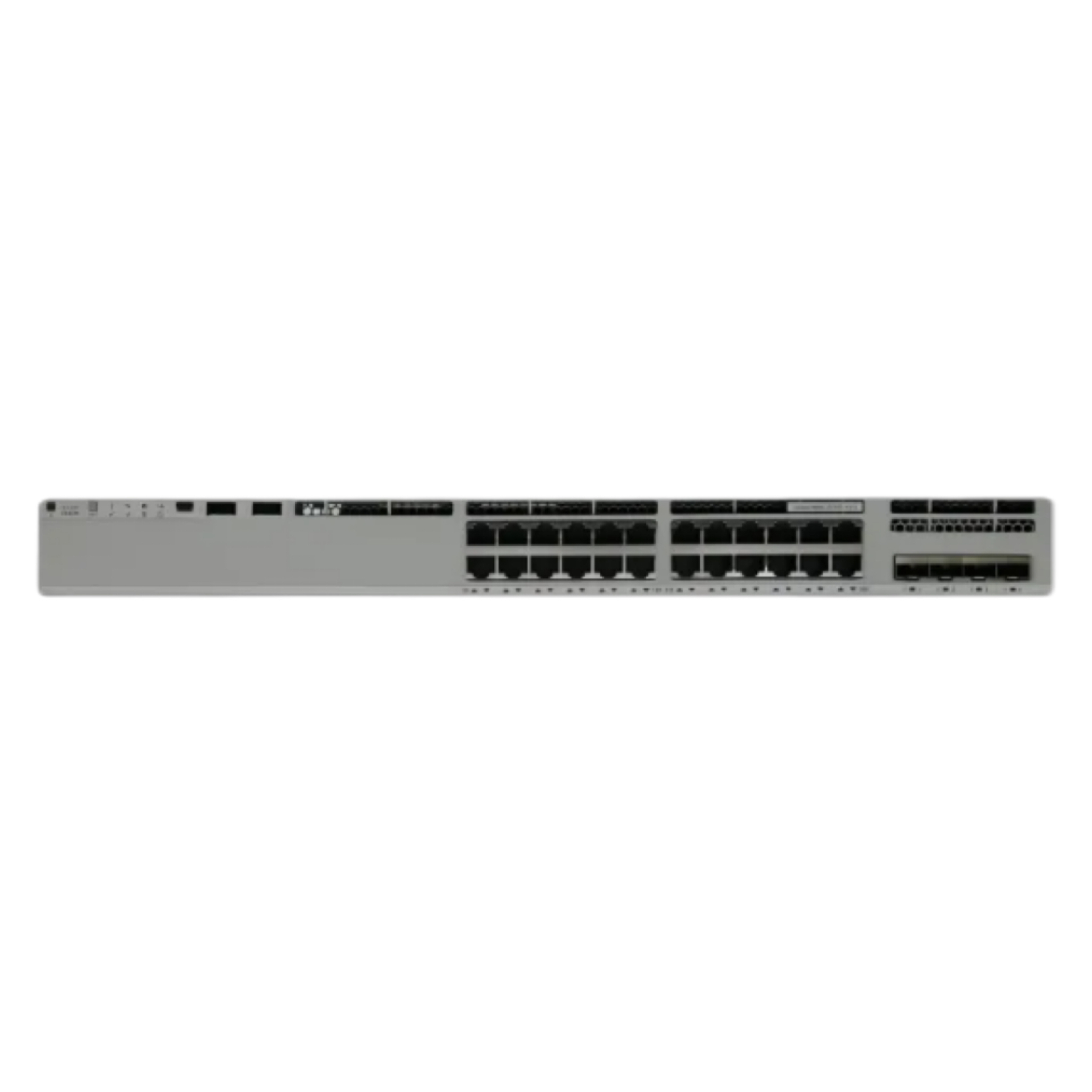

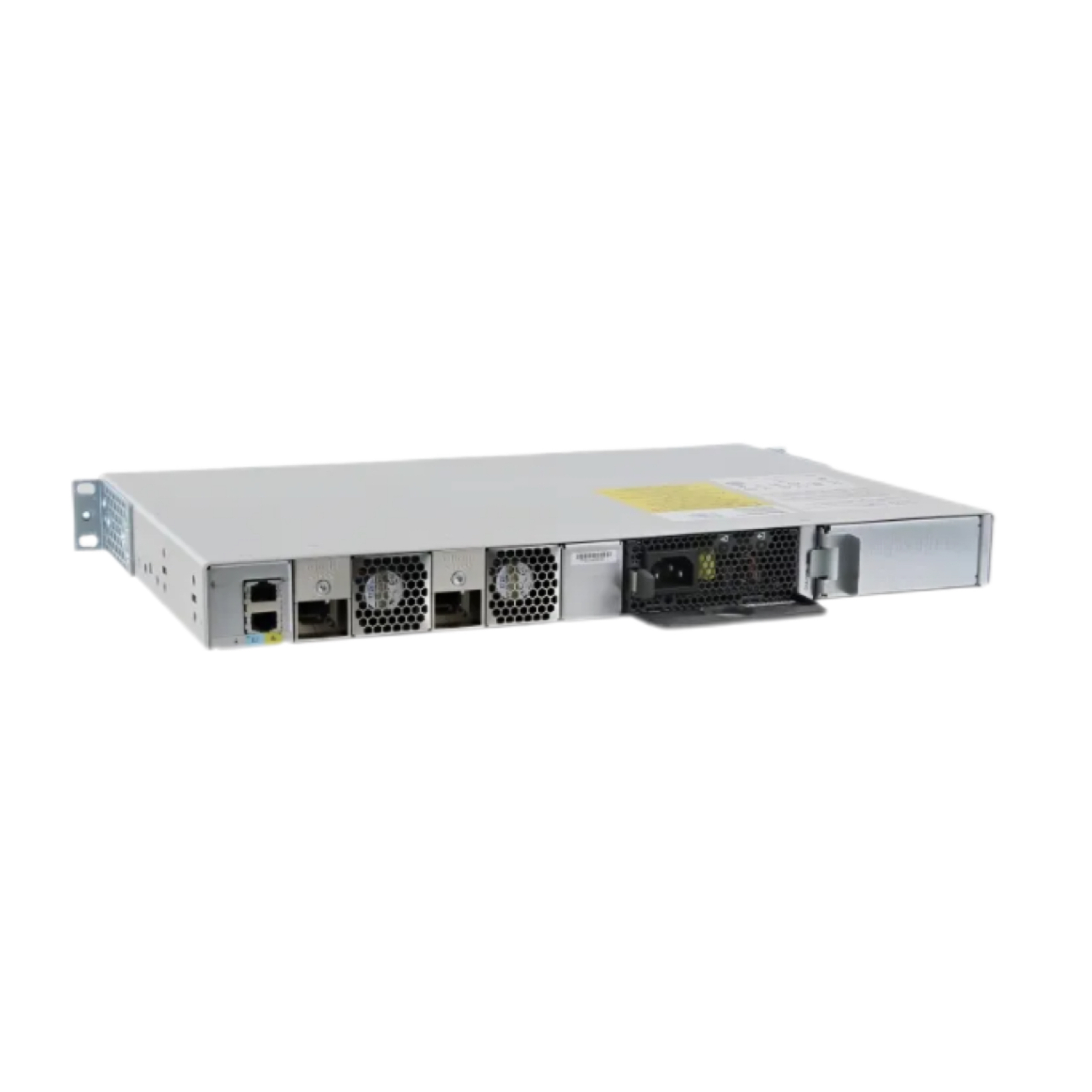

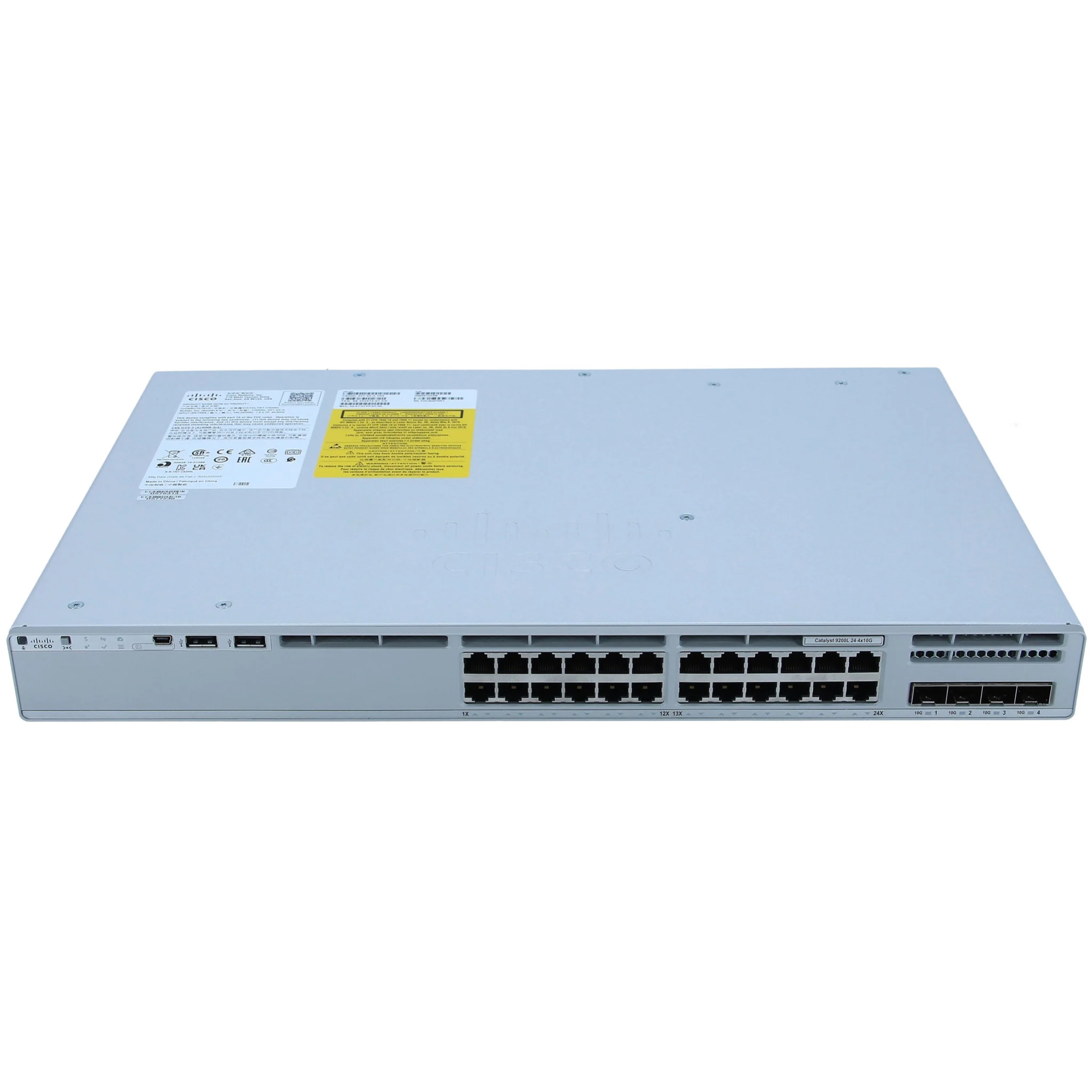

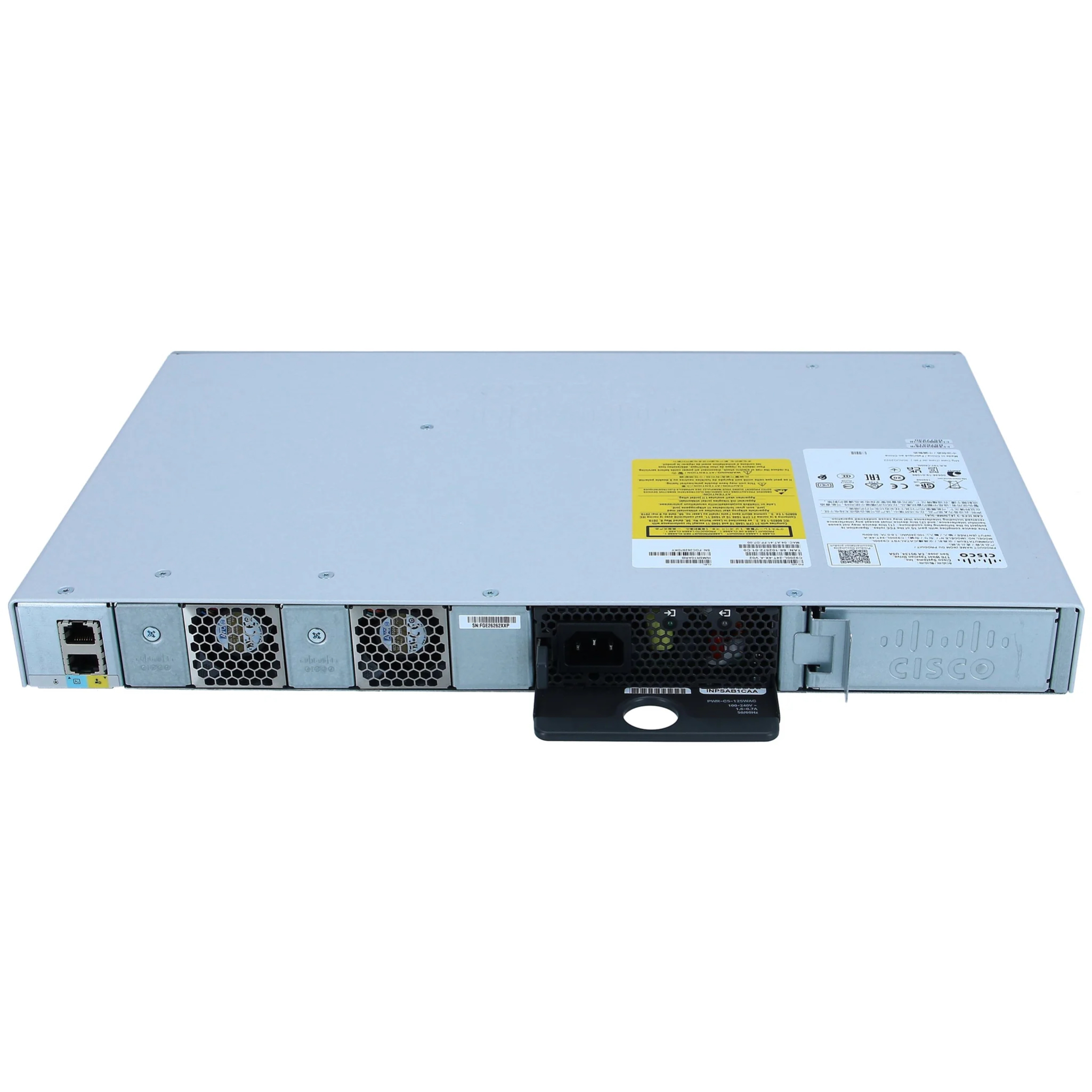

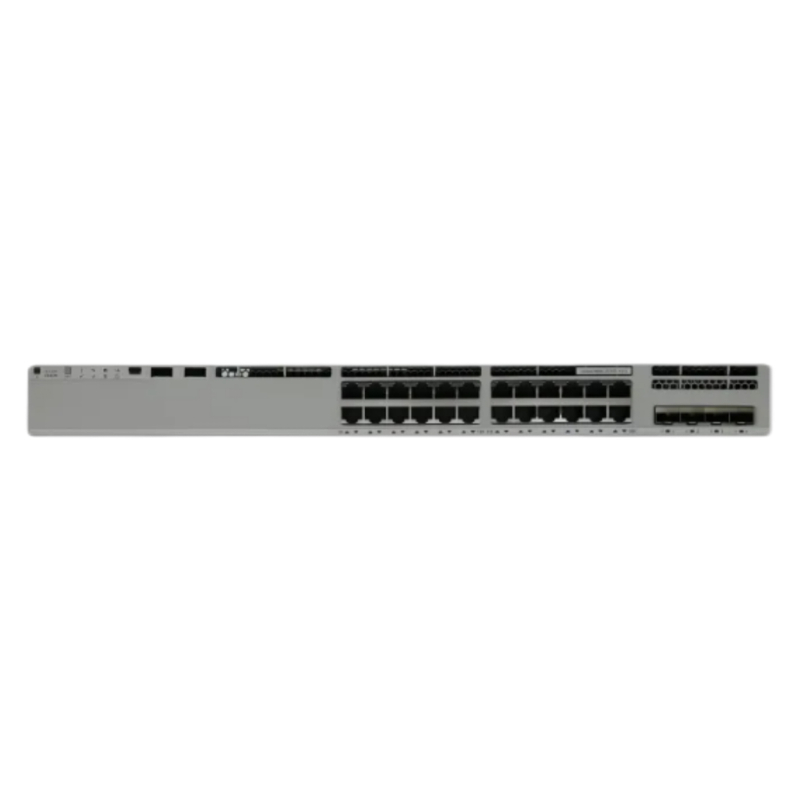

The Cisco C9200L-24T-4X-A is a high-performance enterprise access switch from the Cisco Catalyst 9200L Series, designed to deliver secure, reliable, and scalable network connectivity for small to medium-sized businesses, branch offices, educational institutions, healthcare organizations, and enterprise campus environments. Featuring 24 Gigabit Ethernet RJ45 ports and 4 fixed 10 Gigabit SFP+ uplink ports, this switch provides high-speed data transmission, seamless network expansion, and excellent bandwidth for modern business applications. Powered by Cisco IOS XE, the C9200L-24T-4X-A supports advanced Layer 2 and Layer 3 Lite features, including static routing, VLAN, QoS, ACL, EtherChannel, IPv4/IPv6 dual-stack, multicast, and intelligent traffic management, ensuring efficient and secure network operations. Built with enterprise-grade security, it integrates Cisco Trustworthy Solutions, Secure Boot, MACsec encryption, Secure Group Tagging (SGT), and advanced authentication capabilities to protect critical business data and defend against cyber threats. The switch also supports centralized management through Cisco DNA Center, enabling automated provisioning, simplified configuration, network monitoring, policy enforcement, and lifecycle management to reduce operational complexity and improve IT efficiency. With a compact 1RU rack-mount design, energy-efficient architecture, and highly reliable hardware, the Cisco C9200L-24T-4X-A delivers outstanding performance, business continuity, and long-term investment protection. It is an ideal solution for organizations seeking a cost-effective, future-ready Gigabit access switch with high-speed 10G uplinks, enterprise-class security, intelligent automation, and exceptional scalability to support digital transformation, cloud applications, unified communications, wireless deployments, and continuously growing network demands.
C9200L-24T-4X-A
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | C9200L-24T-4X-A |
Product Series | Cisco Catalyst 9200L Stackable Enterprise L3 Switch |
Software License | Network Advantage (A suffix) |
Main Application | Enterprise Office Access, SMB Campus Network, IP Camera, Wi-Fi AP, Desktop PC Connection |
Hardware Warranty | 3-Year Cisco Limited Hardware Warranty |
Management Interfaces | RJ45 Console, USB-C Console, USB-A Storage Port, Web UI, CLI, Cisco DNA Center Support |
Stacking Technology | StackWise-80, up to 8 switches in one stack, 80Gbps stacking bandwidth |
Downlink Ports | 24 × 10/100/1000BASE-T RJ45, Data Only (Non-PoE) |
Fixed Uplink Slots | 4 × 1/10G SFP+ uplink ports, compatible with 1G SFP / 10G SFP+ transceivers |
Supported Cabling | Cat5e, Cat6, Cat6a |
Switching Capacity | 128 Gbps |
64-byte Packet Forwarding Rate | 95.23 Mpps |
MAC Address Table Size | 16,000 MAC entries |
Shared Packet Buffer | 6 MB |
Jumbo Frame Support | Up to 9198 Bytes |
DRAM / Flash Memory | 2 GB DRAM, 4 GB Flash Storage |
VLAN Support | Max 4094 VLANs, 802.1Q Tagging, Voice VLAN, Guest VLAN |
Spanning Tree Protocols | STP, RSTP, MSTP, PVST+, RPVST+ |
Link Aggregation | IEEE 802.3ad LACP, up to 8 LAG groups per switch |
Multicast Functions | IGMP Snooping v1/v2/v3, Multicast VLAN Replication, MLD Snooping |
Layer 3 Routing Capacity | 3,000 IPv4 static routes, 1,500 IPv6 routes, 512 SVIs |
QoS Capability | 8 hardware queues per port, WRR + Strict Priority scheduling, QoS ACLs |
Security Features | 802.1X Authentication, RADIUS/TACACS+, Port Security, DoS Protection, ARP Guard, Rogue DHCP Suppression, SSH/HTTPS encrypted management |
Power Supply | Single built-in fixed AC power supply, 100–240V AC 50/60Hz |
Max Power Consumption | 110W |
Cooling System | Dual variable-speed cooling fans, field-replaceable fan units |
Physical Dimension (W × D × H) | 440 mm × 445 mm × 44 mm (17.32 × 17.52 × 1.73 in), 1U standard rackmount |
Net Weight | 5.1 kg (11.24 lbs) |
Operating Environment | Temperature: 0°C ~ 45°C; Humidity: 10%–90% non-condensing |
Storage Environment | Temperature: -40°C ~ 70°C; Humidity: 5%–95% non-condensing |
MTBF (25°C Ambient) | 1,420,000 Hours |
Installation Method | 19-inch rack mount, desktop placement |
Regulatory Certifications | CE, FCC Class A, UL, CSA, RoHS Compliant |
