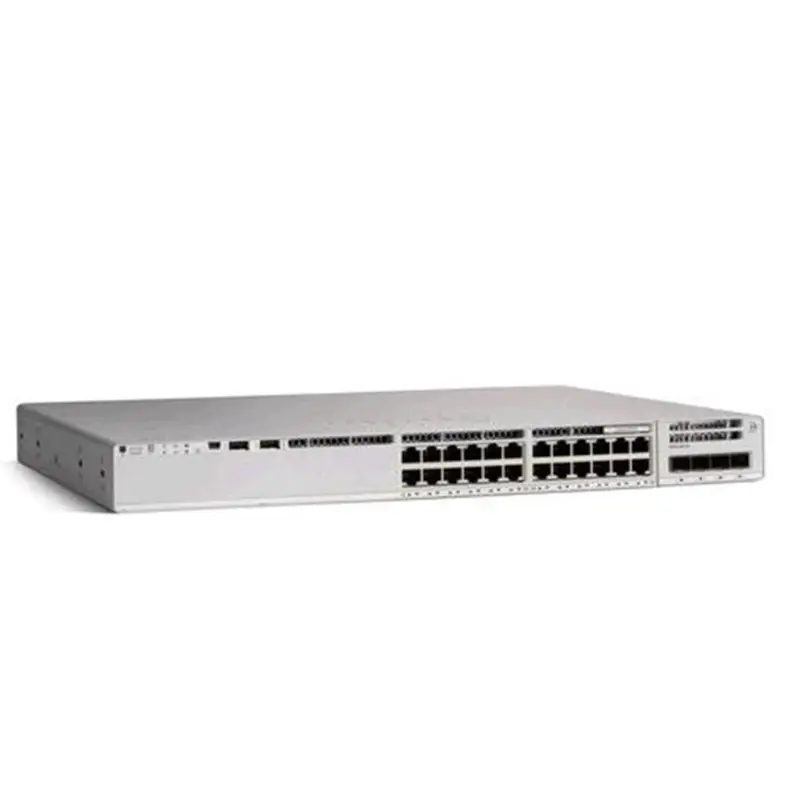

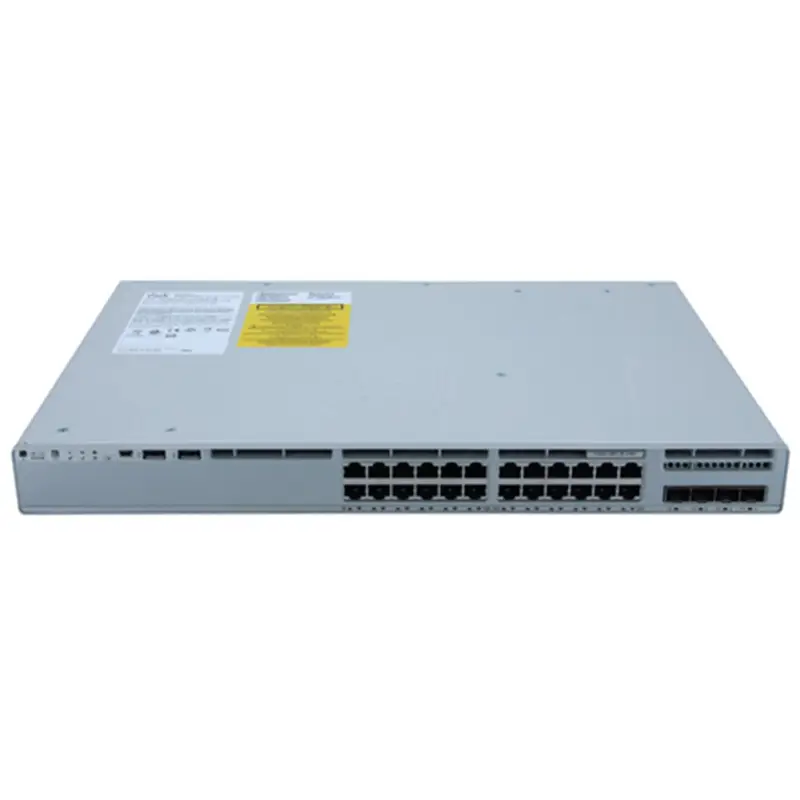

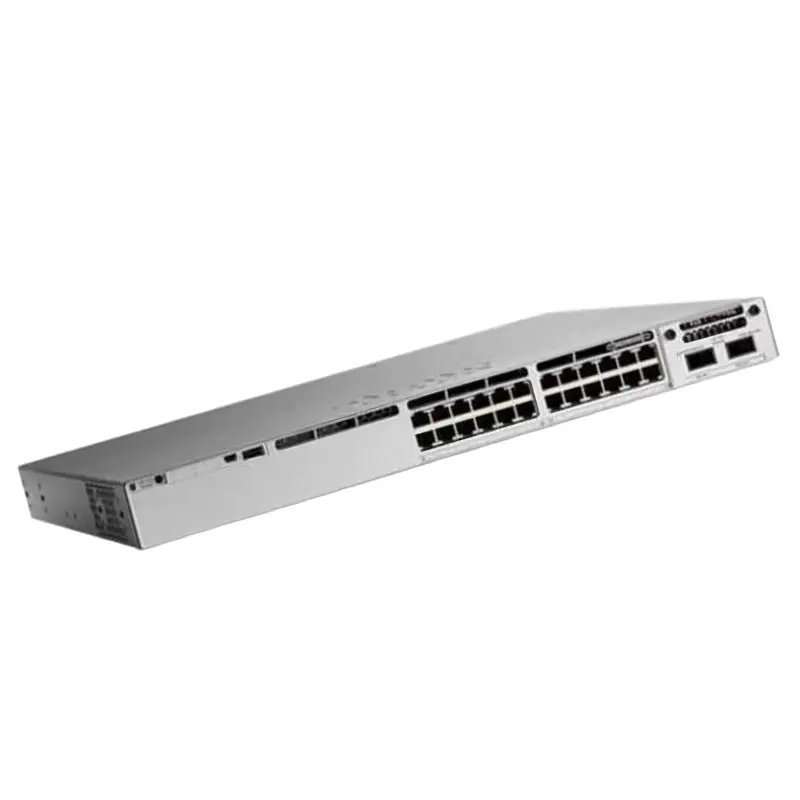

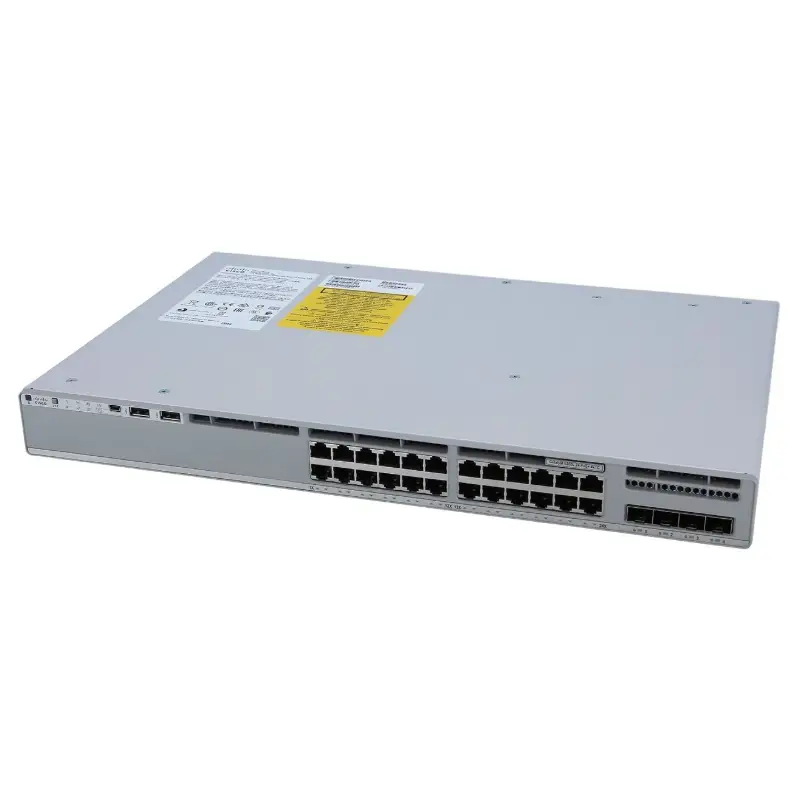

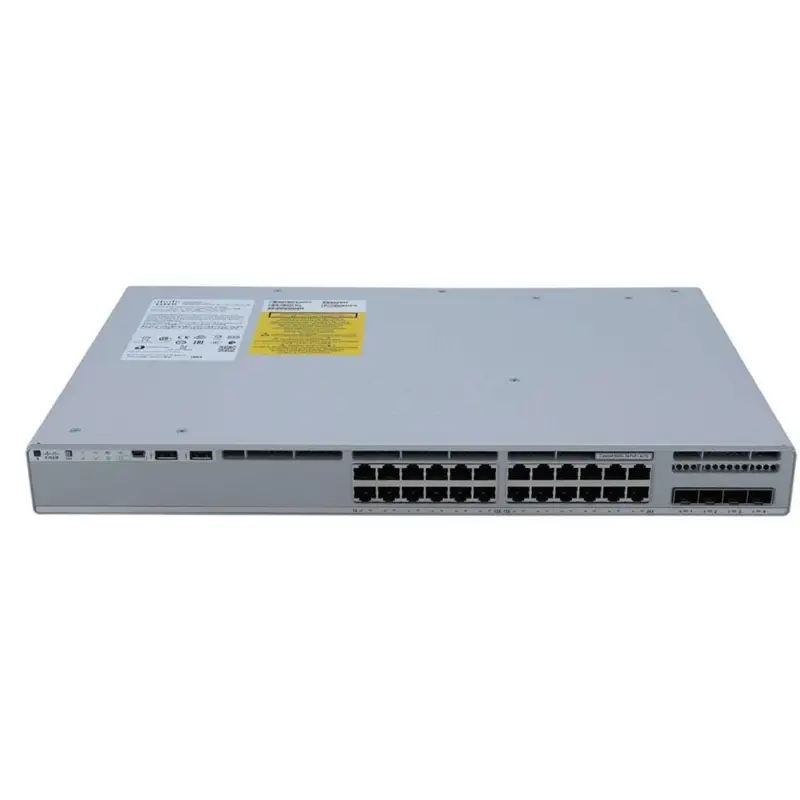

C9200L-24T-4X-E, Cisco Catalyst 9200L Switch, 24xGE, 4x10GE uplink, Network Essentials

The Cisco C9200L-24T-4X-E is a high-performance enterprise-class Layer 3 managed switch from the Cisco Catalyst 9200L Series, designed to deliver secure, reliable, and scalable network connectivity for modern business environments. Equipped with 24 Gigabit Ethernet RJ45 ports and 4 fixed 10 Gigabit SFP+ uplink ports, it provides high-speed access and seamless aggregation for growing enterprise networks while supporting bandwidth-intensive applications such as cloud computing, unified communications, video conferencing, and business-critical data transmission. Powered by Cisco's advanced network architecture and the Network Essentials software license, the C9200L-24T-4X-E offers comprehensive Layer 2 and Layer 3 features, including static routing, VLANs, QoS, Access Control Lists (ACLs), Link Aggregation, Rapid Spanning Tree Protocol (RSTP), and advanced security capabilities to ensure optimized network performance and enhanced traffic management. Built with enterprise-grade security technologies such as IEEE 802.1X authentication, MACsec encryption support, TrustSec, DHCP Snooping, Dynamic ARP Inspection (DAI), IP Source Guard, Secure Shell (SSH), and Secure Boot, this switch helps protect networks against unauthorized access and cyber threats while maintaining data integrity. The fixed 10G uplink interfaces eliminate network bottlenecks by enabling high-speed connections to core switches, servers, and data centers, making the switch an excellent choice for campus access layers, branch offices, educational institutions, healthcare facilities, government organizations, hospitality environments, and medium-sized enterprises. Cisco StackWise technology provides simplified management and improved operational efficiency, while intelligent network automation, software-defined access readiness, and cloud-based management compatibility help reduce deployment complexity and operational costs. The C9200L-24T-4X-E also supports advanced monitoring and troubleshooting through Cisco DNA Center integration, allowing IT administrators to streamline network provisioning, policy enforcement, and lifecycle management. Designed with energy-efficient hardware, enterprise-level reliability, and long-term investment protection, the switch delivers exceptional uptime and business continuity while reducing power consumption. Its robust hardware architecture, flexible deployment options, and industry-leading Cisco software ecosystem make it an ideal networking solution for organizations seeking secure, high-speed, and future-ready wired infrastructure. Whether upgrading an existing network or deploying a new enterprise campus, the Cisco C9200L-24T-4X-E provides outstanding performance, simplified management, enterprise-grade security, and dependable scalability to support evolving business demands and digital transformation initiatives.

  • C9200L-24T-4X-E

  • Cisco

  • Original New

  • 1 year

Availability:
Quantity:

Item

Official Specification

Model Part Number

C9200L-24T-4X-E

Product Series

Cisco Catalyst 9200L Layer 3 Enterprise Access Switch

Software License

Cisco IOS XE Network Essentials

Core Application

Enterprise Office Access, SMB Backbone, Server Rack Interconnection, High-Speed Wi-Fi AP Deployment

Hardware Warranty

Cisco 1-Year Limited Hardware Warranty

Downlink Ports

24 × 10/100/1000BASE-T RJ45 Data Ports (Non-PoE)

Fixed Uplink Ports

4 × 10G SFP+ Slots (Support 10G SR/LR/ER SFP+ Transceivers & 10GBASE-T Copper Modules)

Stacking Technology

StackWise-80, up to 8 units stacked as single logical device, 80Gbps stacking bandwidth

Switching Capacity

128 Gbps

64-byte Packet Forwarding Rate

95.23 Mpps

System Memory

2 GB DRAM / 4 GB Flash Storage

MAC Address Table

16,000 MAC address entries

Packet Buffer

8 MB Shared Packet Buffer

Jumbo Frame Support

Up to 9000 Bytes

VLAN Support

Max 4093 802.1Q VLANs, Voice VLAN, Guest VLAN, Private VLAN

Spanning Tree Protocols

STP, RSTP, MSTP, PVST+, Rapid PVST+

Link Aggregation

IEEE 802.3ad LACP, Up to 32 LAG Groups

Multicast Features

IGMP Snooping v1/v2/v3, MLD Snooping, Multicast Replication

Layer 3 Routing

Static IPv4/IPv6 Routing, Up to 1000 Static Routes, DHCP Snooping & DHCP Relay

QoS Capability

8 Hardware Queues per Port, Strict Priority + WRR Scheduling, DSCP/802.1p Marking

Security Features

802.1X Port Authentication, Web Auth, RADIUS/TACACS+, DoS Protection, Port Security, ARP Guard, Rogue DHCP Blocking, SSH/HTTPS Encrypted Management

Management Interfaces

RJ45 Console, USB-C Console, USB-A Storage Port, Web UI, CLI, Cisco DNA Center Compatible

Power Supply

Built-in PWR-C5-125WAC Universal AC Power Supply (100–240V, 50/60Hz)

Max Power Consumption

82W

Cooling System

Fixed Variable-Speed Fans

Acoustic Noise Level

41 dB at 25°C Ambient

Physical Dimensions (H × W × D)

44 mm × 445 mm × 288 mm (1.73 in × 17.5 in × 11.3 in), 1U Rack Mount

Net Weight

2.95 kg (6.5 lbs)

Operating Environment

0°C ~ 40°C, 5%–90% Non-Condensing Humidity; Max 3000m Altitude

Storage Temperature

-40°C ~ 70°C, 5%–90% Non-Condensing Humidity

MTBF (25°C Ambient)

1,480,000 Hours

Installation

Standard 19-inch Rack Mount, Desktop Placement

Regulatory Certifications

CE, FCC Class A, UL, CSA, RoHS Compliant

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q: What are the main features of C9200L-24T-4X-E?

A: C9200L-24T-4X-E is a Cisco Catalyst 9200L Series switch designed for enterprise networks. It offers 24 Gigabit Ethernet ports, 4 10 Gigabit Ethernet uplink ports, advanced Layer 3 switching capabilities, and enhanced security features for reliable and secure network operation.

Q: How many Gigabit Ethernet ports does C9200L-24T-4X-E have?

A: C9200L-24T-4X-E has 24 Gigabit Ethernet ports, providing high-speed connectivity options for connecting various devices in the network.

Q: What are the uplink options for C9200L-24T-4X-E?

A: C9200L-24T-4X-E has 4 built-in 10 Gigabit Ethernet uplink ports, providing high-speed connectivity options for connecting to other network devices or uplinking to the core network infrastructure.

Q: Does C9200L-24T-4X-E support stacking?

A: Yes, C9200L-24T-4X-E supports stacking. It can be stacked with other compatible Cisco Catalyst 9200L switches to form a single logical unit, increasing scalability and simplifying management of the network infrastructure.

Q: What are the advanced security features of C9200L-24T-4X-E?

A: C9200L-24T-4X-E offers advanced security features such as MACsec encryption, Trustworthy Systems, and secure boot for secure access and protection against unauthorized access or network threats.
