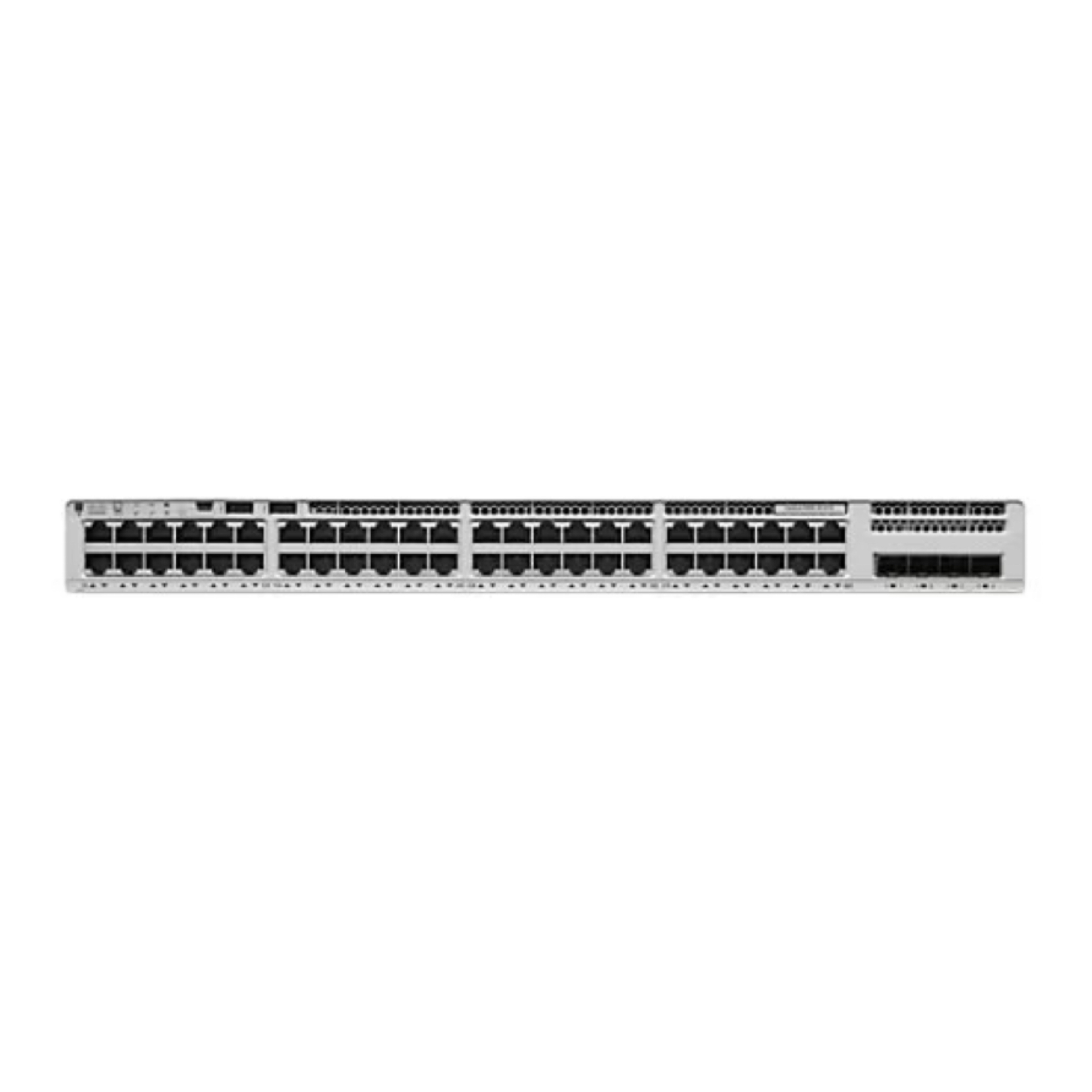

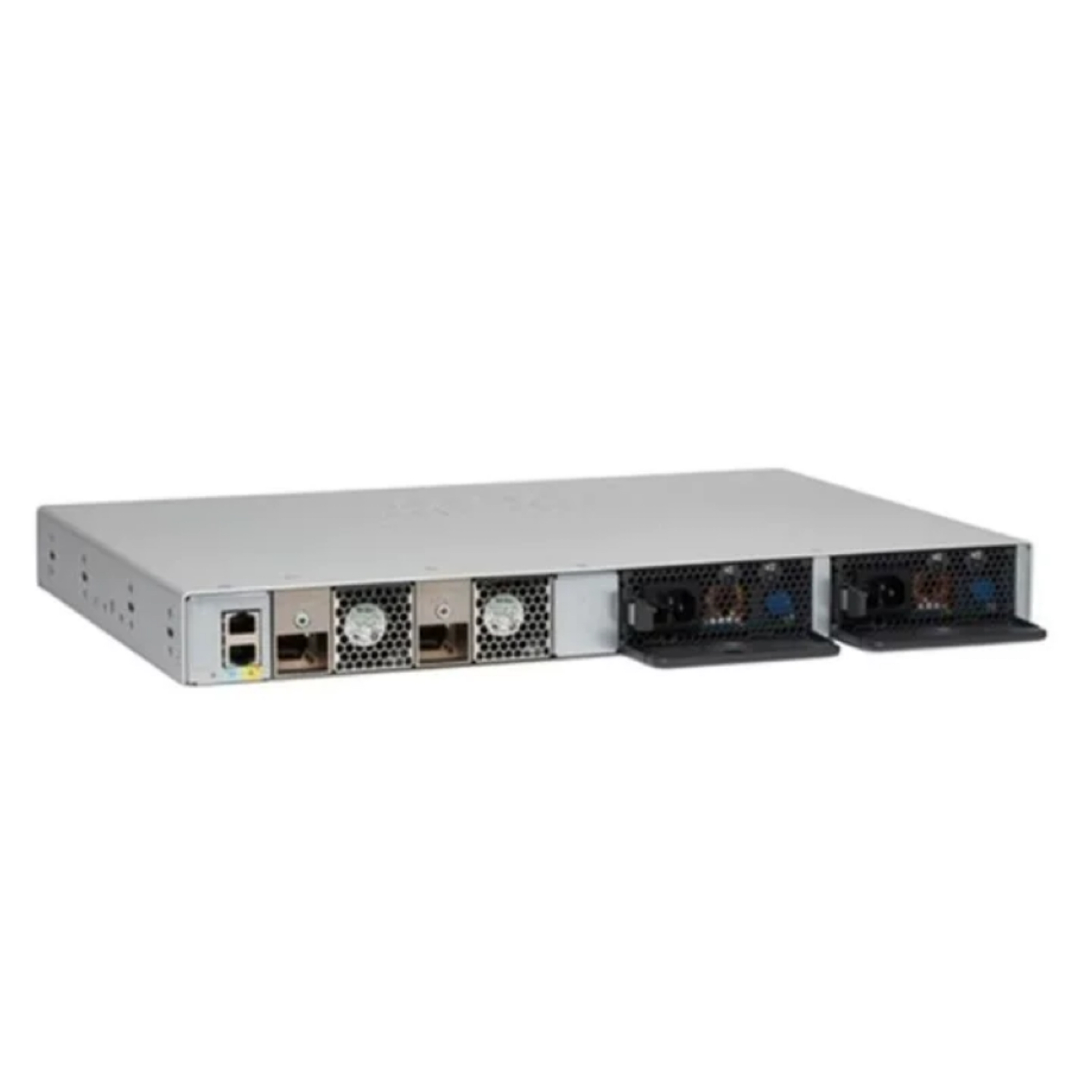

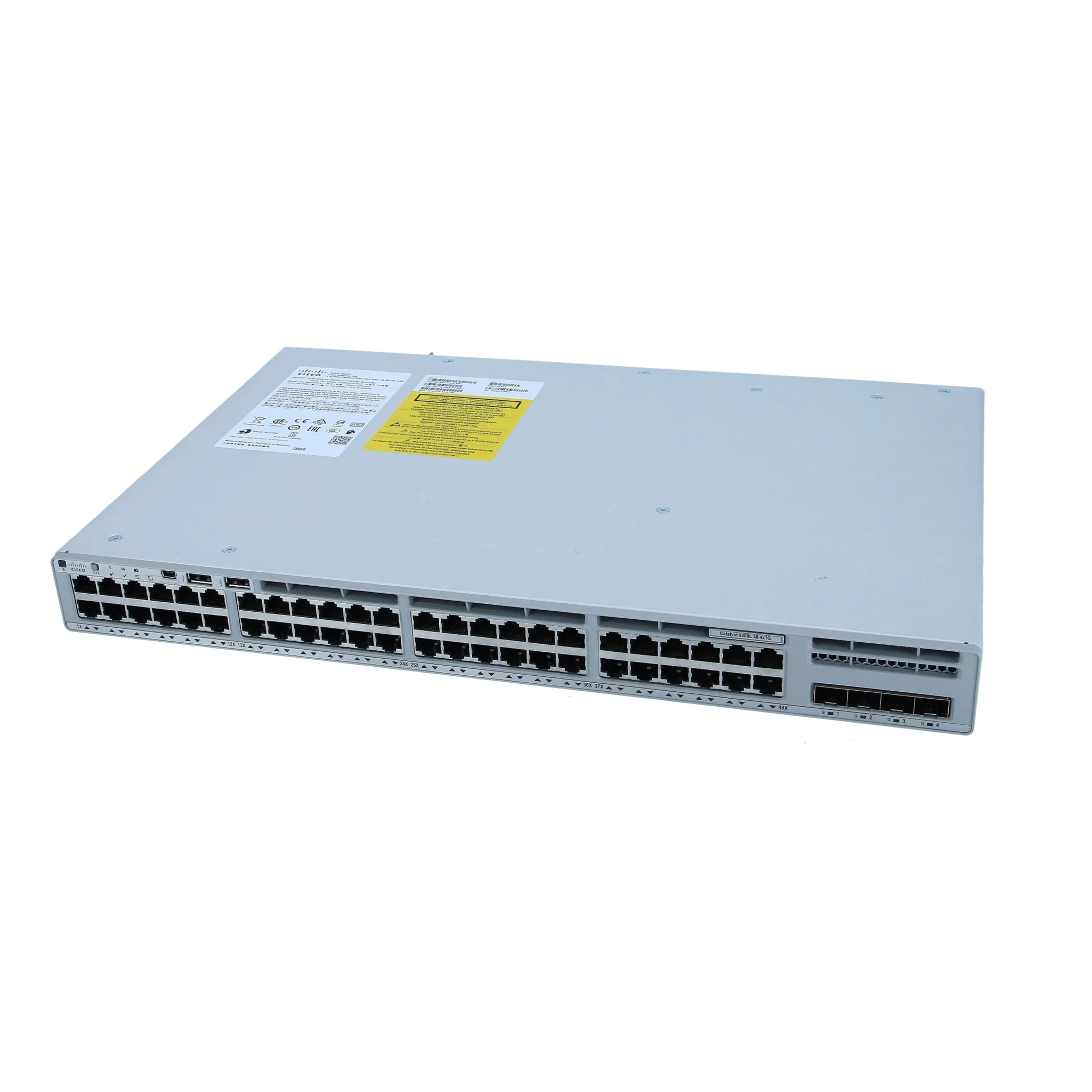

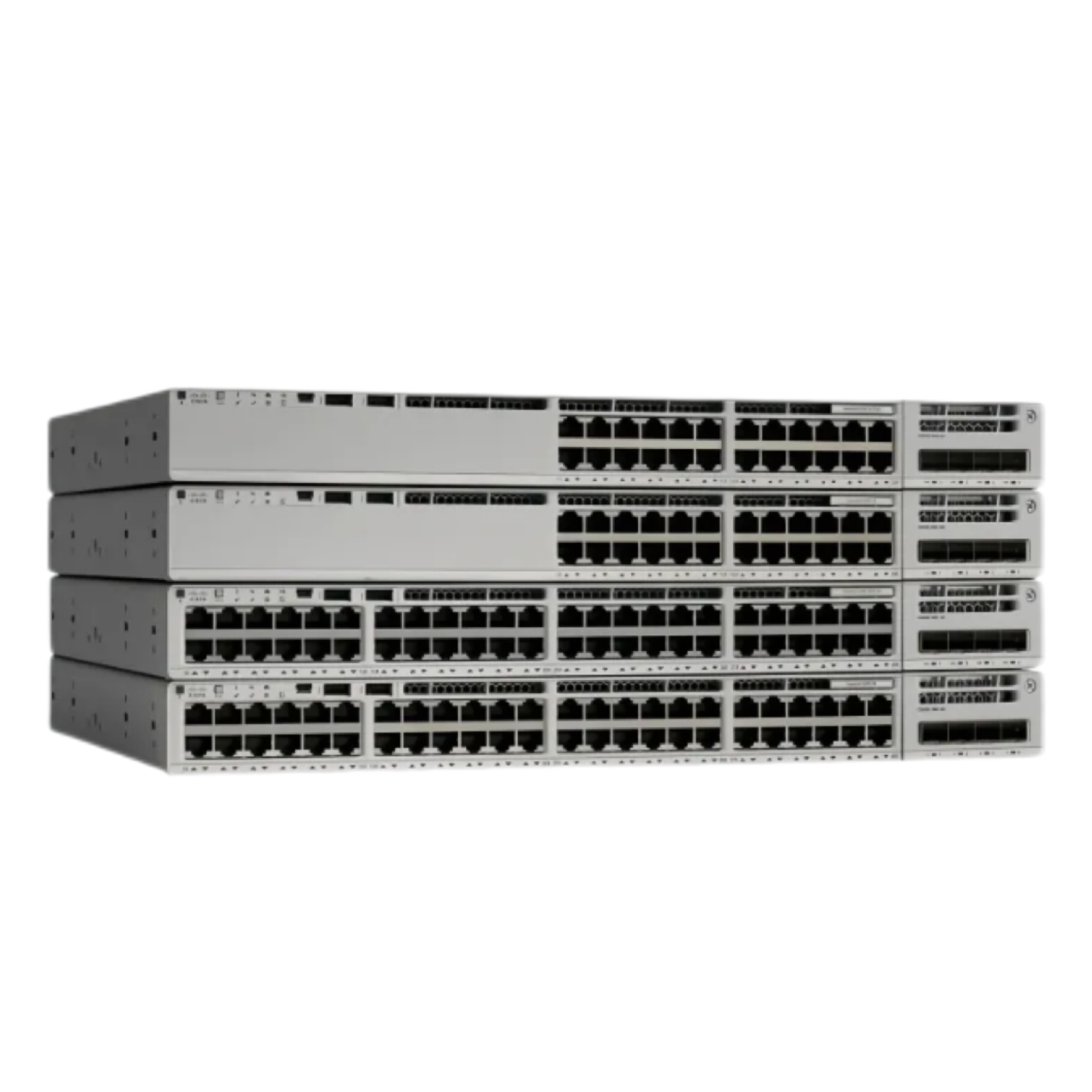

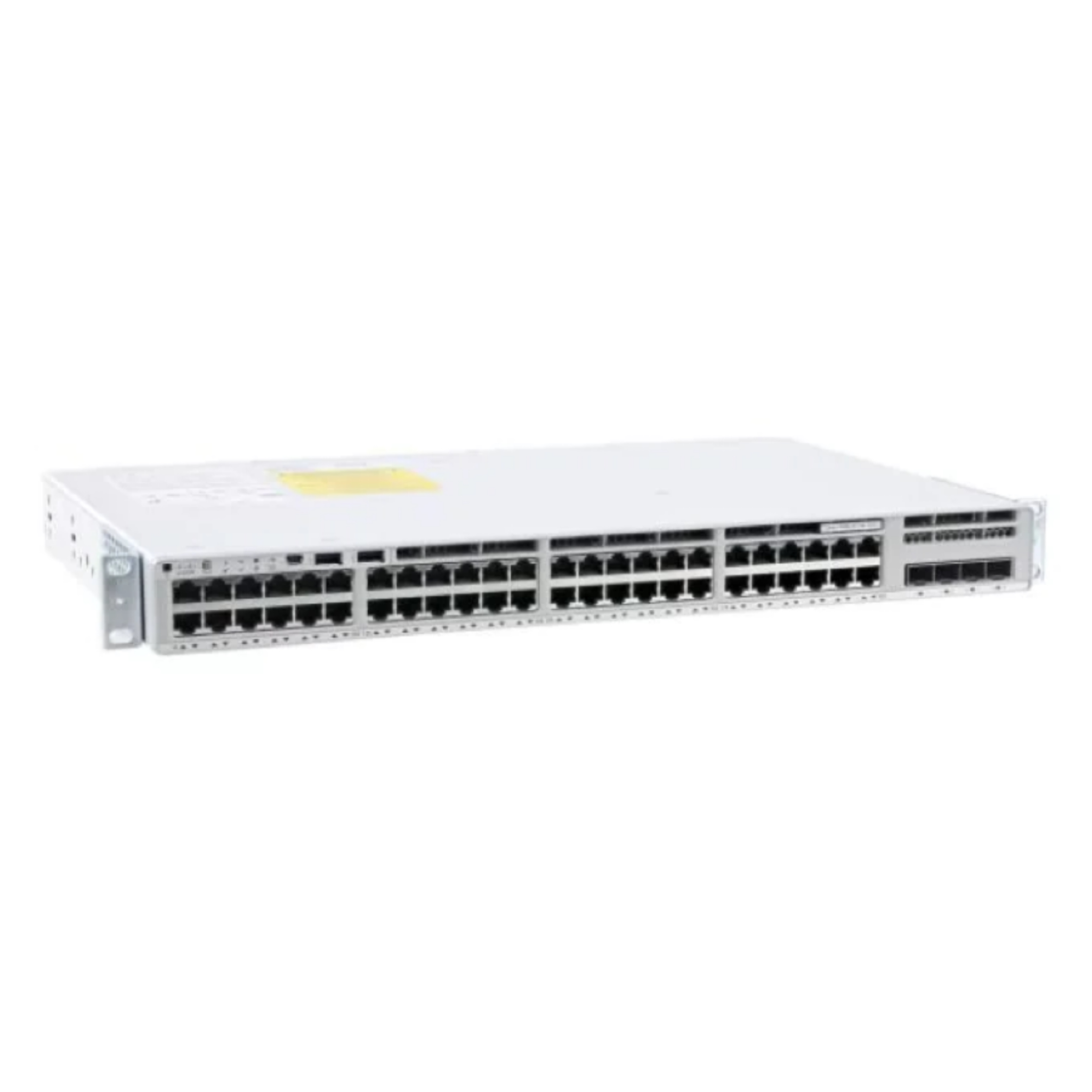

C9200L-48T-4G-E, Cisco Catalyst 9200L Switch, 48x1G, 4x1G uplink, Network Essentials

The Cisco C9200L-48T-4G-E is a high-performance enterprise-class Layer 3 managed switch from the Cisco Catalyst 9200L Series, designed to provide secure, reliable, and scalable network connectivity for small to medium-sized businesses, enterprise branch offices, educational institutions, healthcare organizations, retail environments, and campus networks. Equipped with 48 Gigabit Ethernet RJ45 ports and 4 fixed 1G SFP uplink ports, it delivers high-speed data transmission while ensuring flexible network expansion and seamless integration with existing infrastructure. Built on Cisco's proven enterprise switching architecture, the C9200L-48T-4G-E supports advanced Layer 2 and Layer 3 features, including static routing, RIP, OSPF, VLAN, QoS, Link Aggregation, IPv4/IPv6 dual stack, Access Control Lists (ACLs), multicast management, and intelligent traffic optimization, enabling efficient network segmentation, enhanced performance, and simplified management. As part of Cisco's Catalyst family, this switch incorporates comprehensive security technologies such as IEEE 802.1X authentication, MACsec encryption, Secure Boot, Trust Anchor Module, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and advanced threat protection to safeguard business-critical data and defend against unauthorized access and cyber threats. The C9200L-48T-4G-E supports Cisco DNA Center for centralized network automation, policy-based provisioning, monitoring, and lifecycle management, significantly reducing operational complexity while improving network visibility and efficiency. Designed with enterprise reliability in mind, it features redundant power supply support, high availability, energy-efficient operation, and a robust hardware platform that ensures continuous network uptime for mission-critical applications. Its intuitive web-based interface, CLI management, SNMP, NETCONF/YANG, and REST APIs offer flexible deployment and simplified administration for IT professionals. The switch is fully compatible with a wide range of Cisco enterprise networking solutions, making it an ideal choice for organizations planning future network expansion or digital transformation. Whether supporting high-density user access, cloud applications, VoIP communications, video conferencing, wireless access points, or IoT devices, the Cisco C9200L-48T-4G-E delivers exceptional performance, enterprise-grade security, outstanding scalability, and long-term investment protection. As an authorized global supplier, we provide 100% original brand-new Cisco products with competitive pricing, abundant inventory, fast worldwide shipping, professional technical support, and reliable after-sales service to help customers build stable, secure, and future-ready network infrastructures.

  • C9200L-48T-4G-E

  • Cisco

  • Original New

  • 1 year

Availability:
Quantity:

Item

Official Specification

Model Number

C9200L-48T-4G-E

Product Series

Cisco Catalyst 9200L Fixed Stackable Layer 3 Switch

Software License

Network Essentials (E suffix)

Typical Application

Enterprise office networks, SMB branch, IP surveillance, wired workstation access, small campus stacking deployments

Downlink Ports

48 × 10/100/1000BASE-T RJ45 data ports (Non-PoE)

Fixed Uplink Slots

4 × 1G SFP fiber uplink ports

Stacking Technology

StackWise-80, up to 8 switches in one stack, 80Gbps stacking bandwidth

Power Supply

Default PWR-C5-125WAC single AC power supply, 2 power slots for redundant power

Cooling System

Dual fixed redundant fans

Switching Capacity

104 Gbps

64-byte Packet Forwarding Rate

154.76 Mpps

Memory

2 GB DRAM, 4 GB Flash Storage

Packet Buffer

6 MB shared packet buffer

MAC Address Table

16,000 MAC entries

VLAN Support

Up to 1024 VLAN IDs, 802.1Q tagging, voice VLAN, guest VLAN

SVIs (Switched Virtual Interfaces)

Max 512 SVIs

Jumbo Frame

Up to 9198 bytes

Routing Scale

3,000 IPv4 static routes, 1,500 IPv6 static routes

QoS

8 hardware queues per port, WRR + strict priority scheduling

Link Aggregation

IEEE 802.3ad LACP, static LAG support

Multicast Features

IGMP Snooping v1/v2/v3, PIM, multicast replication

Security Features

802.1X authentication, RADIUS/TACACS+, port security, DoS protection, ARP guard, rogue DHCP prevention, SSH/HTTPS encrypted management

ACL Scale

1,500 ACL entries

Flexible NetFlow

Support up to 16,000 flow entries

Management Interfaces

RJ45 Console, USB console, Web UI, CLI, Cisco DNA Center compatible, SNMP v1/v2c/v3

Physical Dimensions (H × W × D)

4.4 × 445 × 288 mm (1.73 × 17.5 × 11.3 in), 1U rackmount

Net Weight

4.8 kg (10.58 lbs)

Input Power

Universal AC 100–240V, 50/60Hz

Operating Temperature

-5°C ~ +45°C (up to 1500m altitude); -5°C ~ +40°C (up to 3000m altitude)

Storage Temperature

-40°C ~ +70°C

Humidity

5%–90% non-condensing (operating & storage)

MTBF (25°C ambient)

508,700 hours

Installation

Standard 19-inch rack mount, desktop placement

Regulatory Certifications

CE, FCC Class A, UL, CSA, RoHS Compliant

Warranty

Cisco 1-year limited hardware warranty

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q: What is the c9200l 48t 4g e?

A: The c9200l 48t 4g e is a Cisco Catalyst switch designed for small to medium-sized businesses that require high-performance connectivity and security features.

Q: How many ports does the c9200l 48t 4g e have?

A: The c9200l 48t 4g e has 48 Ethernet ports and 4 Gigabit Ethernet SFP ports.

Q: What is the maximum throughput of the c9200l 48t 4g e?

A: The c9200l 48t 4g e has a maximum forwarding bandwidth of 176 Gbps.

Q: Does the c9200l 48t 4g e support Power over Ethernet (PoE)?

A: No, the c9200l 48t 4g e does not support PoE.

Q: What is the power supply of the c9200l 48t 4g e?

A: The c9200l 48t 4g e supports dual redundant power supplies for high availability.
