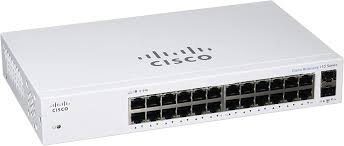

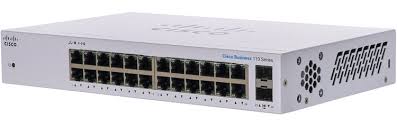

CBS110-24T
cisco
factory new
1 year
| Quantity: | |
|---|---|
CBS110-24T Specification | ||||
Specifications | Description | |||
Capacity in millions of packets per second (mpps) (64-byte packets) | 35.7 mpps | |||
Switching capacity in gigabits per second (Gbps) | 48 Gbps | |||
Total system ports | 24 Gigabit Ethernet | |||
RJ-45 ports | 24 Gigabit Ethernet | |||
Packet Buffer | 2 Mbit | |||
Unit dimensions (W x D x H) | 279 x 170 x 44 mm (11 x 6.7 x 1.73 in) | |||
General | ||||
Head-of-line (HOL) blocking | HOL blocking prevention | |||
MAC table | 2K addresses for CBS110-5T-D 8K addresses for all other models | |||
Jumbo frame | 9216 bytes | |||
Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) | |||
Loop detection | Helps discover loops in the network to avoid broadcast storms | |||
Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts | |||
Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) | |||
Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet | |||
Hardware | ||||
LEDs | Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE. *if present | |||
Cabling type | Category 5e or better | |||
Mounting options | Desktop, wall-mount or rack mount | |||
Physical security lock | Kensington lock slot | |||
Flash | 16 MB for CBS110-16T, CBS110-16PP 8 MB for CBS110-24T, CBS110-24PP | |||
CPU | 400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP | |||
CPU memory | 128 MB for CBS110-16T, CBS110-16PP 64 MB for CBS110-24T, CBS110-24PP | |||
Supported SFP modules | SKU | Media | Speed | Maximum distance |
MGBSX1 | Multimode fiber | 1000 Mbps | 500 m | |
MGBLX1 | Single-mode fiber | 1000 Mbps | 10 km | |
MGBLH1 | Single-mode fiber | 1000 Mbps | 40 km | |
MGBT1 | UTP cat 5e | 1000 Mbps | 100 m | |
Environmental | ||||
Power | CBS110-5T-D, CBS110-8T-D: DC 12V, 1.0A CBS110-8PP-D: DC 48V, 1.25A CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP: 110-240VAC, 50-60 Hz, internal, universal | |||
Green (power efficiency) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports | |||
Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B* *select models | |||
Operating temperature | 32° to 104°F (0° to 40°C) | |||
Storage temperature | –4° to 158°F (–20° to 70°C) | |||
Operating humidity | 10% to 90%, relative, noncondensing | |||
Storage humidity | 5% to 90%, relative, noncondensing | |||
Warranty | Limited lifetime | |||
Package contents | ||||
● Cisco Business 110 Series switch ● Power cord or adapter ● Quick start guide ● Mounting kit | ||||
Minimum requirements | ||||
● Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet ● Cat5e or better Ethernet cable ● Network interface card for each computer | ||||
