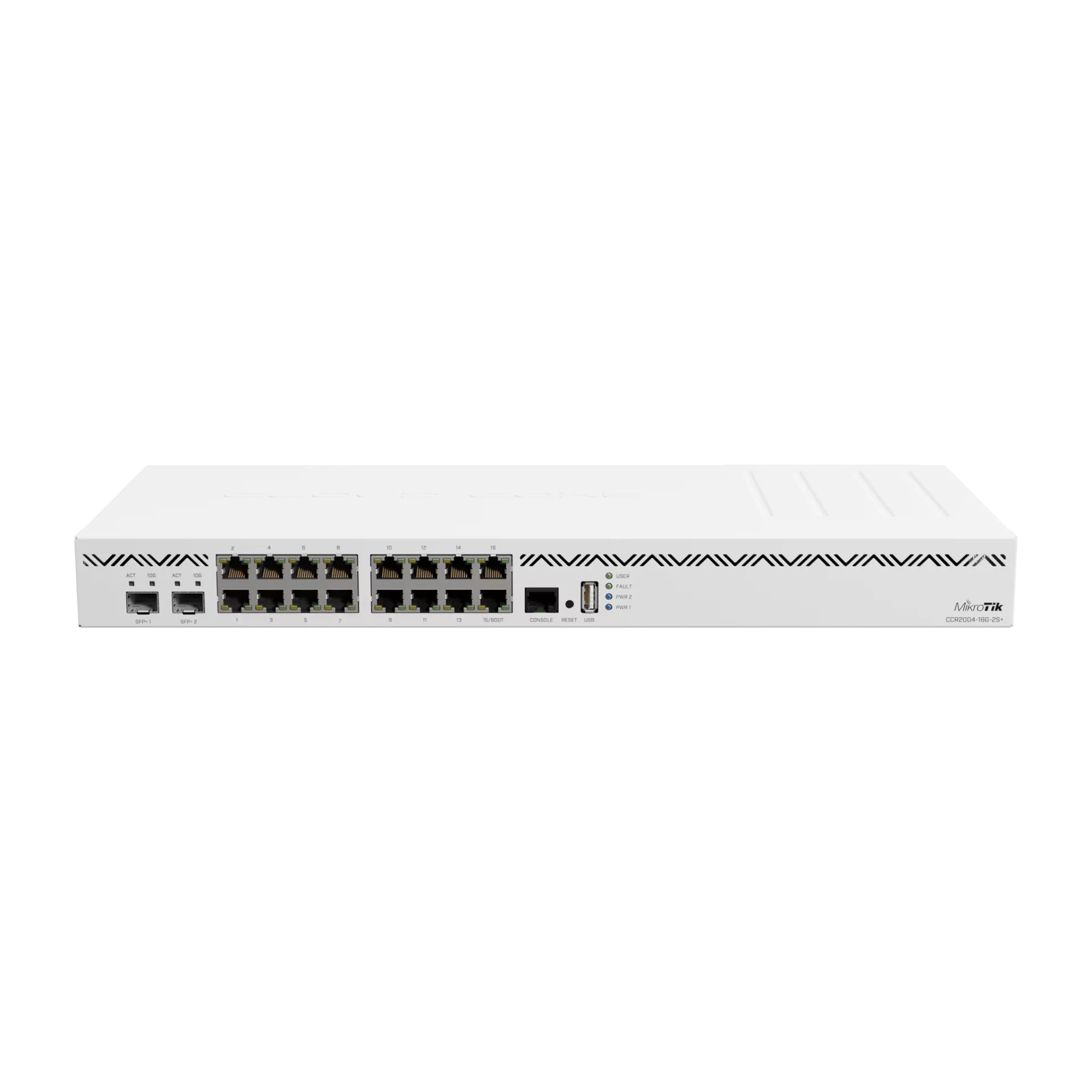

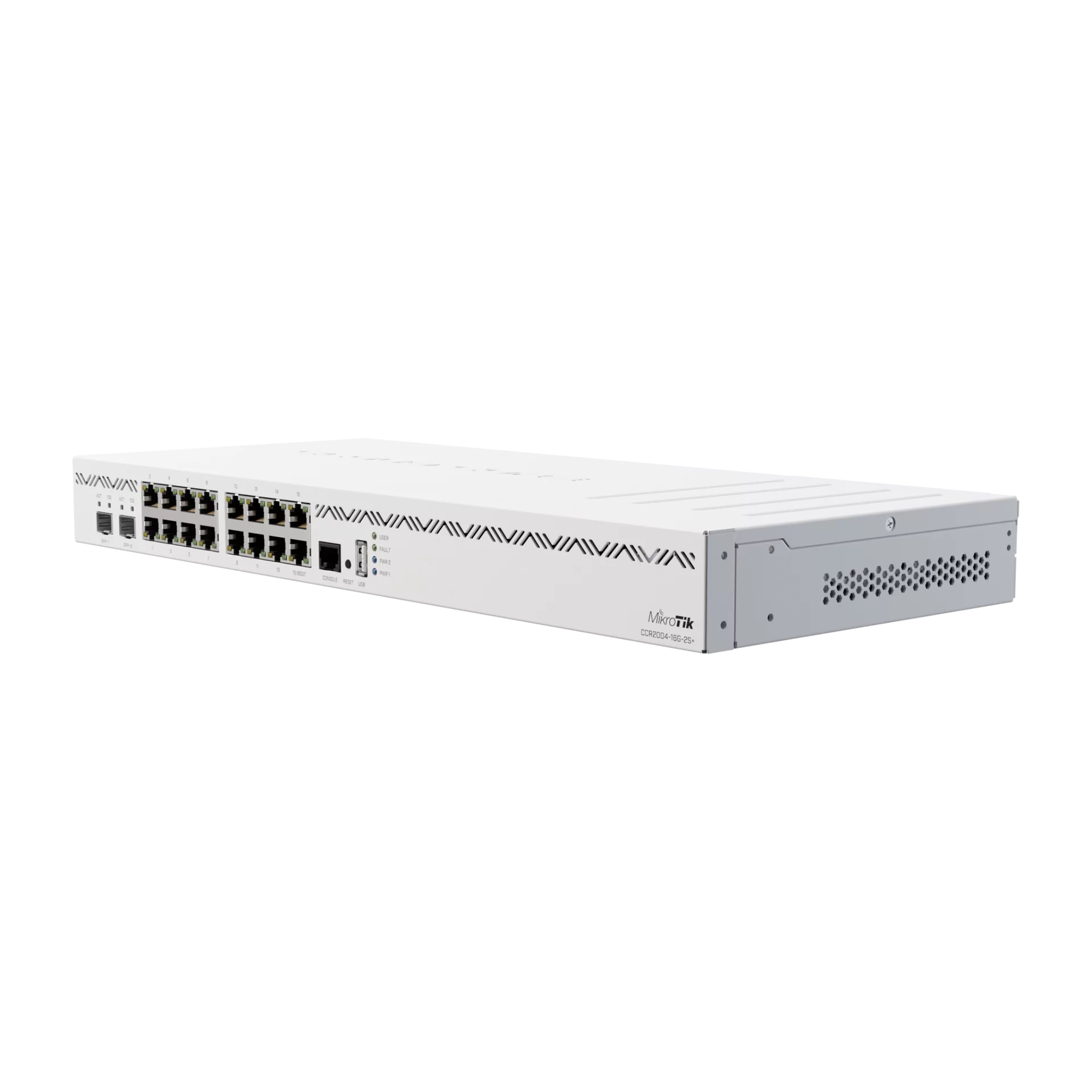

The MikroTik CCR2004-16G-2S+ is a powerful enterprise-grade cloud core router engineered to deliver outstanding performance, reliability, and scalability for demanding business networks. Powered by a high-performance 64-bit ARM CPU with quad-core architecture, this router is capable of handling advanced routing, firewall, VPN, QoS, MPLS, and bandwidth management tasks with exceptional efficiency, making it an ideal solution for ISPs, enterprise campuses, data centers, branch offices, and medium to large-scale network deployments. It features sixteen Gigabit Ethernet ports for flexible wired connectivity and two high-speed 10G SFP+ ports that enable fast uplinks, backbone connections, or server aggregation, ensuring seamless integration into modern high-bandwidth infrastructures. With support for MikroTik RouterOS, the CCR2004-16G-2S+ provides comprehensive Layer 3 routing capabilities, dynamic routing protocols including BGP, OSPF, and RIP, advanced VLAN management, IPv4 and IPv6 support, load balancing, failover, traffic shaping, hotspot services, and extensive security features such as stateful firewall, IPsec, WireGuard, and VPN technologies. Designed for continuous operation, the router offers stable performance under heavy network loads while maintaining low power consumption and excellent thermal efficiency. Its rackmount form factor allows easy installation into standard server cabinets, making deployment simple for professional IT environments. The CCR2004-16G-2S+ is an excellent choice for organizations seeking high throughput, low latency, flexible network management, and future-ready connectivity without compromising reliability or cost-effectiveness. Whether used as a core router, edge gateway, VPN concentrator, or high-performance network aggregation device, it delivers the processing power and advanced networking features required to support today's data-intensive applications and growing business demands. As an original brand-new MikroTik product, the CCR2004-16G-2S+ provides exceptional value for enterprises looking to build secure, scalable, and high-performance network infrastructure with long-term operational stability.
CCR2004-16G-2S+
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Product Information | Model Name | CCR2004-16G-2S+ |
Product Series | MikroTik Cloud Core Router (CCR) 2004 Series | |
Device Type | High-Performance 1U Rackmount Wired Router | |
Application Scenarios | Enterprise Routing, ISP Network Management, Data Center Edge, High-Bandwidth Network Deployment | |
Hardware Core Specifications | CPU Model | Annapurna Labs AL32400 (Alpine v2) |
CPU Architecture | 64-bit ARMv8-A (Cortex-A57) | |
CPU Core Count | 4 Cores, 1.7 GHz Clock Speed | |
RAM | 4 GB DDR4 | |
Storage | 128 MB NAND Flash | |
Switch Chip Model | Marvell 88E6191X / 88E619X (2 Switch Chips, 8 Ports per Chip) | |
Port Configuration | 10/100/1000BASE-T RJ45 Ports | 16 x Gigabit Ethernet Ports |
10G SFP+ Ports | 2 x 10 Gigabit SFP+ Slots (Support 10G Fiber/Copper SFP+ Transceivers) | |
USB Port | 1 x USB 3.0 Type-A Port | |
Console Port | 1 x RJ45 Serial Console Port | |
Performance & Throughput | Switching Capacity | 20 Gbps (Full-Duplex, Non-Blocking) |
Forwarding Rate | Wire-Speed Forwarding for All Ports | |
Max IPsec Throughput | Up to 10 Gbps (Hardware-Accelerated) | |
Max BGP Feed Processing | 2M+ Routes | |
Queue Capacity | 1,024 Hardware Queues | |

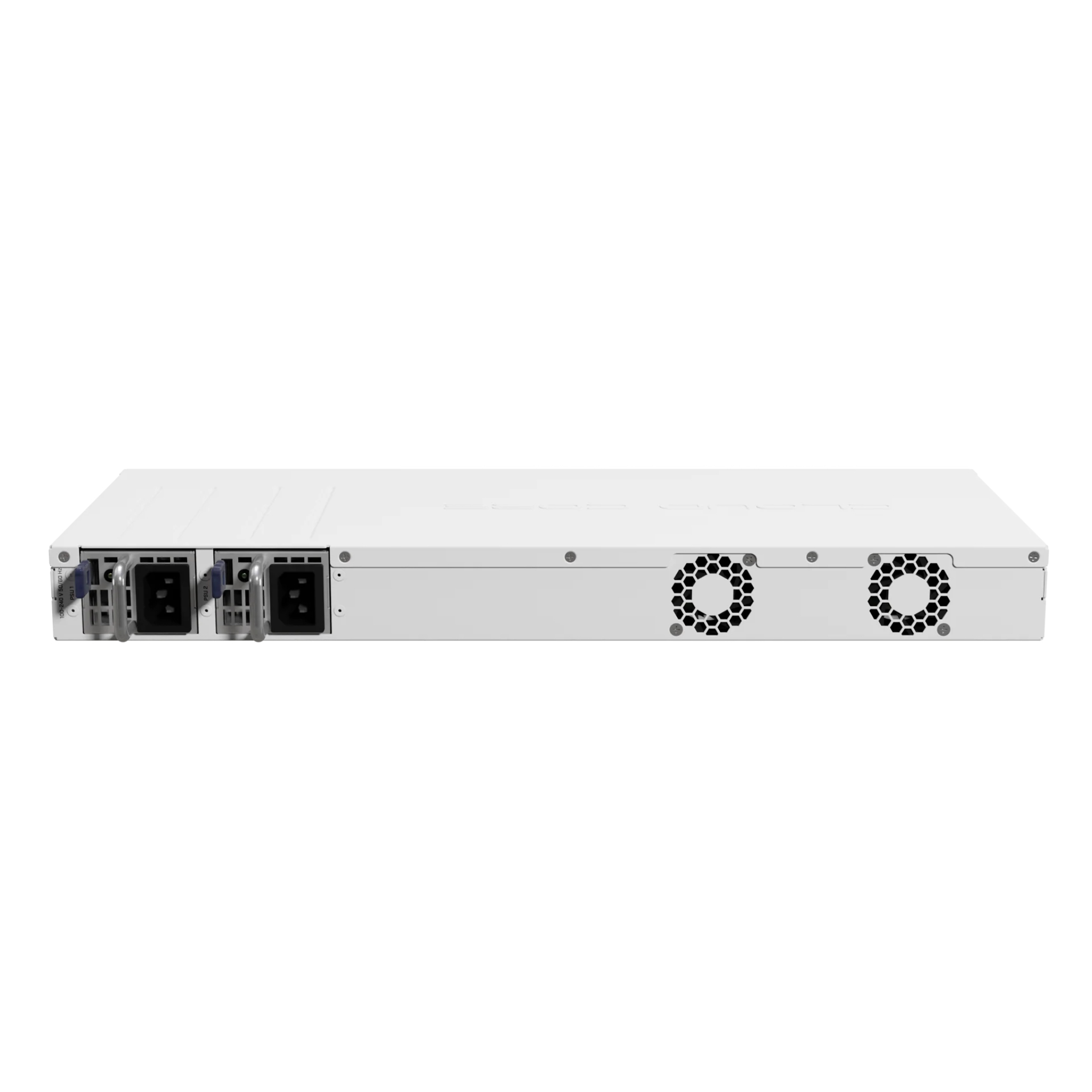

Power Supply Specifications | Power Supply | Dual Redundant Integrated AC Power Supplies |
Input Voltage | AC 100–240V, 50/60Hz | |
Max Power Consumption | 48 W (Full Load) | |
Idle Power Consumption | 35 W | |
Physical & Mechanical Specifications | Form Factor | 1U Rackmount Chassis |
Dimensions (W × D × H) | 443 mm × 210 mm × 44 mm | |
Weight | 3.2 kg | |
Cooling System | Active Cooling (Built-in Fan) | |
Mounting | Standard 19-inch Rack Mount Brackets Included | |
Environmental Parameters | Operating Temperature | -20°C to +60°C (-4°F to 140°F) |
Storage Temperature | -40°C to +70°C (-40°F to 158°F) | |
Operating Humidity | 10%–90% Non-Condensing | |
Operating Altitude | Up to 2,000 Meters Above Sea Level | |
System & Software | Operating System | RouterOS v7 (Only) |
License Level | RouterOS License Level 6 | |
Management | WebFig (Web UI), CLI, SNMP, SSH, Telnet | |
Supported Features | BGP, OSPF, MPLS, VLAN, QoS, Firewall, NAT, IPsec, WireGuard, DHCP Server/Client | |
Compliance & Certifications | Industry Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3ae |
Safety Certifications | CE, FCC Class A, RoHS, UL, EAC | |

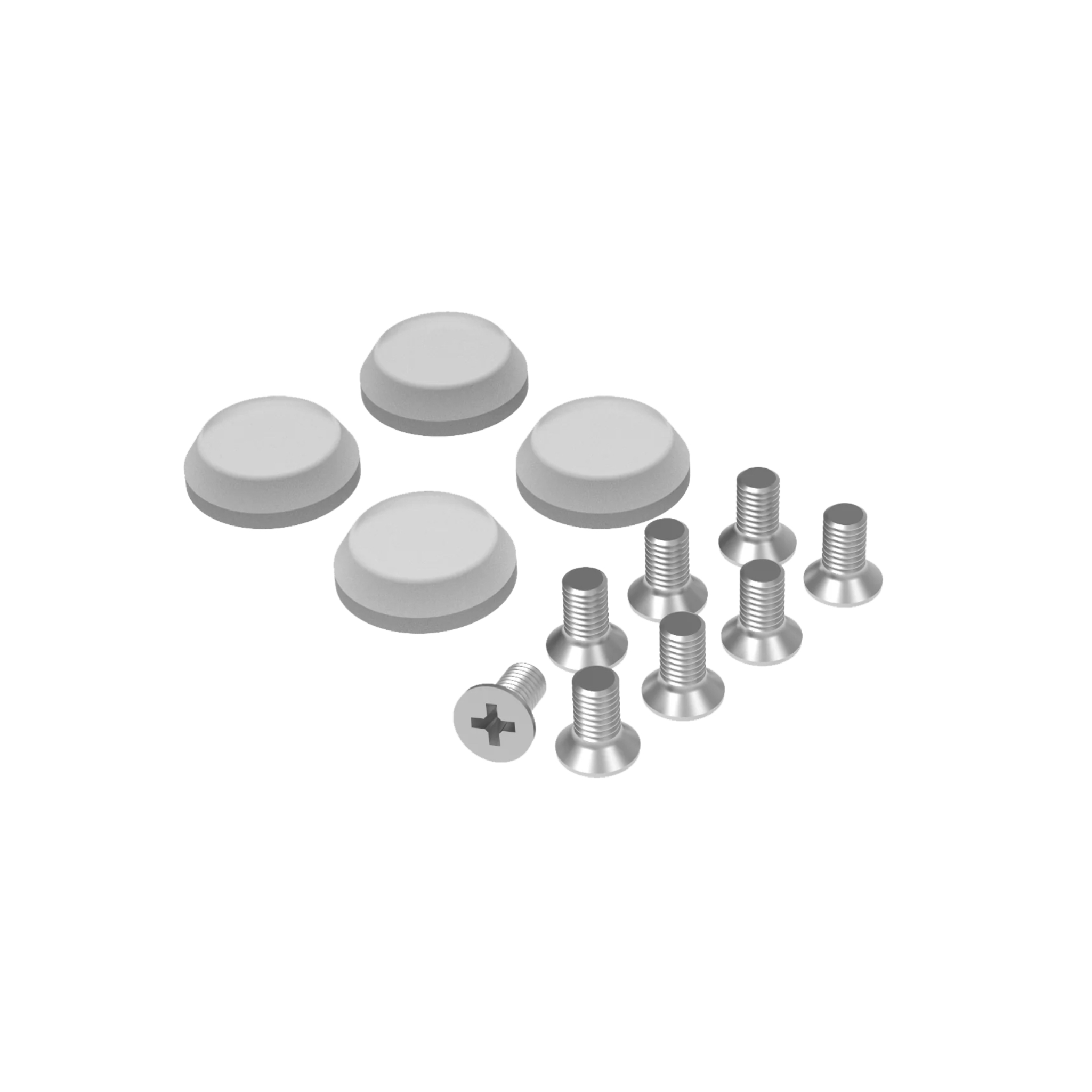

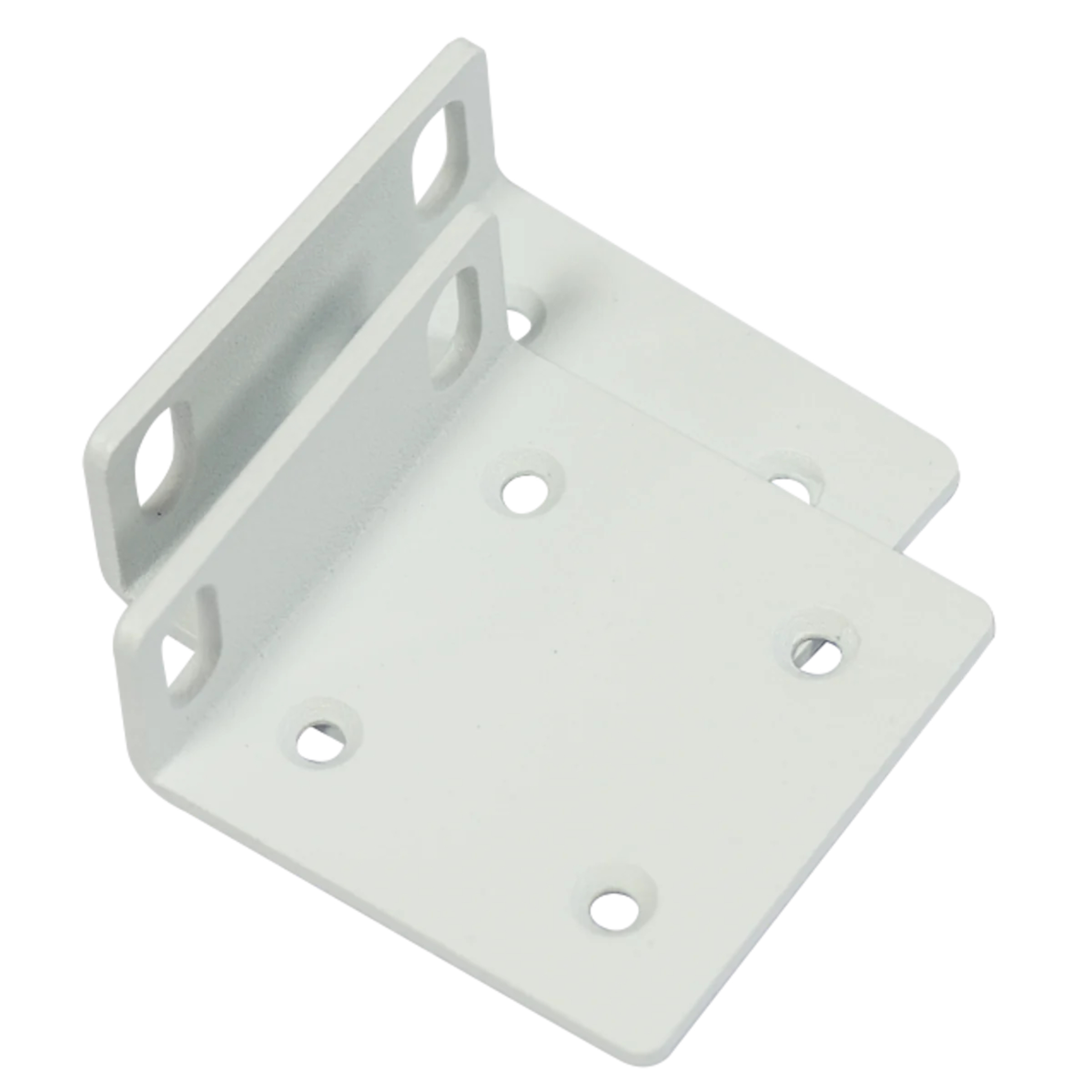

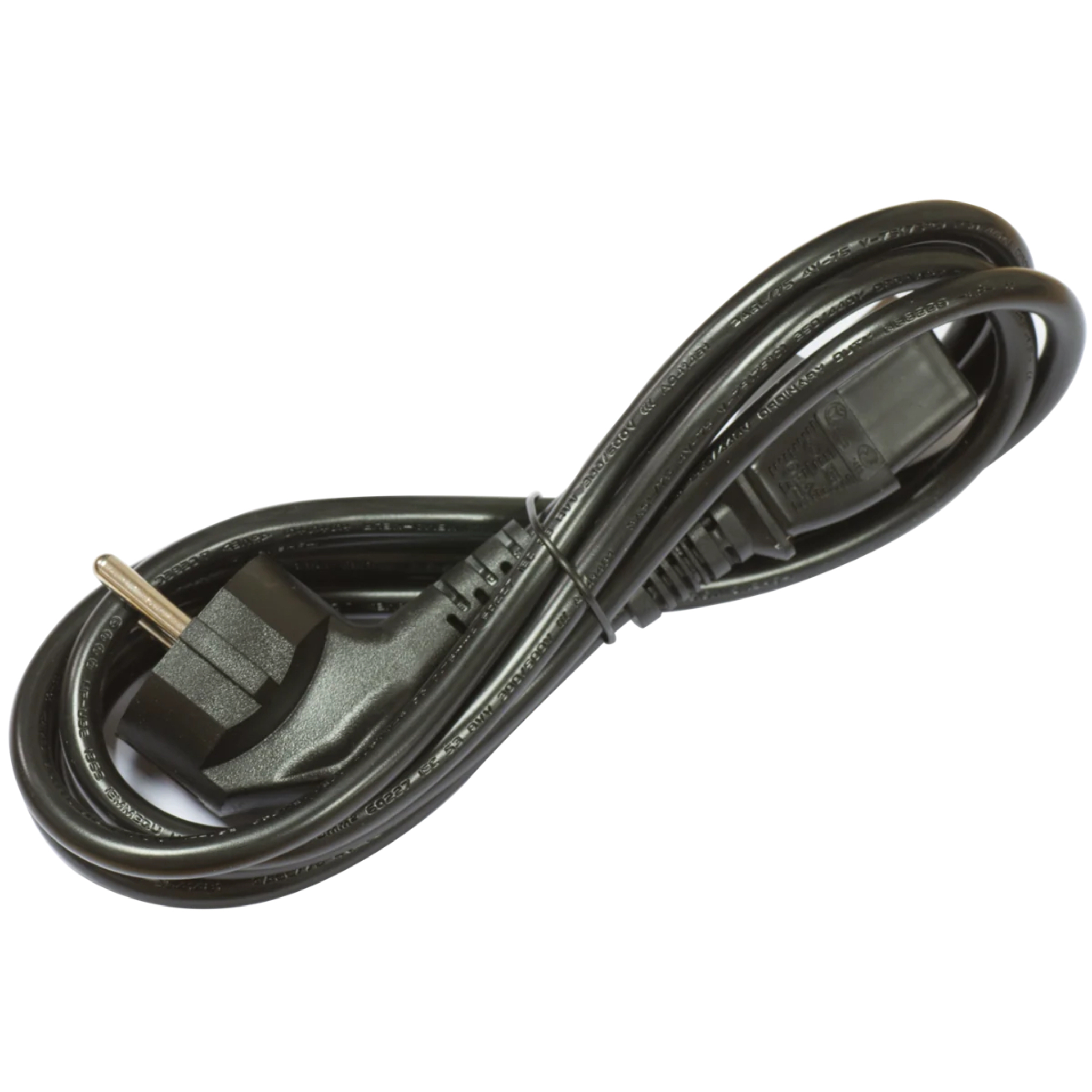

Included Accessories | Standard Package | 2 x Power Cords, 1 x Rackmount Bracket, 1 x Fastening Screw Set |
