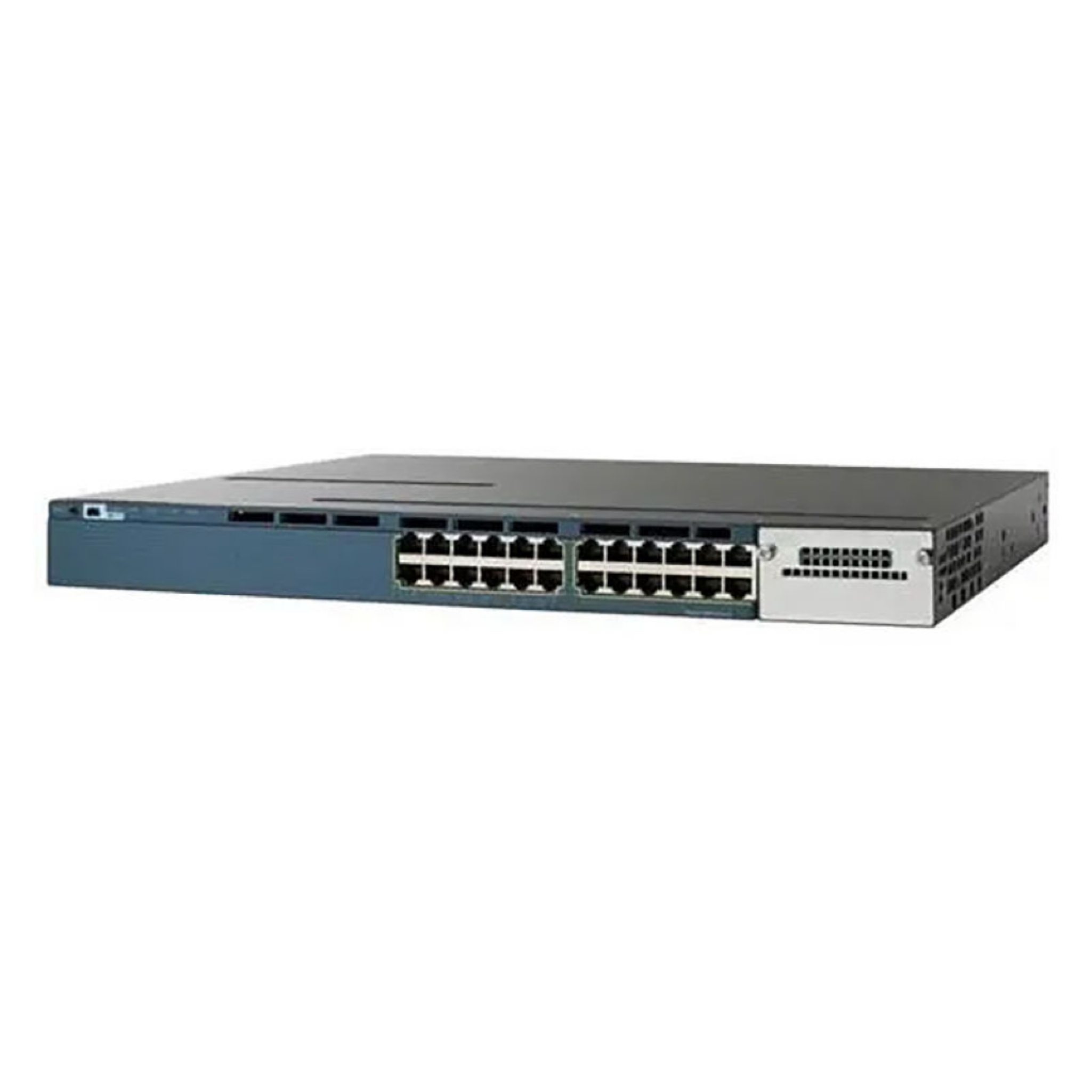

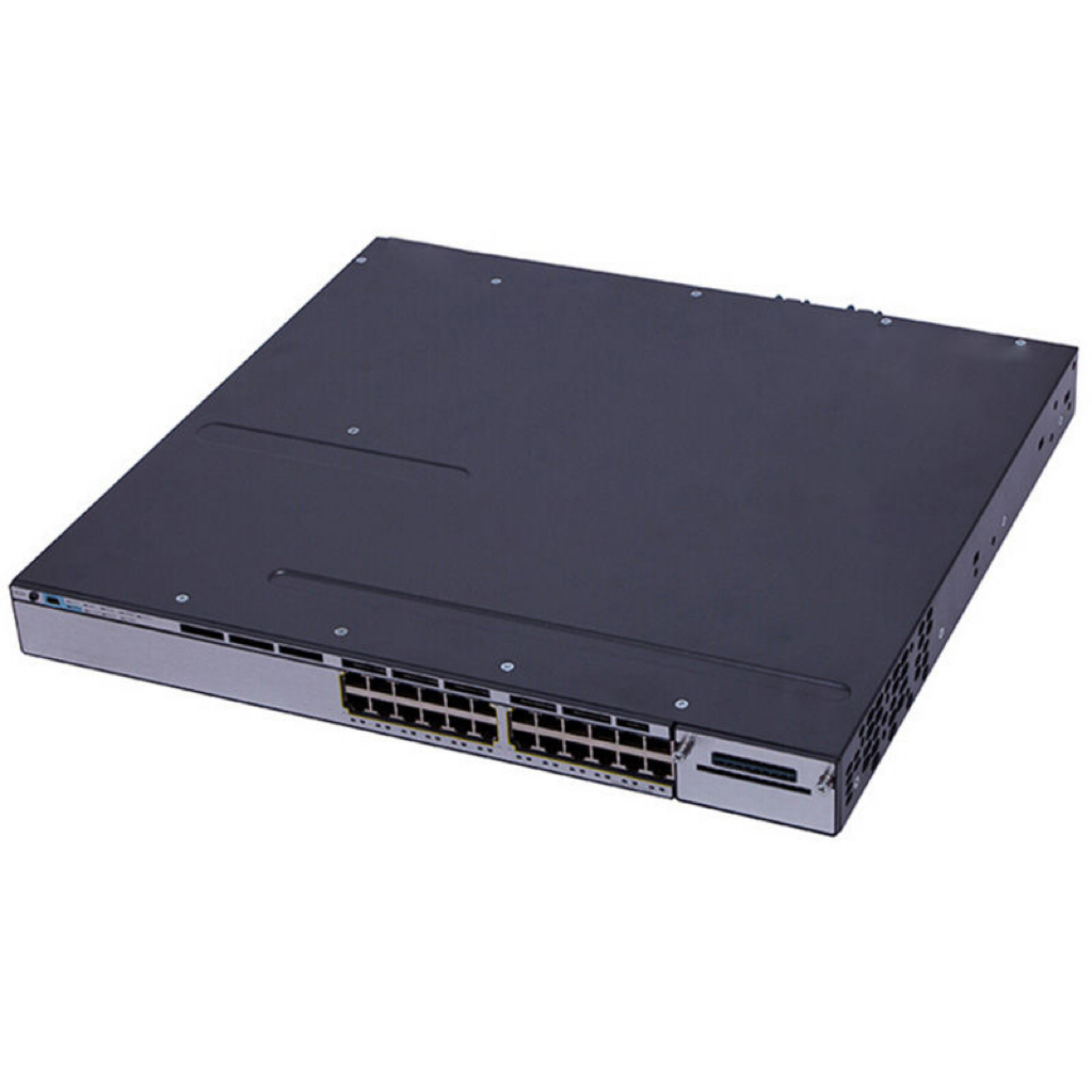

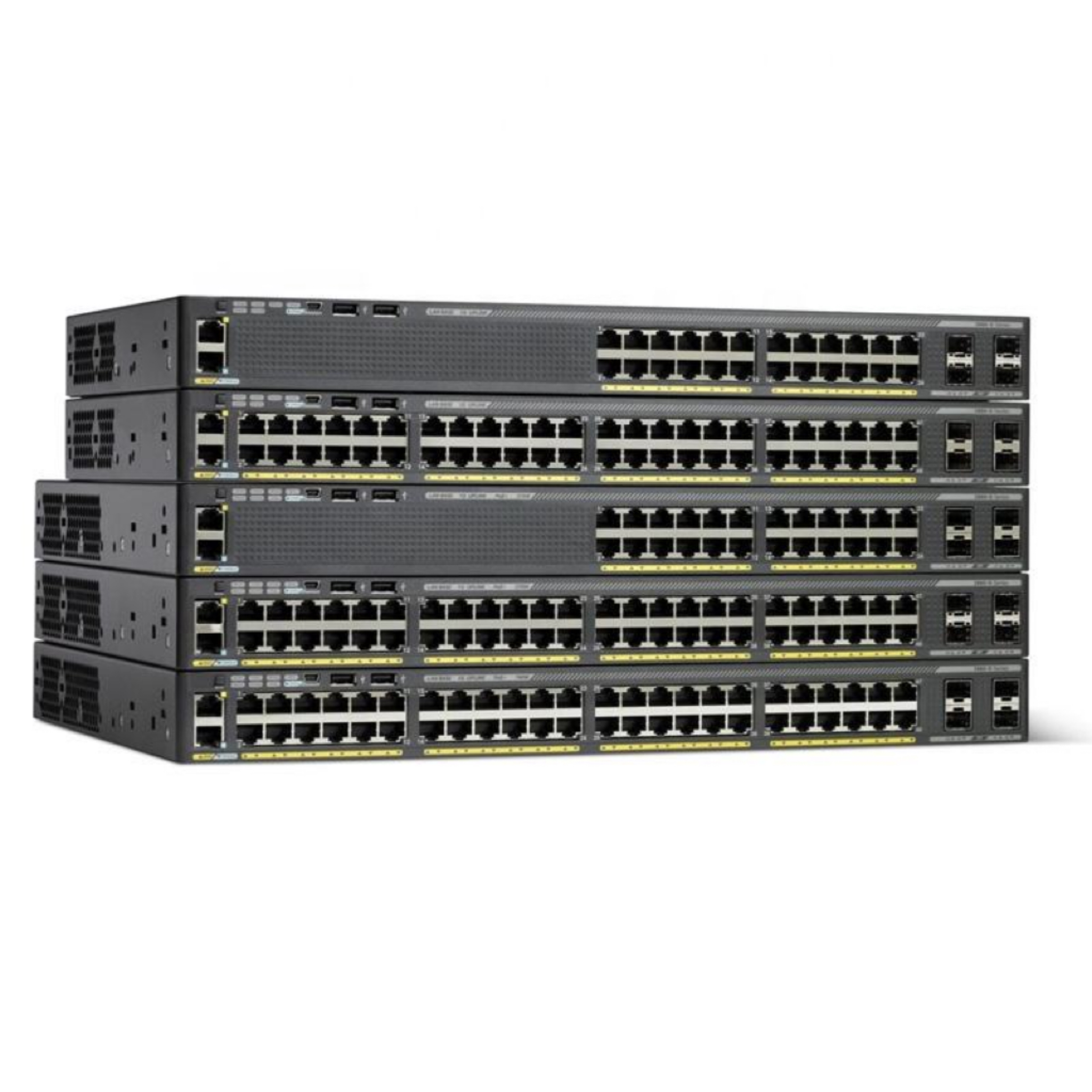

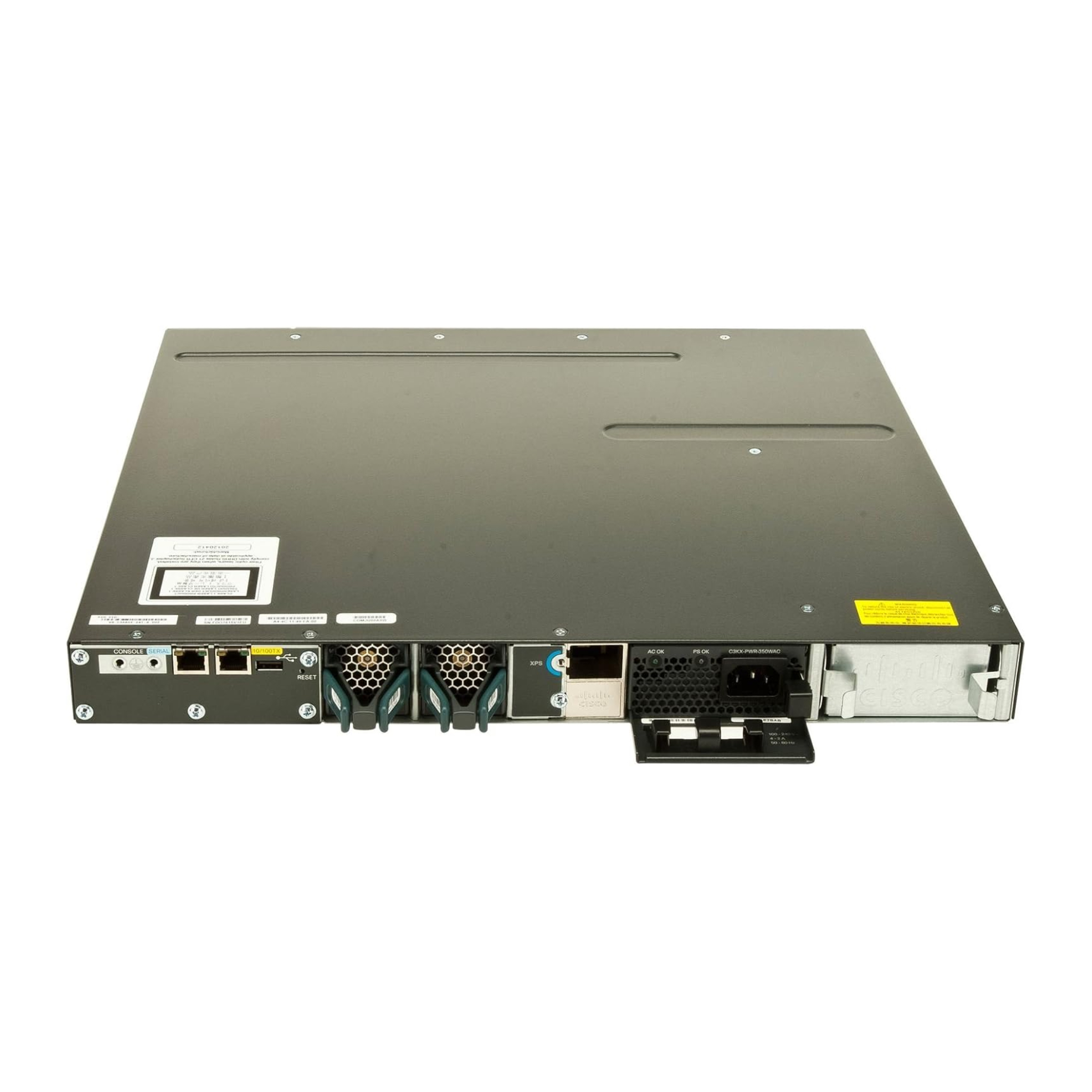

CISCO WS-C3560X-24T-S - Cisco Catalyst 3560X Series 24-Port switch (24x 1G Base-T) with 350W PSU, IP Base

The Cisco WS-C3560X-24T-S is a high-performance enterprise Layer 3 managed switch designed to deliver reliable, secure, and scalable network connectivity for small to medium-sized businesses, branch offices, and campus environments. Featuring 24 Gigabit Ethernet ports, advanced IP Base software, and support for IPv4/IPv6 routing, it enables efficient traffic management and seamless integration into growing network infrastructures. The switch supports StackPower technology for power sharing, optional network modules for flexible uplink expansion, and redundant power supply options to maximize system availability. Built with comprehensive security features including 802.1X authentication, Access Control Lists (ACLs), DHCP Snooping, and port security, the WS-C3560X-24T-S helps protect business-critical data while ensuring stable network performance. With advanced Quality of Service (QoS), energy-efficient operation, and easy deployment through Cisco management tools, this switch is an ideal solution for organizations seeking dependable Gigabit switching, enhanced network resilience, and long-term investment protection. It is widely used in enterprise access networks, educational institutions, government organizations, healthcare facilities, and commercial offices requiring secure, high-speed, and scalable Ethernet connectivity.

  • WS-C3560X-24T-S

  • Cisco

  • Original Used

  • 3 months

Availability:
Quantity:
Inquire Add to Basket

Item

Official Specification

Model Part Number

WS-C3560X-24T-S

Product Series

Cisco Catalyst 3560X Layer 3 Managed Switch

Feature Set

IP Base (S = IP Base License)

Product Status

EOL (End of Life, discontinued new production; refurbished/used available)

Typical Application

Enterprise Access Layer, Office LAN, IP Phone, Surveillance Network, SMB Campus Deployment

Fixed Downlink Ports

24 × 10/100/1000BASE-T RJ45 (Non-PoE)

Uplink Expansion Slot

1 × Module Slot (Supports 4-port SFP / 2-port 10G SFP+ uplink modules)

Management Interfaces

RJ45 Console Port, Mini-USB Console, USB-A Storage Port

Switching Bandwidth

160 Gbps

64-byte Packet Forwarding Rate

65.5 Mpps

MAC Address Table

16,000 entries

Memory

DRAM: 256 MB; Flash Storage: 64 MB

Jumbo Frame Support

Up to 9216 bytes

VLAN Capacity

Max 1005 VLANs, 802.1Q tagging, Voice VLAN, Guest VLAN

Spanning Tree Protocols

STP, RSTP, MSTP, PVST+, RPVST+

Link Aggregation

IEEE 802.3ad LACP, up to 8 LAG groups

Multicast Functions

IGMP Snooping v1/v2/v3, Multicast Filtering

Layer 3 Routing

IPv4 Static Routing, SVIs (Switched Virtual Interfaces), IP Base routing features

QoS

4 hardware queues per port, WRR scheduling, DSCP/802.1p marking

Security Features

802.1X Authentication, Port Security, DoS Protection, SSH, HTTPS, TACACS+/RADIUS, ARP Inspection

Stacking Support

Standalone only; no stacking capability (3560X non-stackable)

Built-in Power Supply

Single 350W AC Power Supply, no PoE output

Max Power Consumption

110W

Redundant Power

Optional secondary hot-swappable power supply slot

Physical Dimension (W × D × H)

445 mm × 460 mm × 44.5 mm (17.5 × 18.0 × 1.75 in), 1U rackmount

Net Weight

7.0 kg (15.43 lbs)

Input Voltage

Universal AC 100–240V, 50/60Hz

Operating Environment

0°C ~ 45°C, 10%–95% non-condensing humidity

Storage Temperature

-25°C ~ 70°C, 10%–95% non-condensing humidity

MTBF (25°C Ambient)

189,704 hours

Installation

Standard 19-inch rack mount, desktop placement

Compliance Certifications

CE, FCC Class A, UL, RoHS

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q: What are the application scenarios for the WS-C3560X-24T-S?

A: The WS-C3560X-24T-S is ideal for enterprise access networks, branch offices, and campus deployments, delivering reliable Layer 3 switching and high-performance Gigabit connectivity.

Q: How to install the WS-C3560X-24T-S switch?

A:The WS-C3560X-24T-S can be mounted in a standard 19-inch rack. Follow the installation guide to complete power connections, network cabling, and basic configuration.

Q: Does the WS-C3560X-24T-S need upgrades?

A: Regular IOS software updates are recommended for the WS-C3560X-24T-S to improve security, stability, and compatibility. Always use the appropriate Cisco software version.

Q: Are there alternative products to the WS-C3560X-24T-S?

A: Alternatives to the WS-C3560X-24T-S include other Cisco Catalyst switches, such as the 2960-X Series and 3650 Series, offering different performance and feature options.

Q: What are common troubleshooting tips for the WS-C3560X-24T-S?

A: Check power and cable connections, verify interface configurations, and confirm the switch is running the latest IOS version. Review system logs to identify and resolve network issues.
