CISCO2951-V/K9
Cisco
3-5 days
New
1year
| Quantity: | |
|---|---|

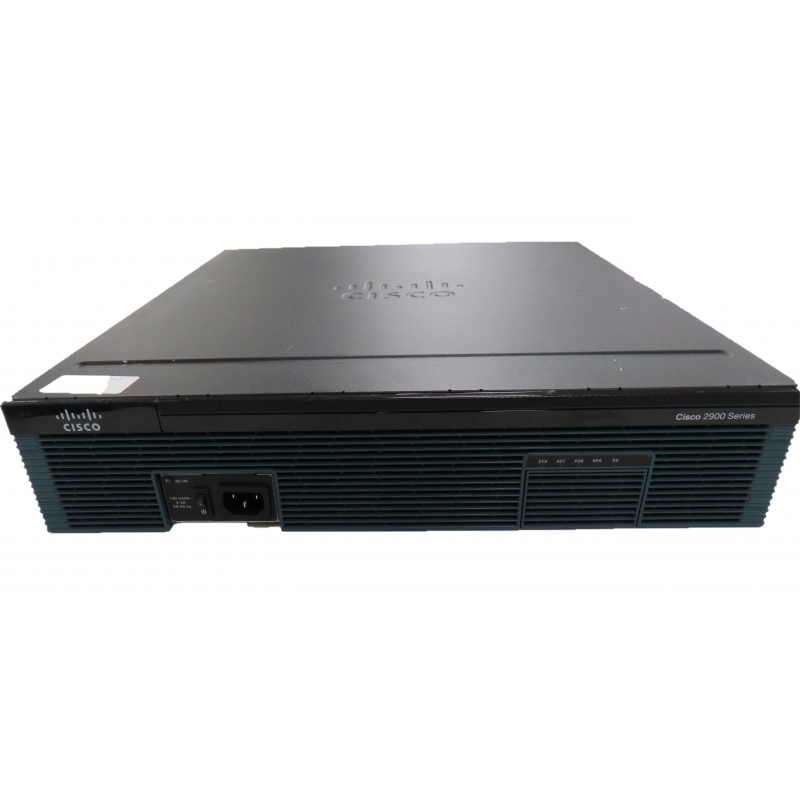

Figure 1 shows the appearance of the Cisco 2951 Router.
Table 1 shows the Quick Specs.
Product Code | CISCO2951-V/K9 |
Type | Cisco 2951 Voice Bundle, PVDM3-32, UC License PAK |
Rack Units | 2U |
Interfaces | 3 integrated 10/100/1000 Ethernet ports with 1 port capable of RJ-45 or SFP connectivity |
Expansion Slot(s) | 2 service module slots 1 Internal Service Module slot 3 onboard digital signal processor slots 4 Enhanced high-speed WAN interface card (EHWIC) slots |
RAM | 512 MB (installed) / 2 GB (max) - DDR2 SDDRAM Memory |
Flash Memory | 256 MB (installed) / 8 GB (max) |
Dimensions | 47 cm x 43.8 cm x 8.9 cm |

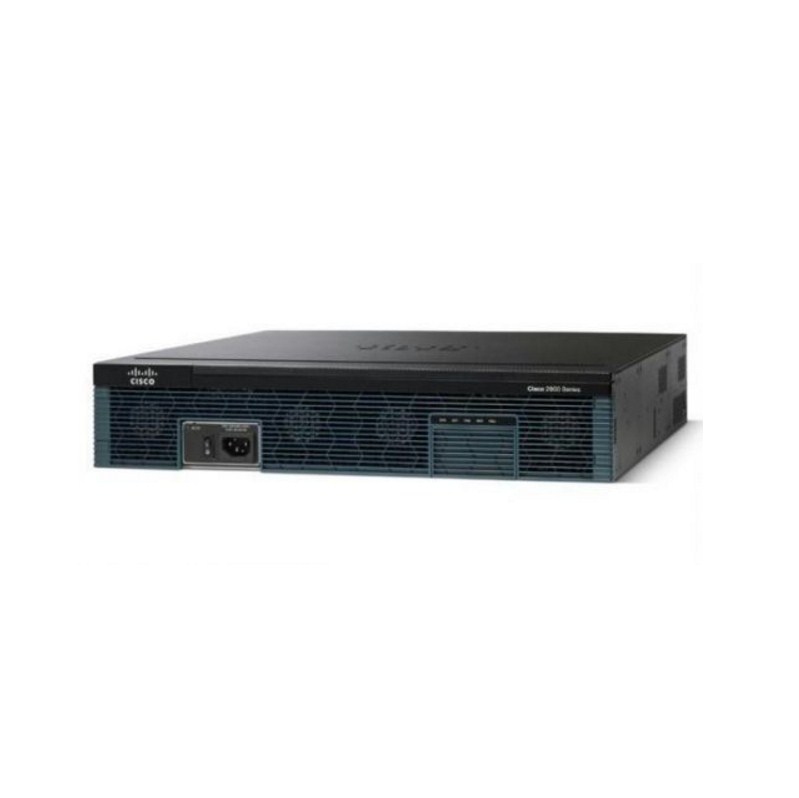

Figure 2 shows the front panel of the Cisco 2951 router.
Table 2 shows some recommended models for this router.
Models | Description |
Enhanced EtherSwitch Service Module, L2/L3 switching, 16* 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology | |
Enhanced EtherSwitch Service Module, L2/L3 switching, 24 * 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology | |
Cisco Voice/WAN Card VWIC3-2MFT-G703 | |
2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card | |
Cisco 1900, 2900, 3900 Router EHWIC WAN Card EHWIC-1GE-SFP-CU | |
Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers | |
Internal Services Module (ISM) with Services Ready Engine | |
256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900 | |
256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900 | |
256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR | |
256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900 | |
1GB USB Flash Token | |
Licenses | Description |
Cisco 2900 License L-SL-29-SEC-K9 Security E-Delivery PAK for Cisco 2901-2951 | |
Cisco Application Experience License ISR 2900 Series - includes licenses for: AppX, DATA and WAASX | |
Cisco 2900 License L-SL-29-SECNPE-K9 SEC No Payload Encryption E PAK for Cisco 2901-2951 |
CISCO2951-V/K9 Specification | |
General | |
Device Type | Cisco 2951 Voice Bundle, PVDM3-32, UC License PAK |
Enclosure Type | Rack-mountable - modular - 2U |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Network / Transport Protocol | IPSec, L2TPv3 |
Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast |
Remote Management Protocol | SNMP, RMON, TR-069 |
Features | Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Web Services Management Agent (WSMA), NetFlow |
Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824 |
RAM | 512 MB (installed) / 2 GB (max) |
Flash Memory | 256 MB (installed) / 8 GB (max) |
Status Indicators | Link activity, power |
Expansion and Connectivity | |
Interfaces | 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management : 1 x console - RJ-45 ¦ Management : 1 x console - mini-USB Type B ¦ Serial : 1 x auxiliary - RJ-45 ¦ USB : 2 x 4 pin USB Type A ¦ 1 x SFP (mini-GBIC) |
Expansion Slot(s) | 4 (total) / 4 (free) x EHWIC ¦ 3 (total) / 3 (free) x PVDM ¦ 2 (total) / 1 (free) x CompactFlash Card ¦ 1 (total) / 1 (free) x ISM ¦ 2 (total) / 2 (free) x service module (SM) |
Power | |
Power Device | Power supply - internal |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Miscellaneous | |
Dimensions (W × D × H) | 17.2 × 18.5 × 3.5 in (47 x 43.8 x 8.9 cm) |
Rack Mounting Kit | Included |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, AS/NZS 3548 Class A, CAN/CSA C22.2 No. 60950-1, VCCI V-3, EN 61000, TIA/EIA/IS-968 |
Software / System Requirements | |
OS Provided | Cisco IOS IP Base |
Manufacturer Warranty | |
Service & Support | 90 days warranty |
Service & Support Details | Limited warranty - 90 days |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 5 - 85% |
