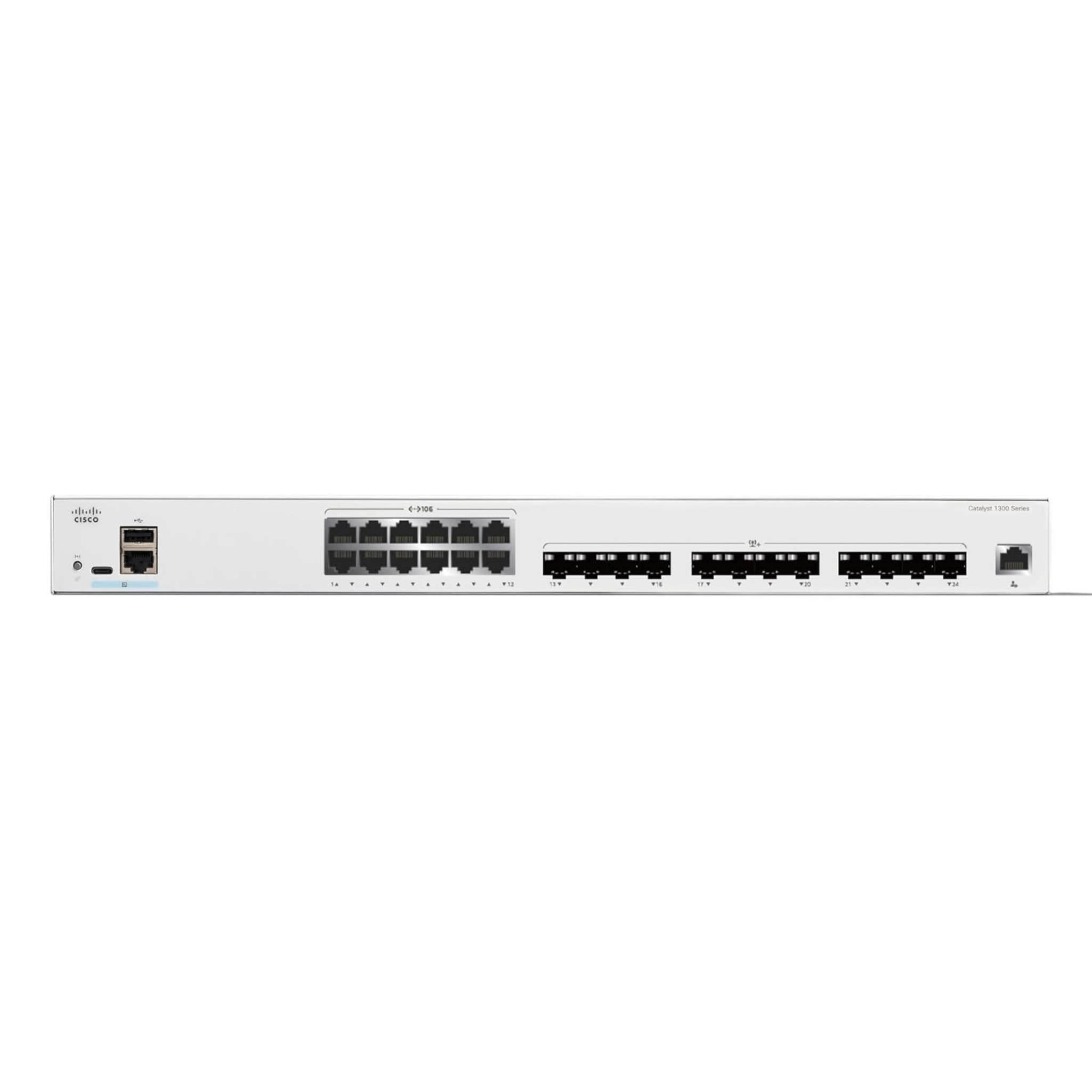

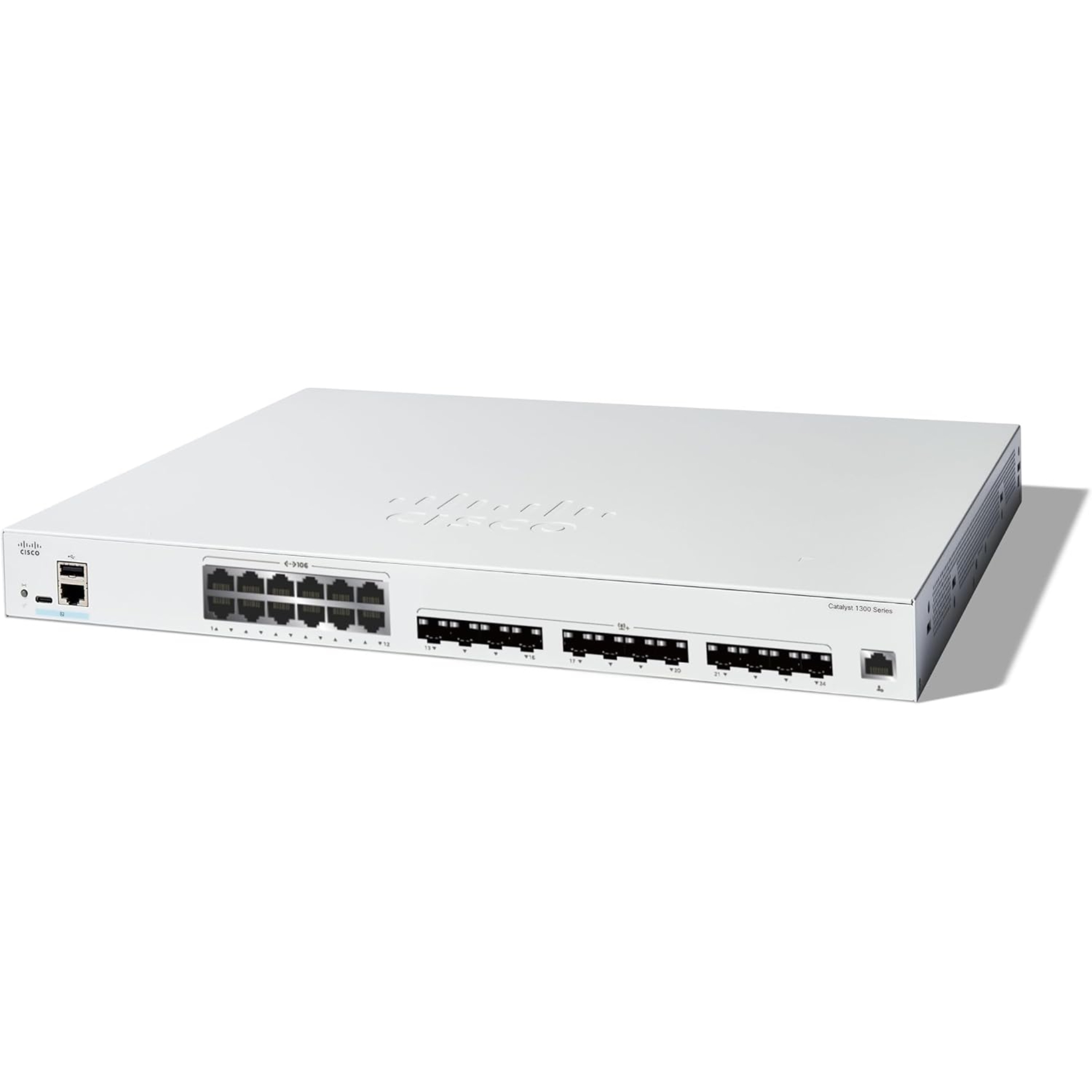

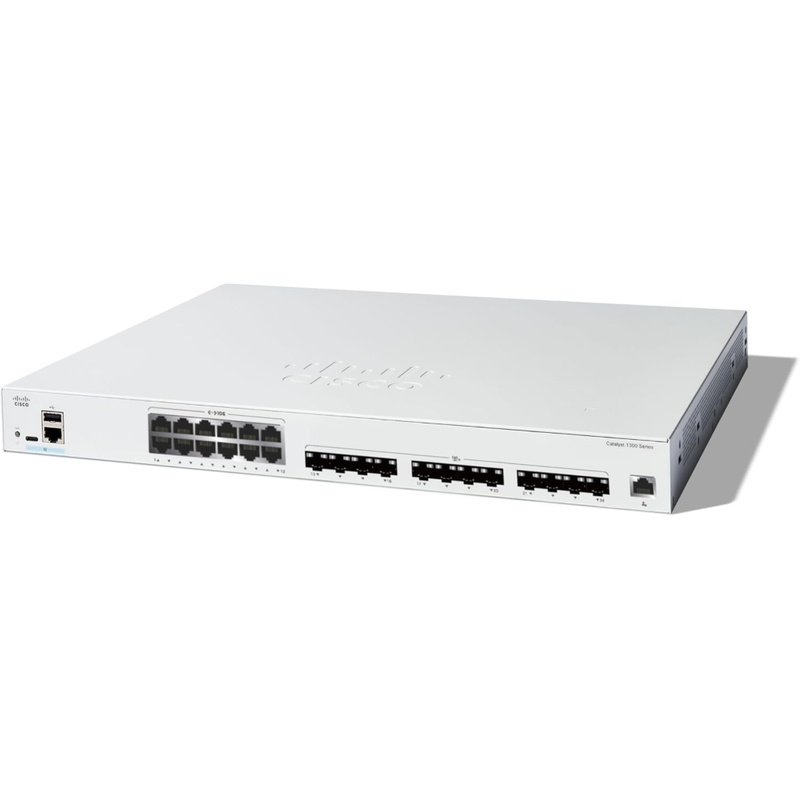

The Cisco C1300-24XTS is a high-performance managed switch designed to meet the networking demands of modern enterprises, data centers, and growing business environments. Equipped with high-speed 10 Gigabit Ethernet connectivity, advanced Layer 2 and Layer 3 Lite features, and comprehensive security capabilities, it delivers reliable, scalable, and efficient network performance for bandwidth-intensive applications.
Built for business-critical deployments, the Cisco C1300-24XTS supports intelligent traffic management, VLAN segmentation, Quality of Service (QoS), link aggregation, and enhanced network security to ensure smooth data transmission and simplified network administration. Its intuitive web-based management interface and flexible deployment options make it an ideal solution for organizations seeking enterprise-class performance with simplified management.
Whether used for server aggregation, core network connectivity, virtualization environments, or high-speed office networks, the Cisco C1300-24XTS provides exceptional reliability, low latency, and future-ready scalability.
C1300-24XTS
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | C1300-24XTS |
Product Series | Cisco Catalyst 1300 Layer 3 Managed Switch |
Core Application | SMB Core Networks, Server Farm Interconnect, 10G High-Speed Backbone, Campus Distribution Layer, Video Surveillance Backhaul, High-Density 10G Workstation Access |
Warranty | Cisco Limited Lifetime Hardware Warranty |
Management Interfaces | Web UI, CLI, RJ45 Console, USB-C Console, USB-A Port, Cisco Business Dashboard, Cisco Business Mobile App, SNMP v1/v2c/v3 |
Stacking Capacity | Front-panel hardware stacking, up to 8 units managed as one single logical device |
Port Configuration | 12 × 10GBASE-T RJ45 copper ports + 12 × 10G SFP+ fiber slots (Total 24×10G ports, Non-PoE) |
Supported Transceivers | Cisco 10G SFP+ SR/LR/ER/ZR, 10GBASE-T SFP+ copper modules, industry-standard 10G SFP+ transceivers |
PoE Support | No PoE function |
Switching Bandwidth | 480 Gbps |
Forwarding Rate (64-byte packets) | 357.12 Mpps |
MAC Address Table Capacity | 16,000 entries |
Shared Packet Buffer | 3 MB |
Jumbo Frame Support | Up to 9000 bytes |
QoS Hardware Queues | 8 hardware queues per port, WRR + strict priority scheduling |
VLAN Support | Max 4093 802.1Q VLANs, Voice VLAN, Guest VLAN, Private VLAN |
Spanning Tree Protocols | STP (802.1D), RSTP (802.1w), MSTP (802.1s), PVST+, RPVST+ |
Link Aggregation | IEEE 802.3ad LACP, up to 8 LAG groups |
Multicast Features | IGMP Snooping v1/v2/v3, Multicast VLAN Registration, port multicast filtering |
Port Control Functions | Port mirroring, port isolation, ingress/egress rate limiting, broadcast/multicast/unicast storm suppression |
Layer 3 Routing | IPv4 & IPv6 static routing, up to 990 IPv4 static routes, DHCP Snooping, DHCP Relay, IPv6 neighbor discovery |
Enterprise Security | 802.1X port authentication, web authentication, RADIUS/TACACS+, DoS attack protection, port security, IP/MAC binding, SSH/HTTPS encrypted management, ARP guard, rogue DHCP blocking, MACsec |
Cooling System | Variable-speed smart fan, low noise operation |

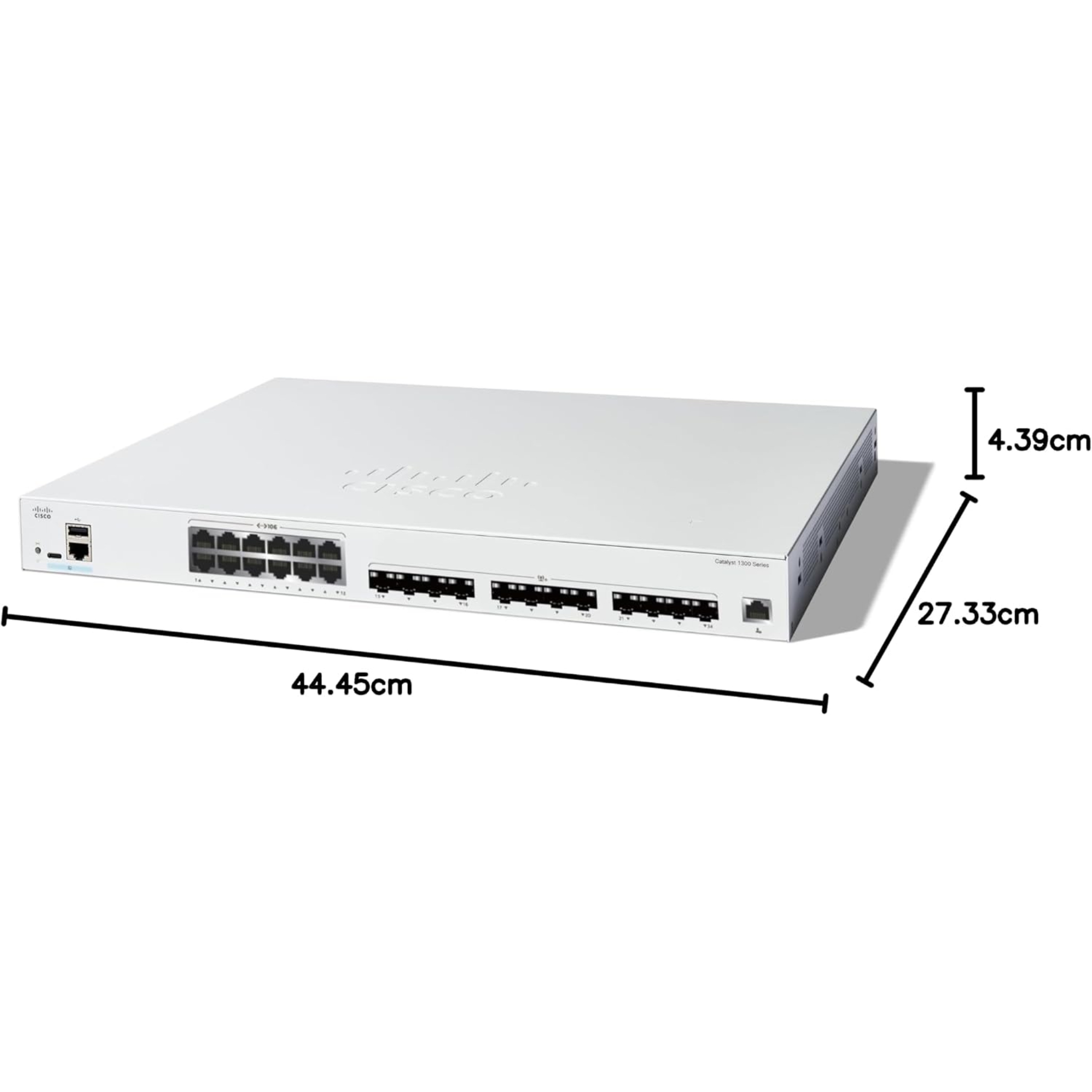

Physical Dimensions (W × D × H) | 445 mm × 350 mm × 44 mm (17.5 × 13.78 × 1.73 in), 1U standard rackmount |
Net Unit Weight | 4.21 kg (9.26 lbs) |

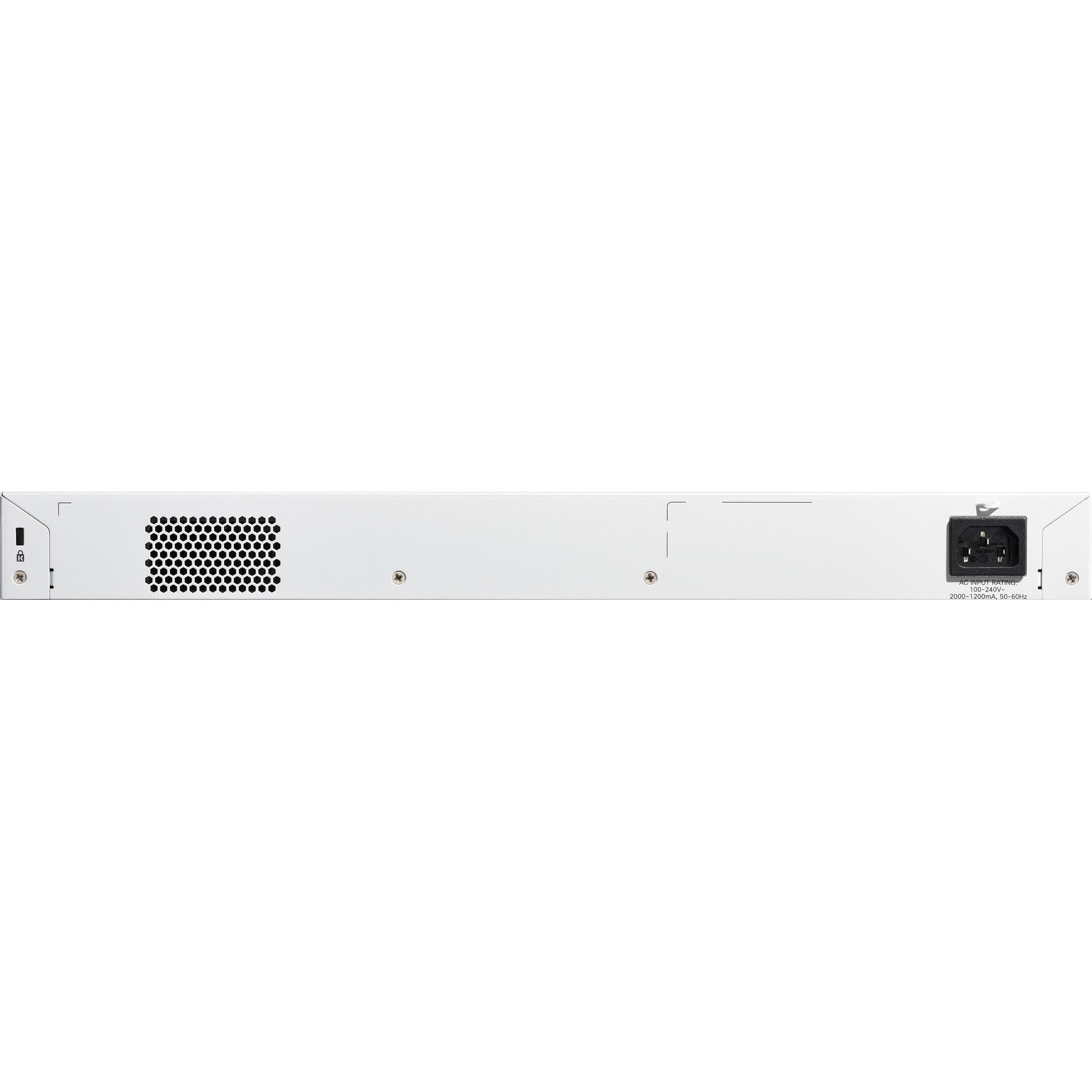

Power Input | Built-in universal AC power supply, 100–240V AC, 50/60Hz |
Idle Power Consumption | 32.8W |
Max Full Load Power Consumption | 86.7W |
Operating Environment | 0°C ~ 40°C operating temperature, 10%–90% non-condensing relative humidity |
Storage Environment | -25°C ~ 70°C storage temperature, 10%–90% non-condensing relative humidity |
MTBF (25°C Ambient) | 2,165,105 hours |
Installation Options | Standard 19-inch rack mount, desktop placement |
Regulatory Certifications | CE, FCC, UL 62368, CSA, RoHS Compliant |
