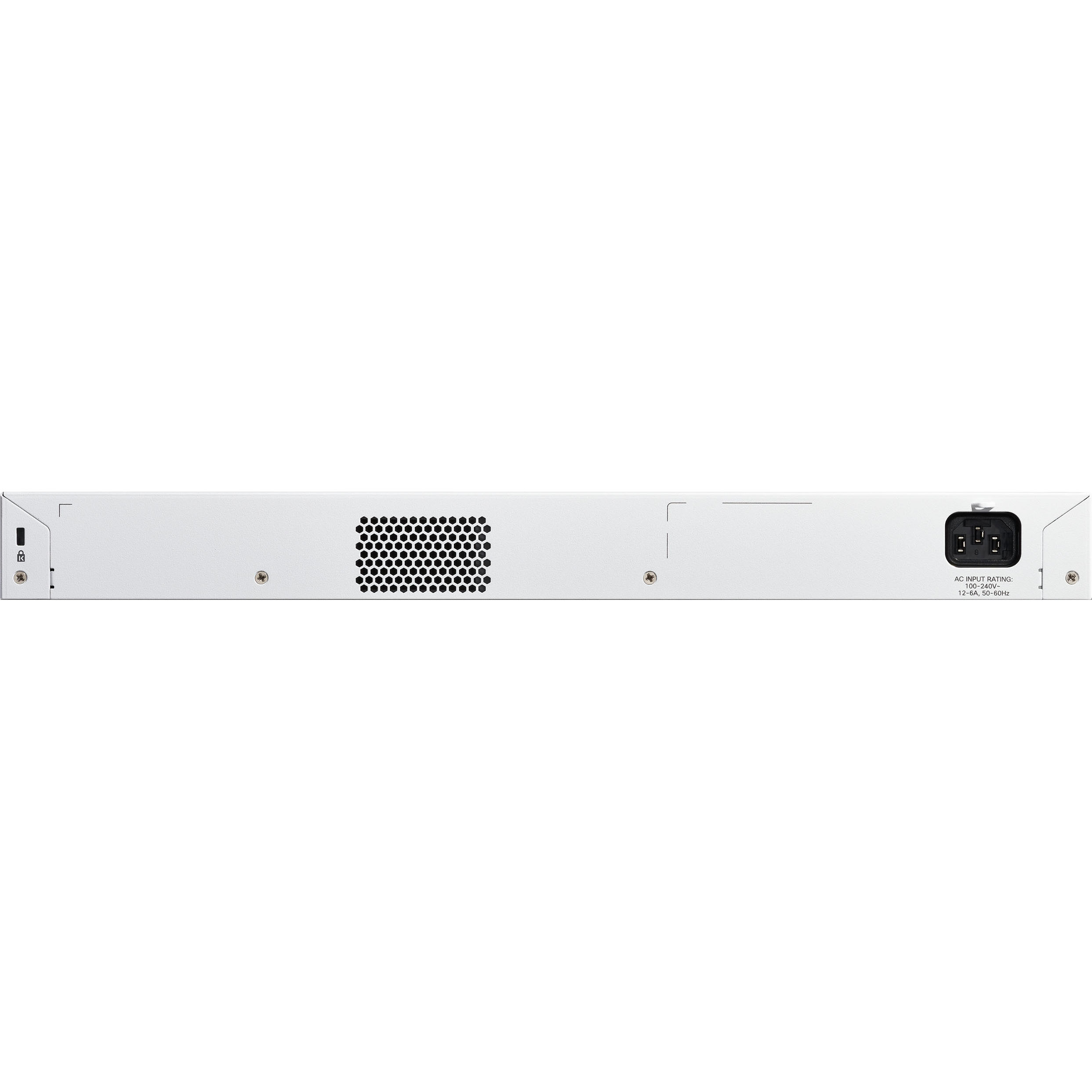

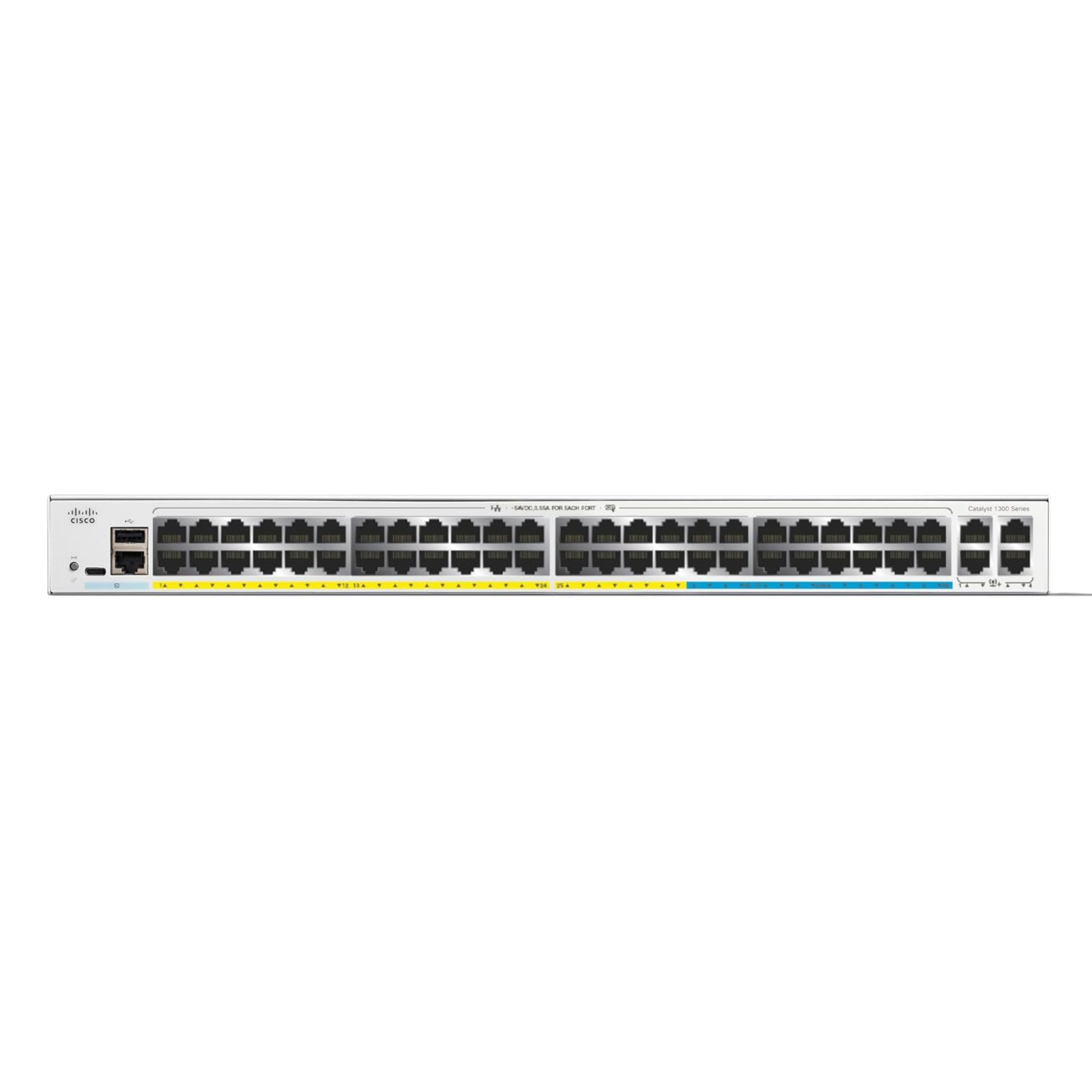

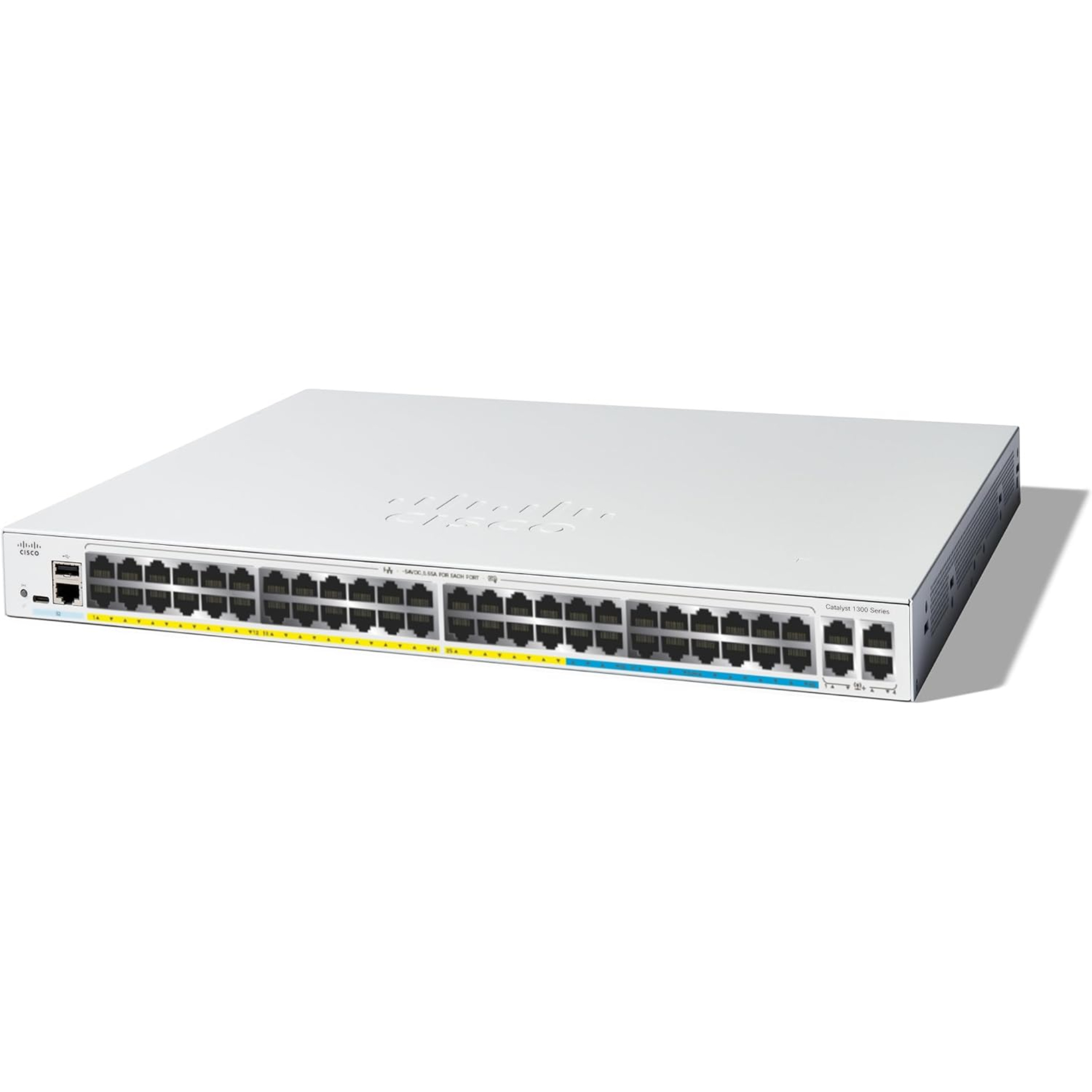

C1300-48MGP-4X
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | C1300-48MGP-4X |

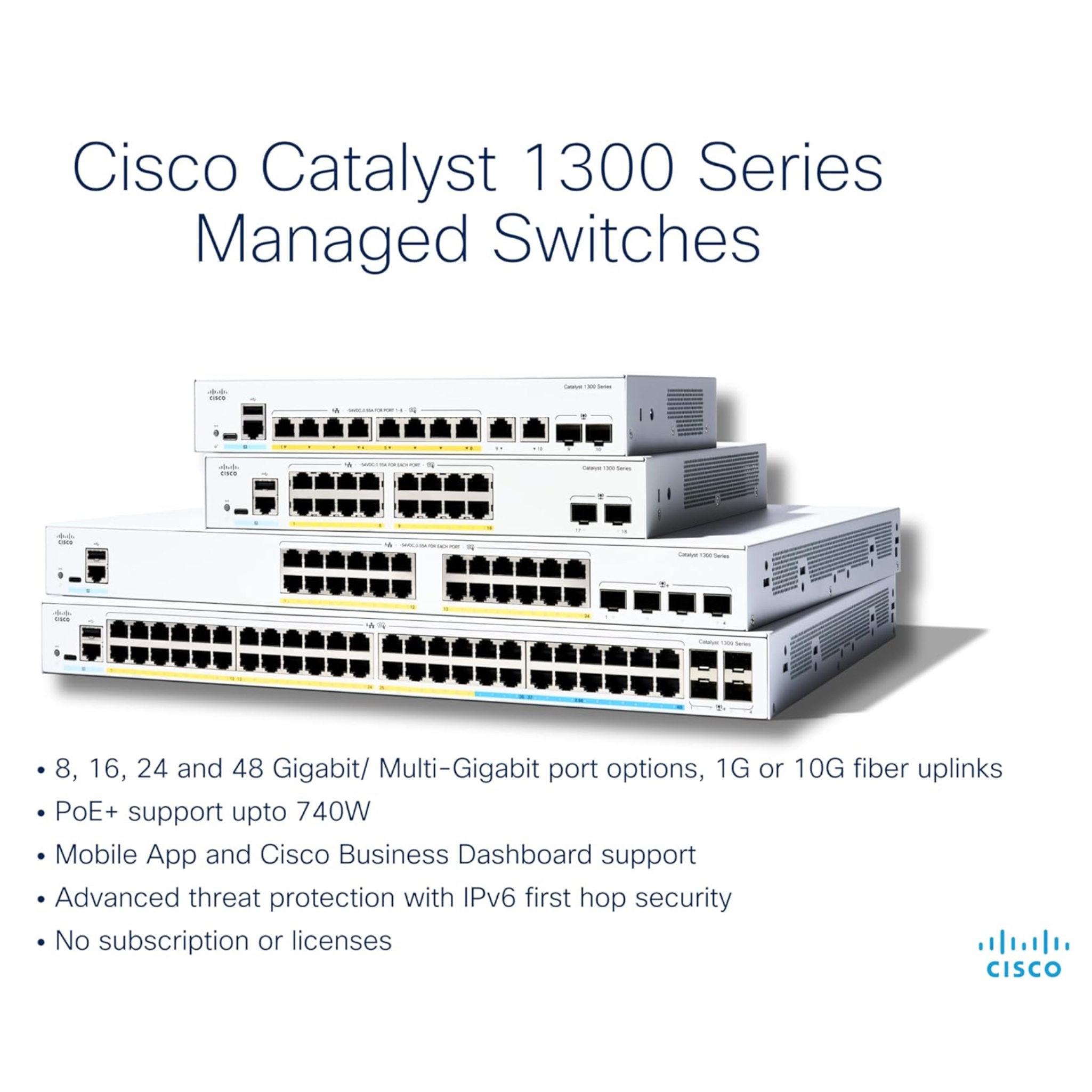

Product Series | Cisco Catalyst 1300 Layer 3 Managed Multi-Gig PoE Switch |
Application Scenarios | SMB Branches, Multi-Gig Wi-Fi 6/6E APs, High-Bandwidth IP Cameras, VoIP Phone Systems, Office Backbone Networks |
Warranty | Cisco Limited Lifetime Hardware Warranty |
Management Interfaces | Web UI, CLI, RJ45 Console, USB-C Console, USB-A Port, Cisco Business Dashboard, Cisco Business Mobile App |
Stacking Capacity | Front-panel stacking, up to 8 units as one logical device |
Downlink RJ45 Ports | 32 × 10/100/1000BASE-T PoE+ + 16 × 100M/1G/2.5G Multi-Gig PoE+ (Total 48 PoE ports) |
Uplink Interfaces | 4 × 10G SFP+ fiber uplink slots |
PoE Compliance | IEEE 802.3af (15.4W per port), IEEE 802.3at PoE+ (max 30W per port) |
Total PoE Power Budget | 740W |
Supported Cabling | Cat5e and above for Gigabit; Cat6/Cat6a for 2.5G Multi-Gig |
Switching Bandwidth | 224 Gbps |
64-byte Packet Forwarding Rate | 166.65 Mpps |
MAC Address Table Size | 16,000 entries |
Shared Packet Buffer | 3 MB |
Jumbo Frame Support | Up to 9000 bytes |
QoS Hardware Queues | 8 queues per port, WRR + strict priority scheduling |
VLAN Capacity | Max 4093 VLANs, 802.1Q tagging, Voice VLAN, Guest VLAN |
Spanning Tree Protocols | STP, RSTP, MSTP, PVST+, RPVST+ |
Link Aggregation | IEEE 802.3ad LACP, up to 8 LAG groups |
Multicast Functions | IGMP Snooping v1/v2/v3, multicast replication, port multicast filtering |
Port Functions | Port mirroring, port isolation, port rate limiting, broadcast/multicast/unicast storm suppression |
Layer 3 Routing | IPv4 & IPv6 static routing, up to 990 IPv4 static routes, DHCP Snooping, DHCP Relay |
Security Features | 802.1X authentication, web authentication, RADIUS/TACACS+, DoS protection, port security, IP/MAC binding, SSH/HTTPS encrypted management, ARP guard, rogue DHCP blocking |
Cooling System | Dual variable-speed fans, low noise design |
Physical Dimensions (W × D × H) | 445 mm × 350 mm × 44 mm (17.5 × 13.78 × 1.73 in), 1U standard rackmount |
Net Unit Weight | 5.83 kg (12.85 lbs) |
Power Supply | Built-in universal AC power supply, 100–240V, 50/60Hz |
Idle Power Consumption | 26.8W (110V) / 26.1W (220V) |
Max Full Load Power (Full PoE Output) | 883.4W (110V) / 865.7W (220V) |
Operating Environment | 0°C ~ 40°C, 10%–90% non-condensing humidity |
Storage Environment | -25°C ~ 70°C, 10%–90% non-condensing humidity |
MTBF (25°C Ambient) | 1,080,000 hours |
Installation Options | Standard 19-inch rack mount, desktop placement |
Regulatory Certifications | CE, FCC, UL, CSA, RoHS Compliant |
