Cisco 8100 Series Enterprise & ISP Grade Network High Performance WAN Aggregation Router

Share to:

Cisco 8100 Series Enterprise & ISP Grade Network High Performance WAN Aggregation Router

The 8100 Series inherits the core attributes of the Cisco 8000 Series architecture, including Silicon One ASICs, energy efficiency, and software support, while tailoring its features for high-density, high-speed switching environments. It extends the software support of the 8000 Series to include SONiC (Software for Open Networking in the Cloud), an open-source network operating system widely adopted by hyperscalers. SONiC allows the 8100 Series to seamlessly integrate into hyperscaler data centers while maintaining compatibility with traditional data center deployments.

Model:
8100
Brand:
Cisco
Condition:
New
Warranty:
1 Year

Availability:

Quantity:



Inquire Add to Basket

Product Description

Table 1. Cisco 8100 features and benefits

Feature	Benefit
Integrated interfaces	Flexible port rate configuration: 800G (8x 100G, 2x 400G), 400G, 100G, 40G, 25G, 10G Breakout support: 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G, 4x 10G
Cisco pluggable interface	Compatible with a diverse range of optical modules, for optimal performance and flexibility: QSFP+, QSFP28, QSFP56-DD, QSFP-DD800, OSFP800
Software	Enhanced Automation for onboarding, service provisioning, and monitoring.
Redundancy	Redundant fan trays (N+1) Redundant AC or DC power supplies (N+1)

Product specifications

Table 2. 8100 Series specifications

Series or model	Physical characteristics
Environmental specifications	Operating temperature: 32° to 104°F (0° to 40°C) Nonoperating temperature: -40° to 158°F (-40° to 70°C) Humidity: 5% to 95% (noncondensing) Altitude: 0 to 9842 ft (0 to 3000 m)

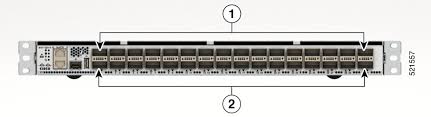

8101-32H-O	Intel 4-core 2.4-GHz CPU with 16 GB of DRAM. RS-232 console, 10G control plane expansion, 1G management, 1x USB 2.0, GBP (ToD, 10 MHz, 1 PPS), 1588, and BITs (sync) Dimensions (HxWxD): 1.73 x 17.3 x 19.34 in. (4.40 x 43.9 x 49.1 cm) – 1 RU Weight: 22.7 lb (10.32 kg) Typical system power at 3.2 Tbps: 172W 2 power supplies, 5 fans

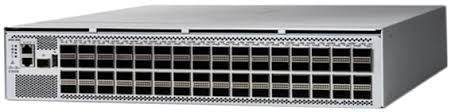

8102-64H-O	Intel 4-core 2.4-GHz CPU with 16 GB of DRAM. RS-232 console, 10G control plane expansion, 1G management, 1x USB 2.0, GBP (ToD, 10 MHz, 1 PPS), 1588, and BITs (sync) Dimensions (HxWxD): 3.45 x 17.3 x 20.1 in. (8.77 x 43.9 x 51.1 cm) – 2 RU Weight: 35 lb (16 kg) Typical system power at 6.4 Tbps: 256W 2 power supplies, 3 fans
8101-32FH-O	Intel 4-core 2.4-GHz CPU with 32 GB of DRAM. RS-232 console, 10G control plane expansion, 1G management, 1x USB 2.0, GBP (ToD, 10 MHz, 1 PPS), 1588, and BITs (sync) Dimensions (HxWxD): 1.73 x 17.3 x 23.6 in. (4.40 x 43.9 x 59.9 cm) – 1 RU Weight: 31 lb (14.09 kg) Typical system power at 12.8 Tbps: 288W 2 power supplies, 6 fans
8122-64EH-O	Intel 4-core 2.4-GHz CPU with 64 GB of DRAM. RS-232 console, 1G management, 1x USB 2.0, 2x SFP28 telemetry ports Dimensions: (HxWxD) 3.43 x 17.3 x 24.7 in. (8.76 x 44.0 x 62.7 cm) – 2 RU Weight: ~ 37.0 lb (16.7 kg) without 4 fans and 2 power supplies Typical system power at 51.2 Tbps: TBD 2 power supplies (1+1 redundancy), 4 fans (3+1 redundant cooling)
8122-64EHF-O	Intel 8-core 2-GHz CPU with 64 GB of DRAM. RS-232 console, 1G management, 1x USB 2.0, 1x QSFP28 telemetry port Dimensions (HxWxD): 3.43 x 17.3 x 24.7 in. (8.76 x 44.0 x 62.7 cm) – 2 RU Weight: ~ 37.0 lbs (16.7 kg) without 4 fans and 2 power supplies Typical system power at 51.2 Tbps: TBD (depends on optics configuration) 2 power supplies (1+1 redundancy), 4 fans (3+1 redundant cooling)

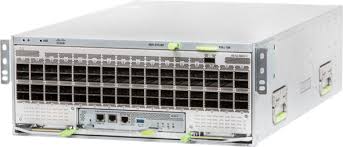

8501-SYS-MT	Dimensions: (H) 6.93 in (16.6 cm); (W) 17.32 in. (44 cm) excluding handles,17.49 in. (44.42 cm) including side handles; (L) 26 in. (66 cm) Weight: ~86.5 lb (39.24 kg) with power supply and fans

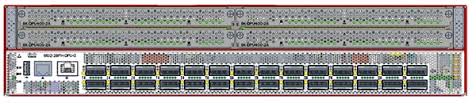

8102-28FH-DPU-O	Intel 16-core 2.5-GHz CPU, 4 slots supporting DPU complexes each with 400G data bandwidth to the switch ASIC, RS-232 console, 1G management, 1x USB 2.0 Dimensions: (H) 3.43 x (W) 17.3 x (D) 24.2 in. (8.76 x 43.95 x 67.4 cm) – 2 RU 2 power supplies (1+1 redundancy), 4 fans (3+1 redundant cooling), 4 DPU cards Weight: ~49 lb (22.2 kg) with power supply and fans, ~40 lb (18.1 kg) without power supply and fans Typical power: 1210 W

Regulatory and safety compliance

Table 3. 8100 Series regulatory and safety compliance

Specification	Description
Regulatory compliance	Regulatory compliance statement: Products comply with CE Markings according to directives 2014/30/EU and 2014/35/EU
Safety	AS/NZS 62368.1 ANSI/ UL 60950-1 CAN/ CSA-C22.2 No. 60950-1 CAN/ CSA-C22.2 No. 62368-1 ANSI/ UL 62368-1 EN/ IEC 62368-1 GB 4943-1
EMC standards	Emissions: CISPR32 EN 55032 EN 61000-3-3 EN IEC 61000-3-2 EN 300 386 V2.1.23 47 CFR FCC Part 15 ICES-003 Issue 7 KS C 9832 KS C 9610-3-2 KS C 9610-3-3 VCCI-CISPR 32 CNS 15936 QCVN 118/BTTTT EN 301 489-1 EN 301 489-19 TEC 11016:2016_TEC/SD/DD/EMC-221/05/OCT-16^* ^*Support post 24.3.1
EMC immunity	CISPR35 EN 55035 EN IEC 61000-6-1 EN IEC 61000-6-2 EN 300 386 V2.1.23 KS C 9835 EN 301 489-1 EN 301 489-19 TEC 11016:2016_TEC/SD/DD/EMC-221/05/OCT-16^* ^*Support post 24.3.1
Restriction of Hazardous Substances	The product is RoHS 6 compliant with exceptions for leaded Ball Grid Array (BGA) balls and lead press fit connectors.
