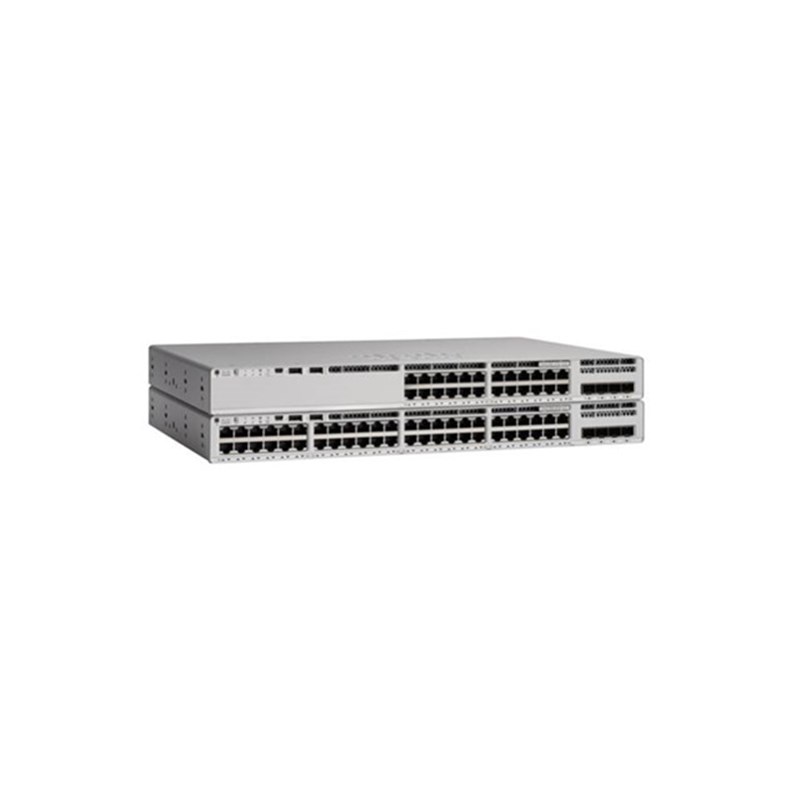

C9300L-24T-4G-E
Cisco
3days
New
1year
| Quantity: | |
|---|---|
Product Description
C9300L-24T-4G-E
Product Details
C9300L-24T-4G-E specifications | |
Designed to replace | 3850 series switch |
Supported IOS | Network Advantage, Network Essentials |
Stack Technology | StackWise-320 |
Stacking bandwidth | 320 Gbps |
Total number of MAC addresses | 32,000 |
Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
IPv4 routing entries | - |
IPv6 routing entries | 16,000 |
Multicast routing scale | 8,000 |
QoS scale entries | 5,120 |
ACL scale entries | 5,120 |
Packet buffer per SKU | 16 MB buffer for 24 and 48 port Gigabit Ethernet models |
Flexible NetFlow (FNF) entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
DRAM | 8 GB |
Flash | 16 GB |
VLAN IDs | 4094 |
Total Switched Virtual Interfaces (SVIs) | 1000 |
Jumbo frames | 9198 bytes |
Switching capacity | 56 Gbps - 176 Gbps |
Forwarding rate | 41.66 Mpps - 130.95 Mpps |
