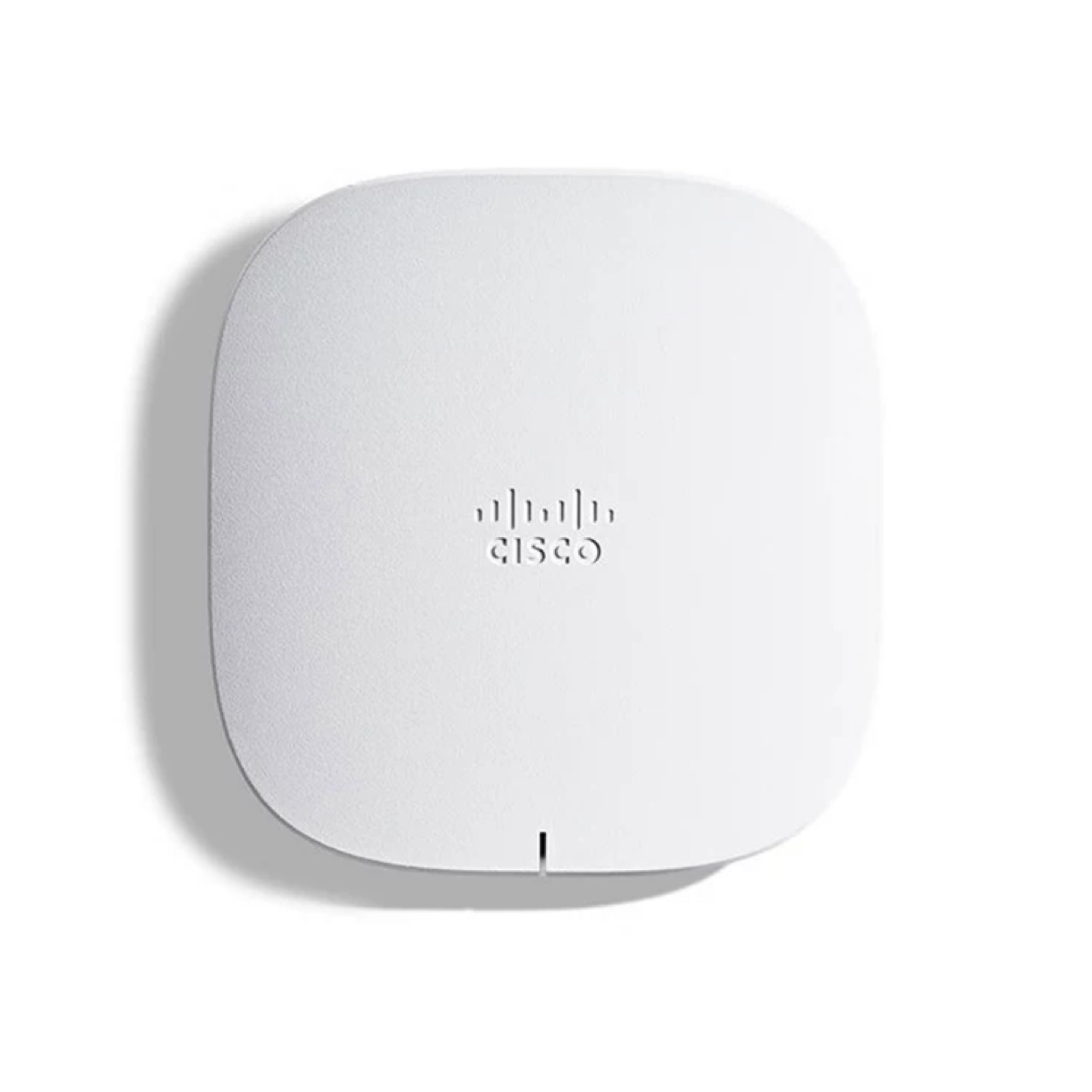

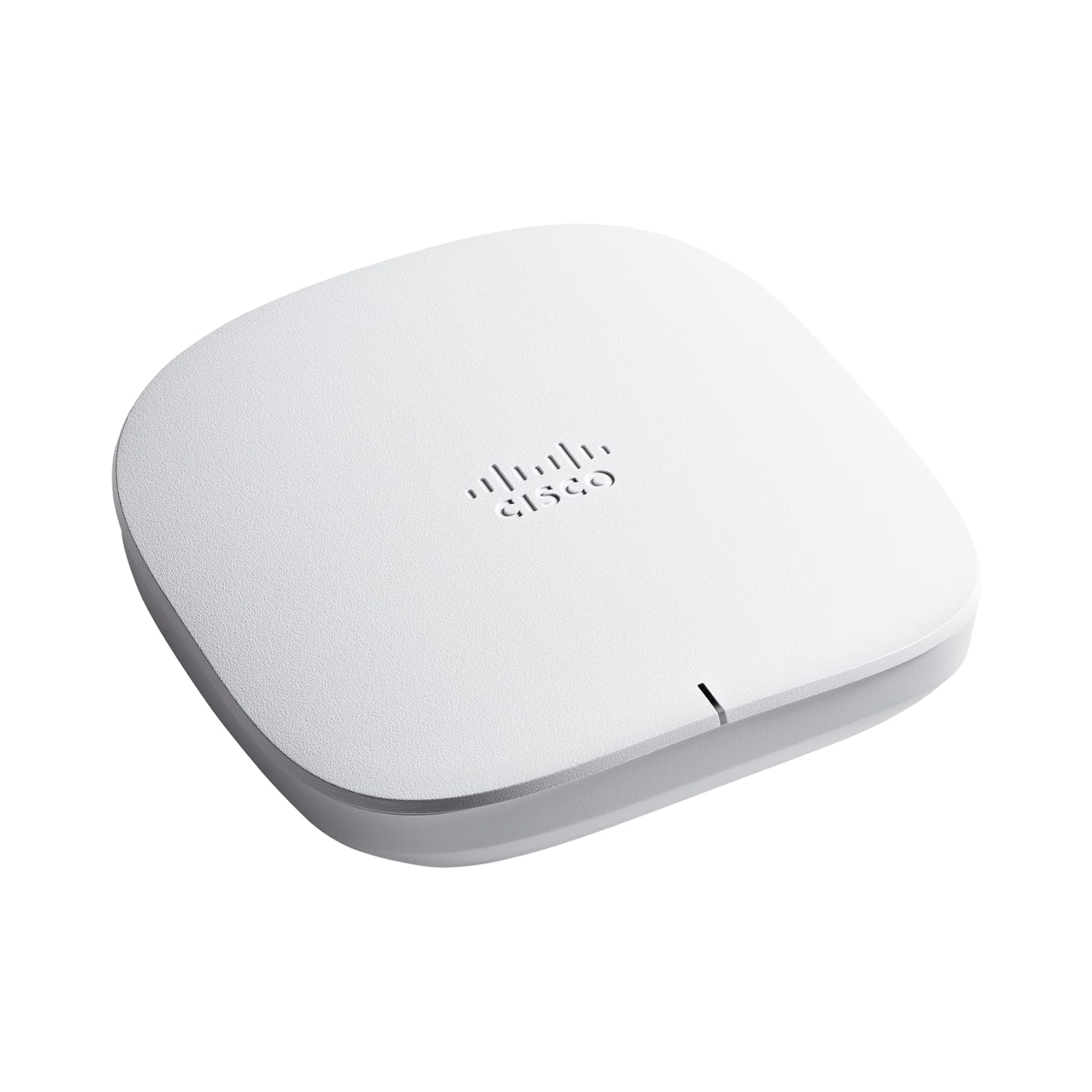

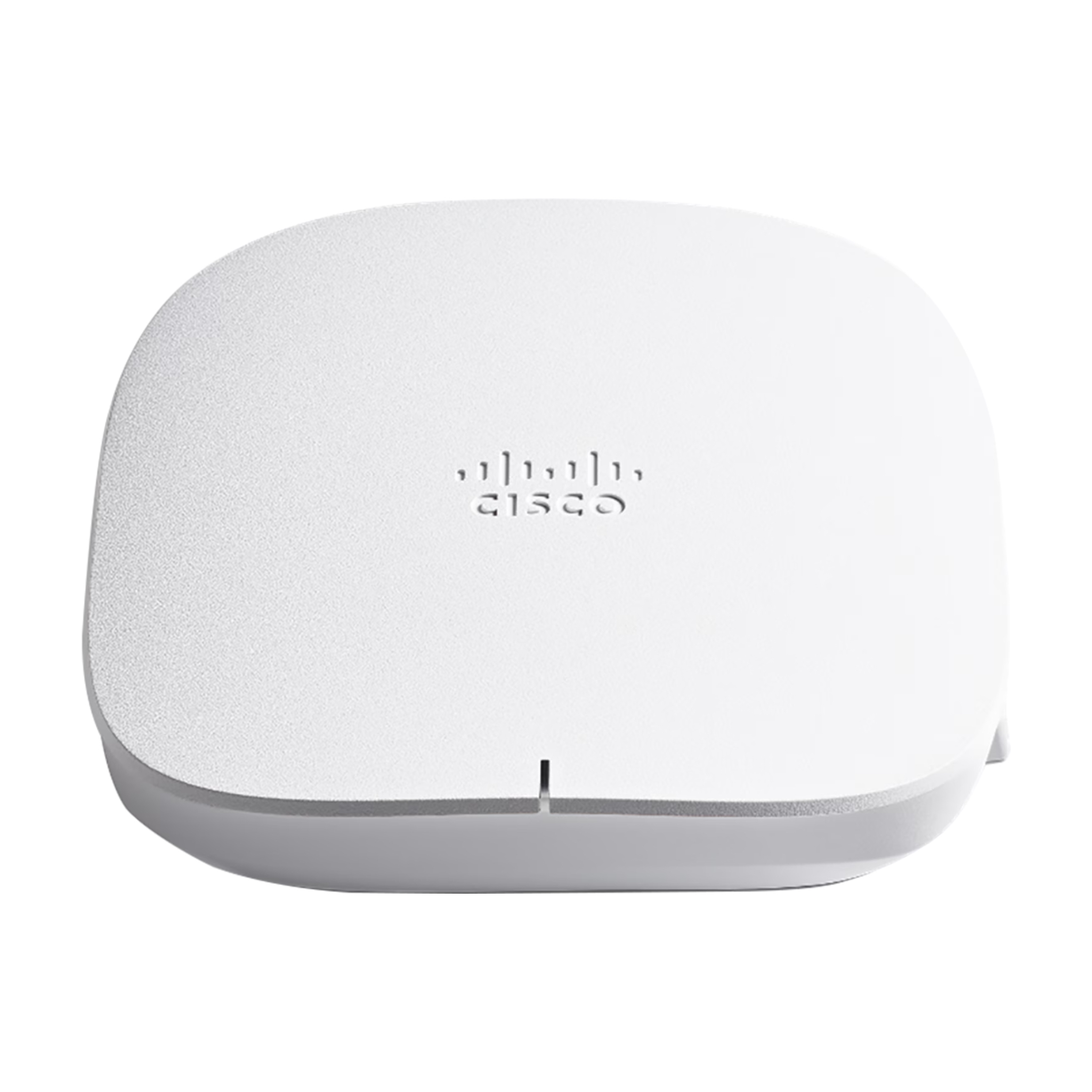

The Cisco CBW150AX-E is a high-performance Wi-Fi 6 access point designed for small and medium-sized businesses seeking reliable, secure, and scalable wireless connectivity. Built on the latest 802.11ax technology, this dual-band access point delivers faster speeds, improved network efficiency, and enhanced user experiences in high-density environments such as offices, retail stores, educational institutions, hospitality venues, and branch locations. It supports 2x2 MU-MIMO technology and advanced Wi-Fi 6 features to provide consistent wireless performance for multiple connected devices simultaneously.
Featuring a compact and modern design, the CBW150AX-E offers combined wireless speeds of up to 1.5 Gbps, with up to 1,201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band. The integrated Gigabit Ethernet port supports IEEE 802.3at PoE+, enabling simplified deployment through a single Ethernet cable for both power and data transmission.
Cisco's Business Wireless platform enables easy installation and management through a user-friendly web interface or mobile application, eliminating the need for a dedicated wireless controller. The access point supports seamless mesh networking, VLAN segmentation, multiple SSIDs, and centralized management, making it an ideal solution for growing business networks. Advanced security features including WPA3 encryption, WPA2 support, and Wireless Intrusion Detection System (WIDS) help protect business data and maintain network integrity.
The CBW150AX-E is designed to support up to 200 connected clients while maintaining stable performance and low latency. Internal antennas provide reliable coverage, while flexible ceiling and wall mounting options allow easy deployment in various environments. With enterprise-class reliability, simplified management, and the latest Wi-Fi 6 technology, the Cisco CBW150AX-E delivers an affordable and future-ready wireless networking solution for modern businesses.
CBW150AX-H-CN
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | CBW150AX-H-CN |
Product Series | Cisco Business 150AX Wi-Fi 6 Dual-Band Access Point |
Target Application | SMB Offices, Retail Stores, Hospitality Venues, Education Campuses, Small Branch Networks |
Warranty | Cisco Limited Lifetime Hardware Warranty |
Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac |
Radio Bands | Dual-band concurrent operation: 2.4 GHz + 5 GHz |
Maximum Aggregate Data Rate | 1775 Mbps (2.4 GHz: 574 Mbps; 5 GHz: 1201 Mbps) |
MIMO Configuration | 2.4 GHz: 2x2 MIMO; 5 GHz: 2x2 MIMO |
Supported Channel Bandwidth | 2.4 GHz: 20/40 MHz; 5 GHz: 20/40/80 MHz |
Antenna Specs | Internal high-gain omnidirectional antennas: 2.4 GHz (2 dBi gain), 5 GHz (4 dBi gain) |
Maximum Concurrent Client Capacity | Up to 200 concurrent client devices |
SSID Support | Up to 16 SSIDs per radio, 32 total SSIDs; SSID-to-VLAN mapping |
VLAN Compliance | 802.1Q VLAN tagging, native VLAN configuration, guest VLAN isolation |
PoE Compliance | IEEE 802.3af PoE, IEEE 802.3at PoE+ compatible |
Power Input | 12V DC / 1A (local power supply); PoE powered |
Maximum Power Consumption | 12.9W (PoE operation), 11.5W (DC operation) |

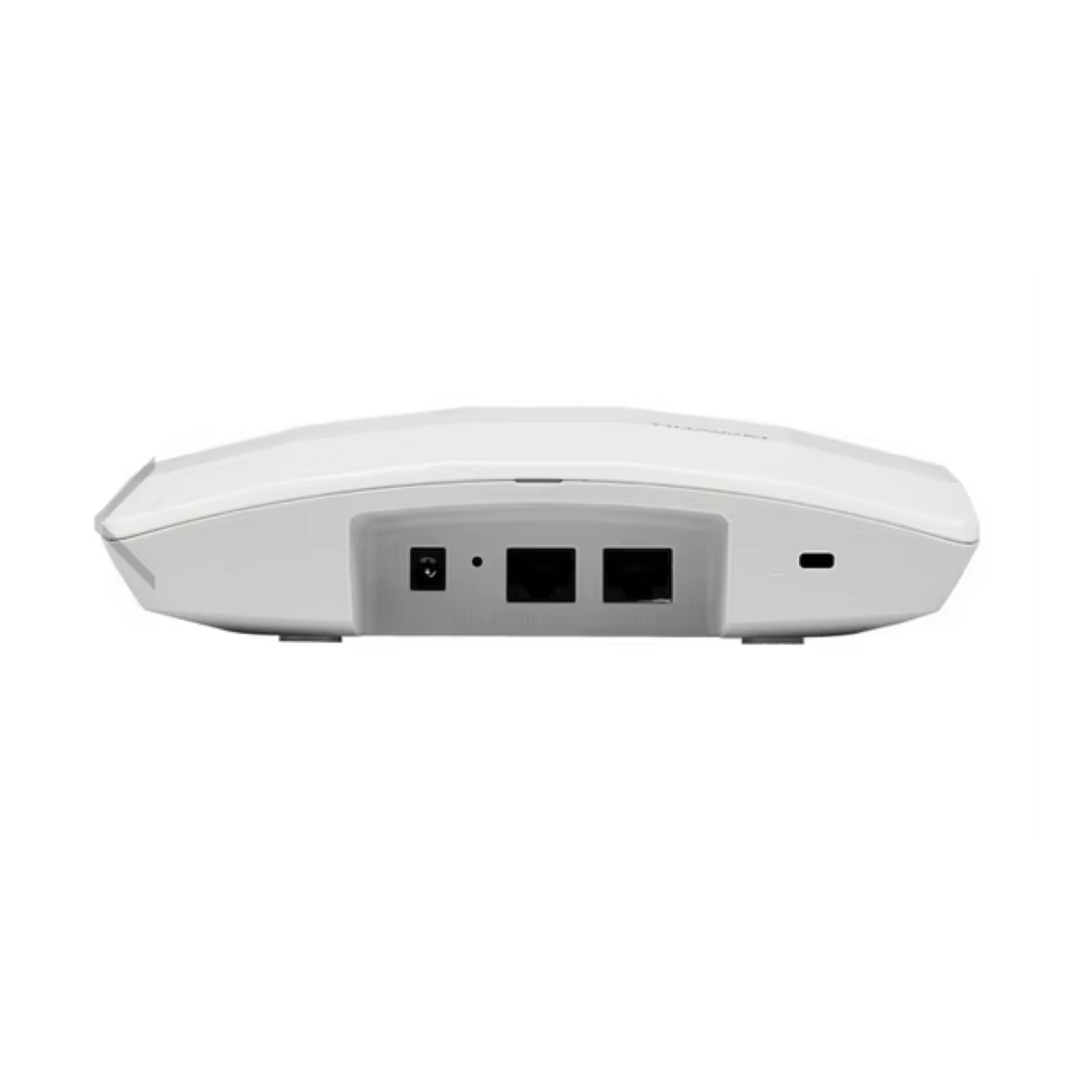

Physical Interfaces | 1 × 10/100/1000BASE-T Gigabit Ethernet RJ45 port, 1 × USB 2.0 port |
Management Interfaces | Cisco Business Mobile App, Cisco Business Dashboard, Web UI, CLI |
Core Security Features | WPA3, WPA2, WPA encryption; 802.1X authentication; RADIUS server support; MAC address filtering; Rogue AP detection; VPN pass-through; Firewall access control |
QoS & Traffic Management | Wi-Fi 6 WMM, MU-MIMO, OFDMA, traffic prioritization, bandwidth limiting per SSID/client |
Physical Dimensions (W × D × H) | 150 mm × 150 mm × 35 mm (5.91 × 5.91 × 1.38 in) |
Net Unit Weight | 280 g (0.62 lbs) |
Included Mounting Hardware | Standard wall/ceiling mounting bracket, mounting screws |
Supported Installation Methods | Wall mount, ceiling mount, desktop placement |
Operating Environment | Temperature: 0°C ~ 40°C; Humidity: 10%–90% non-condensing |
Storage Environment | Temperature: -20°C ~ 70°C; Humidity: 5%–90% non-condensing |
Regulatory Certifications | CE, FCC, IC, RoHS, China CCC (CN region compliant) |
