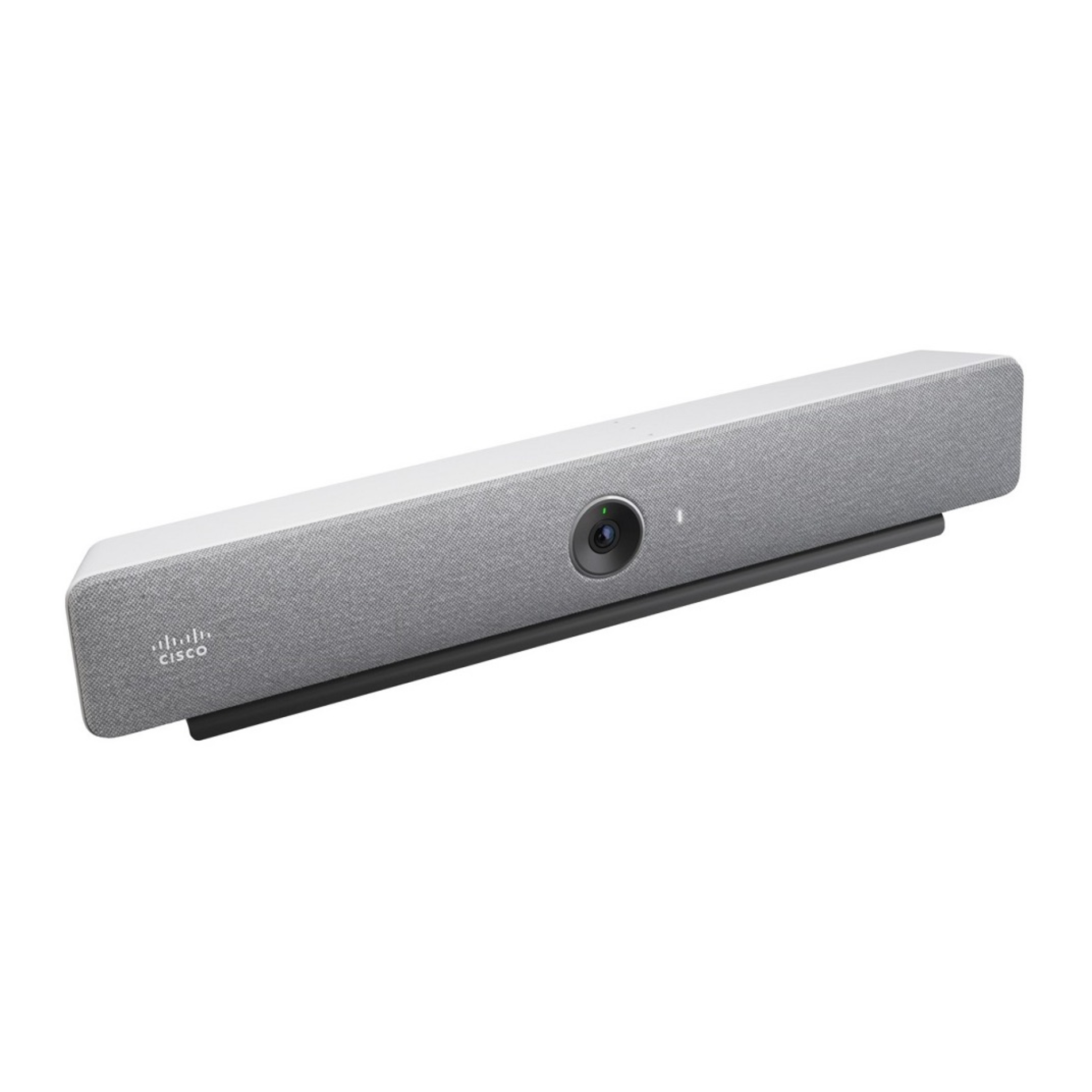

The Cisco CS-BAR-T-K9 is an all-in-one intelligent video collaboration bar designed to deliver premium meeting experiences for small to medium-sized meeting rooms and huddle spaces. Featuring an integrated 4K ultra-high-definition camera, advanced AI-powered speaker tracking, automatic framing, beamforming microphones, and high-quality stereo speakers, it provides crystal-clear video and immersive audio for seamless collaboration. Optimized for modern hybrid work environments, the CS-BAR-T-K9 supports secure, reliable, and high-performance conferencing with simple deployment and intuitive management. Its sleek all-in-one design reduces installation complexity while maintaining a professional meeting room appearance. Fully compatible with Cisco collaboration solutions and major third-party video conferencing platforms, the Cisco CS-BAR-T-K9 enables organizations to improve communication efficiency, enhance remote teamwork, and create engaging meeting experiences. Ideal for enterprises, educational institutions, healthcare facilities, government agencies, and commercial organizations, it offers enterprise-grade reliability, intelligent meeting features, flexible connectivity, and long-term scalability, making it an excellent choice for businesses seeking a secure, easy-to-manage, and future-ready video conferencing solution.
CS-BAR-T-K9
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Part Number | CS-BAR-T-K9 |

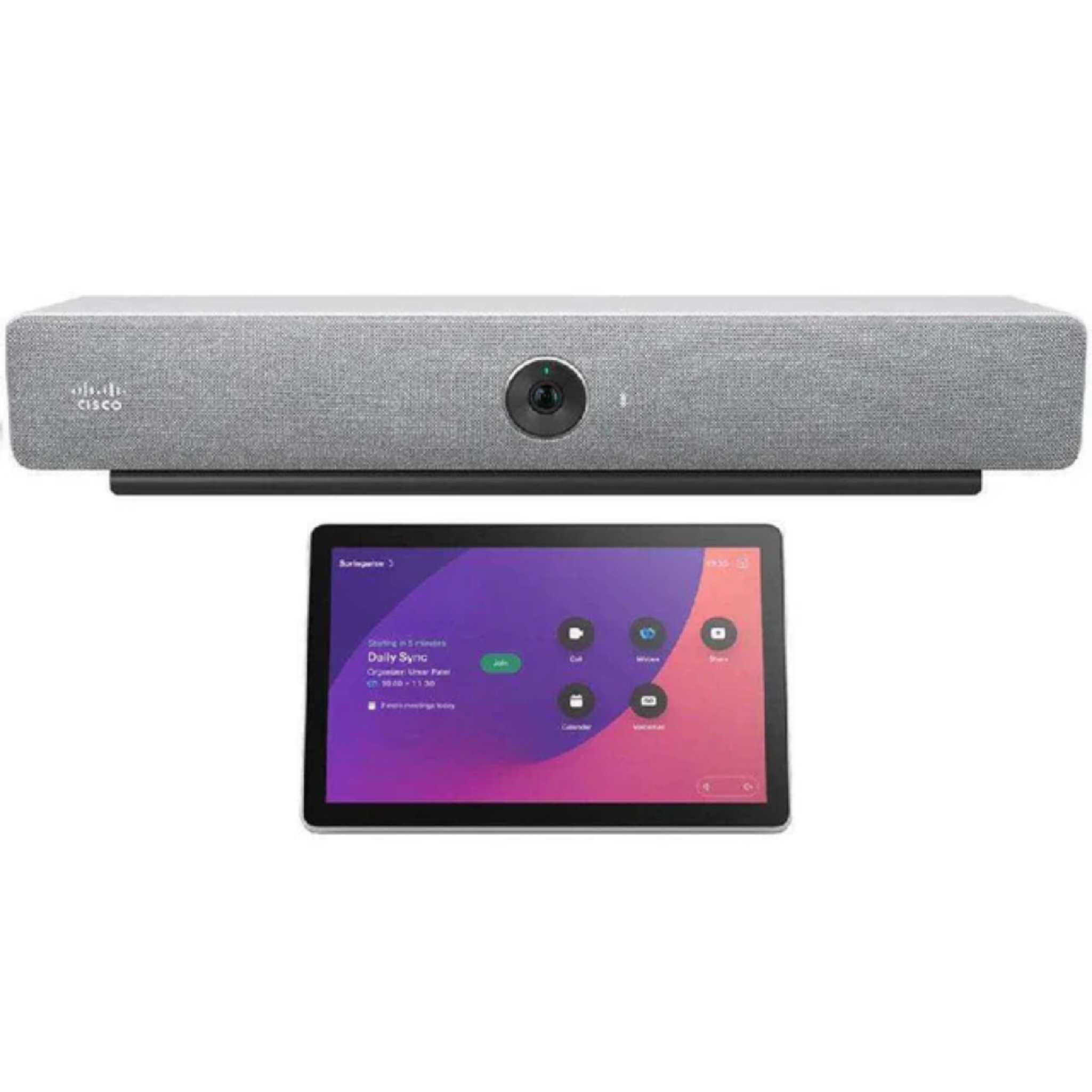

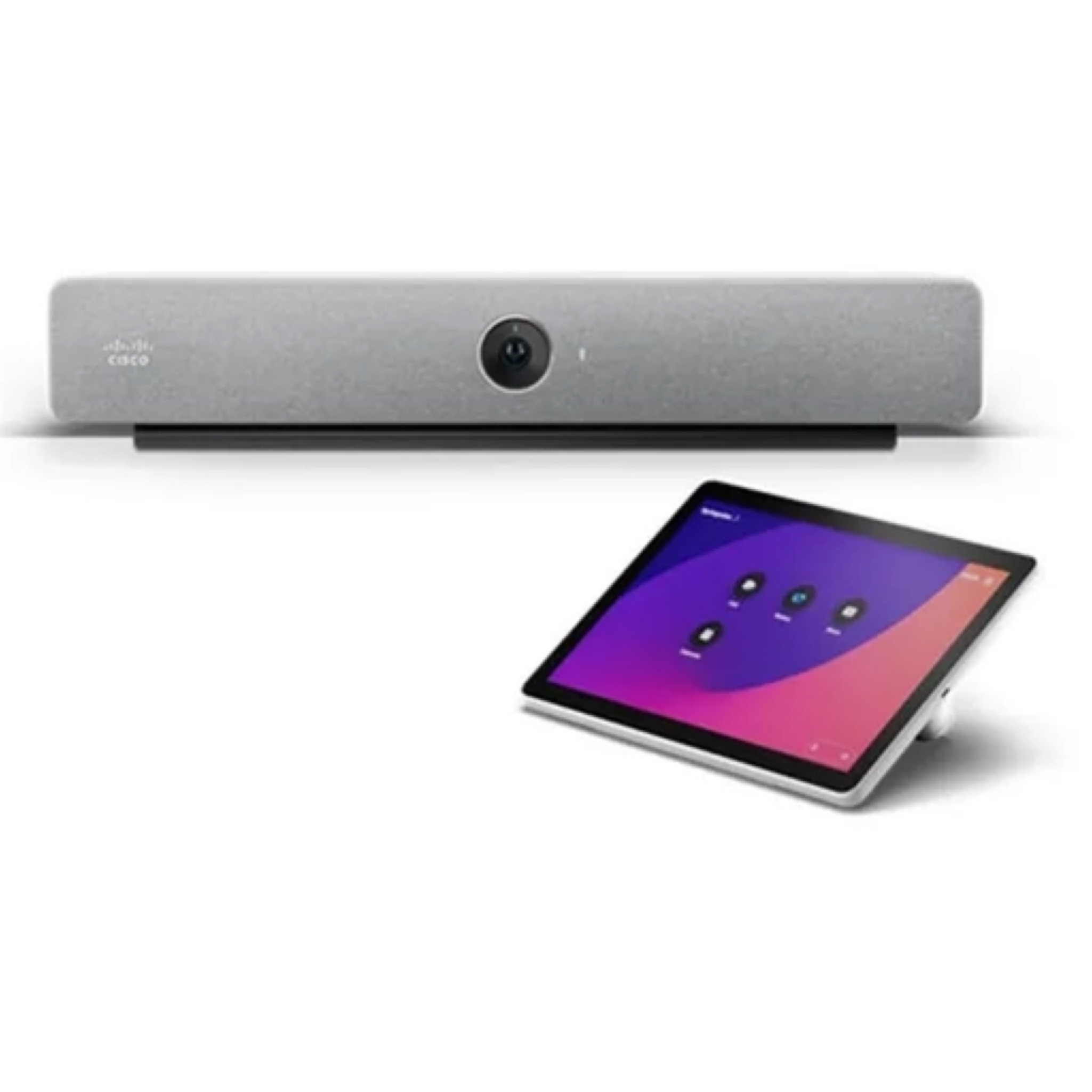

Full Product Name | Cisco Webex Room Bar with Table Stand Room Navigator, First Light Finish |
Product Category | All-in-one Video Conferencing Bar for Huddle & Small Meeting Rooms |
Included Components | Webex Room Bar Main Unit, Table Stand 10.1" Room Navigator Touch Panel, Power Adapter, Mounting Hardware |
Camera Module | 12MP 1/2.3" CMOS Sensor, Fixed Focus, F/2.5 Lens, 5x Digital Zoom, 30fps Video |
Camera Field of View | Horizontal: 120°, Vertical: 95° |
Intelligent Video Features | AI Speaker Tracking, Auto Framing, Face Detection, Auto Brightness & White Balance, Physical Privacy Camera Shutter |
Audio System | 4-element Beamforming Microphone Array, Dual Stereo Full-Range Speakers; Max SPL 93dB, Frequency Response 100Hz–20kHz |
Audio Optimization | Acoustic Echo Cancellation (AEC), AI Noise Suppression, Automatic Gain Control (AGC), Spatial Audio |
Wired Interfaces | 1× 10/100Mbps LAN RJ45; 1× PoE RJ45 for Navigator; 2× HDMI 2.0 Output (Dual Display); 1× HDMI Input; 1× USB-C/DP BYOD Port; 1× USB-A 2.0; 1× 3.5mm External Mic In; 1× Micro-USB Service Port |
Wireless Connectivity | Wi-Fi 5 (802.11ac 2x2 MIMO), Bluetooth 5.0 |
Supported Conferencing Protocols | H.323, SIP, Webex, WebRTC, BFCP (Content Sharing) |
Supported Video Codecs | H.264, H.265; Max Resolution 4K 3840×2160 for Content Sharing |
Supported Audio Codecs | G.711, G.722, G.729, AAC-LD, Opus |
Multi-Site Call Capacity | Up to 15Mbps total bandwidth, Point-to-point max 6Mbps |
Operating System | Cisco RoomOS |
Compatible Third-Party Platforms | Native Webex, BYOD Mode for Microsoft Teams, Zoom, Google Meet |
Management Tools | Cisco Control Hub, Web UI, SSH/HTTPS Encrypted Management |
Security Features | End-to-End Call Encryption, Port Security, DoS Protection, Secure Boot, Device Certificate Authentication |
Room Navigator Specs | 10.1" 1920×1080 FHD Touchscreen, PoE 802.3af Class 0 Powered |
Power Supply | Universal AC 100–240V 50/60Hz; Navigator Powered via PoE |
Physical Dimensions (Main Bar) | 533mm × 64mm × 82mm (21in × 2.5in × 3.23in) |
Total Package Weight | 5.975 KG (13.17 lbs) |
Operating Environment | Temperature: 0°C ~ 40°C; Humidity: 10%–90% non-condensing |
Storage Environment | Temperature: -20°C ~ 70°C; Humidity: 5%–95% non-condensing |

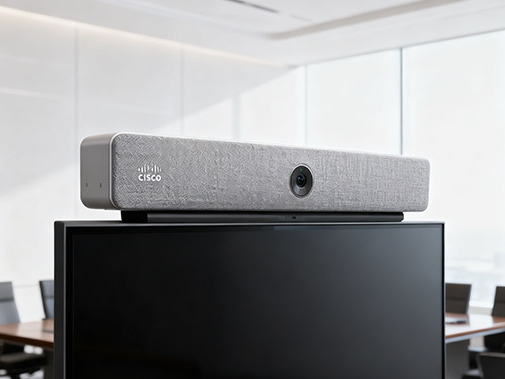

Installation Options | Table Stand, Wall Mount, TV Mount |
Regulatory Certifications | CE, FCC, UL, RoHS Compliant |
Official Warranty | Cisco 1-Year Limited Hardware Warranty |
