The Cisco C1300-12XS is a high-performance managed switch designed to meet the growing networking demands of modern enterprises, data-intensive applications, and high-speed aggregation environments. Featuring 12 dedicated 10 Gigabit SFP+ ports, this switch delivers exceptional bandwidth, low latency, and reliable connectivity for business networks that require fast data transmission and scalable infrastructure.
Built on Cisco’s trusted networking platform, the C1300-12XS offers advanced Layer 2 switching capabilities, comprehensive security features, and intuitive management options, making it an ideal choice for enterprise campuses, branch offices, data centers, and service provider edge deployments. Its compact design allows flexible installation while maintaining enterprise-grade performance and reliability.
The switch supports VLAN segmentation, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Access Control Lists (ACLs), and advanced traffic management features to optimize network efficiency and ensure smooth operation of critical applications such as VoIP, video conferencing, cloud services, and large-scale data transfers.
With robust security mechanisms including port security, DHCP snooping, IP source guard, and network access control capabilities, the Cisco C1300-12XS helps protect network resources against unauthorized access and potential threats. The device can be managed through an intuitive web interface, command-line interface (CLI), or centralized management tools, simplifying deployment and ongoing administration.
Designed for long-term business growth, the Cisco C1300-12XS provides a cost-effective solution for organizations seeking reliable 10G connectivity, enhanced network performance, and scalable infrastructure expansion without compromising security or manageability.
C1300-12XS
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | C1300-12XS |
Product Series | Cisco Catalyst 1300 Layer 3 Managed Switch |
Target Application | High-Density 10G Access/Uplink, Enterprise Core/Distribution, SMB Network Backbone, Server Interconnect, High-Speed Wi-Fi 6/6E AP Deployment, Low-Latency Data Networks |
Warranty | Cisco Limited Lifetime Hardware Warranty |
Management Interfaces | Web UI, CLI, RJ45 Console, USB-C Console, USB-A Port, Cisco Business Dashboard, Cisco Business Mobile App |
Stacking Support | Front-panel stacking, up to 8 units managed as a single logical device |

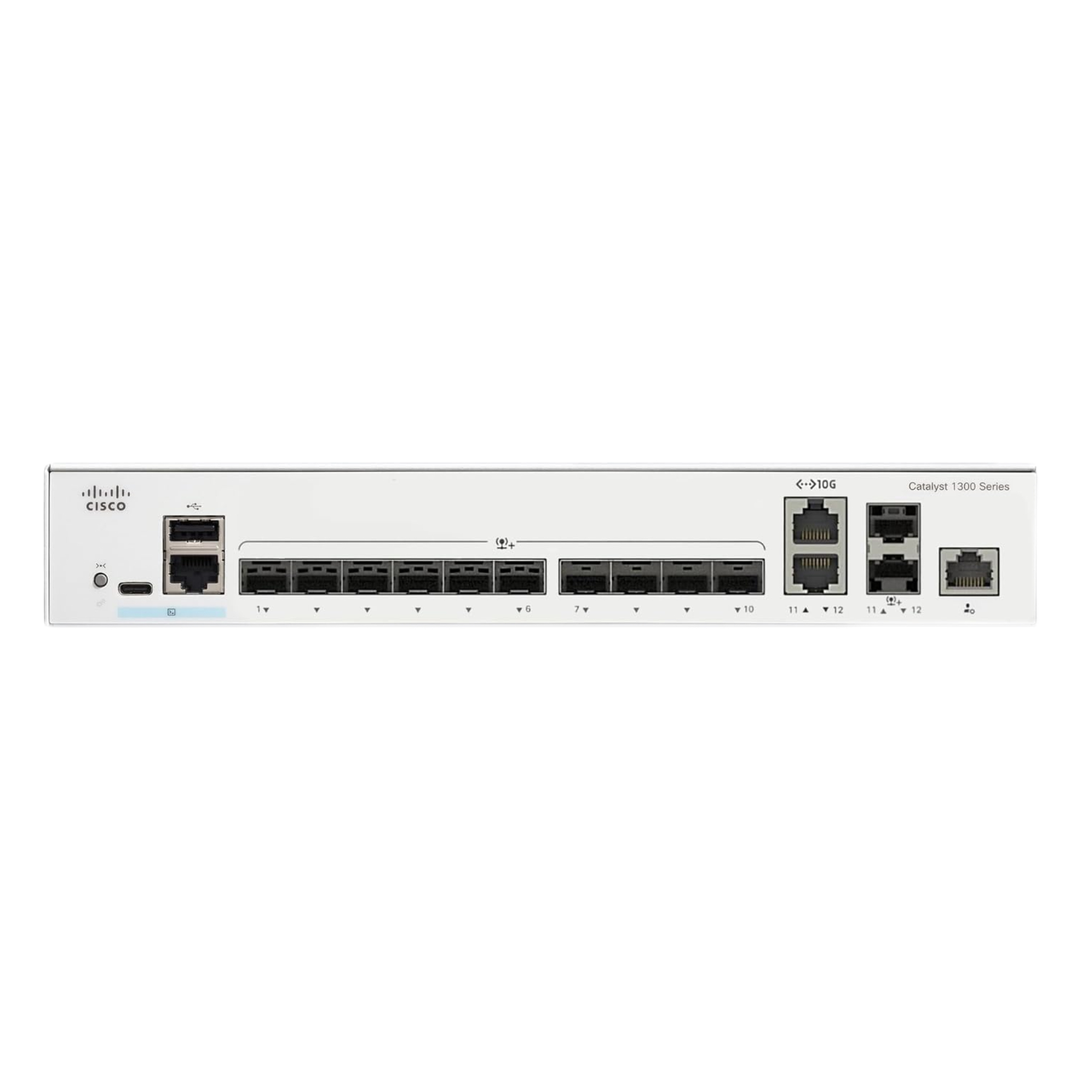

Port Configuration | 12 × 10GBASE-X SFP+ ports (all ports support 10G fiber/copper transceivers, non-PoE) |
Supported Transceivers | Cisco 10G SFP+ SR/LR/ER/ZR, 10GBASE-T SFP+ copper modules, compatible with standard 10G SFP+ transceivers |
Switching Bandwidth | 240 Gbps |
64-byte Packet Forwarding Rate | 178.57 Mpps |
MAC Address Table Capacity | 16,000 entries |
Shared Packet Buffer | 3 MB |
Jumbo Frame Support | Up to 9000 bytes |
QoS Hardware Queues | 8 queues per port, WRR + strict priority scheduling |
VLAN Capacity | Max 4093 VLANs, 802.1Q tagging, Voice VLAN, Guest VLAN |
Spanning Tree Protocols | STP (802.1D), RSTP (802.1w), MSTP (802.1s), PVST+, RPVST+ |
Link Aggregation | IEEE 802.3ad LACP, up to 8 LAG groups |
Multicast Features | IGMP Snooping v1/v2/v3, multicast replication, port multicast filtering |
Port Functions | Port mirroring, port isolation, port rate limiting, broadcast/multicast/unicast storm suppression |
Layer 3 Routing | IPv4 & IPv6 static routing, up to 990 IPv4 static routes, DHCP Snooping, DHCP Relay |
Security Features | 802.1X port authentication, web authentication, RADIUS/TACACS+, DoS attack protection, port security, IP/MAC binding, SSH/HTTPS encrypted management, ARP guard, rogue DHCP server blocking |
Cooling Design | Fanless design, completely silent operation, zero fan noise |
Physical Dimensions (W × D × H) | 445 mm × 240 mm × 44 mm (17.5 × 9.45 × 1.73 in), 1U standard rackmount |
Net Unit Weight | 2.63 kg (5.80 lbs) |
Power Input | Built-in universal AC power supply, 100–240V, 50/60Hz |
Idle Power Consumption | 10.2W (110V) / 9.8W (220V) |
Max Full Load Power Consumption | 18.5W (110V) / 17.9W (220V) |
Operating Temperature | 0°C ~ 40°C, 10%–90% non-condensing humidity |
Storage Temperature | -25°C ~ 70°C, 10%–90% non-condensing humidity |
MTBF (25°C Ambient) | 2,000,000 hours |
Installation Method | Standard 19-inch rack mount, desktop placement, wall mount |
Regulatory Certifications | CE, FCC, UL, CSA, RoHS Compliant |
