Cisco Catalyst 1300-12XT-2X Managed Switch, 12 Port 10G Copper, 2x10GE SFP+

Share to:

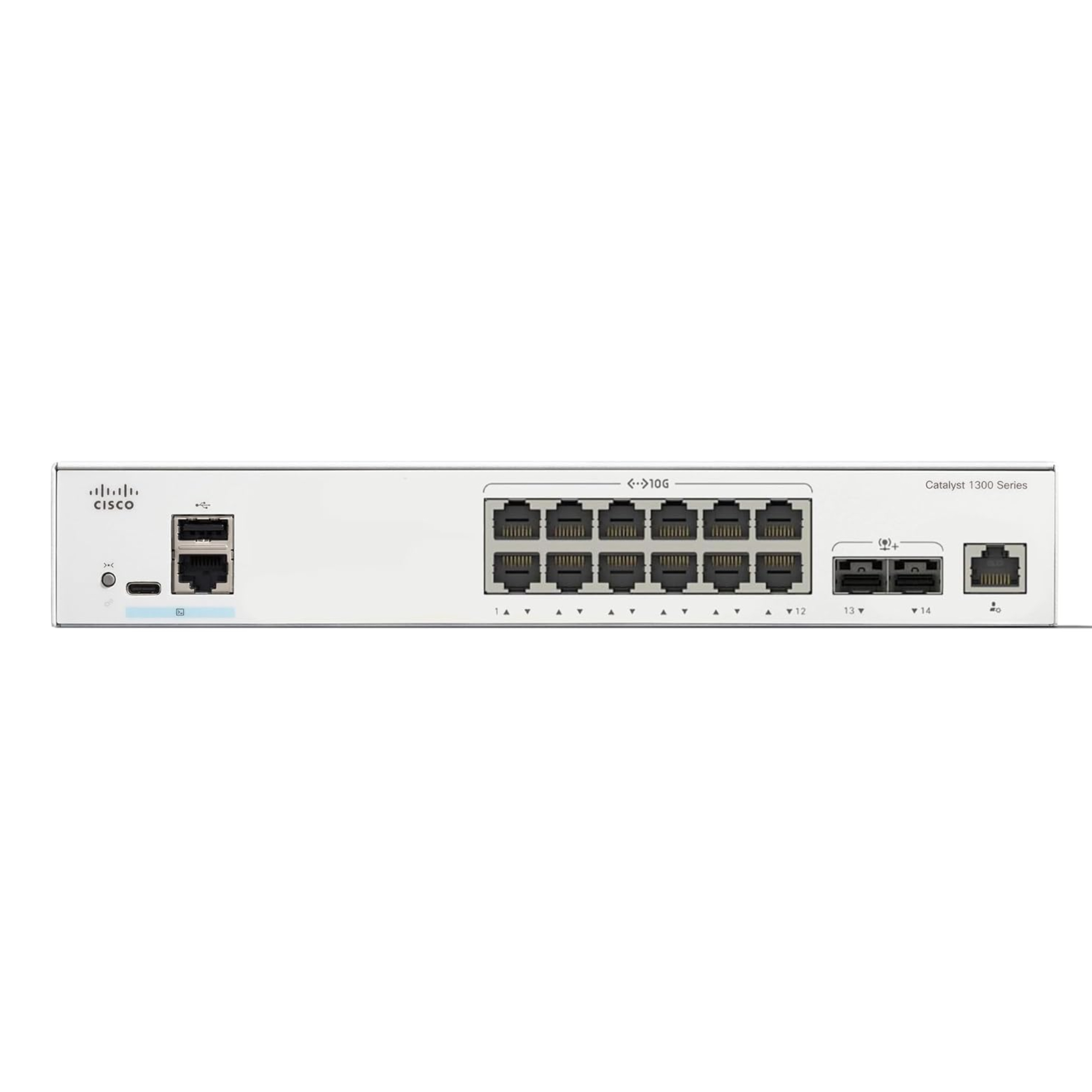

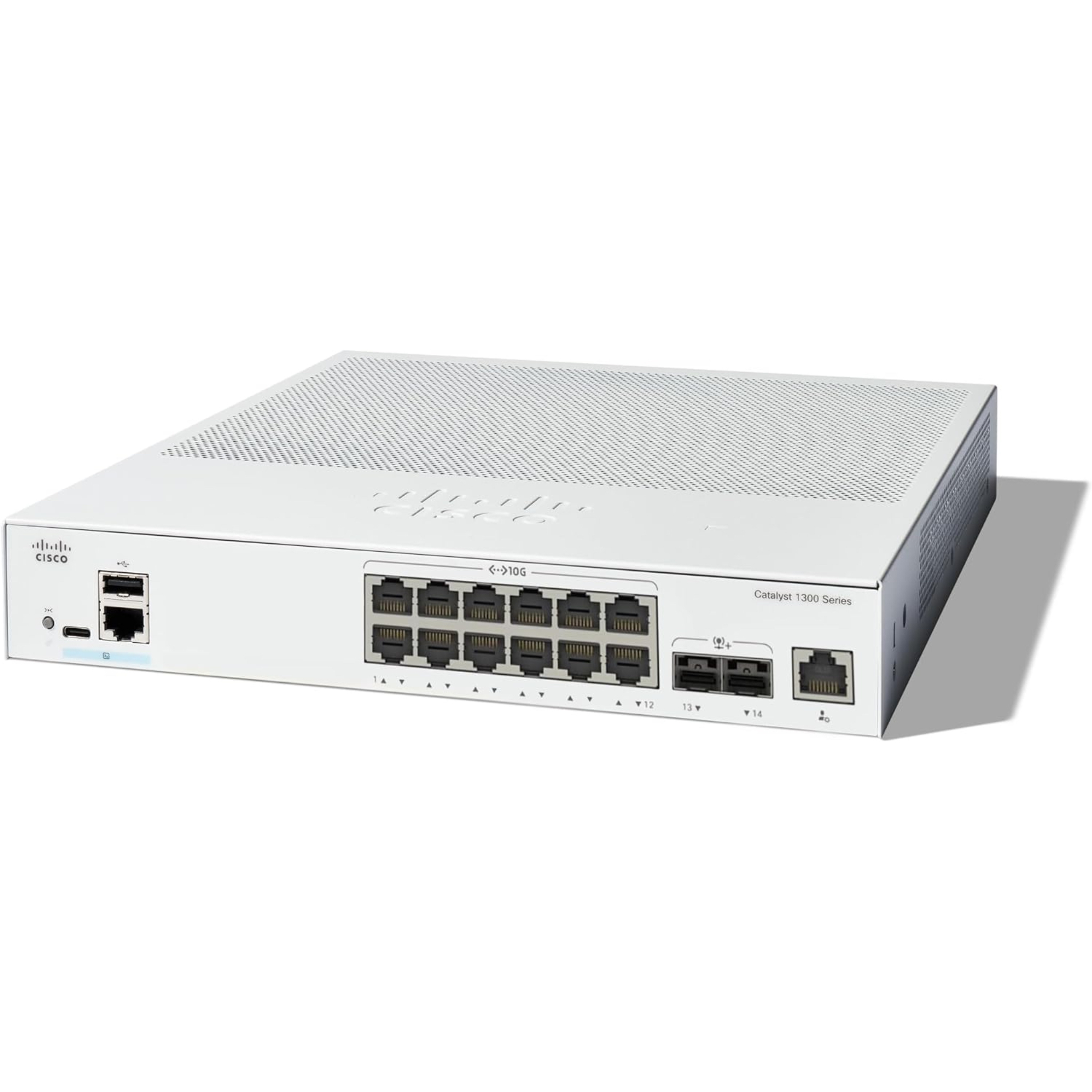

Cisco Catalyst 1300-12XT-2X Managed Switch, 12 Port 10G Copper, 2x10GE SFP+

The Cisco Catalyst C1300-12XT-2X is a high-performance managed Layer 3 switch designed for small and medium-sized businesses, enterprise branch offices, and high-bandwidth network environments. Featuring twelve 10 Gigabit Ethernet RJ45 ports and two 10G SFP+ uplink slots, this switch delivers exceptional network speed, scalability, and reliability for modern business applications, data-intensive workloads, and next-generation network infrastructures. It supports advanced Layer 2 and Layer 3 switching capabilities, enabling efficient traffic management, VLAN segmentation, inter-VLAN routing, and enhanced network security.

Built to meet growing network demands, the C1300-12XT-2X provides a switching capacity of up to 280 Gbps and a forwarding rate of 208.33 Mpps, ensuring smooth and uninterrupted data transmission even in high-density deployments. The switch supports IPv4 and IPv6 networking, link aggregation, jumbo frames, advanced QoS, and comprehensive security features such as 802.1X authentication, DHCP snooping, RADIUS authentication, IP source guard, and protection against network attacks.

For simplified network administration, the Cisco Catalyst 1300 Series integrates with Cisco Business Dashboard, enabling centralized monitoring, configuration, and lifecycle management of network devices. Front-panel stacking support allows multiple compatible switches to be managed as a single logical unit, improving operational efficiency and scalability.

The compact 1U rack-mountable design, low-noise cooling system, and enterprise-class reliability make the C1300-12XT-2X an ideal solution for offices, educational institutions, retail environments, and distributed business networks that require high-speed 10G connectivity and advanced management features.

Model:
C1300-12XT-2X
Brand:
Cisco
Condition:
Original New
Warranty:
1 year

Availability:

Quantity:



Inquire Add to Basket

Item	Official Specification
Model Number	C1300-12XT-2X
Product Series	Cisco Catalyst 1300 Layer 3 Managed Switch
Application Scenarios	SMB Backbone, 10G Workstation Access, High-Speed Server Interconnect, 10G Wi-Fi AP Deployment, Video Surveillance Core
Warranty	Cisco Limited Lifetime Hardware Warranty
Management Interfaces	Web UI, CLI, RJ45 Console, USB-C Console, USB-A Port, GE OOB Management Port, Cisco Business Dashboard, Cisco Business Mobile App
Stacking Support	Front-panel stacking, support up to 8 units as one logical device
Port Configuration	12 × 10GBASE-T RJ45 copper ports (non-PoE); 2 × 10G SFP+ fiber uplink slots
Supported Transceivers	10G SFP+ SR/LR/ER/ZR, 10GBASE-T SFP+ copper modules, standard compatible 10G SFP+ transceivers
PoE Support	None
Switching Bandwidth	280 Gbps
64-byte Packet Forwarding Rate	208.33 Mpps
MAC Address Table Capacity	16,000 entries
Shared Packet Buffer	3 MB
System Memory	1 GB DDR4 RAM / 512 MB Flash
Jumbo Frame Support	Up to 9000 bytes
QoS Hardware Queues	8 queues per port, WRR + strict priority scheduling
VLAN Capacity	Max 4093 VLANs, 802.1Q tagging, Voice VLAN, Guest VLAN
Spanning Tree Protocols	STP, RSTP, MSTP, PVST+, RPVST+
Link Aggregation	IEEE 802.3ad LACP, up to 8 LAG groups
Multicast Functions	IGMP Snooping v1/v2/v3, multicast replication, port multicast filtering
Port Features	Port mirroring, port isolation, port rate limiting, broadcast/multicast/unicast storm suppression
Layer 3 Routing	IPv4 & IPv6 static routing, up to 990 IPv4 static routes, DHCP Snooping, DHCP Relay
Security Functions	802.1X authentication, web authentication, RADIUS/TACACS+, DoS protection, port security, IP/MAC binding, SSH/HTTPS encrypted management, ARP guard, rogue DHCP blocking
Cooling Design	Single low-noise variable-speed fan
Physical Dimension (W × D × H)	445 mm × 240 mm × 44 mm (17.5 × 9.45 × 1.73 in), 1U standard rackmount
Net Unit Weight	2.49 kg (5.49 lbs)

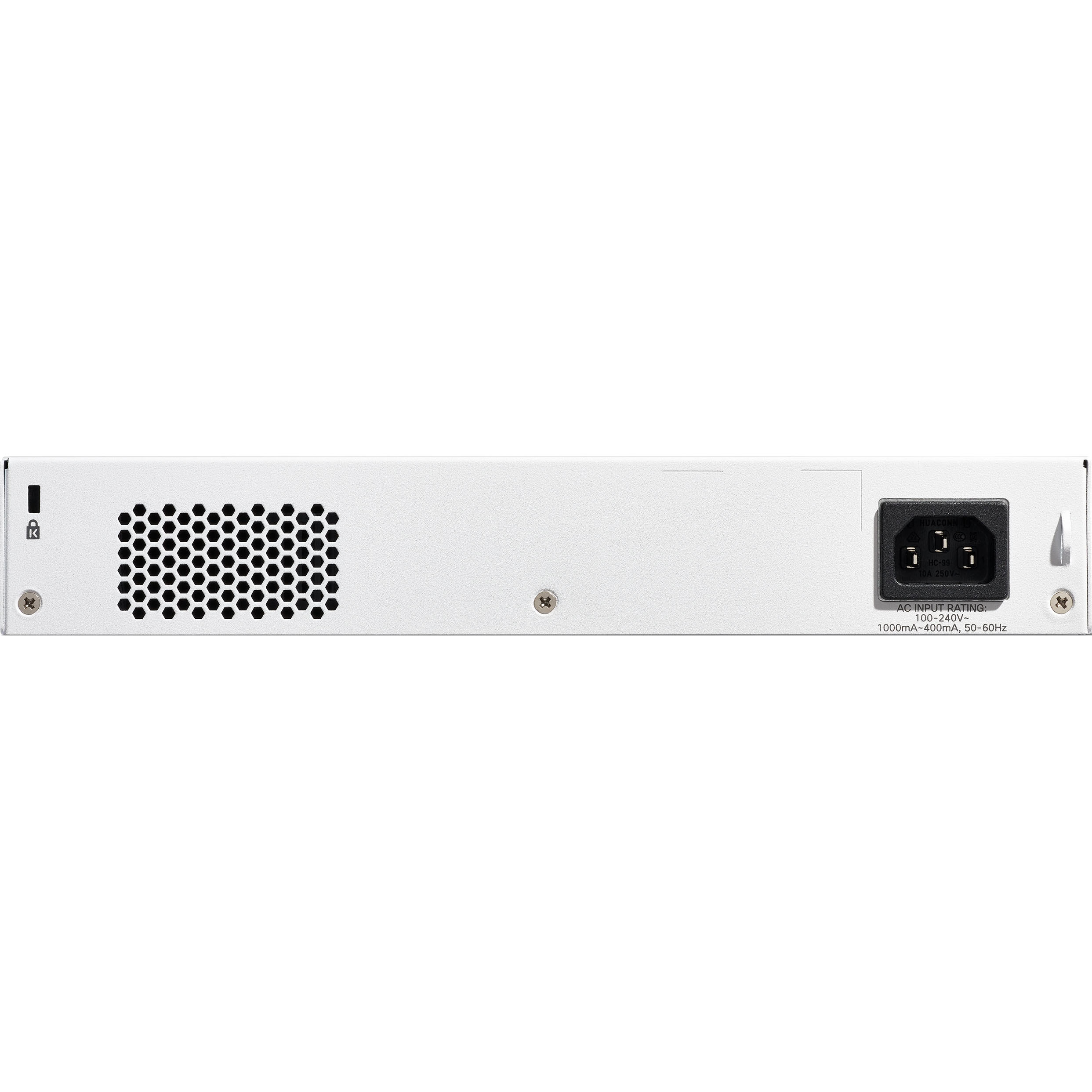

Power Input	Built-in universal AC power supply, 100–240V, 50/60Hz
Idle Power Consumption	20.7 W
Max Full Load Power Consumption	52 W
Operating Temperature	-5°C ~ 50°C, 10%–90% non-condensing humidity
Storage Temperature	-25°C ~ 70°C, 10%–90% non-condensing humidity
MTBF (25°C Ambient)	2,165,105 hours
Installation Method	Standard 19-inch rack mount, desktop placement
Regulatory Certifications	CE, FCC, UL, CSA, RoHS Compliant
