The Cisco Catalyst C1300-24MGP-4X is a high-performance Layer 3 managed switch designed for small and medium-sized businesses, branch offices, educational institutions, hospitality environments, and enterprise edge networks. Combining Multi-Gigabit connectivity, advanced security, Power over Ethernet Plus (PoE+), and 10G fiber uplinks, this switch delivers the performance and flexibility required for modern network infrastructures. It is an ideal solution for supporting Wi-Fi 6/6E access points, IP surveillance systems, VoIP communications, and bandwidth-intensive business applications.

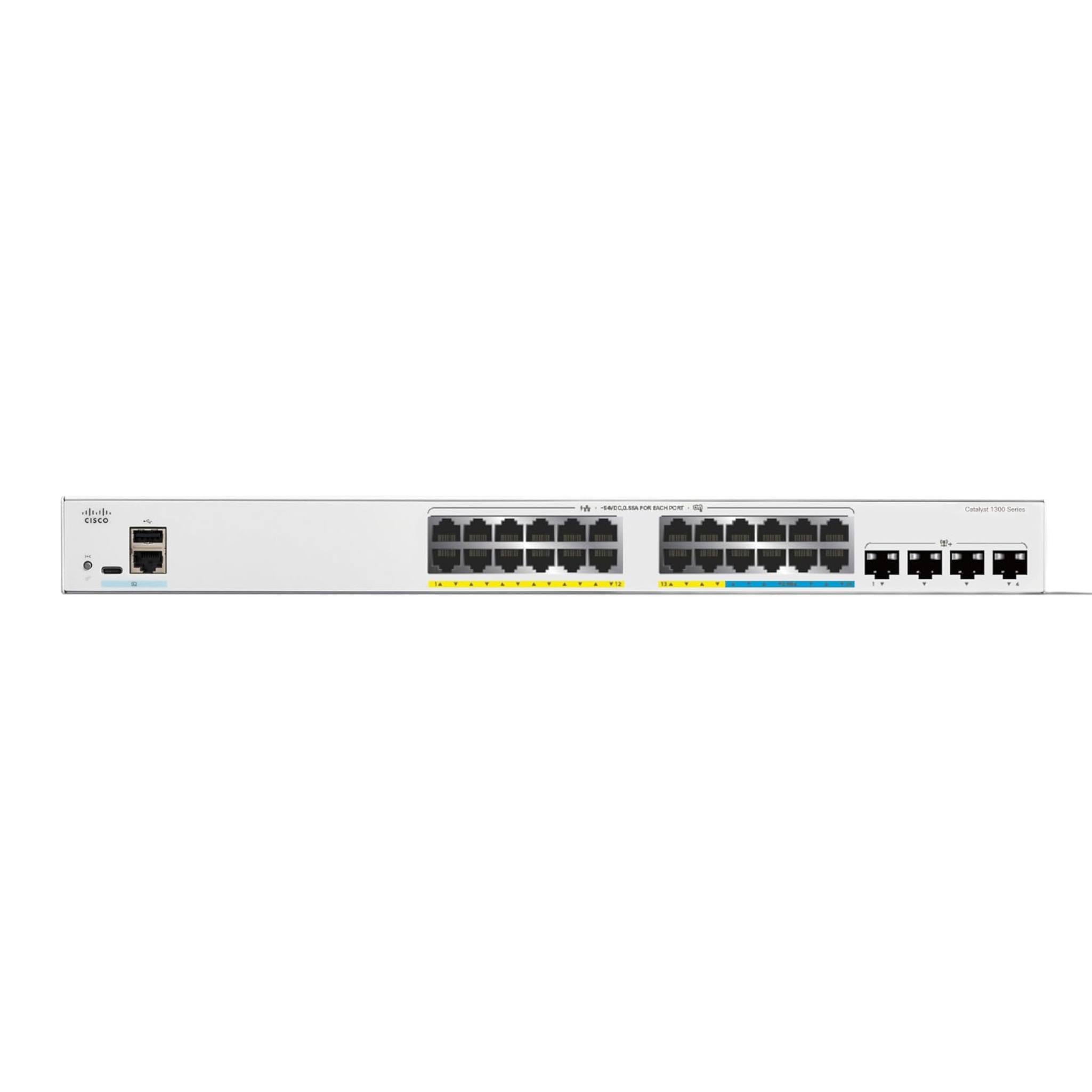

Featuring 24 PoE+ Ethernet ports, including 16 Gigabit Ethernet ports and 8 Multi-Gigabit 2.5G Ethernet ports, the C1300-24MGP-4X provides high-speed access connectivity while supplying power to connected devices through a generous 375W PoE budget. Each PoE+ port supports up to 30W of power, simplifying deployment by eliminating the need for separate power supplies for IP cameras, wireless access points, and IP phones.
For high-bandwidth uplink connections, the switch includes four dedicated 10 Gigabit SFP+ ports, enabling seamless integration with aggregation switches, servers, and fiber backbone networks. With a switching capacity of 152 Gbps and a forwarding rate of 113.08 Mpps, the C1300-24MGP-4X ensures reliable, wire-speed performance across demanding network environments.
The switch supports advanced Layer 2 and Layer 3 networking features, including static routing, VLANs, link aggregation, IPv4/IPv6 support, QoS, IGMP Snooping, and multicast management. Comprehensive security capabilities such as IEEE 802.1X authentication, DHCP Snooping, RADIUS authentication, DoS attack prevention, and port security help protect critical business resources and maintain network integrity.
Designed for simplified network management, the Cisco Catalyst C1300-24MGP-4X integrates with Cisco Business Dashboard and Cisco Business mobile applications, allowing administrators to monitor, configure, and manage network devices efficiently. Front-panel stacking support enables up to eight compatible switches to be managed as a single logical unit, improving scalability while reducing operational complexity.
Built with enterprise-grade reliability, the switch supports dual firmware images for safer software upgrades and reduced downtime. Its rack-mountable 1U form factor, durable metal construction, and efficient cooling design make it suitable for deployment in offices, retail locations, schools, healthcare facilities, and distributed enterprise networks.
C1300-24MGP-4X
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | C1300-24MGP-4X |
Product Series | Cisco Catalyst 1300 Layer 3 Managed Multi-Gig PoE Switch |
Typical Application | SMB Branches, Wi-Fi 6/6E AP Deployment, High-Speed IP Camera Systems, VoIP Phone Networks, Office Multi-Gig Access |
Warranty | Cisco Limited Lifetime Hardware Warranty |
Management Interfaces | Web UI, CLI, RJ45 Console, USB-C Console, USB-A Port, Cisco Business Dashboard, Cisco Business Mobile App |
Stacking Support | Front-panel stacking, up to 8 units as one logical device |
RJ45 Downlink Ports | 16 × 10/100/1000BASE-T PoE+; 8 × 2.5GBASE-T Multi-Gig PoE+ (all 24 ports PoE+ capable) |
Uplink Interfaces | 4 × 10G SFP+ slots for fiber/twinax transceivers |
PoE Standards | IEEE 802.3af (15.4W per port), IEEE 802.3at PoE+ (max 30W per port) |
Total PoE Power Budget | 375W |
Supported Cabling | Cat5e and higher copper cables |
Switching Bandwidth | 152 Gbps |
64-byte Packet Forwarding Rate | 113.1 Mpps |
MAC Address Table Capacity | 16,000 entries |
Shared Packet Buffer | 3 MB |
Jumbo Frame Support | Up to 9000 bytes |
QoS Hardware Queues | 8 queues per port, WRR + strict priority scheduling |
VLAN Capacity | Max 4093 VLANs, 802.1Q tagging, Voice VLAN, Guest VLAN |
Spanning Tree Protocols | STP, RSTP, MSTP, PVST+, RPVST+ |
Link Aggregation | IEEE 802.3ad LACP, up to 8 LAG groups |
Multicast Functions | IGMP Snooping v1/v2/v3, multicast replication, port multicast filtering |
Port Functions | Port mirroring, port isolation, port rate limiting, broadcast/multicast/unicast storm suppression |
Layer 3 Routing | IPv4 & IPv6 static routing, up to 990 IPv4 static routes, DHCP Snooping, DHCP Relay |
Security Functions | 802.1X authentication, web authentication, RADIUS/TACACS+, DoS protection, port security, IP/MAC binding, SSH/HTTPS management, ARP guard, rogue DHCP blocking |
Cooling Design | Variable-speed fan cooling, 38 dBA noise at 25°C |

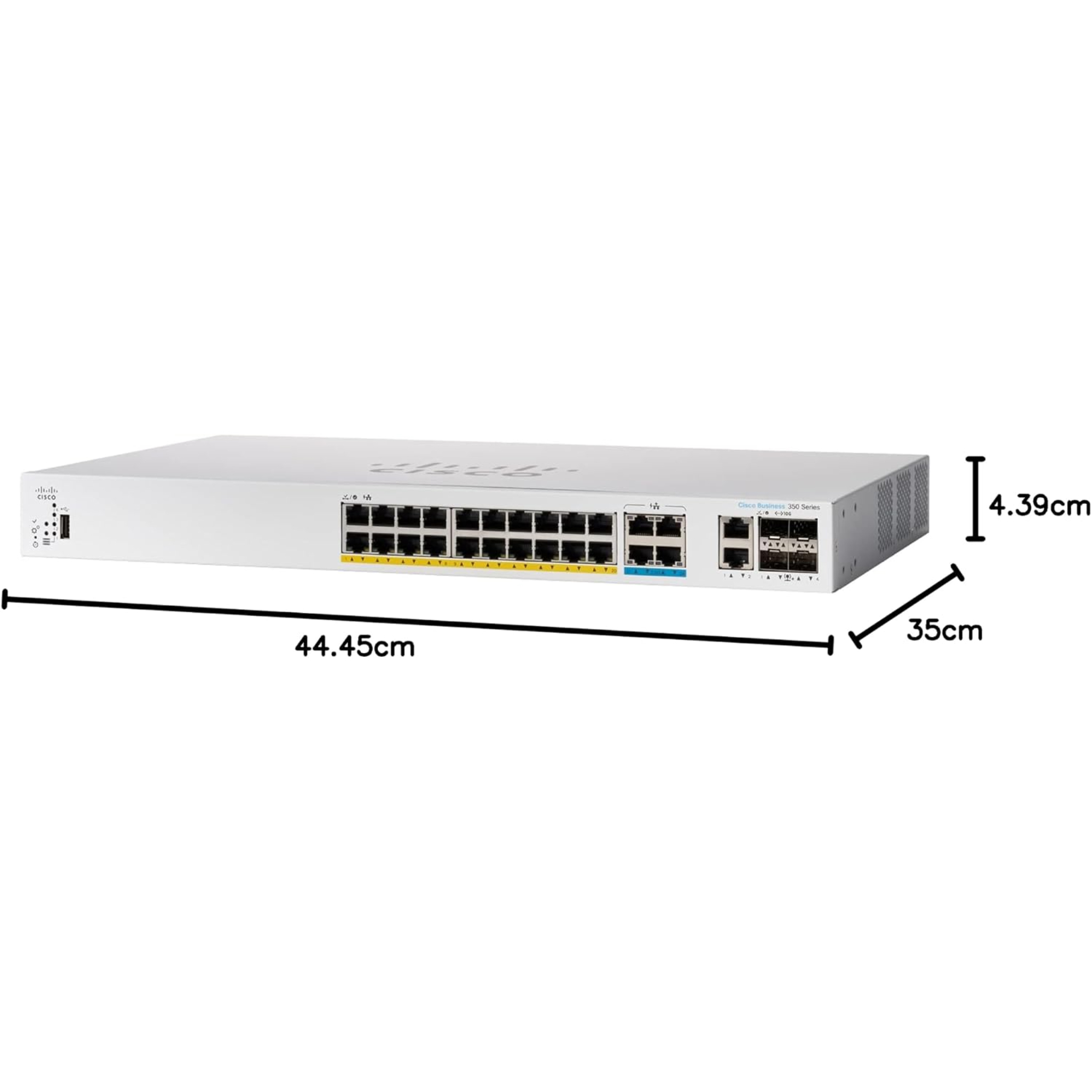

Physical Dimensions (W × D × H) | 445 mm × 350 mm × 44 mm (17.5 × 13.78 × 1.73 in), 1U rackmount |
Net Unit Weight | 5.53 kg (12.19 lbs) |
Power Input | Built-in universal AC supply, 100–240V, 50/60Hz |
Idle Power Consumption | 24.2W |
Max Full Load Power (Full PoE Output) | 412.7W |
Operating Temperature | 0°C ~ 50°C, 10%–90% non-condensing humidity |
Storage Temperature | -25°C ~ 70°C, 10%–90% non-condensing humidity |
MTBF (25°C Ambient) | 1,450,000 hours |
Installation Method | Standard 19-inch rack mount, desktop placement |
Regulatory Certifications | CE, FCC, UL, CSA, RoHS Compliant |
