The C1300-8MGP-2X is a high-performance managed multi-gigabit Ethernet switch designed to deliver reliable, high-speed connectivity for modern business networks. Featuring 8 Multi-Gigabit PoE ports supporting 100M/1G/2.5G speeds and 2 dedicated 10G SFP+ uplink ports, it provides exceptional bandwidth for Wi-Fi 6/6E access points, IP surveillance systems, VoIP phones, and other bandwidth-intensive devices. With advanced Layer 2 management features, comprehensive security, VLAN, QoS, IGMP Snooping, link aggregation, and energy-efficient operation, the switch ensures stable network performance, simplified traffic management, and enhanced reliability. Its compact design, powerful PoE capabilities, and enterprise-grade performance make the C1300-8MGP-2X an ideal networking solution for small and medium-sized businesses, branch offices, educational institutions, hospitality environments, retail stores, and other professional deployments requiring scalable, secure, and future-ready network infrastructure.

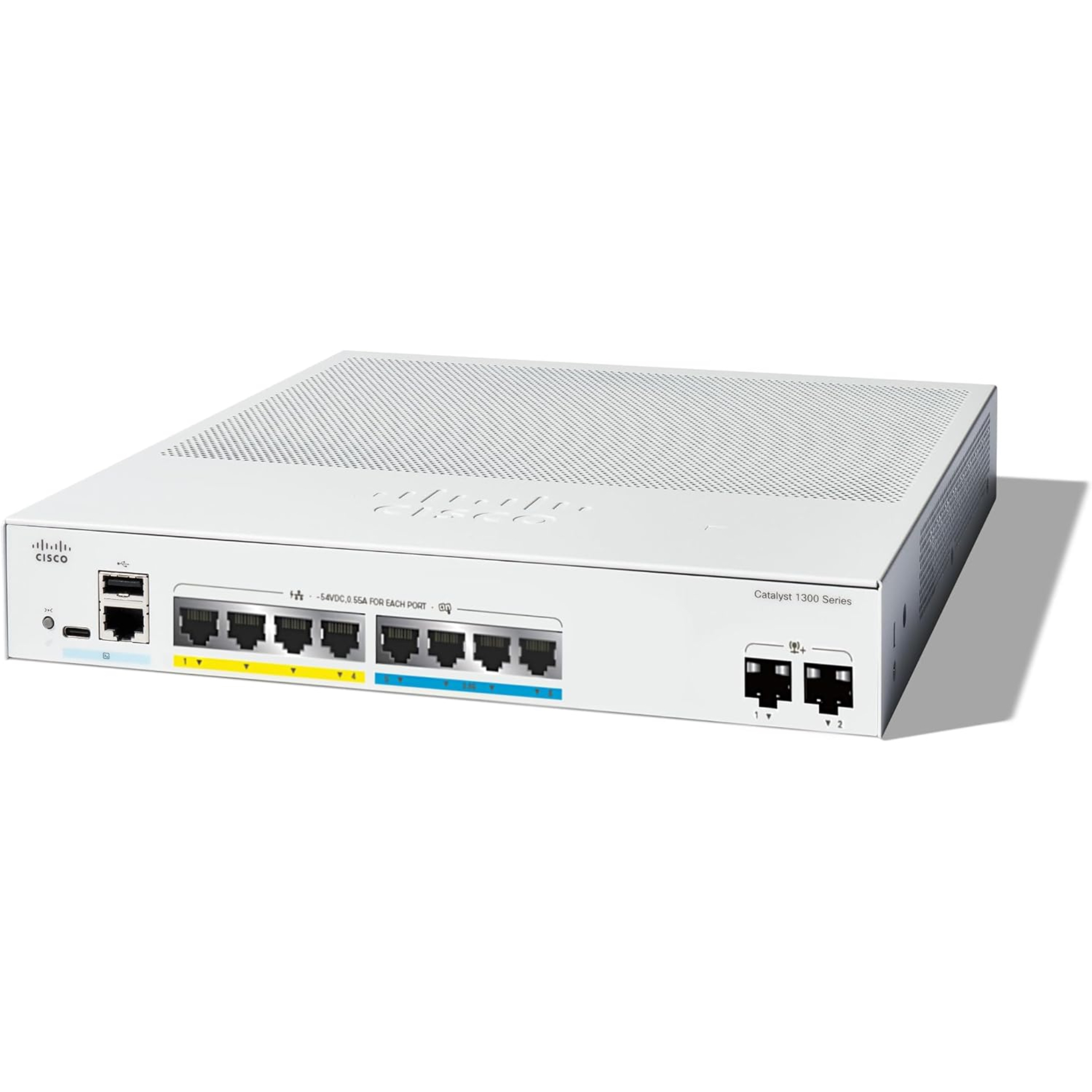

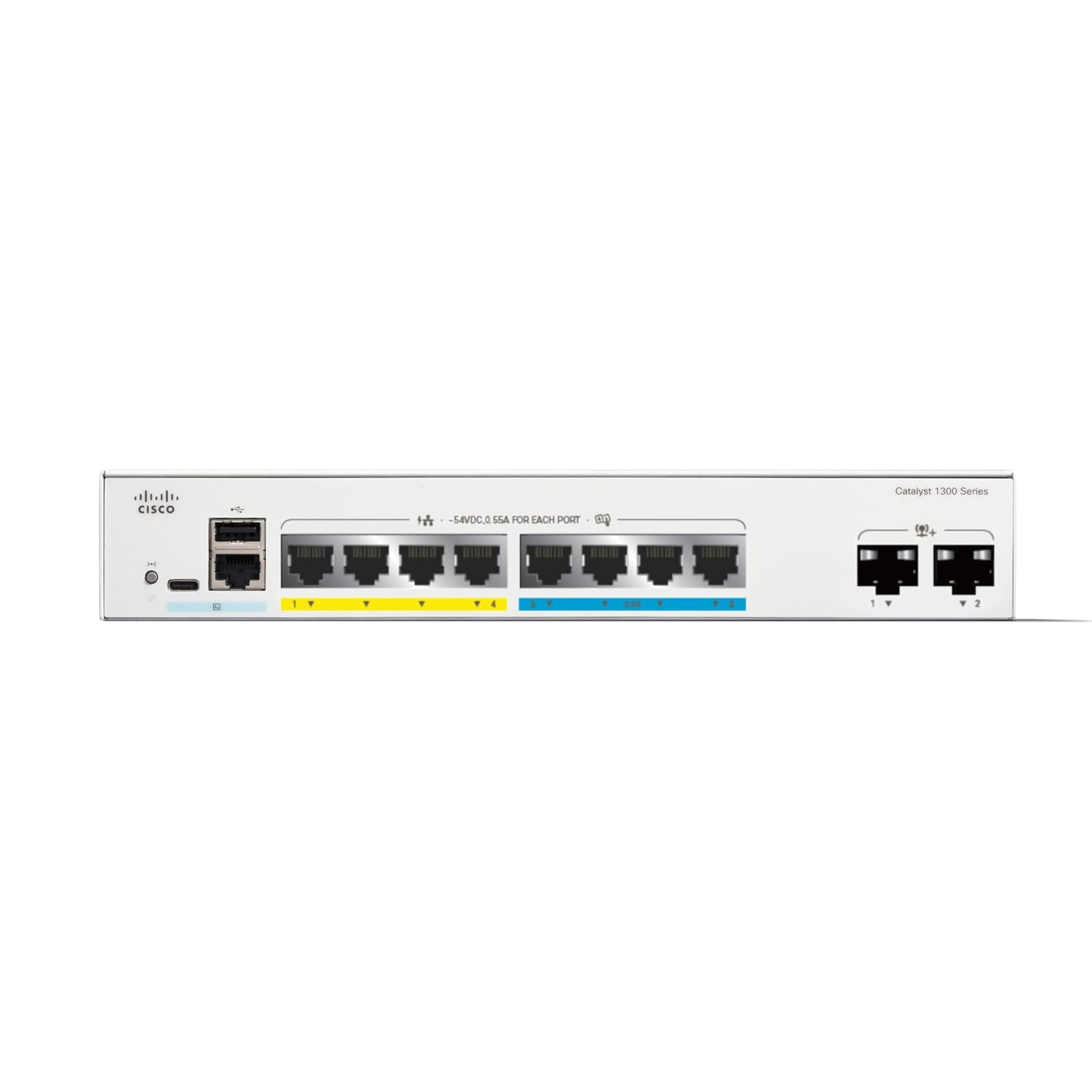

C1300-8MGP-2X
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | C1300-8MGP-2X |
Product Series | Cisco Catalyst 1300 Layer 3 Managed Multi-Gig Switch |
Application Scenarios | SMB Office, Wi-Fi 6/6E AP Deployment, IP Camera Surveillance, Small Branch Network, Desktop High-Speed Access |
Warranty | Cisco Limited Lifetime Hardware Warranty |
Management Interfaces | Web UI, CLI, RJ45 Console, USB-C Console, USB-A Port, Cisco Business Dashboard, Cisco Business Mobile App |
Stacking Support | Front-panel stacking, up to 8 units as one logical device |
Downlink Ports | 4 × 10/100/1000BASE-T PoE+ RJ45, 4 × 2.5GBase-T PoE+ RJ45 (8 multi-gig ports total) |
Uplink Slots | 2 × 10G SFP+ fiber uplink slots |
PoE Standards | IEEE 802.3af (15.4W per port), IEEE 802.3at PoE+ (max 30W per port) |
Total PoE Power Budget | 120W |
Supported Cabling | Cat5e and above |
Switching Bandwidth | 56 Gbps |
Forwarding Rate (64-byte packets) | 41.56 Mpps |
MAC Address Table Capacity | 16,000 entries |
Shared Packet Buffer | 1.5 MB |
Jumbo Frame Support | Up to 9000 bytes |
QoS Hardware Queues | 8 queues per port, WRR + strict priority scheduling |
VLAN Capacity | Max 4093 VLANs, 802.1Q tagging, Voice VLAN, Guest VLAN |
Spanning Tree Protocols | STP, RSTP, MSTP, PVST+, RPVST+ |
Link Aggregation | IEEE 802.3ad LACP, up to 8 LAG groups |
Multicast Functions | IGMP Snooping v1/v2/v3, multicast replication, port multicast filtering |
Port Features | Port mirroring, port isolation, port rate limiting, broadcast/multicast/unicast storm suppression |
Layer 3 Routing | IPv4 & IPv6 static routing, up to 990 IPv4 static routes, DHCP Snooping, DHCP Relay |
Security Functions | 802.1X authentication, web authentication, RADIUS/TACACS+, DoS protection, port security, IP/MAC binding, SSH/HTTPS encrypted management, ARP guard, rogue DHCP blocking |
Cooling Design | Fanless silent design, zero operating noise |
Physical Dimension (W × D × H) | 268 mm × 185 mm × 44 mm (10.55 × 7.28 × 1.73 in), 1U compact rackmount |
Net Unit Weight | 2.49 kg (5.49 lbs) |
Power Input | Built-in universal AC power supply, 100–240V, 50/60Hz |
Idle Power Consumption | 11.8W |
Max Full Load Power (Full PoE Output) | 142.3W |
Operating Temperature | 0°C ~ 40°C, 10%–90% non-condensing humidity |
Storage Temperature | -25°C ~ 70°C, 10%–90% non-condensing humidity |
MTBF (25°C ambient) | 1,920,000 hours |
Installation Method | Standard 19-inch rack mount, desktop placement, wall mount |
Certifications | CE, FCC, UL, CSA, RoHS Compliant |
