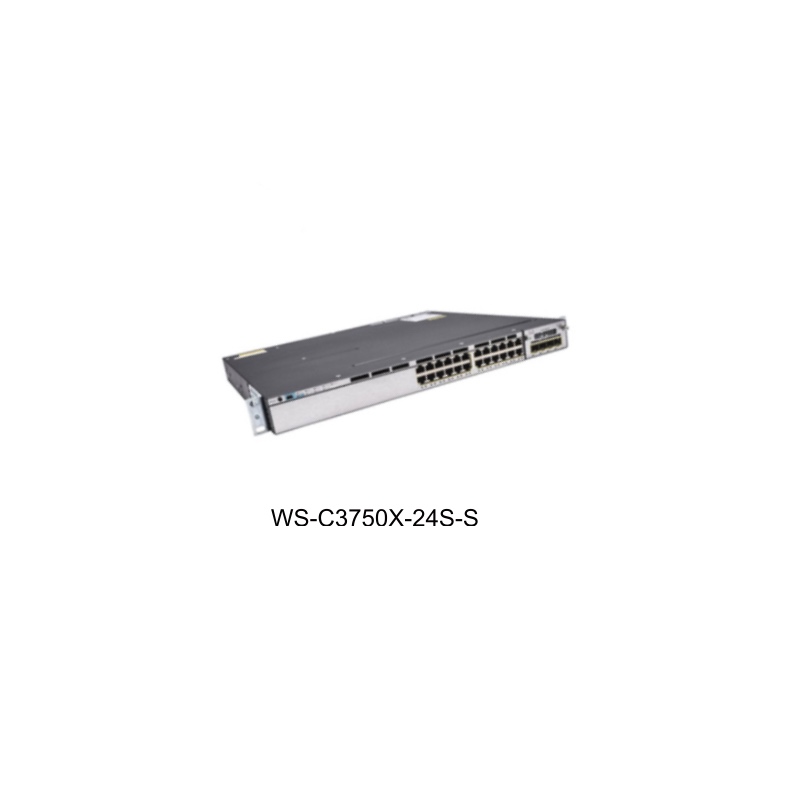

WS-C3750X-24S-S
Cisco
2-3 days
cisco original
1 year
| Size: | |
|---|---|
| Quantity: | |
The Cisco Catalyst 3750-X series switches are an enterprise-class line of stackable switches. These switches provide
high availability, scalability, security, energy efficiency, and ease of operation with features such as Cisco StackPower,
IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, redundant power supplies, and Media Access Control
Security (MACsec) features. The Cisco Catalyst 3750-X series with StackWise Plus technology provides scalability,
ease of management and investment protection for the evolving business needs. The Cisco Catalyst 3750-X series
enhances productivity by enabling applications such as IP telephony, wireless, and video for borderless network
experience.
| Model | WS-C3750X-24S-S |
General | |
General | Switch - 24 ports - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Ports | 24 x Gigabit SFP |
| Performance | Switching fabric bandwidth: 160 Gbps ¦ Forwarding performance: 65.5 Mpps |
| Capacity | Virtual interfaces (VLANs): 1005 ¦ Switched virtual interfaces (SVIs): 1000 |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 9 |
| Qty | 24 |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, RIPng |
| Remote Management Proto | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae |
Miscellaneous | |
| Rack Mounting Kit | Included |
| Included | AS/NZ 3548 Class A, AS/NZS 60950-1, CB, CCC, CISPR 22 Class A, CSA C22.2 No. 60950-1, cUL, EN 60950-1, EN55022 Class A, FCC Part 15 A, GOST, IEC 60950-1, KCC, NOM, RoHS, TUV GS, UL 60950-1, VCCI Class A ITE |
| Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| MTBF | 194,224 hours |
Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Remote Management Proto | CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet, TFTP |
| Data Transfer Rate | 1 Gbps |
| Status Indicators | Link/activity, Port duplex mode, Port status, Port transmission speed, Power, System |
| Cabling Type | Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T |
| Communication Mode | Full-duplex, Half-duplex |
Routing Protocol | HSRP, RIP-1, RIP-2, RIPng, Static IP routing |
| MAC Address Table Size | 4K entries |
| Empty Slots | 1 x Expansion Slot |
| Max Units In A Stack | 9 |
| Advanced Switching | Layer 3 |
| Jumbo Frame Support | 9216 bytes |
| Nominal Voltage | AC 120/230 V |
| Type | Internal power supply |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Interfaces | 12 x SFP (mini-GBIC) ¦ 1 x USB Type A ¦ 1 x console - mini-USB Type B management ¦ 1 x RS-232 - RJ-45 management ¦ 1 x 10Base-T/100Base-TX - RJ-45 management ¦ 2 x network stack device |
| Cables Included | 1x stacking cable |
| Rack Mounting Kit | Rack Mounting Kit |
Capacity | |
| Type | Virtual interfaces (VLANs) |
| Value | 1005 |
Flash Memory | |
| Type | Flash |
| RAM | 512 MB |
| Flash Memory | 128 MB |
Performance | |
| Software | IOS IP Services |
| Warranty | 1 year/90 days |
| Width | 17.5 in |
| Depth | 18.1 in |
| Height | 1.8 in |
