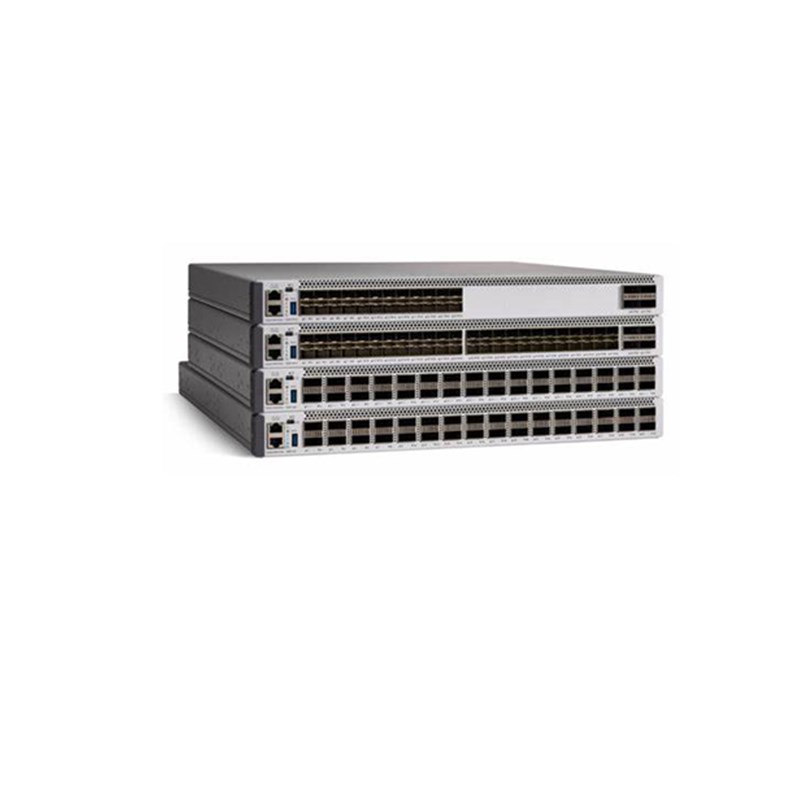

C9500-32QC-A
Cisco
3days
New
1year
| Quantity: | |
|---|---|
Product Description
| C9500-32QC-A | |
| Performance specifications | |
| Switching capacity | Up to 1.6 Tbps |
| Forwarding rate | Up to 1 Bpps |
| Total number of MAC addresses | Up to 82,000 |
| Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) | Up to 212,000 indirect + direct Up to 90,000 host/ARP |
| Total number of IPv6 routes | Up to 212,000 indirect + direct Up to 90,000 host |
| QoS ACL scale | Up to 16000 |
| Security ACL scale | Up to 27000 |
| FNF entries | Up to 98,000 |
| DRAM | 16 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 4000 |
| Jumbo frame | 9216 bytes |
| Power supply specifications | |
| Power Supply Selection | C9K-PWR-650WAC-R or C9K-PWR-930WDC-R |
| Dimensions, physical specifications, weight, and MTBF | |
| Dimensions (H x W x D) | 1.73 x 17.5 x 18.0 in |
| Rack units (RU) | 1 RU |
| Chassis with 2 power supplies and built-In fan | 21.85lLb (9.91 kg) |
| Input voltage | 90 to 264 VAC |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | -4° to 149°F (-20° to 65°C) |
| Relative humidity operating and nonoperating noncondensing | Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Altitude | Operation up to 13,000 feet at 40°C |
| MTBF (hours) | 307,200 |
The Accessories
| Category | Model | Description |
| License | C9500-DNA-L-E-3Y | Catalyst 9500 NW & DNA Essentials. low port density license (3Y) for 12Q, 16X, 24Y4C SKU |
| C9500-DNA-L-E-5Y | Catalyst 9500 NW & DNA Essentials. low port density license (5Y) for 12Q, 16X, 24Y4C SKU | |
| C9500-DNA-L-E-7Y | Catalyst 9500 NW & DNA Essentials. low port density license (7Y) for 12Q, 16X, 24Y4C SKU | |
| C9500-DNA-L-A-3Y | Catalyst 9500 NW & DNA Advantage low port density license (3Y) for 12Q, 16X, 24Y4C SKU | |
| C9500-DNA-L-A-5Y | Catalyst 9500 NW & DNA Advantage low port density license (5Y) for 12Q, 16X, 24Y4C SKU | |
| C9500-DNA-L-A-7Y | Catalyst 9500 NW & DNA Advantage low port density license (7Y) for 12Q, 16X, 24Y4C SKU | |
| Module | C9500-NM-2Q | Cisco Catalyst 9500 2 x 40GE Network Module |
| C9500-NM-8X | Cisco Catalyst 9500 8 x 10GE Network Module |
