An effective work environment encourages collaboration. That often means tearing down office walls to create open
workspaces. With their quiet, fan-less design, the switches create many possibilities for designing workspaces.
They can reside nearly anywhere outside your wiring closet. Install them in carpeted areas such as offices,
conference rooms, classrooms, and retail stores for quick, flexible connections. Rearrange rooms and floors
without changing your cabling infrastructure. Consolidate cabling for big savings. Rather than running multiple
Ethernet cables from endpoints like IP phones and Wi-Fi access points to a wiring closet, you just connect
devices over a few feet of cabling to a nearby 3560-CX switch. Then connect the compact switch to the
wiring closet with a single Ethernet or fiber cable. Using this setup, a 200-room hotel using compact
switches in guest rooms can eliminate up to 30 kilometers of cables.

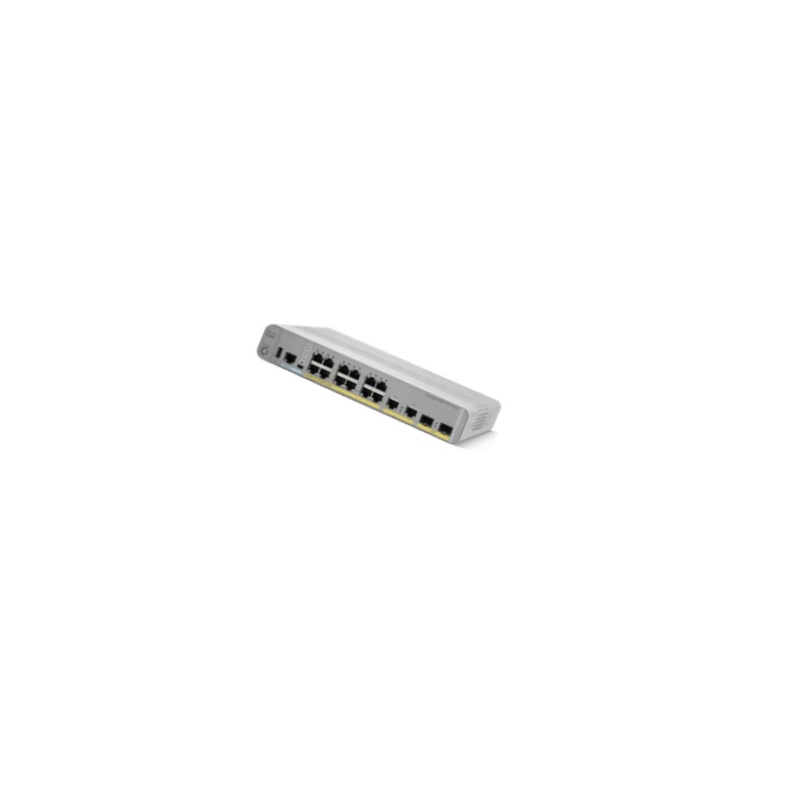

| Model | WS-C3560CX-12TC-S |
Dimensions & Weight | |
General | Switch - 12 ports - managed - stackable |
| Width | 10.6 in |
| Depth | 8.4in |
| Height | 1.7in |
| Weight | 3.9 lbs |
Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113.F |
| Humidity Range Operating | 5-95% |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Flash Memory | |
| Installed Size | 128 MB |
Header | |
| Compatibility | pc |
| Manufacturer | cisco |
| Packaged Quantity | 1 |
| Product Line | Cisco Catalyst |
| Model | 3560CX-12TC-S |
Interface Provided | |
| Qty | 12 |
| Comments | PoE+ |
| Type | 1000Base-T |
| Connector Type | SFP |
Miscellaneous | |
| Compliant Standards | AS/NZ 3548 Class A, CB, CSA C22.2 No. 60950-00, cUL, EN 60950, EN55022, EN55024, FCC Class A certified, FCC Part 15, IEC 60950, MIC, NOM, TUV GS, UL, UL 60950 Third Edition, VCCI Class A ITE |
| Authentication Method | Kerberos, RADIUS, Secure Shell v.2 (SSH2), TACACS+ |
| Remote Management Proto | CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet, TFTP |
| MTBF | 755,270 hours |
| Height (Rack Units) | 1 |
Performance | |
| Type | Forwarding performance (64-byte packet size) |
Value | 23.8 Mpps |
| Ports | |
| Qty | 12 |
| Type | 10/100/1000 |
Ports (2nd) | |
| Qty | 2 |
| Type | Combo Gigabit SFP |
Power Device | |
| Frequency Required | 50/60 Hz |
| Power Consumption Opera | 300 Watt |
| Nominal Voltage | AC 120/230 V |
| Type | Internal power supply |
RAM | |
| Installed Size | 512 MB |
Service &Support | |
| Type | Limited lifetime warranty |
Software | |
| Type | Switch |
| Remote Management Proto | HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, Telnet |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Features | Access Control List (ACL) support, Auto-negotiation, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), DHCP server, DHCP snooping, DHCP support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Full duplex capability, IGMP snooping, IP-routing, Layer 2 switching, Layer 3 switching, Manageable, MLD snooping, MPLS support, Port Aggregation Protocol (PAgP) support, Power over Ethernet (PoE), Quality of Service (QoS), Time Domain Reflectometry (TDR), Traffic shaping, Trivial File Transfer Protocol (TFTP) support, Trunking, Virtual Route Forwarding-Lite (VRF-Lite), VLAN support |
| Subcategory | Network hubs and switches |
| Power Over Ethernet (PoE) | Not PoE+ |
| Advanced Switching | Layer 3 |
| Routing Protocol | RIP-1, RIP-2, Static IP routing |
| PoE Budget | 240 W |
