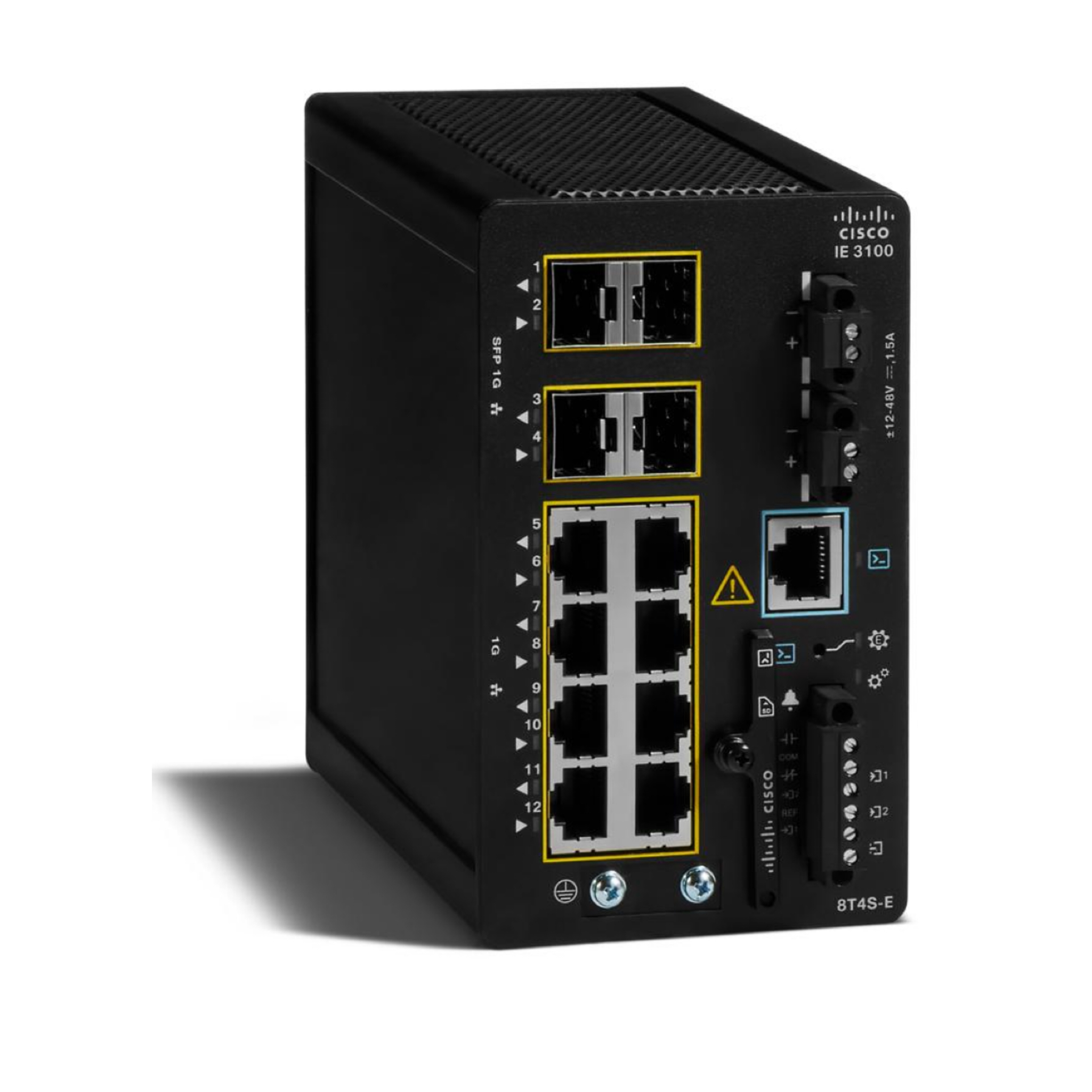

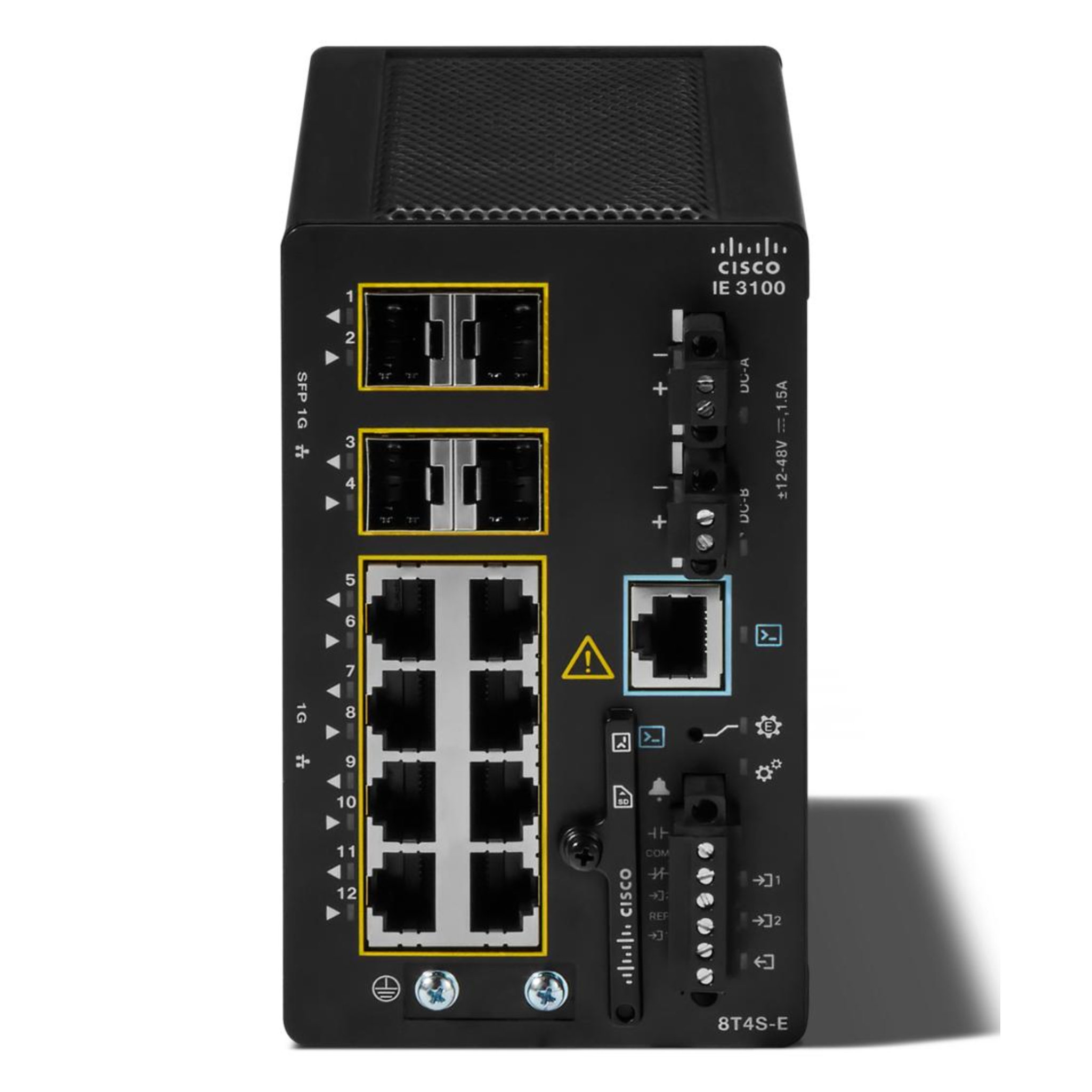

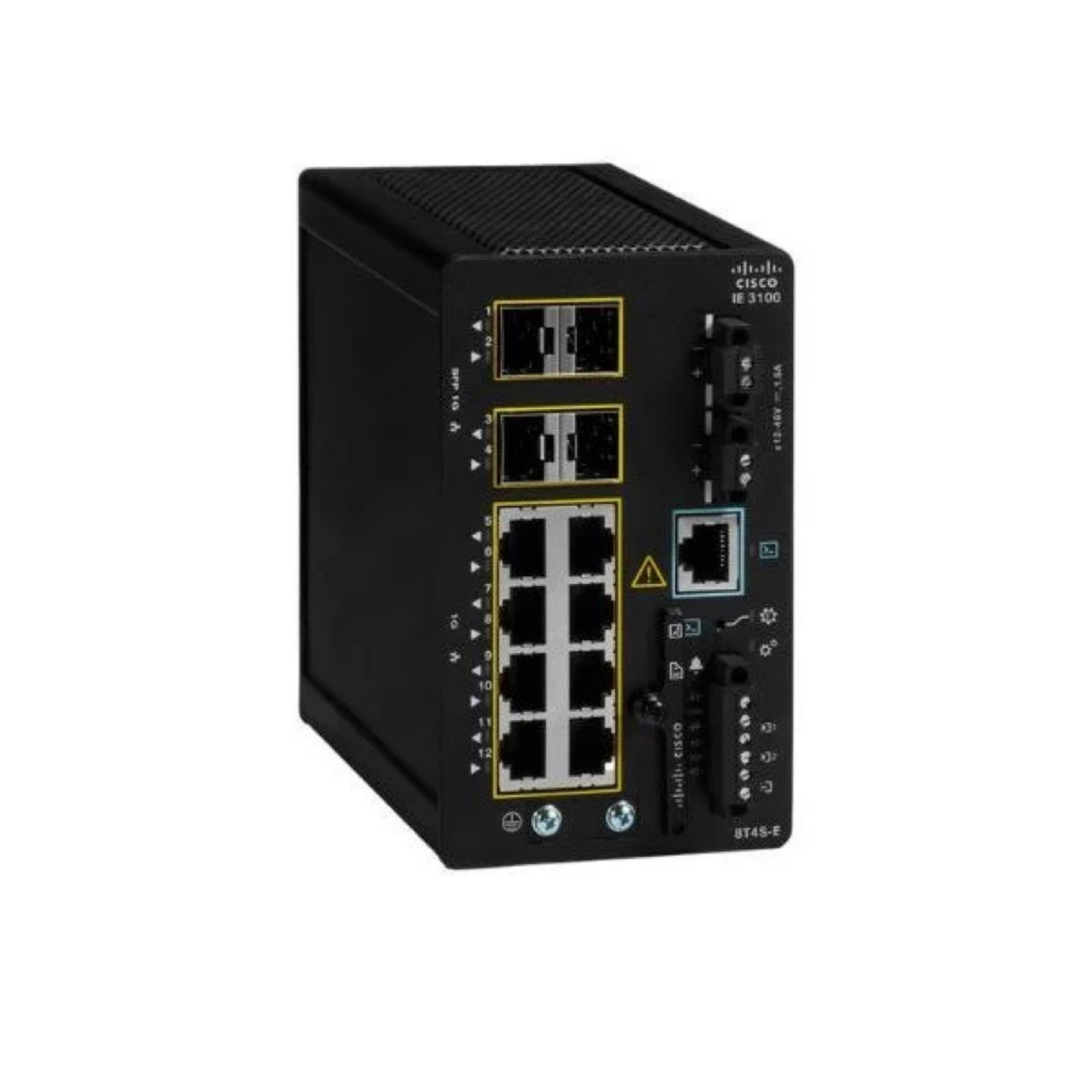

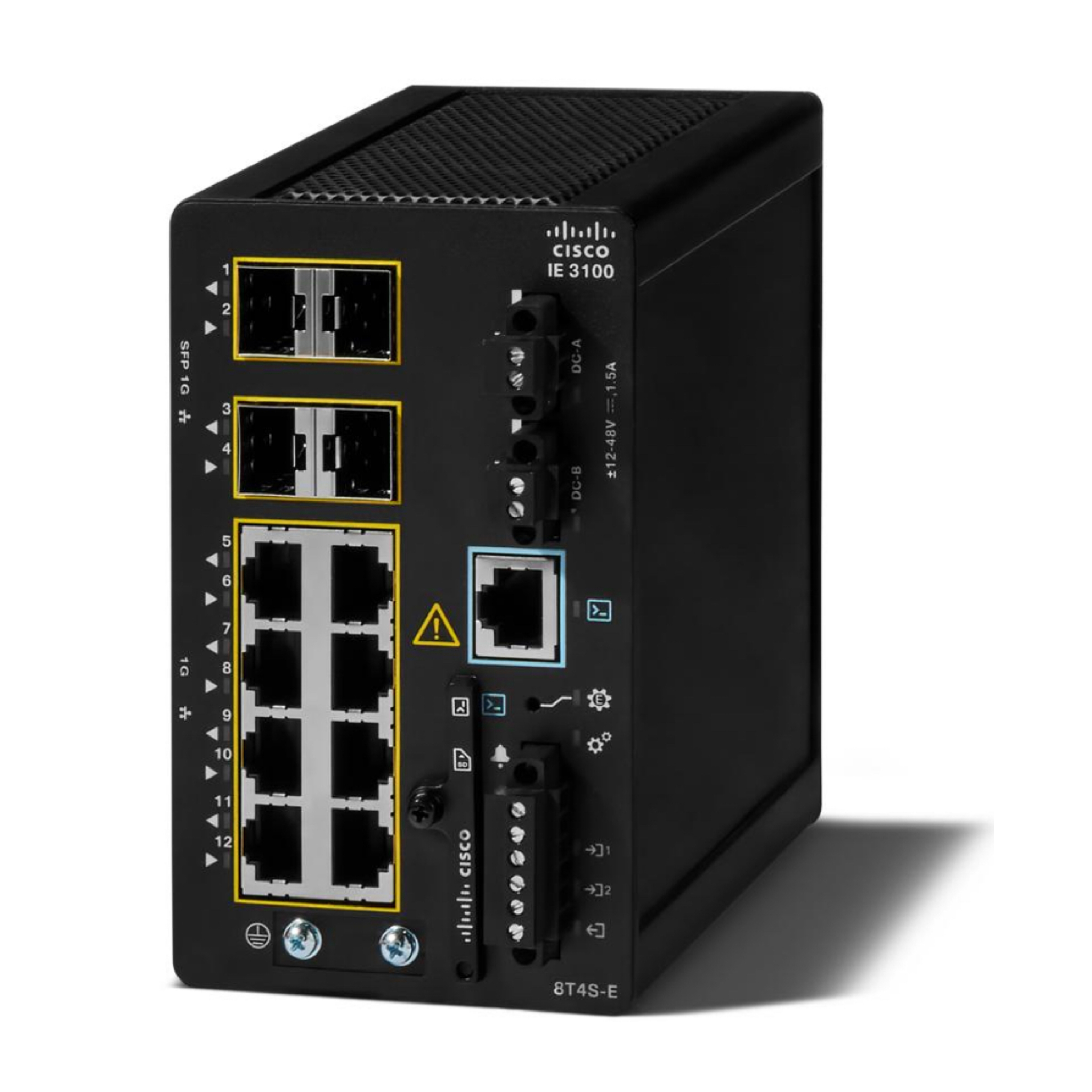

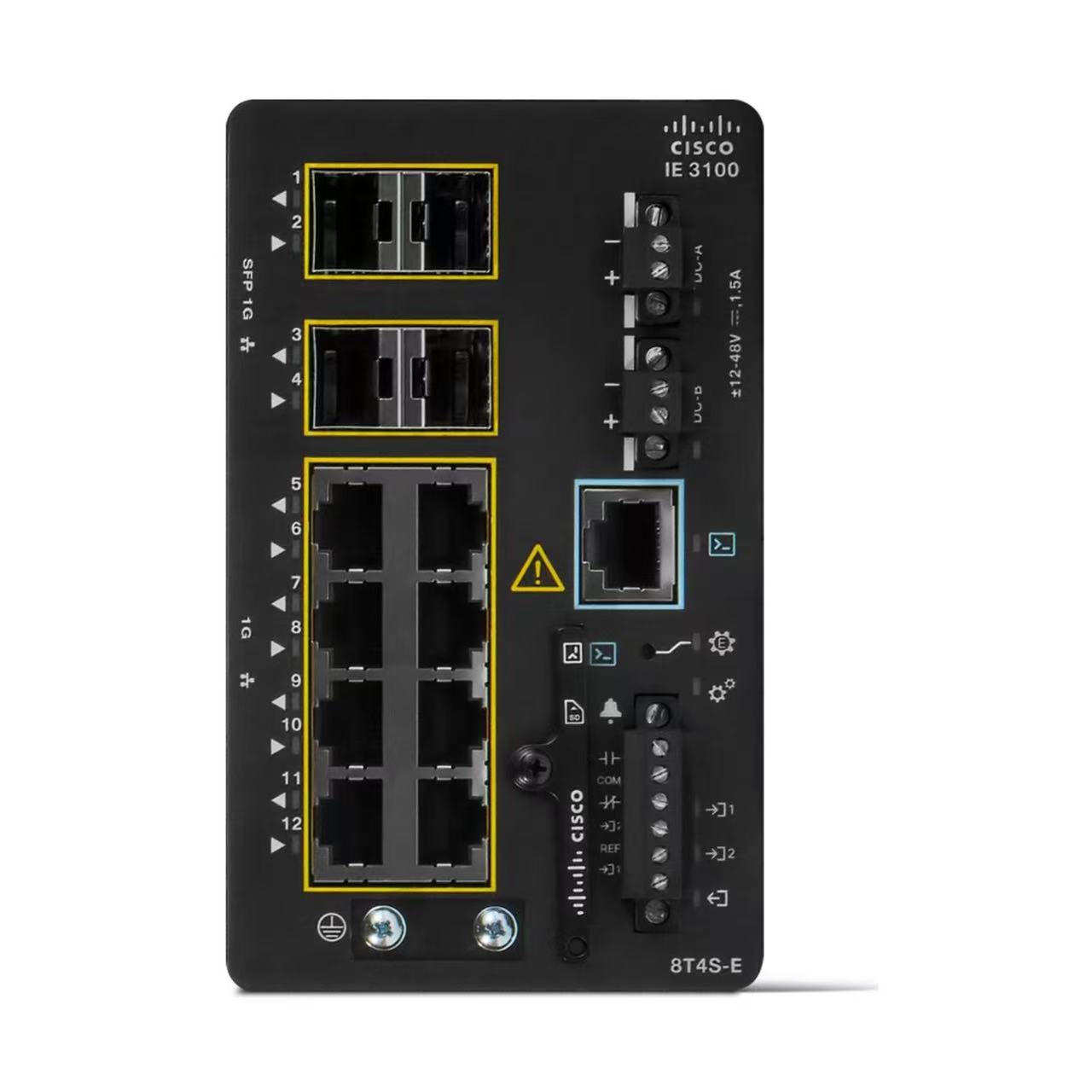

Cisco IE-3100-8T4S-E Catalyst IE3100 w/8 Ports GE Copper and 4 GE SFP uplinks

Share to:

Cisco IE-3100-8T4S-E Catalyst IE3100 w/8 Ports GE Copper and 4 GE SFP uplinks

The Cisco IE-3100-8T4S-E is a ruggedized industrial Ethernet switch designed to deliver secure, high-performance, and reliable networking for harsh industrial environments. Featuring 8 Gigabit RJ45 Ethernet ports and 4 Gigabit SFP fiber uplink ports, it provides flexible connectivity for industrial automation, manufacturing, transportation, energy, utilities, mining, and smart infrastructure applications. Built to withstand extreme temperatures, vibration, shock, and electromagnetic interference, the IE-3100-8T4S-E ensures continuous operation in demanding field deployments while supporting advanced Layer 2 switching capabilities, comprehensive security features, and simplified network management. With support for industrial redundancy protocols, Quality of Service (QoS), VLANs, Access Control Lists (ACLs), IEEE 802.1X authentication, and seamless integration with Cisco industrial networking solutions, this managed switch helps maximize network availability, protect critical industrial assets, and optimize operational efficiency. Its compact DIN-rail mounting design enables easy installation in control cabinets and remote locations, making it an ideal choice for Industrial IoT (IIoT), factory automation, process control, intelligent transportation systems, and mission-critical industrial Ethernet networks. The Cisco IE-3100-8T4S-E offers enterprise-grade reliability, scalability, and long-term investment protection for organizations seeking a secure and future-ready industrial networking solution.

Model:
IE-3100-8T4S-E
Brand:
Cisco
Condition:
Original New
Warranty:
1 year

Availability:

Quantity:



Inquire Add to Basket

Item	Official Specification
Model Number	IE-3100-8T4S-E
Product Series	Cisco Catalyst IE3100 Rugged Industrial Managed Switch
Software License	Network Essentials (E)
Application Scenarios	Factory Automation, Power Substations, Intelligent Transportation, Smart City, Warehouse Logistics, Outdoor Edge Networking
Total Ports	12 ports total
Access Downlink Ports	8 × 10/100/1000BASE-T RJ45, Non-PoE
Uplink Slots	4 × 1G SFP fiber uplink slots
Console Interface	RJ45 Ethernet Console port
Switching Bandwidth	12 Gbps
64-byte Packet Forwarding Rate	17.856 Mpps
MAC Address Table	16,000 MAC entries
DRAM / Flash Memory	4 GB DRAM, 1.5 GB Flash Storage
Jumbo Frame Support	Up to 9000 bytes
QoS	8 hardware queues per port, WRR & strict priority scheduling
VLAN Support	Max 4093 VLANs, 802.1Q tagging, Voice VLAN
Spanning Tree Protocols	STP, RSTP, MSTP, REP, MRP industrial ring protocols
Link Aggregation	IEEE 802.3ad LACP, static LAG groups
Multicast Functions	IGMP Snooping v1/v2/v3, Multicast Filtering
Industrial Automation Protocols	PROFINET, EtherNet/IP (CIP), Modbus TCP, IEEE 1588v2 PTP
Layer 2 Security	802.1X authentication, Port Security, ACL, DHCP Snooping, ARP Guard, DoS protection, SSH/HTTPS encrypted management
Industrial Resilience	Dual redundant DC power inputs, fanless convection cooling, shock & vibration resistant
Power Input Range	9.6V – 60V DC (12V/24V/48V industrial power supply)
Typical Power Consumption	17.8 W
Cooling Design	Fanless, zero noise, maintenance-free
Physical Dimensions (H × W × D)	127 mm × 76.2 mm × 130 mm (5.00 × 3.00 × 5.12 in)
Net Weight	1.04 kg (2.3 lbs)
Mounting Method	DIN rail mounting, wall mount optional
Operating Temperature	-40°C ~ +75°C (-40°F ~ 167°F)
Operating Humidity	5% – 95% non-condensing
Max Operating Altitude	12,192 m
Storage Temperature	-40°C ~ +85°C
MTBF (25°C Ambient)	575,966 hours
Warranty	5-year limited hardware warranty
Regulatory Certifications	CE, FCC, UL, CSA, IEC 61010, IEC 60068 industrial shock/vibration compliance, RoHS
Management Tools	Local Web UI, CLI, Cisco Catalyst Center, Cisco Business Dashboard, REST API
