MS425-16-HW
Meraki
100% Original Brand
1 Year
| Color: | |
|---|---|
| Size: | |
| Quantity: | |

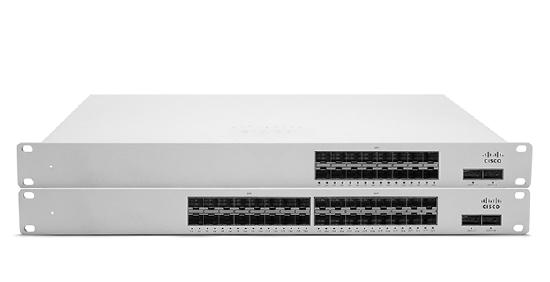

The Cisco Meraki MS400 Series brings powerful cloud-managed switching to the aggregation layer. This range of 1 and 10Gbps fiber aggregation switches adopts the benefits of the cloud: simplified management, reduced complexity, network wide visibility and control, and lower cost for campus deployments.
Cisco Meraki aggregation switches extend Cisco Meraki's cloud management to campus deployments. Just like our access switches, these 10 Gigabit Ethernet aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Cisco Meraki switch, just plug it in; there's no need for complicated configuration files — or pre-staging.

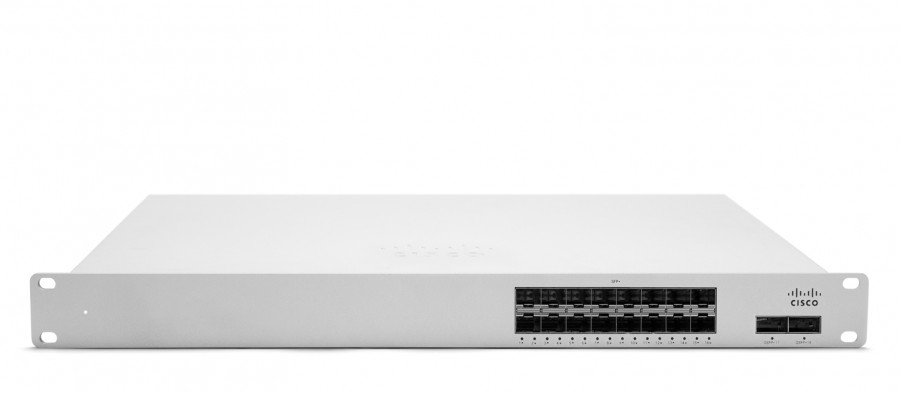

16 Port 10 Gigabit Ethernet aggregation switch
Hardware platform
16 × 10GbE SFP+
2 × 40GbE QSFP+ uplink/stacking ports
1 × 10/100/1000 RJ45 management port
Non-blocking switch fabric
480Gbps switching capacity
Compact design (1 RU) for space-constrained environments
Ultra-reliable, includes lifetime warranty
Switching capabilities
802.1p Quality of Service prioritization
802.1Q VLAN tagging for up to 4095 VLANs
802.1D Spanning Tree Protocol (STP) and
802.1w Rapid Spanning Tree Broadcast storm control
Dynamic routing (OSPFv2)
Static routing
DHCP Relay
DHCP Server
First of a kind UI-based configuration
Easy to configure routed interfaces
Warm spare redundancy (VRRP)
DHCP Failover
Cloud management
Unified switch management from aggregation to access layers
Visibility and control over thousands of ports
Built-in multi-site management
Zero touch provisioning
Monitoring and diagnostics
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts
The Cisco Meraki MS400 Series brings powerful cloud-managed switching to the aggregation layer. This range of 1 and 10Gbps fiber aggregation switches adopts the benefits of the cloud: simplified management, reduced complexity, network wide visibility and control, and lower cost for campus deployments.
Cisco Meraki aggregation switches extend Cisco Meraki's cloud management to campus deployments. Just like our access switches, these 10 Gigabit Ethernet aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Cisco Meraki switch, just plug it in; there's no need for complicated configuration files — or pre-staging.
16 Port 10 Gigabit Ethernet aggregation switch
Hardware platform
16 × 10GbE SFP+
2 × 40GbE QSFP+ uplink/stacking ports
1 × 10/100/1000 RJ45 management port
Non-blocking switch fabric
480Gbps switching capacity
Compact design (1 RU) for space-constrained environments
Ultra-reliable, includes lifetime warranty
Switching capabilities
802.1p Quality of Service prioritization
802.1Q VLAN tagging for up to 4095 VLANs
802.1D Spanning Tree Protocol (STP) and
802.1w Rapid Spanning Tree Broadcast storm control
Dynamic routing (OSPFv2)
Static routing
DHCP Relay
DHCP Server
First of a kind UI-based configuration
Easy to configure routed interfaces
Warm spare redundancy (VRRP)
DHCP Failover
Cloud management
Unified switch management from aggregation to access layers
Visibility and control over thousands of ports
Built-in multi-site management
Zero touch provisioning
Monitoring and diagnostics
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts
