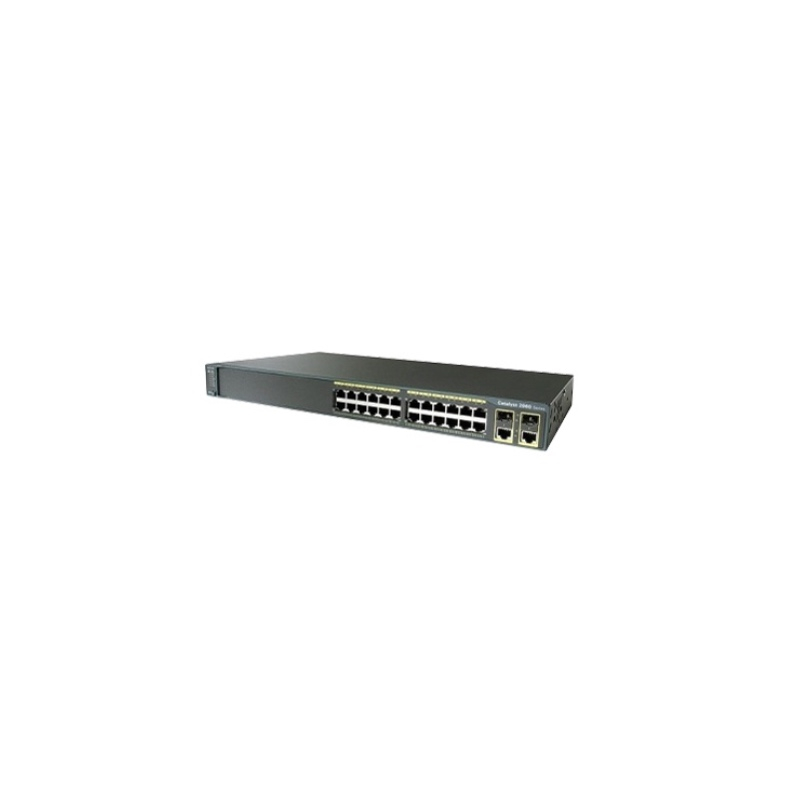

WS-C2960+24LC-L
Cisco
2-3 days
new in box
1 year
| Quantity: | |
|---|---|
Overview(WS-C2960+24LC-L)
Catalyst 2960-Plus Series Switches are fixed-configuration Fast Ethernet switches that provide enterprise-class Layer 2 switching for branch offices, conventional workspaces, and infrastructure applications. They enable reliable and secure operations with lower total cost of ownership through a range of Cisc o IOS software features, including Cisc o Catalyst SmartOperations.
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Header | |
| Compatibility | PC |
| Manufacturer | Systems |
| Packaged Quantity | 1 |
| Product Line | Catalys t |
| Model | C2960+24LC-L |
| Brand | CISC0 |
| Interface Provided | |
| Interface | 24 |
| Connector Type | RJ-45 |
| PoE Power | PoE |
| Qty | 15.4 W |
| Type | 1000Base-T |
| Miscellaneous | |
| Compliant Standards | AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN300-386, EN55022 Class A, EN55024, FCC CFR47 Part 15, FCC Class A certified, ICES-003 Class A, IEC 60950-1 Second Edition, KN22, KN24, RoHS, UL 60950-1 Second Edition, VCCI Class A |
| Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| Rack Mounting Kit | Optional |
| Height (Rack Units) | 1 |
| Networking | |
| Type | Switch |
| Connectivity Technology | Wired |
| Remote Management Proto | HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Status Indicators | Port duplex mode, Port transmission speed, Status, System |
| Ports Qty | 24 |
| Features | Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), BOOTP support, Broadcast Storm Control, DHCP snooping, DHCP support, DiffServ support, Dynamic IP address assignment, Dynamic Trunking Protocol (DTP) support, IGMP snooping, IPv6 support, Layer 2 switching, Link Aggregation Control Protocol (LACP), Load balancing, MAC Address Notification, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Port Security, Power over Ethernet (PoE), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Syslog support, Unicast Storm Control, VLAN support |
| Subcategory | Network hubs and switches |
| MAC Address Table Size | 32000 entries |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Power Over Ethernet (PoE) | Poe |
| Advanced Switching | Layer 3 |
| Manageable | Yes |
| Form Factor | Desktop, Rack-mountable |
| Jumbo Frame Support | Jumbo Frame Support 9018 bytes |
| Subtype | Fast Ethernet |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Nominal Voltage | AC 120/230 V |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Type | Internal power supply |
| Service | |
| Support Details Type | New releases update |
| Support Details Service Inc | Replacement |
| Support Details Full Contract Period | 5 years |
| Slot Provided | |
| Type | Expansion slot |
| Total Qty | 1 |
| Free Qty | 1 |
| Software | |
| Type | IOS LAN Lite |
| Dimensions & Weight | |
| Width | 17.7 in |
| Depth | 13.1 in |
| Height | 1.7 in |
| Weight | 11.9 lbs |
| Service & Support | |
| Type | Limited lifetime warranty |
| Capacity | |
| Type | Switched virtual interfaces (SVIs) |
| Value | 1000 |
| Flash Memory | |
| Installed Size | 64 MB |
| Performance | |
| Type | Switching capacity |
| Value | 92 Gbps |
| Ports | |
| Qty | 24 |
| Type | 10/100 |
| RAM | |
| Installed Size | 128 GB |
