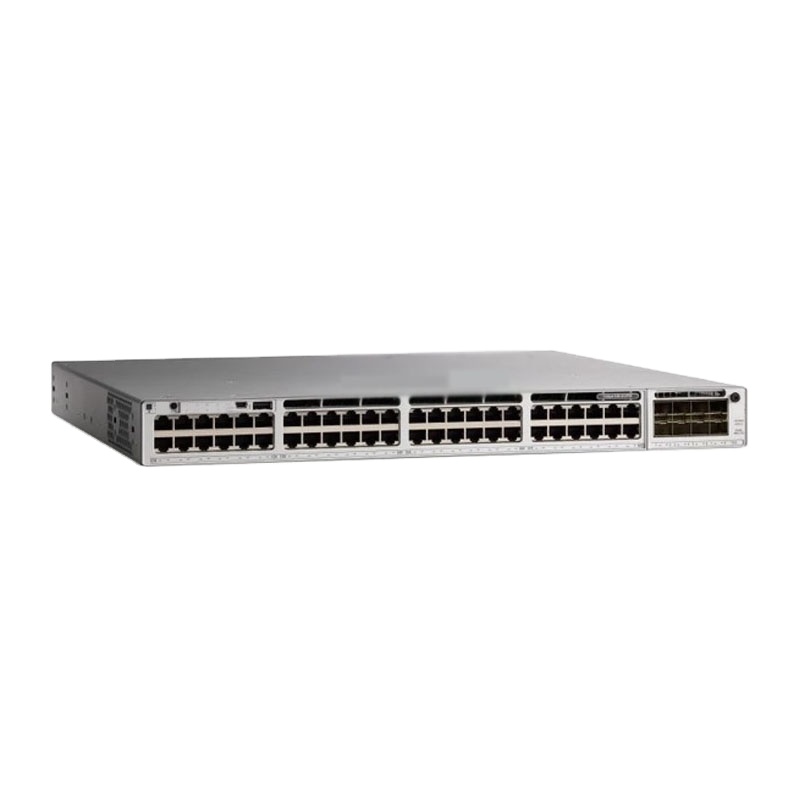

Cisco Poe Power Supply Switch C9300-48UXM-E

  • C9300-48UXM-E

  • Cisco

  • 3days

  • New

  • 1year

Availability:
Quantity:

Product Description


C9300-48UXM-E

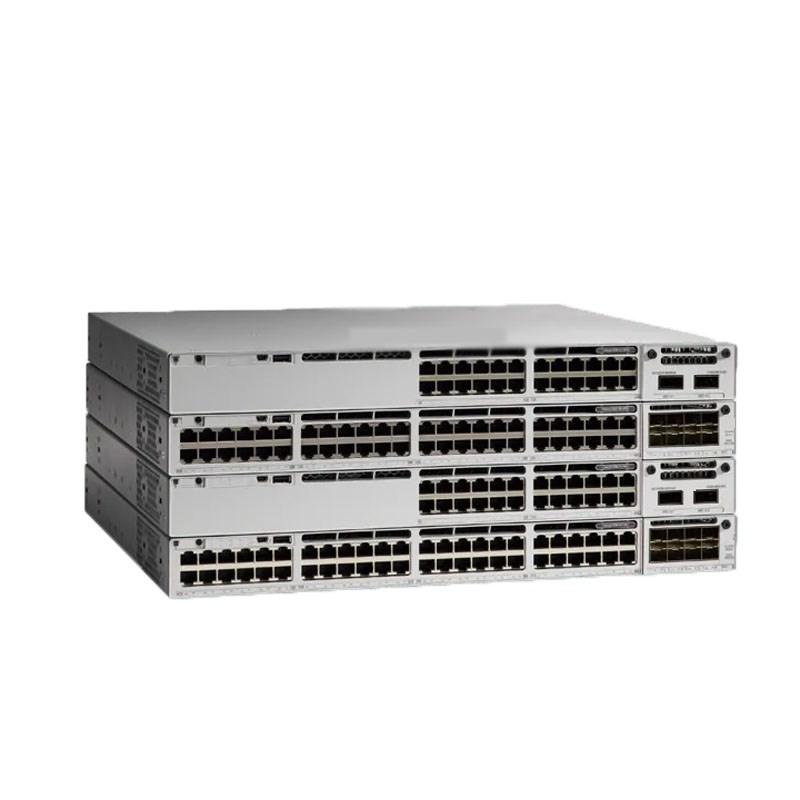

The Cisco® Catalyst® 9300 Series Switches are Cisco's lead stackable enterprise switching platform built for security, IoT,mobility, and cloud. C9300-48T-E is 48-port data only, Network Essentials Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry's most widely deployed switching platform. At 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flflexible uplink architecture. The Catalyst 9300 Series is the fifirst optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future,with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.


Product Details

Model
Total 10/100/1000, Multigigabit copper or SFP Fiber
Uplink Configuration
Stacking bandwidth
Switching capacity
Forwarding rate
Default AC power supply
Available PoE power
C9300-24T
24 Data
Modular Uplinks
480 Gbps
208 Gbps
154.76 Mpps
350W AC
N/A
C9300-48T
48 Data
Modular Uplinks
480 Gbps
256 Gbps
190.47 Mpps
350W AC
N/A
C9300-24P
24 POE+
Modular Uplinks
480 Gbps
208 Gbps
154.76 Mpps
715W AC
445W
C9300-48P
48 POE+
Modular Uplinks
480 Gbps
256 Gbps
190.47 Mpps
715W AC
437W
C9300-24U
24 UPOE
Modular Uplinks
480 Gbps
208 Gbps
154.76 Mpps
1100W AC
830W
C9300-48U
48 UPOE
Modular Uplinks
480 Gbps
256 Gbps
190.48 Mpps
1100W AC
822W
C9300-24UX
24 Multigigabit UPOE (100M, 1G, 2.5G, 5G, or 10 Gbps)
Modular Uplinks
480 Gbps
640 Gbps
476.19 Mpps
1100W AC
560W
C9300-48UXM
48 UPoE 36x 100 Mbps,1G, 2.5G + 12x Multigigabit (100M, 1G, 2.5G, 5G, or 10 Gbps)
Modular Uplinks
480 Gbps
580 Gbps
431.54 Mpps
1100W AC
490W
C9300-48UN
48x 5 Gbps UPOE ports (100M, 1G, 2.5G, 5G)
Modular Uplinks
480 Gbps
640 Gbps
476.19 Mpps
1100W AC
645W
C9300-24UB
24 UPOE
Modular Uplinks
480 Gbps
208 Gbps
154.76 Mpps
1100W AC
830W
C9300-24UXB
24 Multigigabit UPOE (100M, 1G, 2.5G, 5G, or 10 Gbps)
Modular Uplinks
480 Gbps
640 Gbps
476.19 Mpps
1100W AC
560W
C9300-48UB
48 UPOE
Modular Uplinks
480 Gbps
256 Gbps
190.48 Mpps
1100W AC
822W
C9300-24H
24 UPOE+
Modular Uplinks
480 Gbps
208 Gbps
154.76 Mpps
1100W AC
830W
C9300-48H
48 UPOE+
Modular Uplinks
480 Gbps
256 Gbps
190.48 Mpps
1100W AC
822W
C9300-24S
24x 1G SFP
Modular Uplinks
480 Gbps
208 Gbps
154.76 Mpps
715W AC
N/A
C9300-48S
48x 1G SFP
Modular Uplinks
480 Gbps
256 Gbps
190.47 Mpps
715W AC
N/A








Fixed uplink models
Model
Total 10/100/1000, Multigigabit copper or SFP Fiber
Uplink Configuration
Stacking bandwidth
Switching capacity
Forwarding rate
Default AC power supply
Available PoE power
C9300L-24T-4G
24 Data
4x 1G fixed uplinks
320 Gbps
56 Gbps
41.66 Mpps
350W AC
N/A
C9300L-24T-4X
24 Data
4x 10G fixed uplinks
320 Gbps
128 Gbps
95.23 Mpps
350W AC
N/A
C9300L-48T-4G
48 Data
4x 1G fixed uplinks
320 Gbps
104 Gbps
77.38 Mpps
350W AC
N/A
C9300L-48T-4X
48 Data
4x 10G fixed uplinks
320 Gbps
176 Gbps
130.95 Mpps
350W AC
N/A
C9300L-24P-4G
24 PoE+
4x 1G fixed uplinks
320 Gbps
56 Gbps
41.66 Mpps
715WAC
505W
C9300L-24P-4X
24 PoE+
4x 10G fixed uplinks
320 Gbps
128 Gbps
95.23 Mpps
715WAC
505W
C9300L-48P-4G
48 PoE+
4x 1G fixed uplinks
320 Gbps
104 Gbps
77.38 Mpps
715WAC
505W
C9300L-48P-4X
48 PoE+
4x 10G fixed uplinks
320 Gbps
176 Gbps
130.95 Mpps
715WAC
505W
C9300L-48PF-4G
48 PoE+
4x 1G fixed uplinks
320 Gbps
104 Gbps
77.38 Mpps
1100W AC
890W
C9300L-48PF-4X
48 PoE+
4x 10G fixed uplinks
320 Gbps
176 Gbps
130.95 Mpps
1100W AC
890W
C9300L-24UXG-4X
24 UPoE 8xmGig(100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G
4x 10G fixed uplinks
320 Gbps
272 Gbps
202.38 Mpps
1100W AC
880W
C9300L-24UXG-2Q
24 UPoE 8xmGig(100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G
2x 40G fixed uplinks
320 Gbps
352 Gbps
261.90 Mpps
1100W AC
722W
C9300L-48UXG-4X
48 UPoE 12xmGig(100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G
4x 10G fixed uplinks
320 Gbps
392 Gbps
291.66 Mpps
1100W AC
675W
C9300L-48UXG-2Q
48 UPoE 12xmGig(100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G
2x 40G fixed uplinks
320 Gbps
472 Gbps
351.19 Mpps
1100W AC
675W
